Gabion Basket

1. Site Preparation & Foundation Leveling

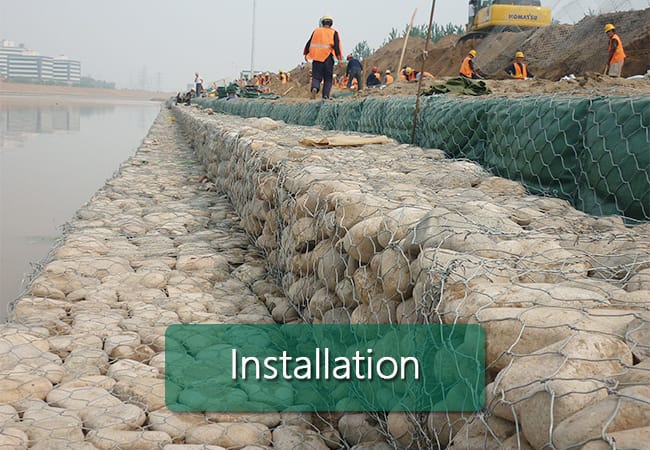

Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with compacted gravel or sand to ensure that the gabion baskets can be placed stably and evenly. Next, according to the design drawings and actual installation requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and placement position of each gabion basket. The foundation should be compacted to achieve sufficient bearing capacity, and a layer of gravel cushion can be laid to improve drainage and stability. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire gabion basket structure.

2. Gabion Basket Unfolding & Assembly

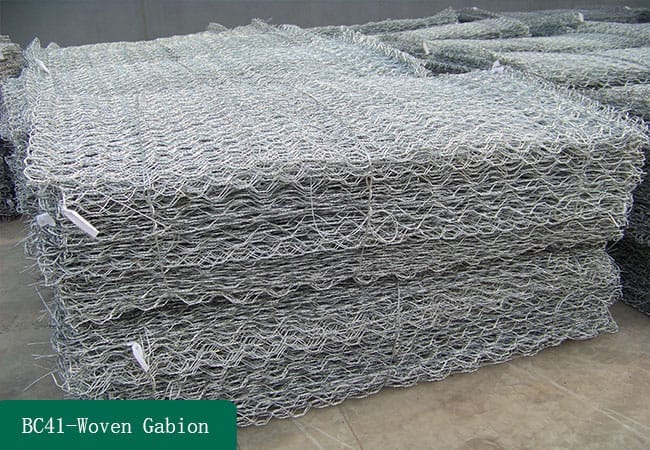

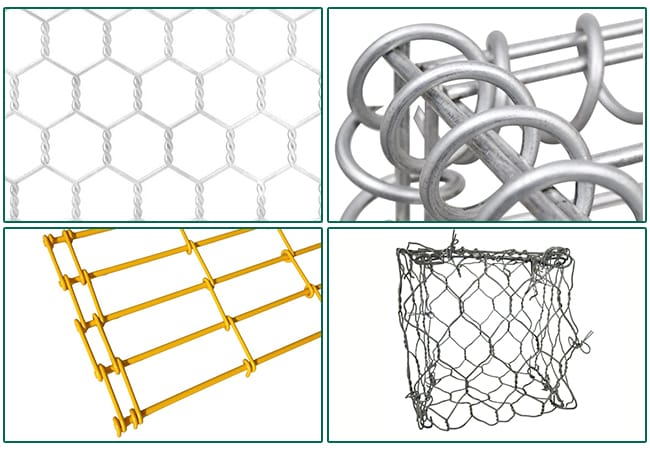

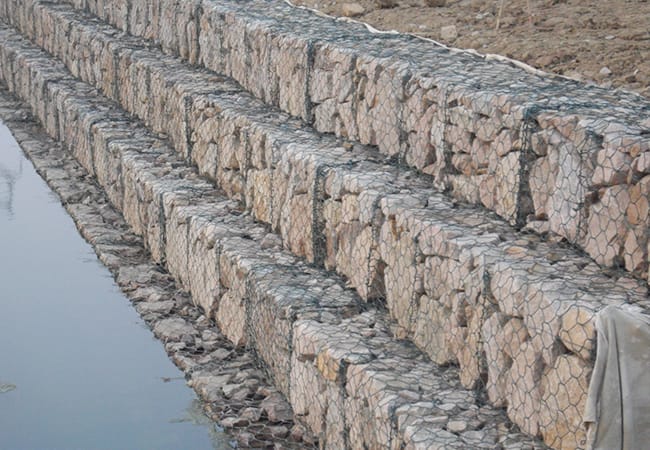

Gabion basket unfolding and assembly are core links affecting the overall stability of the structure, and every detail needs to be strictly controlled. First, unfold the folded gabion baskets on the leveled foundation and check for any damage or deformation; ensure all mesh panels and connecting wires are intact. Then, assemble the baskets into a rigid box structure: erect the side panels and secure them with the provided spiral connectors or binding wires at all joints, ensuring tight and firm connections. Align the baskets accurately along the marked lines, and connect adjacent baskets transversely and longitudinally to form an integrated unit. For multi-layer construction, place the upper-layer baskets with a proper overlap or step pattern to enhance structural stability and load-bearing performance. Check the squareness and alignment of each basket to avoid skewing during filling.

3. Stone Filling & Compaction

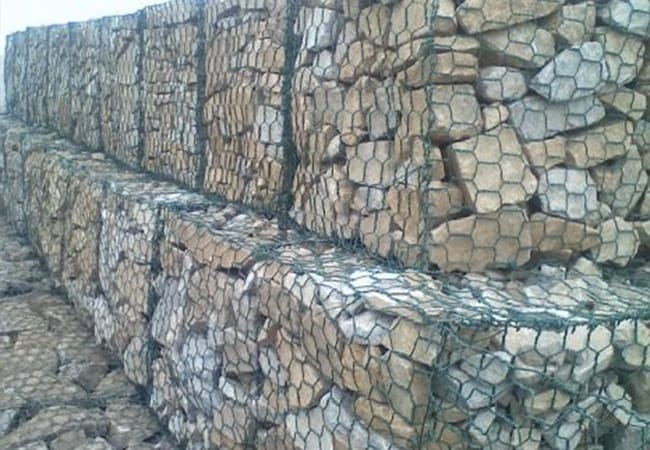

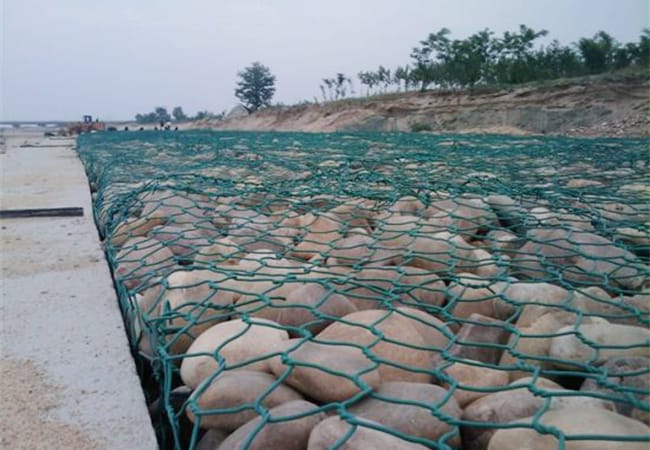

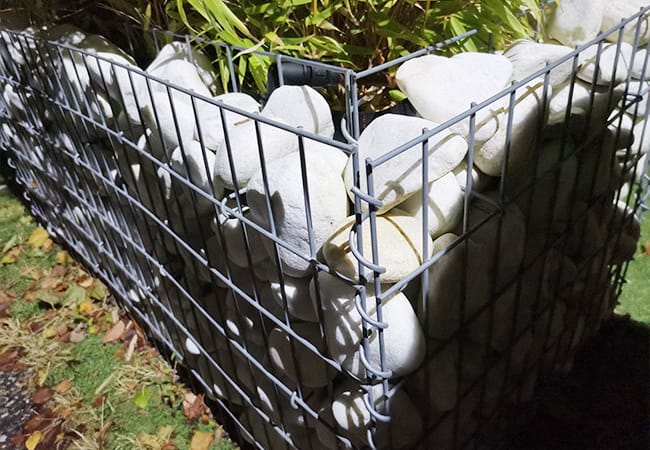

After the gabion baskets are fully assembled and fixed, stone filling can be carried out. First, select durable, non-porous, and weather-resistant natural stones (such as granite, basalt) with appropriate particle size matching the basket mesh. During filling, place larger stones at the outer sides and corners to maintain a neat appearance, and fill smaller stones in the internal gaps to ensure compactness. Fill the stones evenly layer by layer, and manually compact the filling to eliminate voids; avoid overfilling to prevent basket deformation. For multi-box structures, fill the baskets in sections to maintain structural balance. Ensure the stone surface is flat and the basket mesh is not distorted, which guarantees the structure’s stability and aesthetic effect.

4. Lid Closing & Tightening

Lid closing and tightening directly affect the structural integrity and service life of the gabion basket. First, after stone filling is completed, cover the top of the gabion basket with the pre-attached lid panel. Use heavy-duty binding wires or spiral connectors to securely fasten the lid to the side frames at intervals of 20–25 cm, ensuring all connections are tight and firm. Connect the lids of adjacent baskets together to enhance overall integration. Pay special attention to tightening the corners and edges to prevent stone spillage or mesh loosening. Double-check all connection points to ensure no gaps or loose wires, which provides reliable protection for long-term use.

5. Alignment & Stability Check

After the installation and filling of gabion baskets are completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the verticality and levelness of each basket: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the design. Then, check the overall straightness and structural stability: gently push the structure to ensure no obvious shaking or displacement. Check the tightness of all wire connections and the compactness of stone filling. If any problems are found (such as skewing, loose connections, uneven filling), adjust and reinforce them immediately to ensure structural safety and durability.

6. Site Cleaning & Final Acceptance

The final step of the installation process is site cleaning and acceptance, which ensures the aesthetic appearance of the structure and confirms that the installation is up to standard. First, remove excess stones, debris, and wire scraps from the construction site, and clean the surface of the gabion baskets to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and installation standards: check the basket dimensions, alignment, verticality, filling compactness, and connection firmness; check for mesh damage, rust, or loose components; verify drainage performance and structural stability. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the acceptance standards.

Note

During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the gabion basket surface during installation to avoid damage to the surface treatment layer (such as galvanizing, PVC coating) which may affect the corrosion resistance and service life of the structure.
