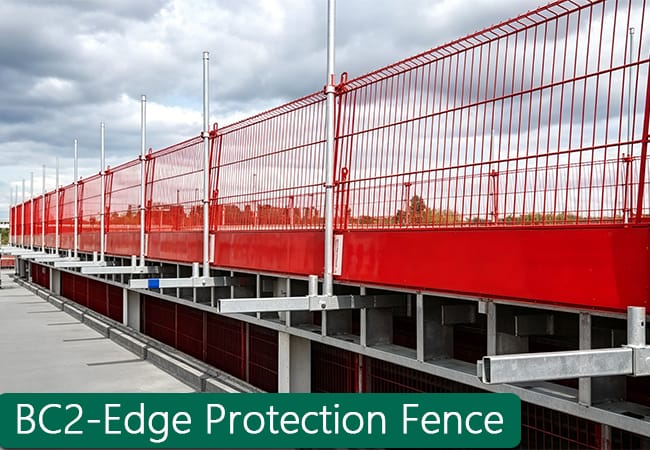

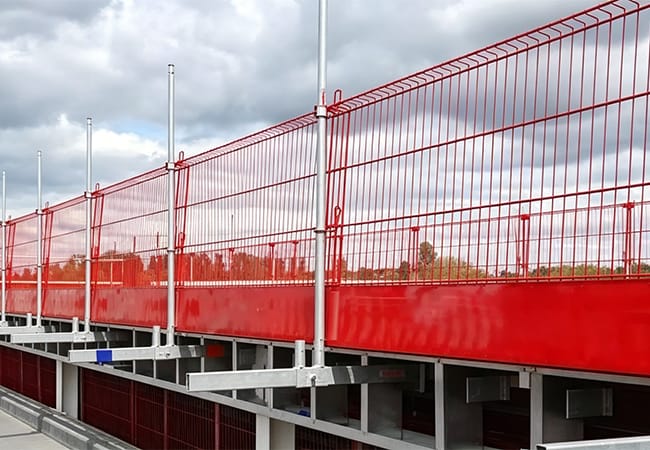

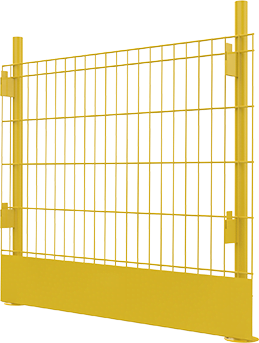

Edge Protection Fence

1. Site Preparation & Position Marking

Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as construction waste, tools, and sundries that may affect the installation, and clean the edge surface (such as floor edges, stairwells, roof perimeters) to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation surface; if there are local uneven areas, adjust them with padding materials to ensure that the edge protection fence posts and panels can be installed stably and evenly. Next, according to the design drawings and safety standards, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and installation position of each fence post. The installation surface should be checked for bearing capacity to ensure it can withstand the fence’s weight and impact force. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire edge protection fence structure.

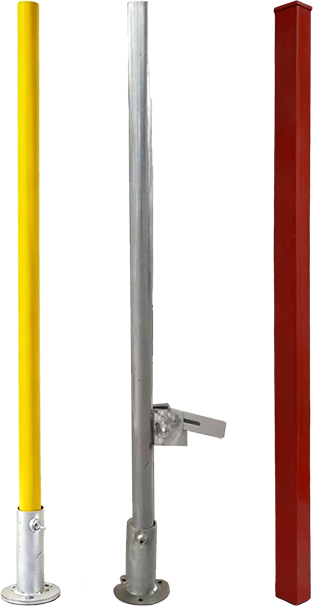

2. Fence Post Fixing & Positioning

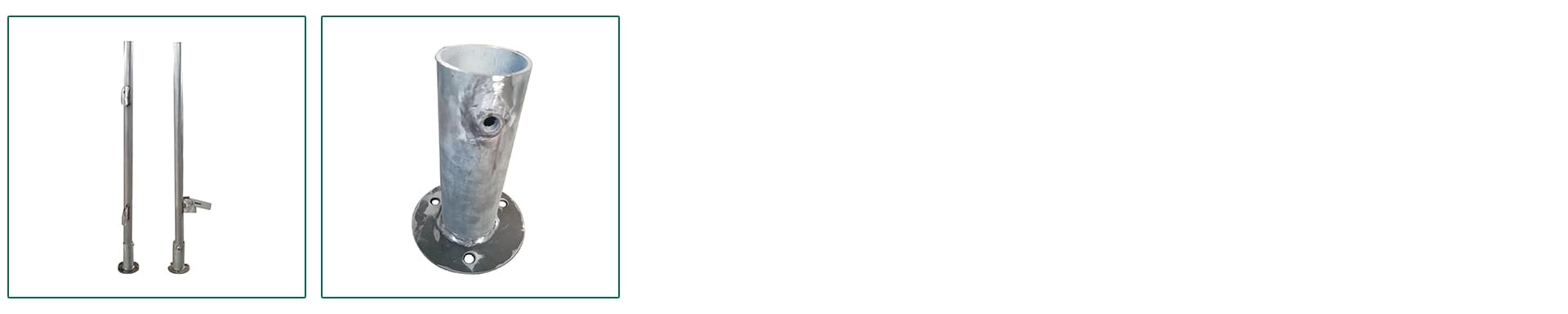

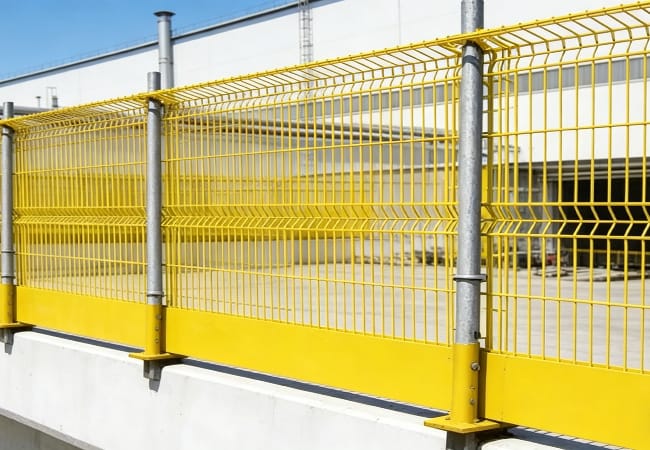

Fence post fixing and positioning are core links affecting the overall stability of the edge protection fence, and every detail needs to be strictly controlled. First, install the fence posts accurately along the marked lines, keeping equal spacing between each post as designed (usually 1.5-2 meters). For floor edge installation, use expansion bolts to firmly fix the posts to the floor; for roof or stairwell installation, use welding or specialized connectors to secure the posts to the structural beam. Align the posts accurately along the marked lines, ensuring they are vertical and firm without tilting. For high-altitude edges, install additional reinforcement brackets at the bottom of the posts to enhance stability. Check the verticality and alignment of each post to avoid skewing during panel installation.

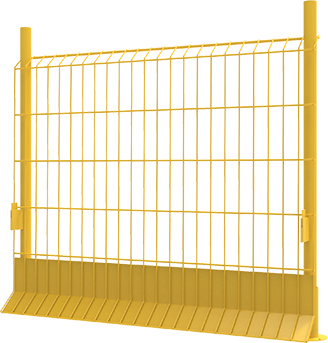

3. Fence Panel Installation & Connection

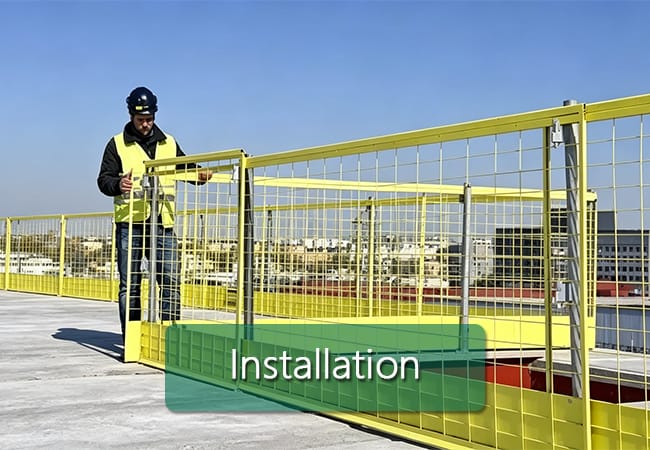

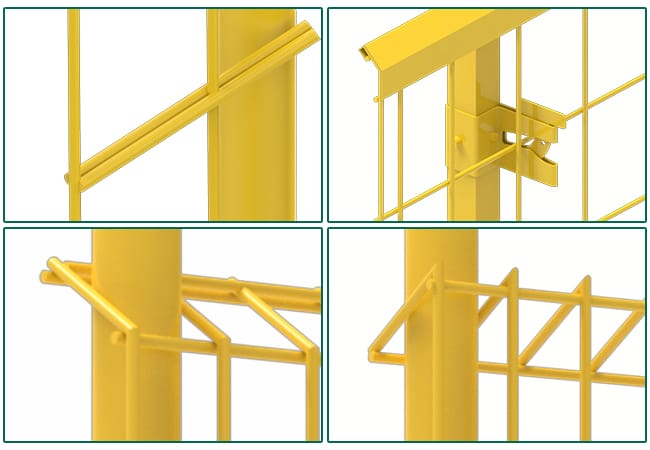

After the fence posts are fully fixed, edge protection fence panel installation can be carried out. First, lift the fence panels carefully and align them with the pre-drilled holes on the posts. During installation, adjust the height and position of the panels to maintain a neat and uniform appearance, ensuring horizontal and vertical alignment (the panel height should meet safety standards, generally not less than 1.2 meters). Connect the panels and posts firmly with high-strength bolts and nuts, and add anti-loosening washers to prevent loosening due to vibration. For corner or turning positions, install specialized corner panels to ensure seamless connection and overall stability. Ensure the panel surface is flat and the structure is not distorted, which guarantees the fence’s anti-fall protection effect.

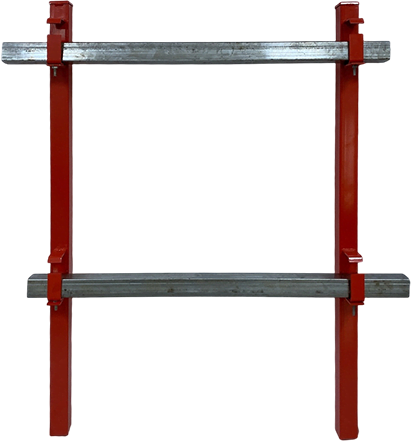

4. Handrail & Mid-Rail Installation

Handrail and mid-rail installation directly affect the structural integrity and safety performance of the edge protection fence. First, install the top handrail on the fence posts, ensuring it is level and firmly connected with bolts. Then, install the mid-rail (usually 0.6-0.8 meters above the installation surface) between the posts to enhance anti-fall protection and prevent small objects from falling. Secure the mid-rail to the posts with connectors at intervals of 30-40 cm, ensuring all connections are tight and firm. Pay special attention to the connection of handrails and mid-rails at corners and joints to avoid gaps. Double-check all connection points to ensure no loose parts, which provides reliable high-altitude protection for construction personnel.

5. Alignment & Stability Check

After the installation of posts, panels, handrails and mid-rails are completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets safety standards. First, use a level and plumb line to check the verticality of the posts and the levelness of handrails/mid-rails: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the design. Then, check the overall straightness and structural stability: apply impact force to the panels and handrails to ensure no obvious shaking or displacement. Check the tightness of all bolts and connectors, and the firmness of post fixing. If any problems are found (such as skewing, loose connections, uneven panels), adjust and reinforce them immediately to ensure structural safety and anti-fall performance.

6. Site Cleaning & Final Acceptance

The final step of the installation process is site cleaning and acceptance, which ensures the neat appearance of the fence and confirms that the installation is up to standard. First, remove excess construction debris, bolt scraps and installation tools from the site, and clean the surface of the edge protection fence to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and safety standards: check the fence dimensions, alignment, verticality, panel and handrail installation, and connection firmness; check for surface damage, rust, or loose components; verify anti-fall performance and structural stability. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet safety standards.

Note

During the entire installation process, construction personnel should wear full protective equipment (such as safety helmets, safety belts, gloves and safety shoes) to ensure high-altitude construction safety. In addition, pay attention to the protection of the edge protection fence surface during installation to avoid damage to the surface treatment layer (such as galvanizing, PVC coating) which may affect the corrosion resistance and service life of the fence. It is strictly prohibited to modify or disassemble the fence without permission during use.
