Gate Core Advantages
Premium steel frame + welded mesh or tubular infill – resists cutting and climbing.2. Corrosion & Weather Resistant
Hot‑dip galvanized + powder coating – long life in rain, sun or coastal air.3. Smooth Operation & Security
Heavy‑duty hinges, latches, and lock housings. Sliding gates with roller track.4. Fully Customizable
Width 0.9–8.0m, height 1.0–2.4m. Welded or tubular types. Match any fence style.
Product Details– BDFENCE

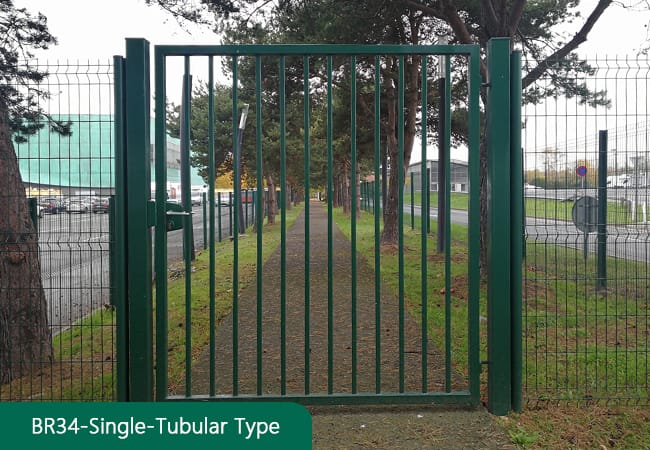

Single – Square Tube + Tubular
| Component | Specifications |
|---|---|
| Width | 0.9 m / 1.0 m / 1.2 m / 1.5 m / 1.8 m |
| Height | 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m |
| Frame Size | 40 x 60mm / 50 x 50mm |
| Frame Thickness | 1.5/2.0mm; |
| Post Size | 60x60mm / 80 x80mm / 100x100mm |
| Post Thickness | 2.0mm / 3.0 mm |
| Tubular Inside Size | 4.0 / 5.0 / 6.0 |
| Tubular Inside Distance | 50x100mm / 50x200mm / 75x 150mm / 75x 200mm / 100x200mm |

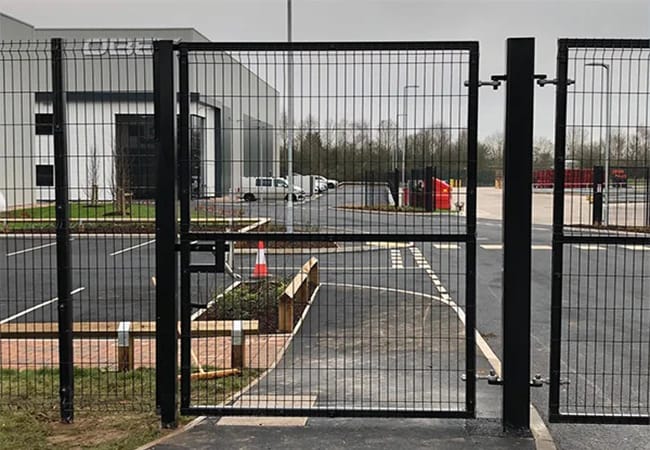

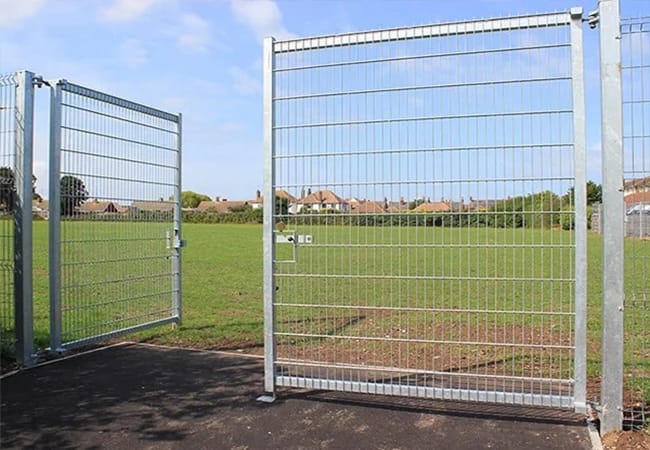

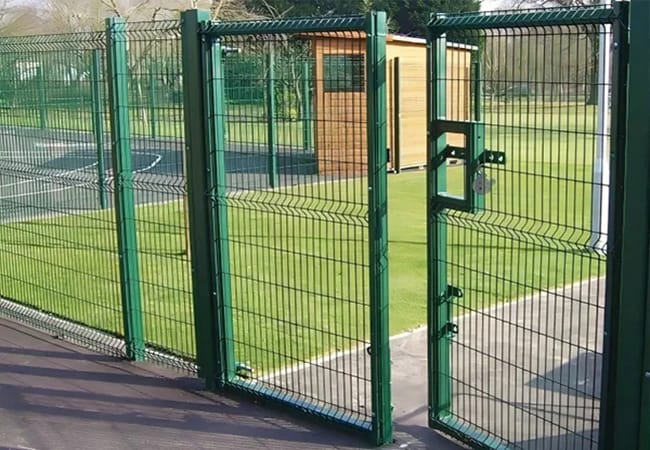

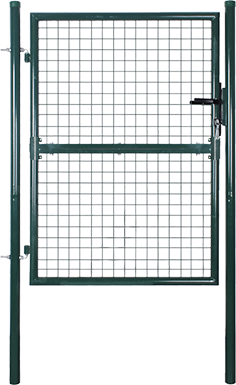

Single – Tubular Type + Wire Mesh
| Component | Specifications |
|---|---|
| Width | 0.9 m / 1.0 m / 1.2 m / 1.5 m / 1.8 m |
| Height | 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m |
| Frame Size | φ40 / 40 x 60mm / 50 x 50mm |
| Frame Thickness | 2.0mm; 1.5/2.0mm; |
| Post Size | φ60mm / φ75mm / 60x60mm / 80 x80mm / 100x100mm |
| Post Thickness | 2.0mm / 3.0 mm |
| Mesh Panel Wire Dia. | 16x16mm / 20x20mm / 25x 25mm |
| Mesh Size | 100mm /200mm |

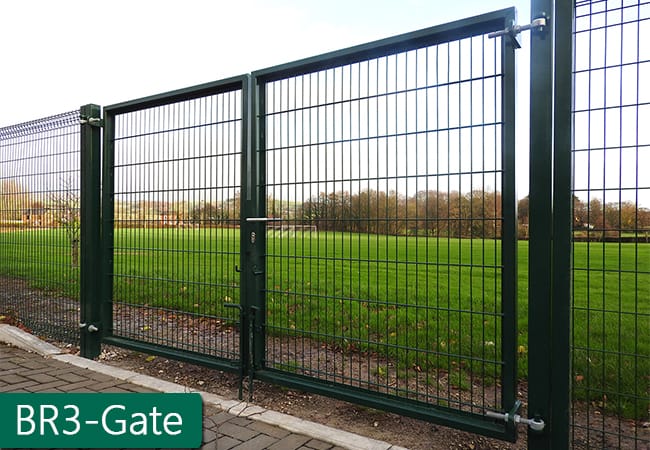

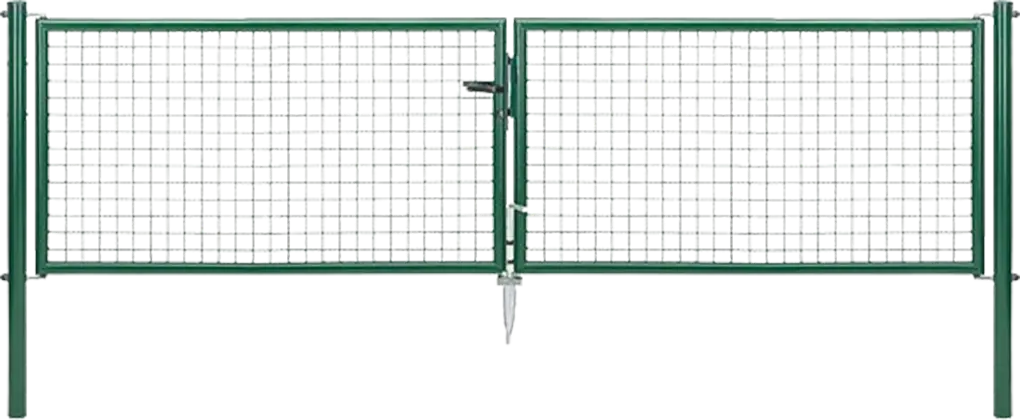

Double – Round Tube + Wire Mesh
| Component | Specifications |
|---|---|
| Round Post | ɸ60 × 2.0 mm, ɸ75 × 3.0 mm |
| Wire Diameter | 4 mm / 5 mm / 6 mm |
| Steel Tuble | ɸ40 × 2.0 mm |
| Mesh Size | 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm |
| Width | 2.0 m / 3.0 m / 4.0 m / 6.0 m / 8.0 m |
| Height | 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m |

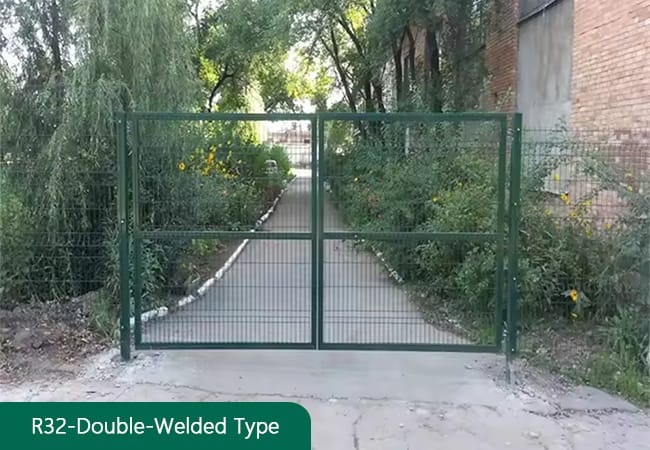

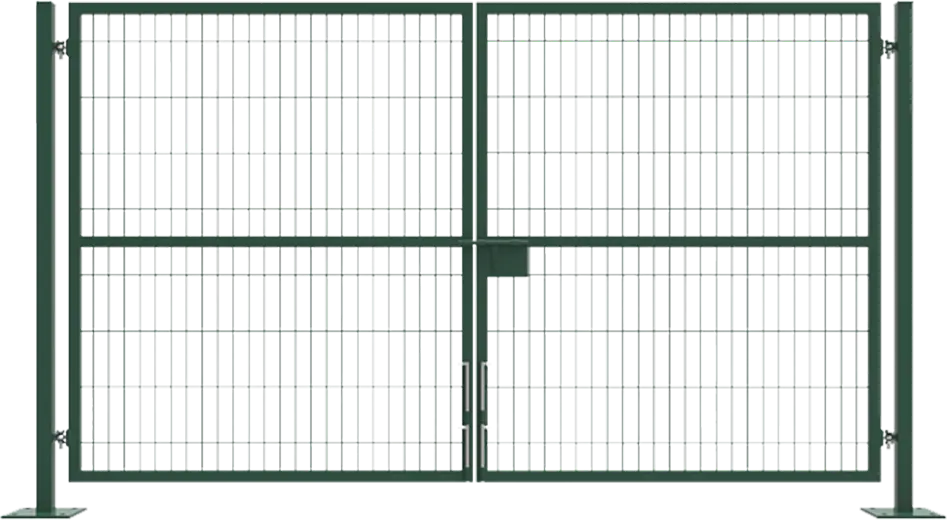

Double – Square Tube + Wire Mesh
| Component | Specifications |
|---|---|
| Post | 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0/3.0 mm |
| Wire Diameter | 4 mm / 5 mm / 6 mm |
| Frame Steel Tuble | 40 × 60 mm, 50 × 50 mm |
| Frame Thickness | 1.5/2.0 mm |
| Mesh Size | 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm |
| Width | 2.0 m / 3.0 m / 4.0 m / 6.0 m / 8.0 m |
| Height | 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m |

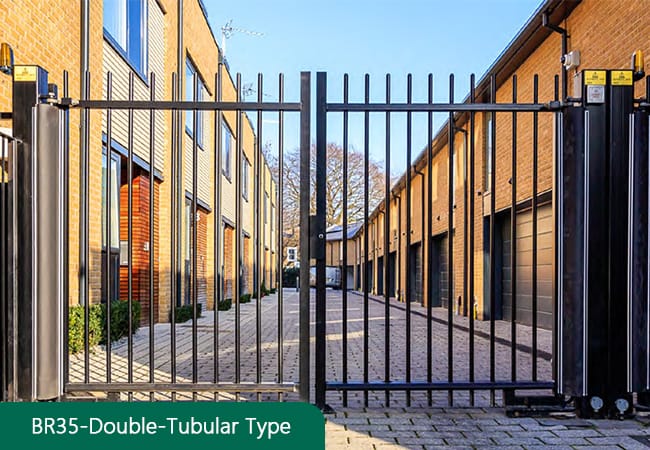

Double – Square Tube + Tubular
| Component | Specifications |
|---|---|
| Post | 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm |
| Frame Steel Tuble | 40 × 60 mm, 50 × 50 mm |
| Frame Thickness | 1.5/2.0 mm |
| Pipe Size | 16 × 16 mm, 20 × 20 mm, 25 × 25 mm |
| Pipe Distance | 100 mm / 120 mm |
| Width | 2.0 m / 3.0 m / 4.0 m / 6.0 m / 8.0 m |
| Height | 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m |

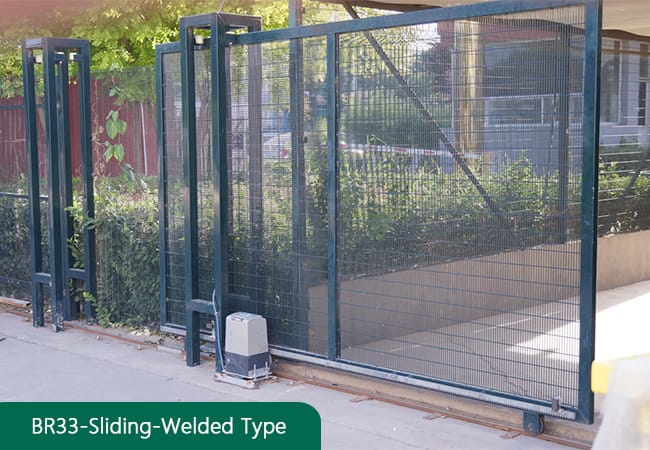

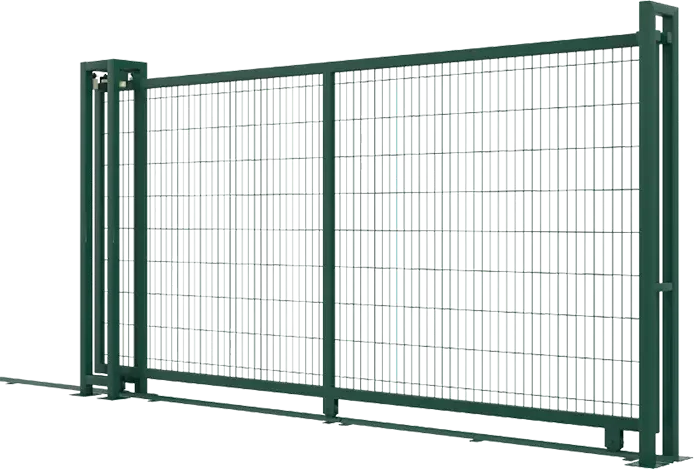

Sliding – Mesh Type
| Component | Specifications |
|---|---|
| Post | 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm |
| Frame Steel Tube | 40 × 60 mm, 50 × 50 mm |
| Frame Thickness | 1.5 mm / 2.0 mm |
| Mesh Size | 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm |
| Wire Diameter | 4 mm / 5 mm / 6 mm |
| Width | 4.0 m / 4.5 m / 5.0 m / 6.0 m |
| Height | 1.8 m / 2.0 m / 2.2 m / 2.4 m |

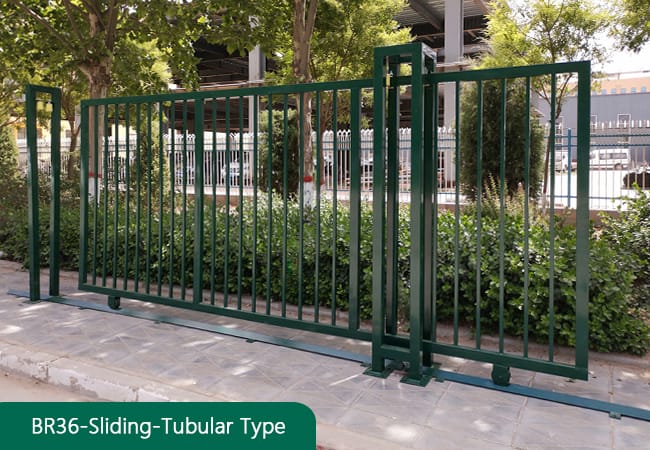

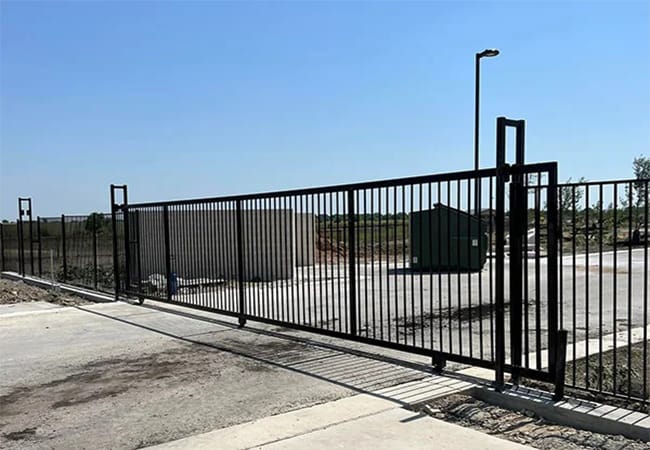

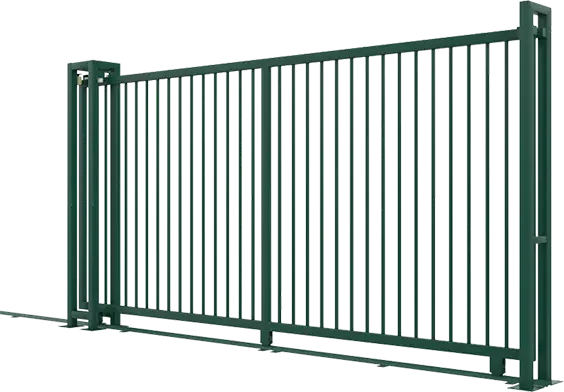

Sliding – Square Tube + Tubular
| Component | Specifications |
|---|---|
| Post | 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm |
| Frame Steel Tube | 40 × 60 mm, 50 × 50 mm |
| Frame Thickness | 1.5 / 2.0 mm |
| Pipe Size | 16 × 16 mm, 20 × 20 mm, 25 × 25 mm |
| Pipe Distance | 100 mm / 120 mm |
| Width | 4.0 m / 4.5 m / 5.0 m / 6.0 m |
| Height | 1.8 m / 2.0 m / 2.2 m / 2.4 m |

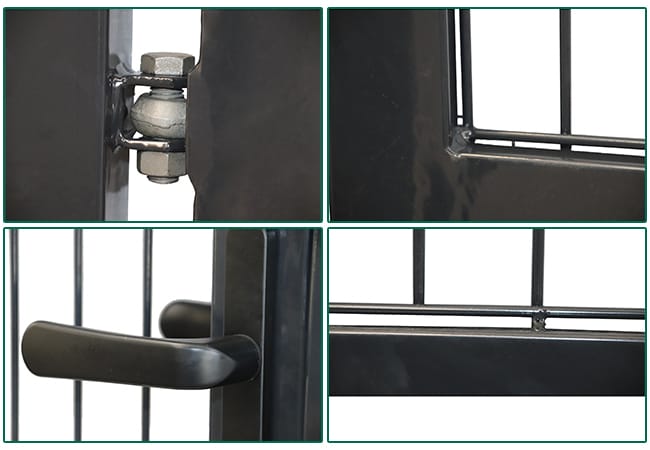

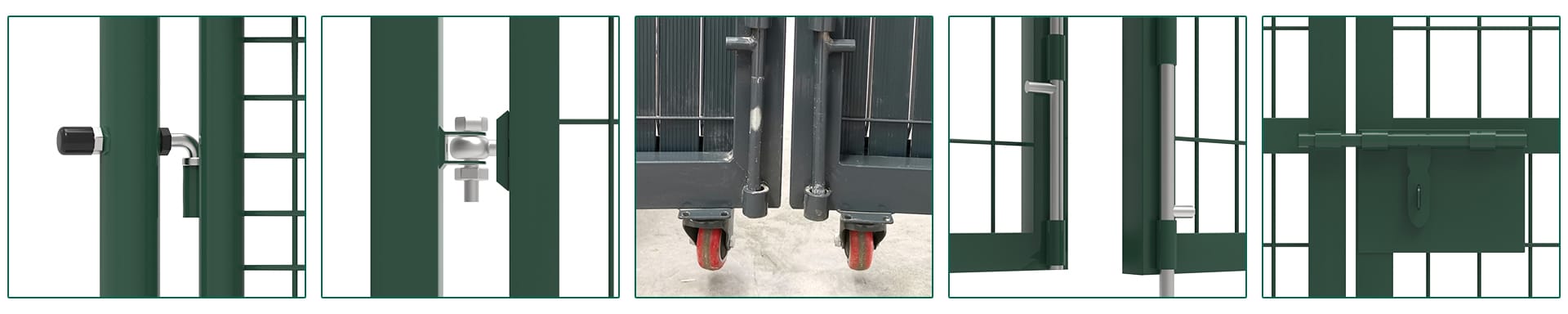

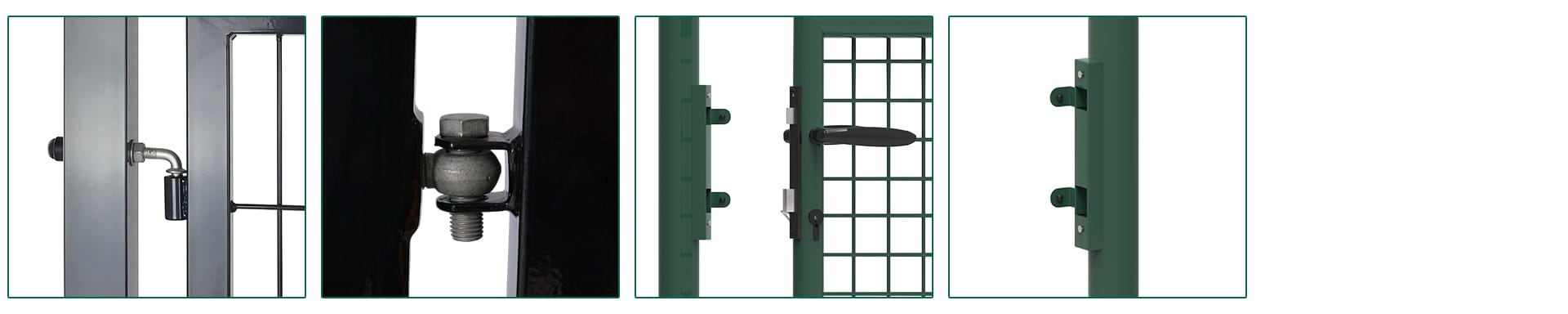

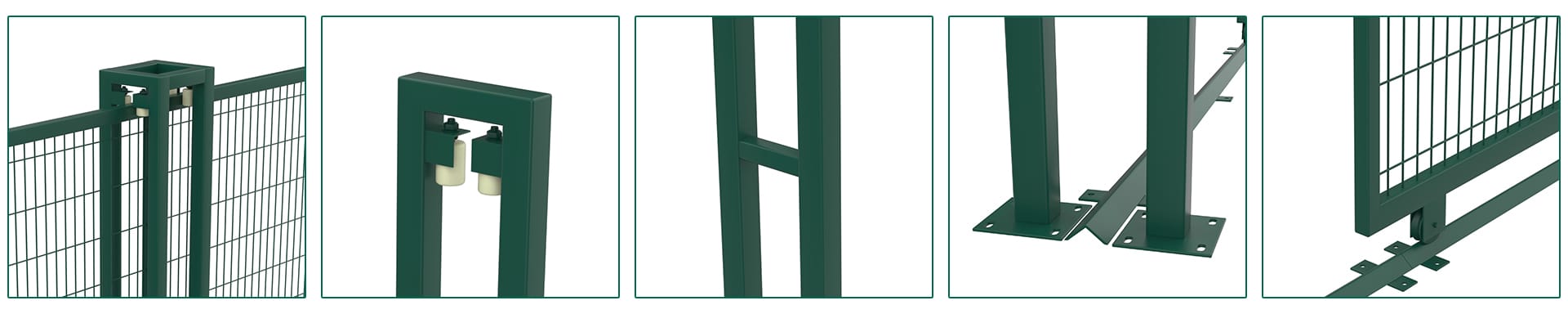

Special Accessories
- Single Gate
- Double Gate
- Sliding Gate
Applications of Gate

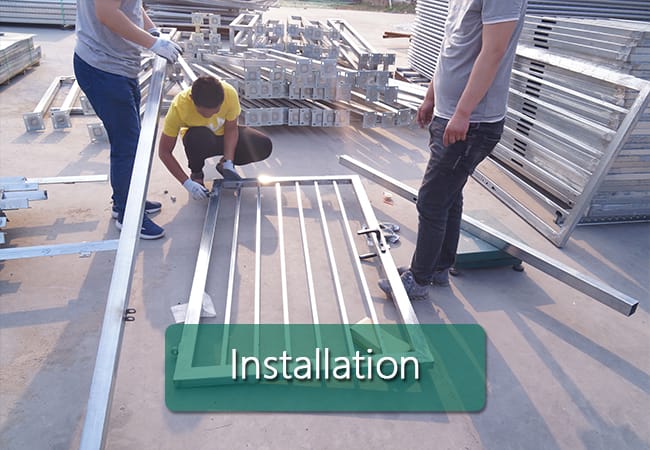

Detailed Installation Process for Fence Gate
The installation of fence gate requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and aesthetic appearance of the fence gate. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
1. Pre-installation Preparation
Confirm the gate’s installation position and size per design drawings, ensuring the gate opening is 2-3cm wider than the gate. Check that all components (gate panels, posts, hinges, etc.) and tools (level, electric drill, etc.) are intact and functional. Clean the site and level the ground.
2. Gate Post Installation
Dig a 60-80cm deep and 30-40cm wide foundation pit (deeper for soft soil). Place the gate post in the center, adjust vertically (error ≤2mm) and fix temporarily. Pour concrete to 5-10cm above the ground, vibrate to eliminate air bubbles, and let it cure for at least 24 hours (longer in low temperature/humidity).
3. Hinge Installation
Install 2 hinges (3 for large/heavy gates) – upper 15-20cm from the gate top, lower 15-20cm from the bottom. Mark and drill matching holes, install hinges with bolts and waterproof gaskets, then adjust tightness to ensure smooth, shake-free opening and closing.
4. Fence Gate Panel Installation
Hang the gate panel by aligning its hinges with those on the post and inserting hinge pins. Check levelness and verticality, keeping a 5-10cm gap between the gate and ground. Tighten all bolts; install decorative parts (handles, locks) if needed.
5. Lock Installation
Install a matching lock 1.2-1.5m above the ground. Mark and drill holes, install the lock body, tongue and panel, align the tongue with the lock catch. Test repeatedly to ensure smooth, firm locking.
6. Post-installation Inspection and Finishing
Check overall stability (no looseness), smooth opening/closing (no jamming/noises), and aesthetics (level panels, uniform gaps). Touch up scratches with matching paint and clean the site.
Key Precautions
Follow design drawings; do not alter installation position/size. 2. Ensure solid concrete foundation and vertical posts; allow sufficient curing time. 3. Use anti-rust hinges and locks. 4. Prioritize personal safety when using tools and lifting the gate. 5. Maintain regularly: check bolts every 3-6 months, lubricate hinges/locks, and touch up paint.
Why Choose BDFENCE for Fence Gates?
1. Premium Steel & Dual Protection
We use Q235 steel with hot‑dip galvanizing + powder coating. Hinges and hardware also galvanized – no rust.
2. Full Range of Types & Sizes
Single / double / sliding. Welded mesh or tubular infill. Width 0.9–8.0m, height 1.0–2.4m. Match any fence (2D, 3D, 358, etc.).
3. Smooth & Secure Operation
Heavy‑duty hinges, anti‑lift pins, strong locks. Sliding gates with precision rollers and track. Tested for daily heavy use.
4. Customization – CAD Design & Branding

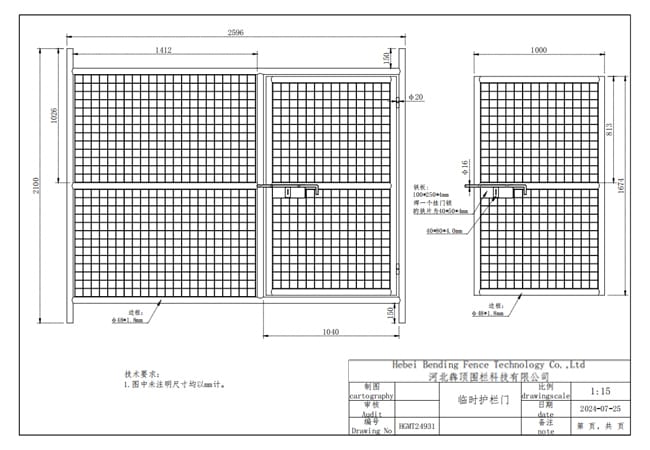

Free CAD drawing with your fence system. Optional logo plate, custom RAL color, special lock arrangement.
5. Factory Direct – Quality & Price

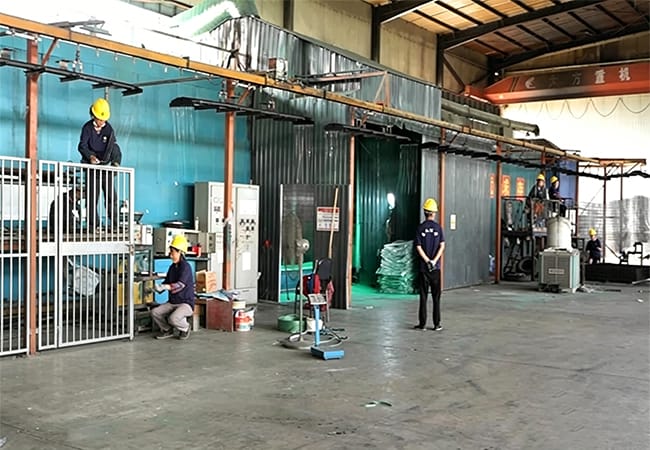

In‑house cutting, welding, galvanizing, coating. Strict QC, fast lead time (15‑20 days), competitive pricing.
6. Global Export Experience
Shipped gates to UK, USA, Germany, Australia, UAE and more. Full documentation, CE, ISO ready for tender.
📌 In short: Strong steel + full coating + any type/size + smooth operation = BDFENCE, your trusted gate manufacturer.
