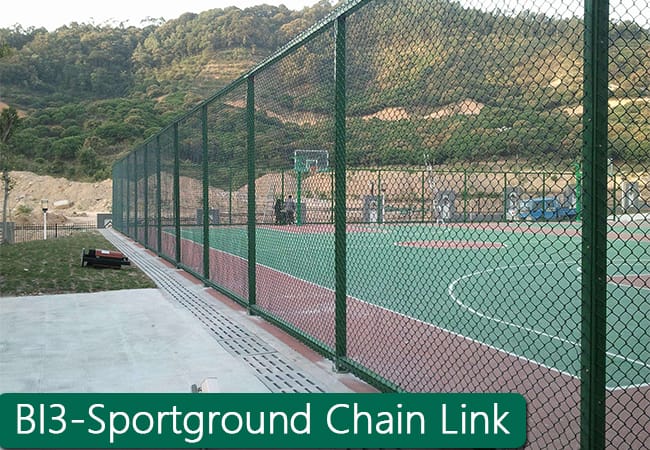

Sportground Chain Link Fence Core Advantages
1. High Impact Resistance
Flexible diamond woven mesh absorbs ball and player impact – no deformation, low rebound.
2. Ball Containment & Clear Visibility
Optimal mesh openings (45–60mm) stop balls while maintaining full field visibility.
3. All‑Weather Corrosion Protection
Hot-dip galvanized + PVC coated – resists rain, UV, and sports ground chemicals.
4. Fast, Modular Installation
Rolled mesh + heavy‑duty rails & posts – no welding, saves labor.

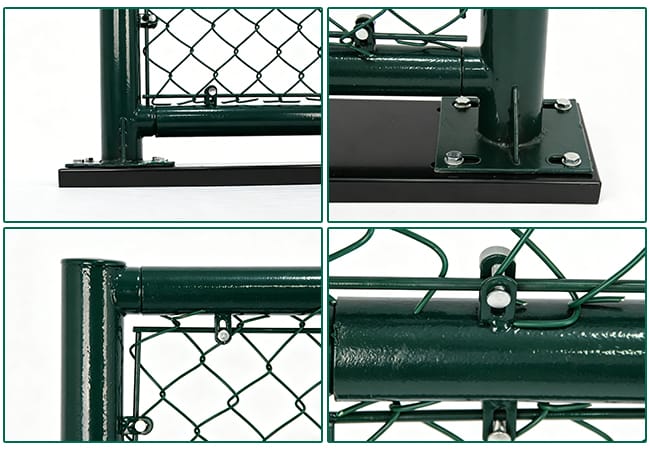

Product Details– BDFENCE

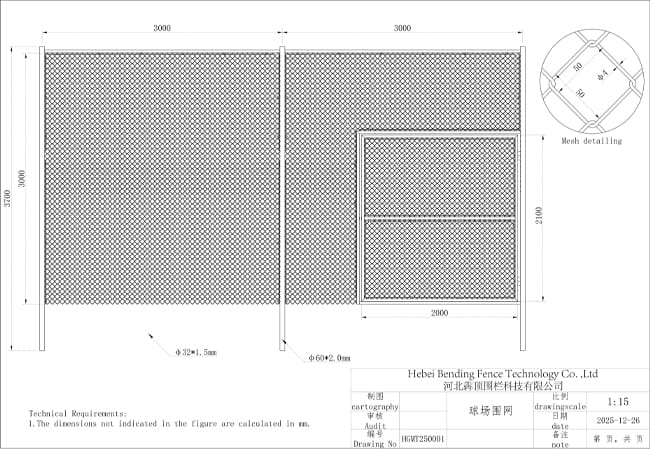

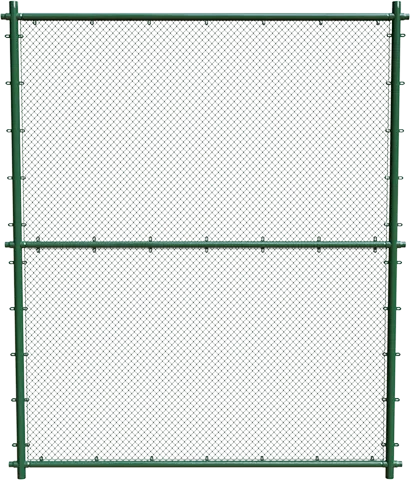

Sportground Chain Link Fence Specifications
| Parameter | Specifications |
|---|---|
| Wire Dia. | 3.8 mm / 4.0 mm |
| Mesh Size | 45×45 mm / 50×50 mm / 60×60 mm |
| Roll Height | 2.0 m / 3.0 m / 4.0 m |
| Roll Length | according to the post distance, commonly is 3 m or 4 m |
| Rail Size | φ32 mm / φ40 mm / φ48 mm |
| Rail Thickness | 2.0-3.0mm |
| Post Size | φ48 mm / φ60 mm |
| Post Thickness | 2.0-3.0mm |

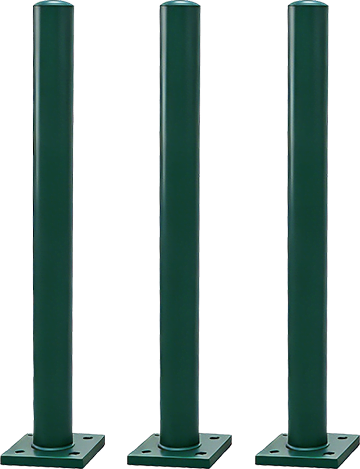

Post & Rail Specifications
| Parameter | Specifications |
|---|---|
| Installation Height | 3000 mm / 4000 mm / 5000 mm / 6000 mm |
| Post Center Distance | 3000 mm |
| Post Height | 3500 mm (for H=3000) 4500 mm (for H=4000) 5500 mm (for H=5000) 6500 mm (for H=6000) |
| Post Section Size | Φ100 × 3.0 mm |
| Horizontal Bar Size | Φ60 × 2.0 mm |
| Post Material | Hot‑dip galvanized steel (Q235) |

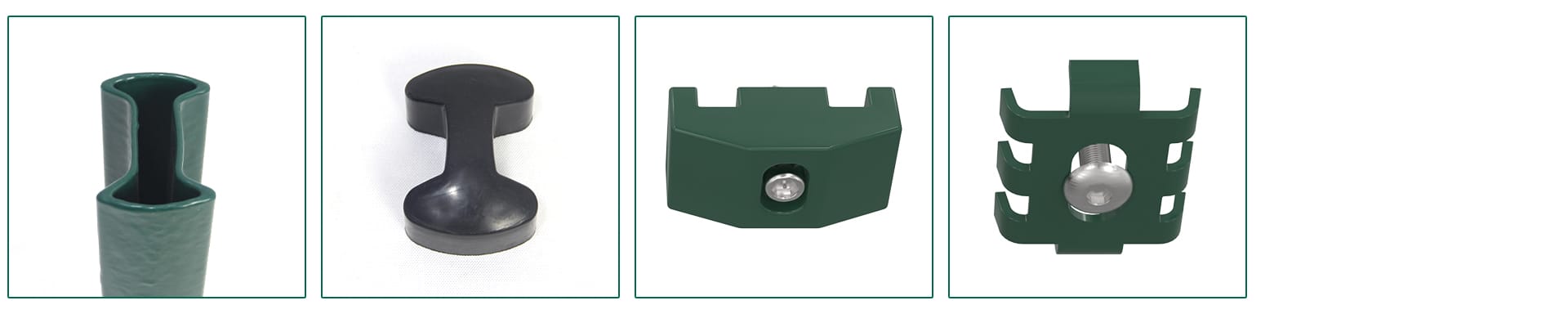

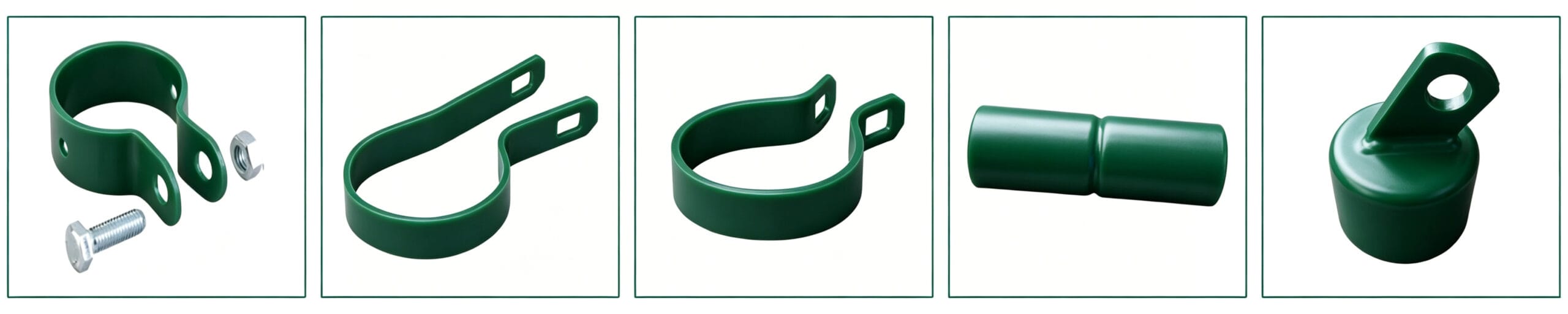

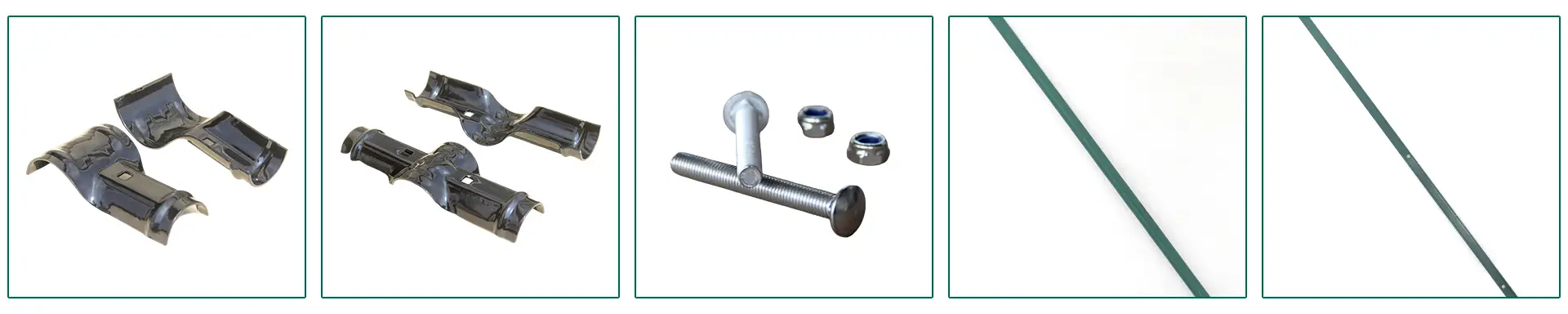

Special Accessories

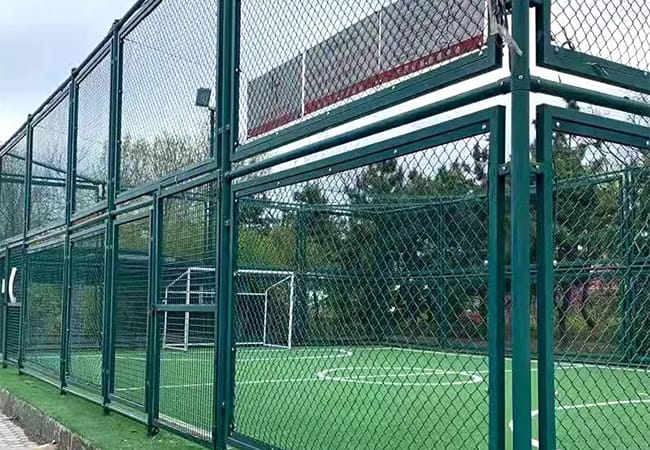

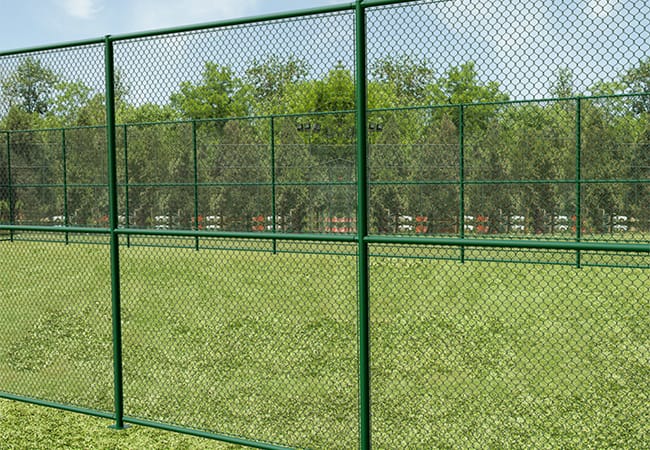

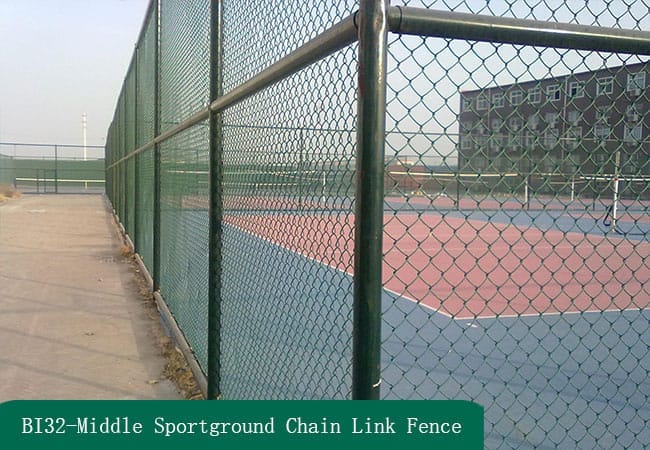

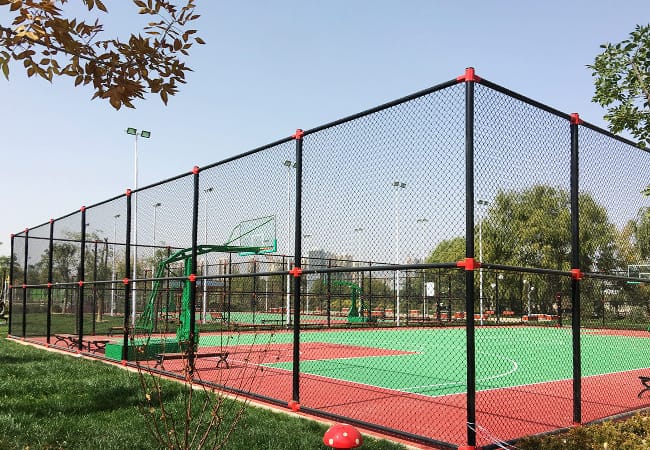

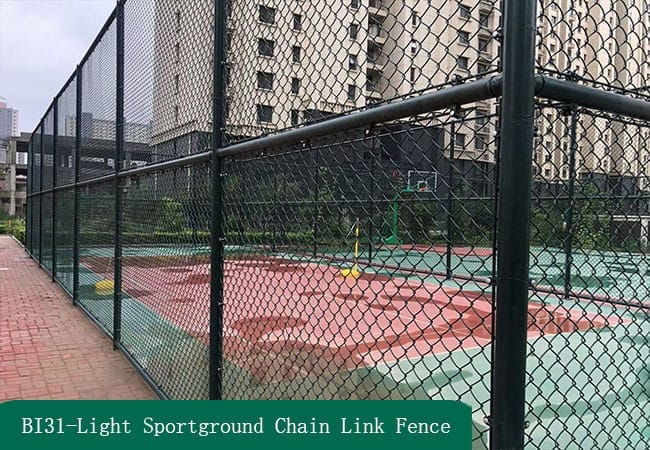

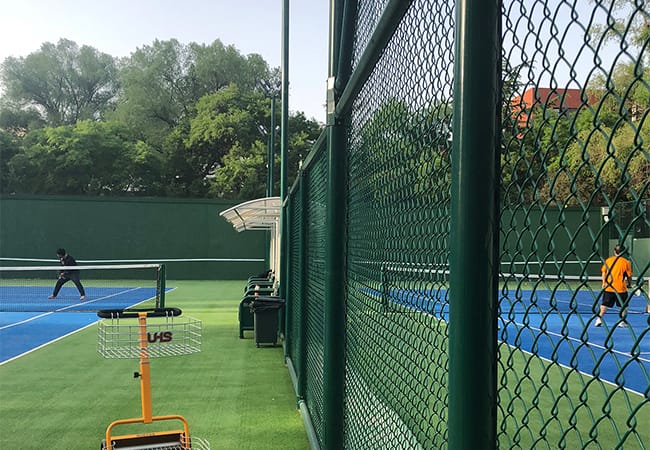

Applications of Sportground Chain Link Fence

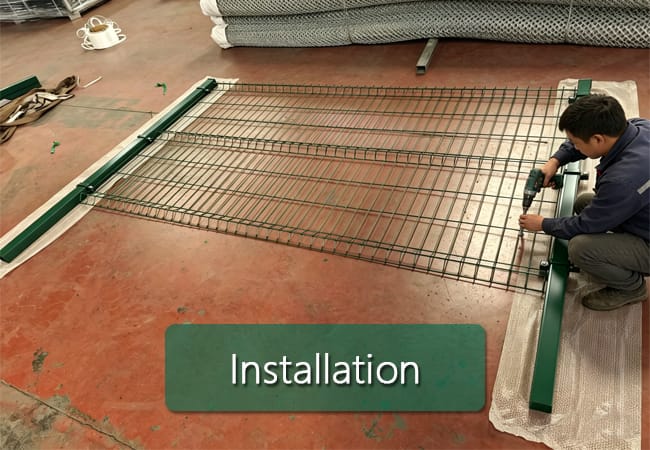

Detailed Installation Process for Sportground Chain Link Fence
The installation of sportground chain link fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and aesthetic appearance of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
1. Site Preparation & Foundation Leveling
Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with compacted gravel or sand to ensure that the fence posts and mesh rolls can be placed stably and evenly. Next, according to the design drawings and actual sports ground requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and installation position of each post. The foundation should be compacted with a compactor to achieve sufficient bearing capacity, and a layer of gravel cushion can be laid to improve stability. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire sportground chain link fence structure.
2. Post Placement & Fixing
Post placement and fixing are core links affecting the overall stability of the sportground chain link fence, and every detail needs to be strictly controlled. First, place the heavy-duty posts accurately along the marked lines, keeping equal spacing between each post as designed. For embedded installation, dig holes of proper depth, place the posts vertically and fix them with concrete to ensure firmness. Align the posts accurately along the marked lines, and install corner posts, end posts and line posts properly to form an integrated unit. Check the verticality and alignment of each post to avoid skewing during mesh installation.

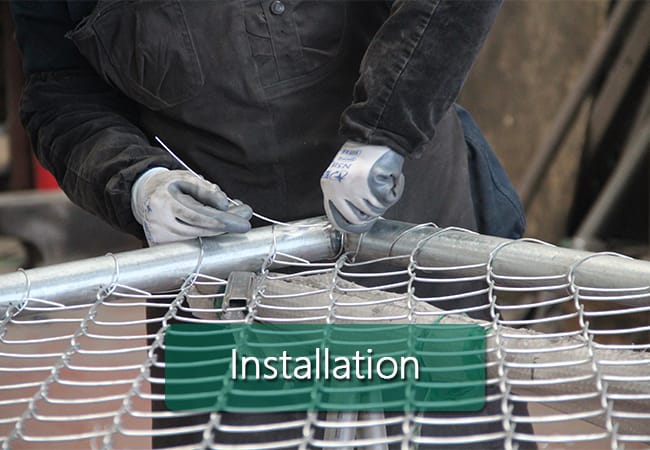

3. Mesh Installation & Tensioning
After the posts are fully fixed, sportground chain link mesh installation can be carried out. First, unfold the high-elasticity mesh roll carefully and hang it on the posts, starting from the corner post or end post. During installation, stretch the mesh flat and keep it tight to avoid sagging or looseness, ensuring uniform diamond mesh openings. Use professional connectors to fix the mesh with posts and rails firmly, and adjust the tension evenly to withstand strong impact. For full-size sports courts, install the mesh in sequence to keep the whole fence flat and consistent. Ensure the mesh surface is smooth and not distorted, which guarantees the fence’s stability and sports protection effect.
4. Rail & Accessory Installation
Rail and accessory installation directly affect the structural integrity and service life of the sportground chain link fence. First, install top rails and horizontal braces between posts to enhance overall impact resistance, fixing them with special connectors and bolts. Install tension bars, clips and standard sports fence accessories to strengthen mesh tension and stability. Pay special attention to tightening all connectors to prevent loosening or displacement. Double-check all connection points to ensure no gaps or loose components, which provides reliable protection for long-term sports use.
5. Alignment & Stability Check
After the installation of posts and mesh are completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the verticality of the posts and the flatness of the mesh: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the sports ground design. Then, check the overall straightness and structural stability: gently push the fence to ensure no obvious shaking or displacement. Check the tightness of all connections and the tension of the mesh. If any problems are found (such as skewing, loose connections, sagging mesh), adjust and reinforce them immediately to ensure sports safety and durability.
6. Site Cleaning & Final Acceptance
The final step of the installation process is site cleaning and acceptance, which ensures the aesthetic appearance of the fence and confirms that the installation is up to standard. First, remove excess debris, scraps and installation waste from the sports ground, and clean the surface of the sportground chain link fence to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and sports ground standards: check the fence dimensions, alignment, verticality, mesh tension and connection firmness; check for surface damage, rust, or loose components; verify impact resistance and overall protection performance. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the acceptance standards.
Note
During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the sportground chain link mesh surface during installation to avoid damage to the surface treatment layer (such as galvanizing, PVC coating) which may affect the corrosion resistance and service life of the fence.
Why Choose BDFENCE for Sportground Chain Link Fence?
1. Sport‑Grade Materials & Dual Coating
We use 3.8‑4.0mm low‑carbon steel wire with hot‑dip galvanizing + optional PVC coating. Rust‑proof, UV‑resistant, and safe for players – 25+ years life.
2. Optimised Mesh for Ball Containment
Mesh openings 45–60mm – stops soccer, baseball, tennis balls while maintaining clear visibility. Knuckled edge on all four sides – no injury from sharp wires.
3. Complete Round Post & Rail System
Full system: line posts (48/60mm), terminal posts (60/76mm), top rails (32/40/48mm), post caps, tension bars, bands, rail ends, and tie wires. All hot‑dip galvanized or PVC coated – match your sports ground color.
4. Custom Roll Heights & Lengths
Roll heights 2m, 3m, 4m – cover any field or court. Roll lengths cut to post spacing (commonly 3m or 4m) – reduces on‑site cutting waste.
5. Fast, Welding‑Free Installation
Rolled mesh + clamp/bracket connection – no welding. Save 40% labor compared to welded panel fences.
6. Factory Direct – Quality & Price

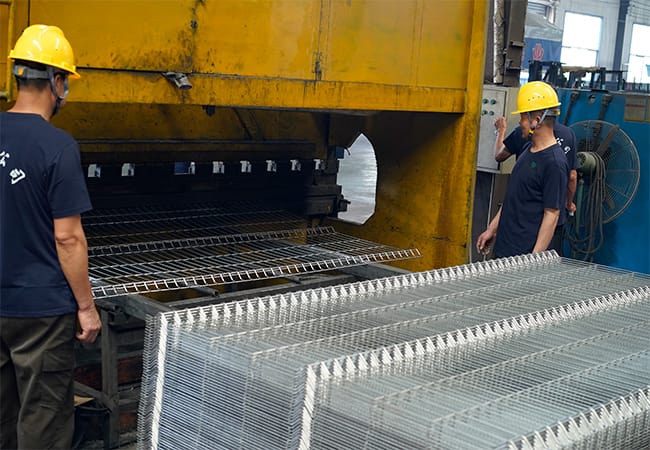

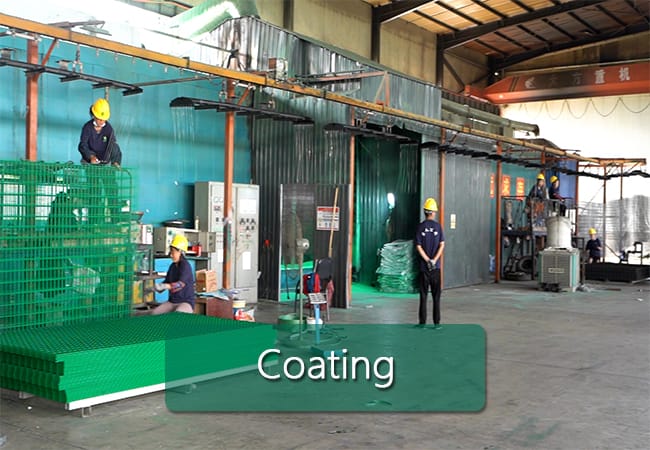

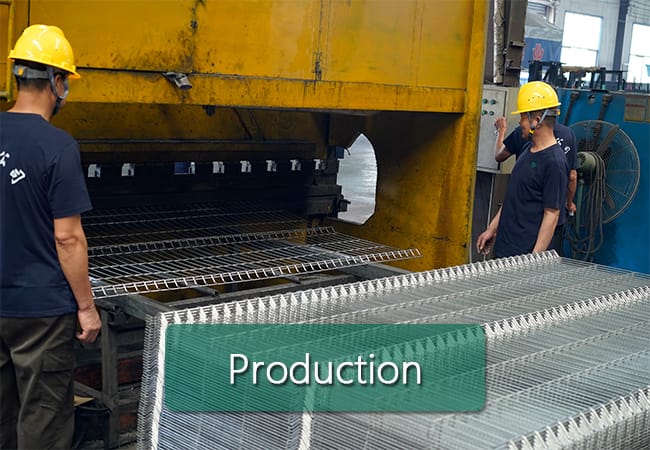

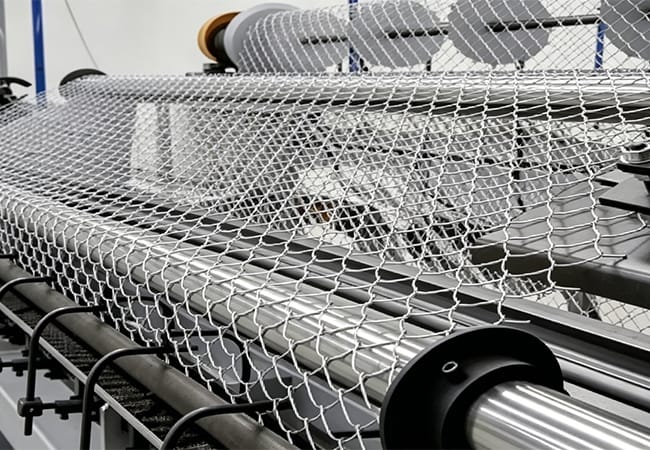

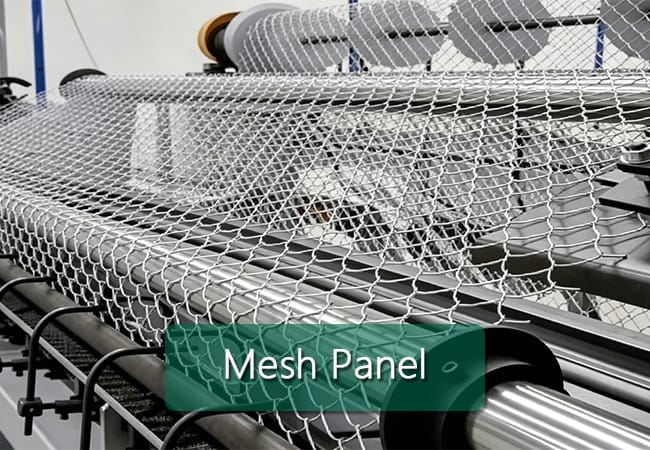

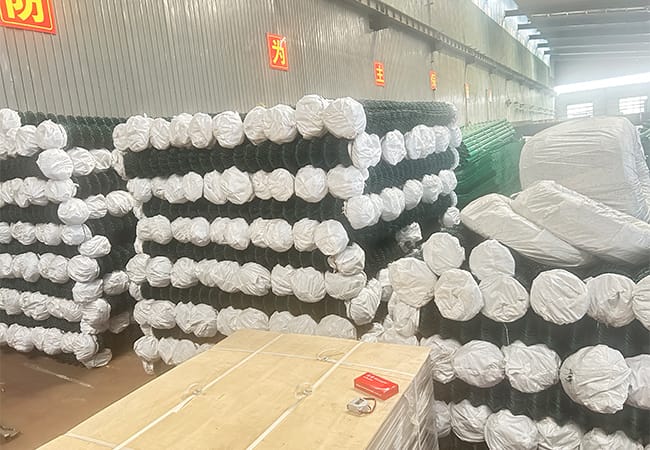

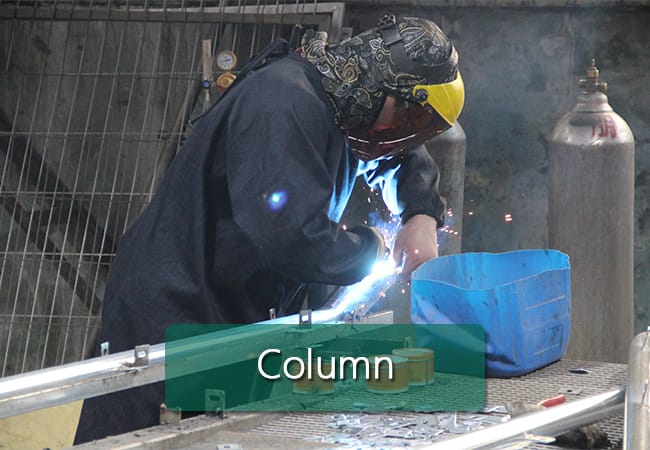

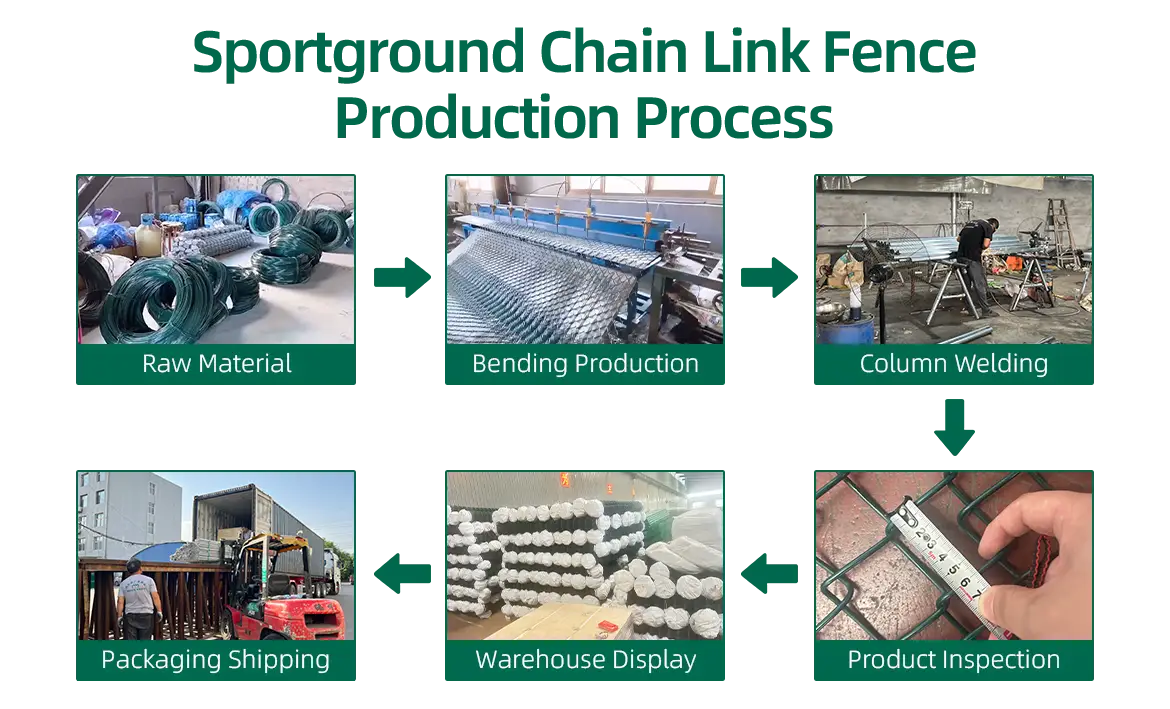

In‑house wire drawing, weaving, galvanizing, post roll forming, and fittings stamping. Strict QC, fast lead time (10‑15 days), competitive pricing.
7. Global Sports Ground Experience
Supplied football pitches, tennis courts, baseball fields, basketball courts, and sports parks across Germany, USA, Australia, UK, UAE, France and more.
📌 In short: Heavy‑duty diamond mesh + knuckled edge + round post system + roll convenience = BDFENCE, your trusted sportground fence supplier.
