Roll Top Fence

1. Site Preparation & Foundation Leveling

Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with compacted gravel or sand to ensure that the fence posts and panels can be placed stably and evenly. Next, according to the design drawings and actual installation requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and installation position of each post. The foundation should be compacted with a compactor to achieve sufficient bearing capacity, and a layer of gravel cushion can be laid to improve stability. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire Roll Top fence structure.

2. Post Placement & Fixing

Post placement and fixing are core links affecting the overall stability of the Roll Top fence, and every detail needs to be strictly controlled. First, place the posts accurately along the marked lines, keeping equal spacing between each post as designed. For embedded installation, dig holes of proper depth, place the posts vertically and fix them with concrete to ensure firmness. For surface-mounted installation, use expansion bolts to secure posts to the hard ground firmly. Align the posts accurately along the marked lines, and install corner posts, end posts and line posts properly to form an integrated unit. Check the verticality and alignment of each post to avoid skewing during panel installation.

3. Roll Top Panel Installation & Connection

After the posts are fully fixed, Roll Top panel installation can be carried out. First, lift the roll-top Roll Top mesh panels carefully and align them with the pre-drilled holes on the posts. During installation, adjust the height and position of the panels to maintain a neat and uniform appearance, ensuring horizontal and vertical alignment. Connect the panels and posts firmly with high-strength bolts and clamps, and tighten all connectors to ensure stability. For long-distance fencing, install the panels in sequence to keep the whole fence flat and consistent. Ensure the panel surface is flat and the structure is not distorted, which guarantees the fence’s stability and aesthetic effect.

4. Fastening & Reinforcement

Fastening and reinforcement directly affect the structural integrity and service life of the Roll Top fence. First, after panel installation is completed, check and tighten all bolts, nuts and connectors at intervals to ensure all connections are tight and firm. Pay special attention to tightening the corners and joints to prevent loosening or displacement. Double-check all connection points to ensure no gaps or loose components, which provides reliable protection for long-term use.

5. Alignment & Stability Check

After the installation of posts and panels are completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the verticality of the posts and the levelness of each panel: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the design. Then, check the overall straightness and structural stability: gently push the fence to ensure no obvious shaking or displacement. Check the tightness of all bolt connections and the firmness of the structure. If any problems are found (such as skewing, loose connections, uneven panels), adjust and reinforce them immediately to ensure structural safety and durability.

6. Site Cleaning & Final Acceptance

The final step of the installation process is site cleaning and acceptance, which ensures the aesthetic appearance of the fence and confirms that the installation is up to standard. First, remove excess debris, scraps and installation waste from the construction site, and clean the surface of the Roll Top fence to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and installation standards: check the fence dimensions, alignment, verticality, panel installation and connection firmness; check for surface damage, rust, or loose components; verify overall stability and protection performance. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the acceptance standards.

Note

During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the Roll Top fence surface during installation to avoid damage to the surface treatment layer (such as galvanizing, PVC coating) which may affect the corrosion resistance and service life of the fence.

Why Choose BDFENCE for Roll Top Fence?

1. Premium Wire & Dual Coating
We use Q235 low‑carbon steel wire (4.0‑5.0mm) with hot‑dip galvanizing + PVC/PE coating. Rust‑proof, weather‑proof – 25+ years life.

2. Full Customization – Mesh, Size & Color
Mesh openings 50‑100mm (5 options), panel heights 830‑2030mm (6 heights), lengths 2.0‑2.8m (5 lengths). Wire diameters available in 5 combinations. Common RAL colors – green, grey, brown, black, white. Tailored for schools, parks, residential.

3. Rolled Edge Safety
Smooth rolled top and bottom – no sharp wires. Safe for children, pets, and public areas.

4. Fast, Welding‑Free Installation
Pre‑welded panels + clip system – no on‑site welding. Save 30‑40% labor.

5. Factory Direct – Quality & Price

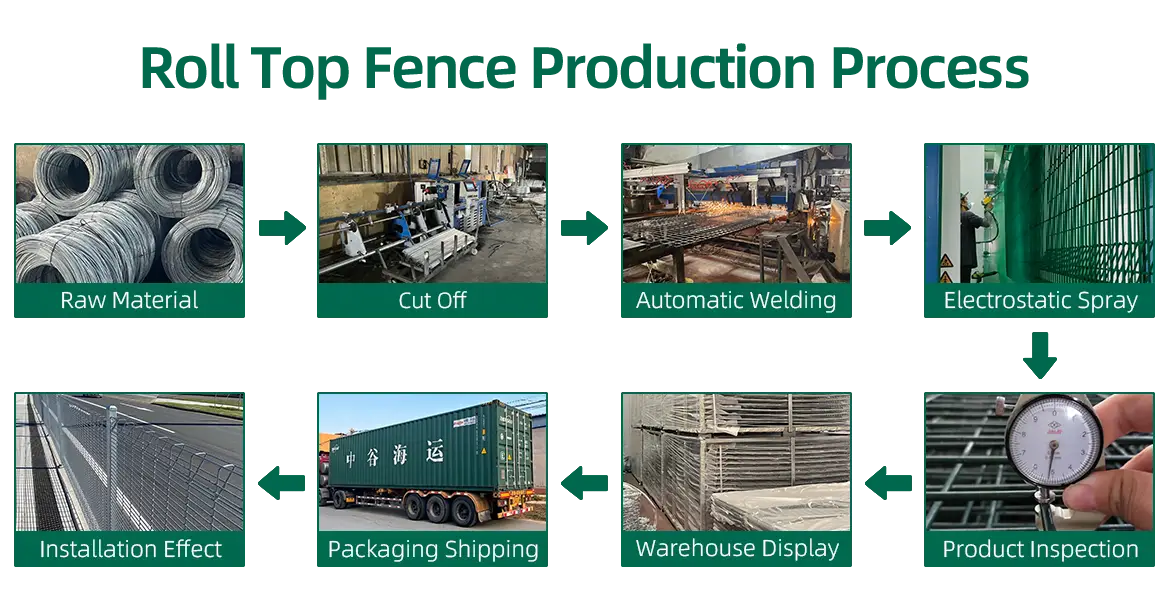

In‑house wire drawing, welding, rolling, galvanizing, coating, post forming. Strict QC, fast lead time (12‑15 days), competitive pricing.

6. Global Roll Top Fence Experience
Supplied schools, residential estates, parks, factories across UK, Australia, Germany, France, UAE and more.

📌 In short: Rolled edge safety + heavy‑duty mesh + full coating + square post system = BDFENCE, your trusted Roll Top fence partner.
