Continuou Fence Core Advantages
1. Seamless Structural Integrity
One-piece continuous weaving technology – disperses external force evenly, prevents local fracture, loose ends or partial collapse.
2. Tidy & Uniform Aesthetic
Integrated mesh design with seamless appearance – enhances residential, industrial and municipal landscapes.
3. All-Weather Corrosion Protection
Hot-dip galvanized, polyester powder coated, or PVC/PE coated – rust-proof for coastal, rainy and extreme outdoor environments.
Product Details– BDFENCE
Continuous Fence Specifications
| Component | Specifications |
|---|---|
| Vertical Tube | Square pipe: 40×40, 50×50, 60×60 mm Round pipe: Ø32, Ø40, Ø48 mm |
| Thickness (Vertical) | 1.6 mm / 1.8 mm / 2.0 mm |
| Rails (Horizontal) | Square: 40×40, 50×50, 60×60 mm Oval: 30×60, 40×80, 42×115 mm Round: Ø32, Ø40, Ø48 mm |
| Thickness (Rails) | 1.6 mm / 1.8 mm / 2.0 mm |

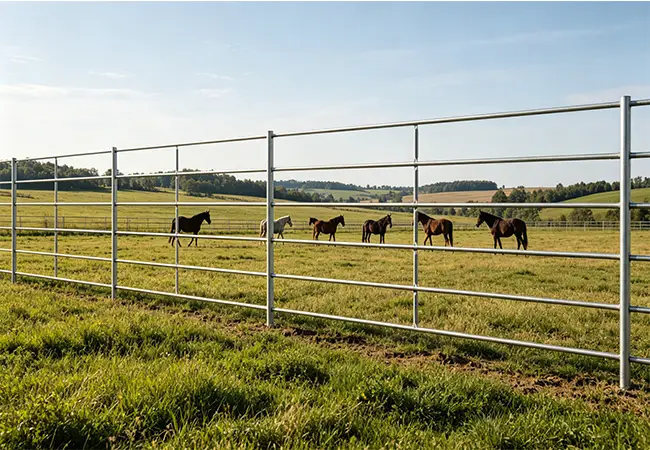

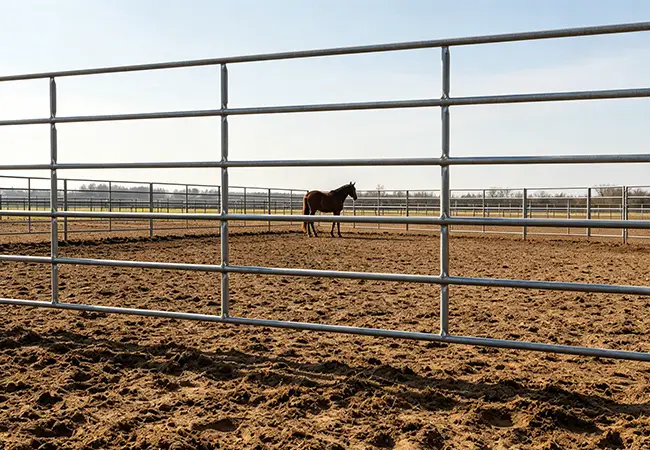

Applications of Continuous Fence
Installation Guide – Continuous Fence
Step 1: Layout & Marking
Survey the fence line. Mark positions for each pre-welded frame section. Ensure straight alignment using string line.
Step 2: Excavate Post Holes
At each frame position, dig holes to the required depth (typically 500–800mm, depending on fence height and soil conditions). The welded frame tubes serve as both fence panel and support post.
Step 3: Position First Frame Section
Lift the first pre-welded frame section into position. Lower the vertical tubes into the excavated holes. Use a spirit level to plumb the frame in both directions. Temporarily brace if needed.
Step 4: Connect Frame Sections with Pins

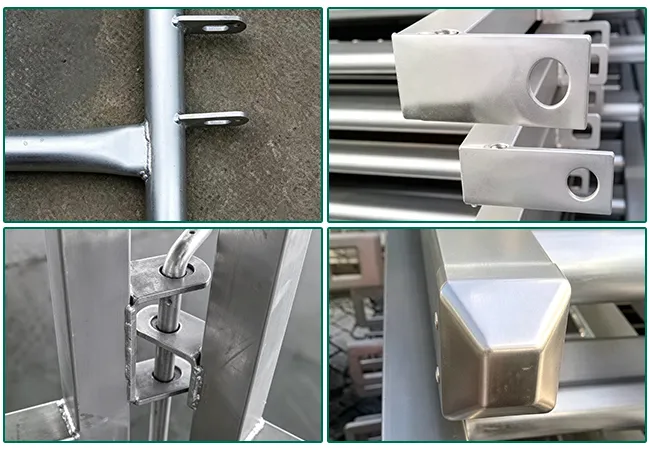

Align the second frame section alongside the first. Insert galvanised steel pins through the pre-drilled lug holes on the overlapping vertical tubes. Secure with locking clips or cotter pins. Repeat for each section along the fence line.
Step 5: Pour Concrete & Set
Once all frame sections are connected and aligned, pour concrete into each post hole. Compact thoroughly and re-check plumb alignment. Allow concrete to cure for 48–72 hours.
Step 6: Final Inspection & Gates
Check all pin connections, ensure frames are level, and verify concrete set. Install matching continuous fence gates using the same frame and pin connection system.
Why Choose BENDIN for Hinged Joint Fence?
1. Premium Steel & Multi‑Coating Options – We use Q195/Q235 steel with hot‑dip galvanizing, polyester powder coating, or PVC/PE coating. Rust‑proof, weather‑resistant – 25+ years service life.
2. One‑Piece Continuous Weaving Technology – No splices, no loose ends. Integrated mesh structure disperses external force evenly – prevents local fracture, deformation, and partial collapse.
3. Complete Customisation – Tubes, Rails, Posts – Vertical tubes: square (40‑60mm) or round (32‑48mm). Rails: square, oval, or round. Posts: square or round, 50‑80mm. Tailored for residential, industrial, municipal, and highway projects.
4. Seamless Aesthetic & Professional Finish – Clean, uniform appearance enhances any landscape. No visible wire ends or splices – ideal for high-visibility perimeters.
5. Modular Rapid Assembly – Pre‑fabricated rolls + dedicated posts – no wire cutting, no splicing, no on‑site welding. Save 40% installation time.

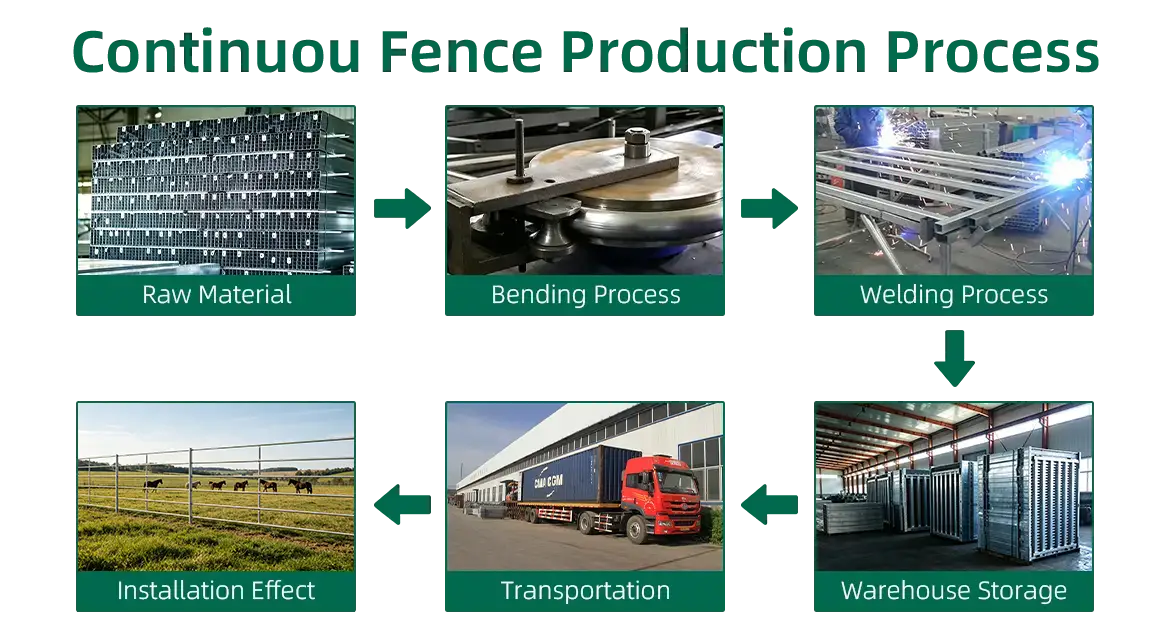

6. Factory Direct – Quality & Price – In‑house tube forming, welding, weaving, coating, and post fabrication. Strict QC, fast lead time (10‑15 days), competitive pricing.
7. Global Continuous Fence Experience – Supplied residential communities, industrial plants, logistics centres, parks, and highways across Germany, USA, Australia, UK, UAE and more.
📌 In short: Seamless integrated mesh + full coating + flexible tube options + rapid assembly = BDFENCE, your trusted continuous fence partner.
