Airport 358 Fence
1. Anti-Climb
Ultra-dense 76.2×12.7mm mesh prevents climbing.
2. Anti-Cut
Ultra-dense mesh resists bolt cutters and saws.
3. Bird & Wildlife Deterrent
Tight aperture prevents bird entry into runway zones – reduces wildlife strike risks.
4. Fast Installation
Modular design with clip-together system. No welding required.

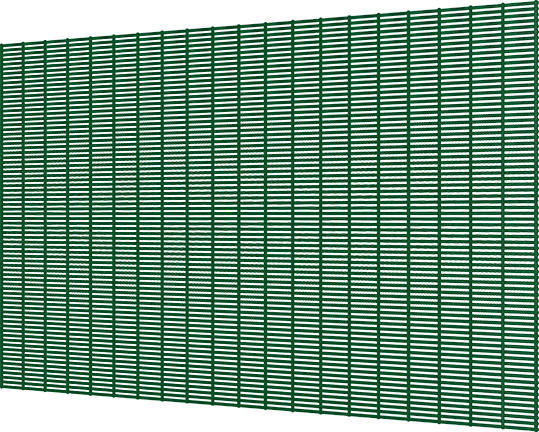

Panel Specifications

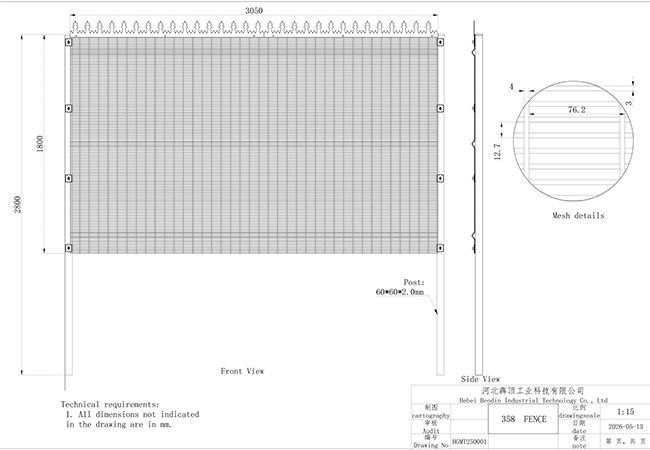

Airport 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Line Wire × Cross Wire | 4.0×3.0mm / 4.0×4.0mm / 4.5×3.0mm / 4.5×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m / 3.0m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Number of Bends | Corresponding to height: 3 / 3 / 4 / 4 / 5 / 5 |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
Available Post Systems

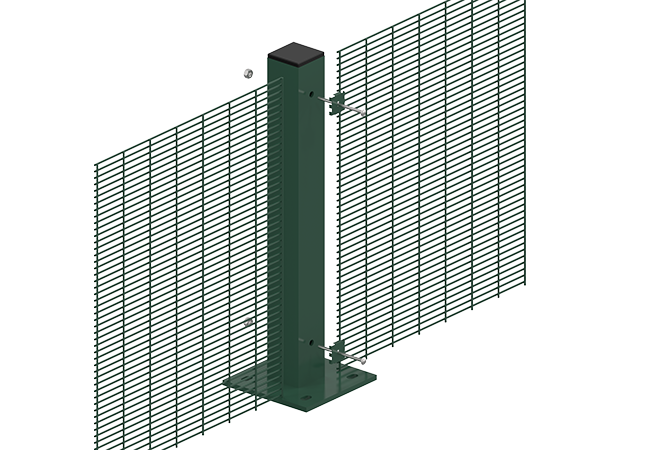

Square Post
| Post Type | Specification |
|---|---|
| Hole Size | 60x60mm/80 x80mm/100 x100mm. |
| Thickness | 1.5 mm/1.8 mm/2.0 mm/2.5 mm |
| Panel Height | 1830 mm/2030 mm/2230 mm/2430 mm/2800 mm/3000 mm |
| Base Post | 1850mm/2050mm |
| Normal Post | 2400mm/2500mm/2800mm/3000mm/3500mm/3700mm. |
H Post
| Post Type | Specification |
|---|---|
| Hole Size | 100x55mm/150x150mm. |
| Thickness | 4.0 mm/5.0 mm |
| Panel Height | 1830 mm/2030 mm/2230 mm/2430 mm |
| Base Post | 1850mm/2050mm |
| Normal Post | 2400mm/2500mm/2800mm/3000mm |
Special Accessories
- Square Post
- H Post

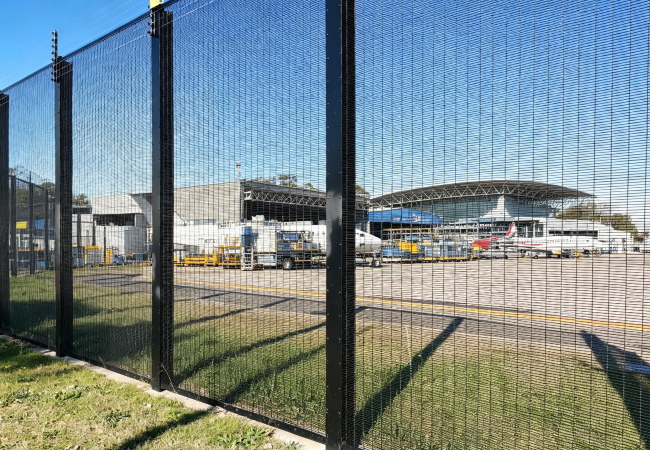

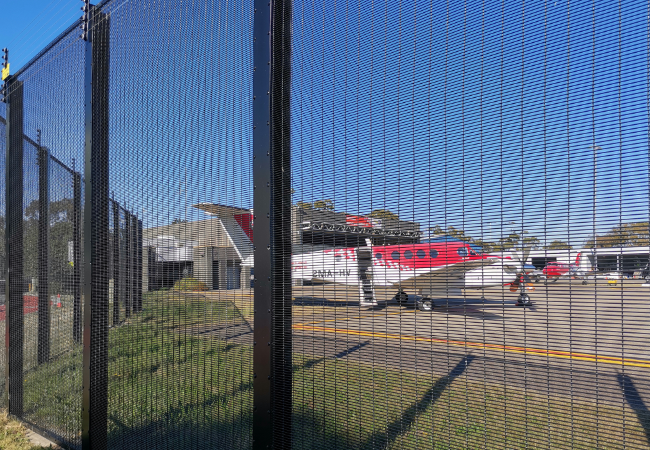

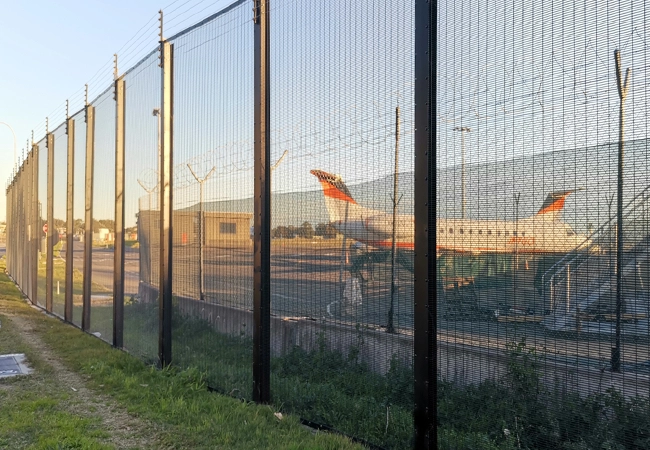

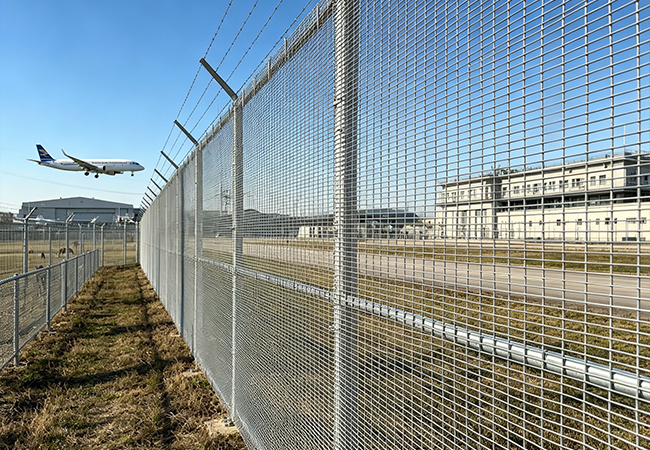

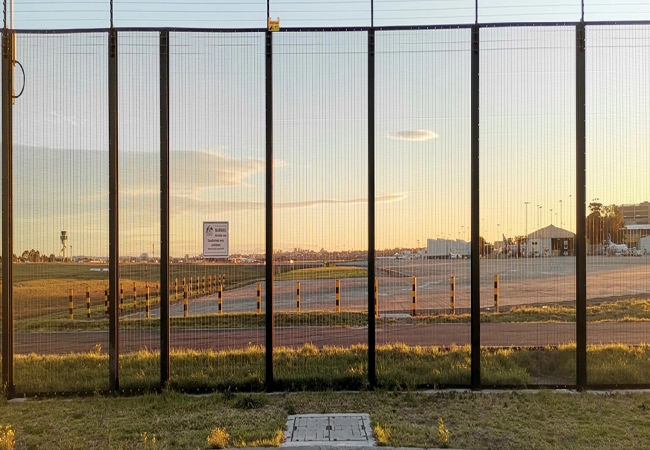

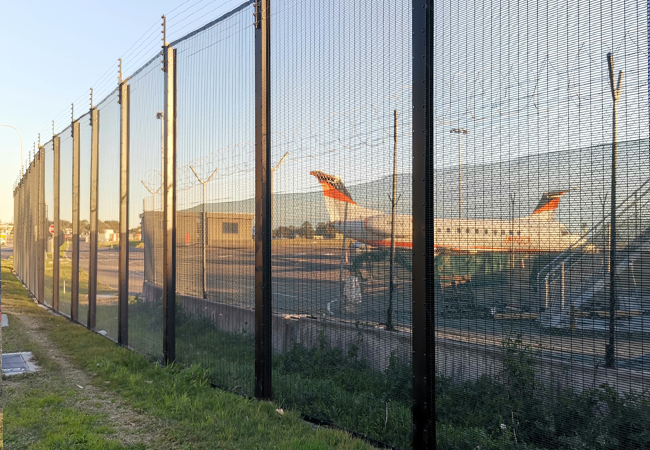

Airport 358 Fence Case

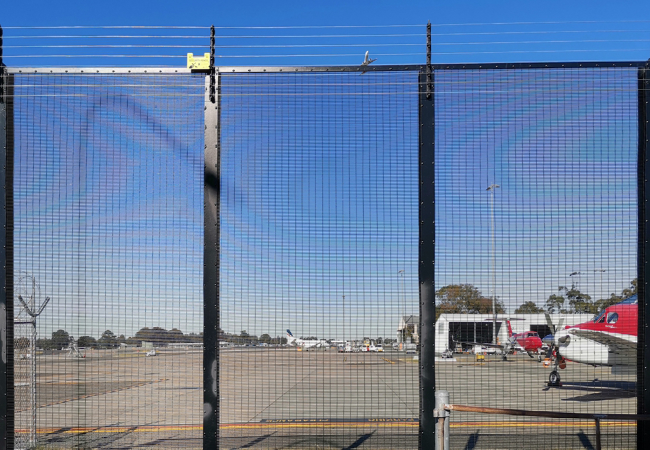

Runway perimeter double-fence zone, equipment storage area, cargo terminal isolation.
Airside vehicle gate checkpoint, fuel farm enclosure, maintenance hangar perimeter.
Wildlife exclusion zone, apron security fence, restricted area boundary.
High-security cargo terminal, baggage handling facility perimeter, anti-ram vehicle barrier integration.
Installation Guide – Airport 358 Fence
Step 1: Site Survey & Night Planning
Coordinate with airport operations. Mark fence line after last departure.
Step 2: Post Hole Excavation
Dig holes 900mm deep for 2.4m fence (1/3 embedment). Add gravel drainage base.
Step 3: Post Setting & Rapid Cure Concrete
Set posts plumb. Pour fast-curing concrete (gain strength in 24 hours). Install flange mounts on existing paving.
Step 4: Panel Mounting (H-Post System)
Slide 358 panels into H-slots. Use rubber mallet. Secure with anti-tamper clips at top/bottom.
Step 5: Top Razor Wire & Sensor Cable (Optional)
Bolt Y-extensions. Attach concertina razor wire. Clip fiber optic cable to sensor-ready posts.
Step 6: Final Inspection & Runway Handover
Check plumb (<2mm/m), bolt torque (45 Nm), gate swing. Provide as-built drawing to airport security.
Choose BDFENCE – the trusted partner for airport security fencing.
1. Airport-Grade Materials & Anti-Corrosion
We use high-strength low-carbon steel with hot-dip galvanizing + heavy PVC coating. Withstands jet blast, de-icing chemicals, and coastal airport environments – 25+ years rust-free.
2. Full Customization for Airport Zones
Available in H-post, square, and heavy I&M systems. Support custom heights (up to 3m), colors, and sensor-ready posts. Tailored for landside, airside, and cargo terminals.
3. Expert Pre-Sales & 24/7 Technical Support
Our engineers provide free CAD layout, ICAO compliance checklist, and tender documentation. After-sales: 7×24 responsive service, spare parts stock, and on-site assistance if required.
4. Full Industrial Chain – Factory Direct

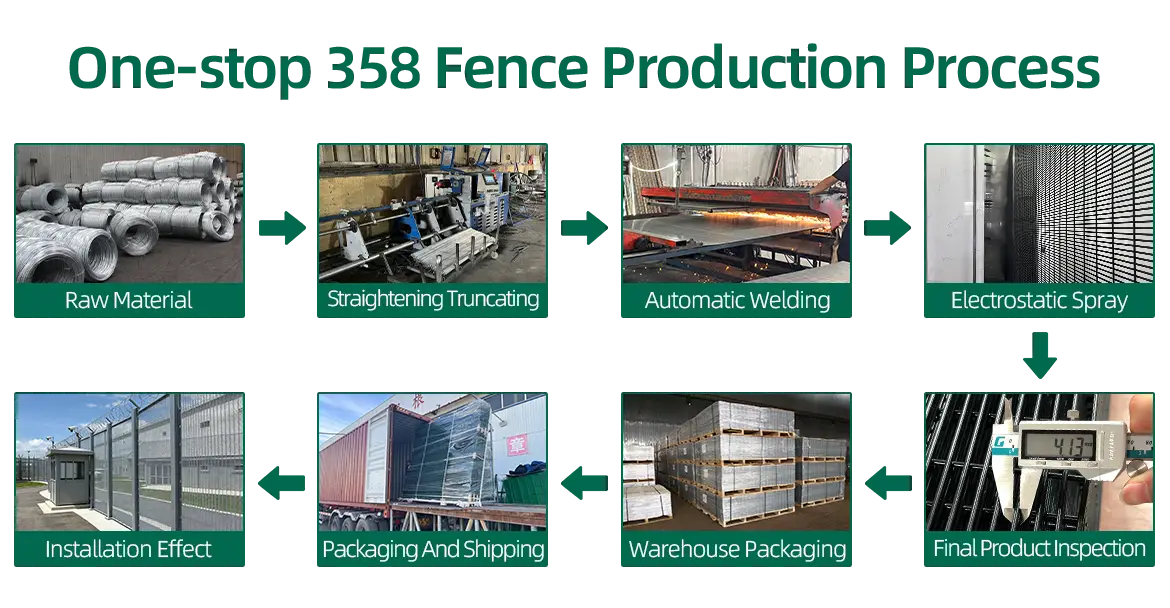

Located in Anping, China (wire mesh capital). From wire drawing to coating – all under one roof. Quality control, fast lead time (15-20 days), competitive pricing.
5. Global Airport Export Experience
Supplied international airports in UK, USA, UAE, Germany, Singapore, and more. Full certification packages (ISO, CE, SGS, material test reports) ready for your bid.
📌 In short: Premium steel + dual anti-corrosion + ICAO-compliant designs + engineering support + global logistics = BDFENCE, your reliable partner for airport perimeter security.
