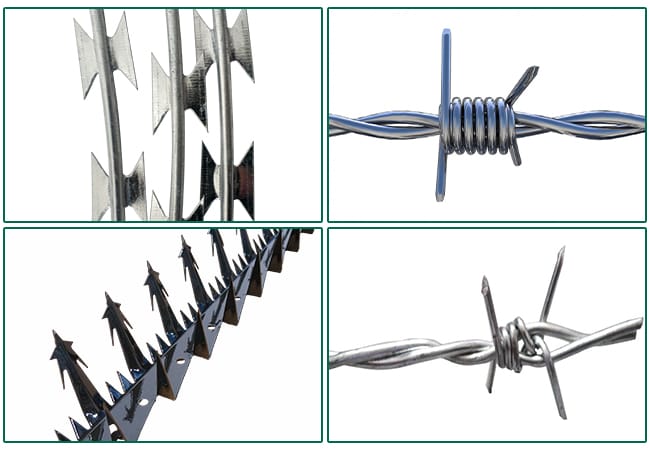

Security Wire
1. High Tensile & Anti-Cut
Premium low-carbon or stainless steel – resists cutting, breaking and deformation under force.
2. Superior Corrosion Protection
Hot-dip galvanized, electro-galvanized, PVC coated or SS304 – withstands rain, rust and harsh environments.
3. Flexible & Easy to Process
Supports weaving, welding, straight forming – adapts to 358 mesh, electric fences, gabions, cable armoring.
4. Cost-Effective & Durable
Long service life, low maintenance – widely used for high-security perimeters and industrial applications.
Product Details– BDFENCE

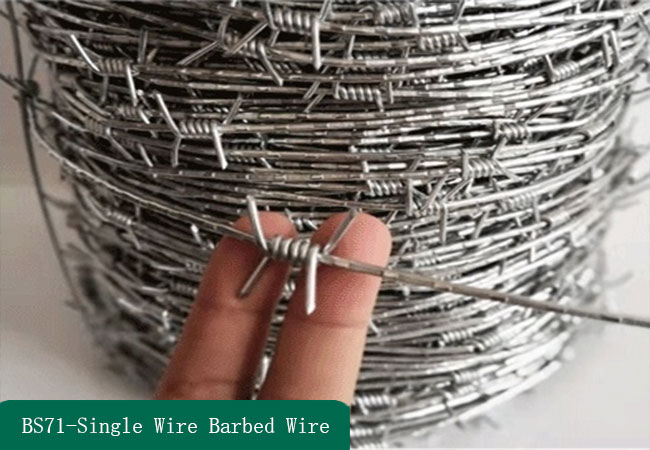

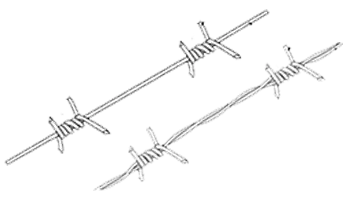

Barbed Wire Specifications
| Parameter | Specifications |
|---|---|
| Wire Gauge (SWG) | 10#×12# / 12#×12# / 12#×14# / 14#×14# / 14#×16# / 16#×16# / 16#×18# |
| Barb Distance | 7.5 – 15 cm |
| Barb Length | 1.5 – 3 cm |

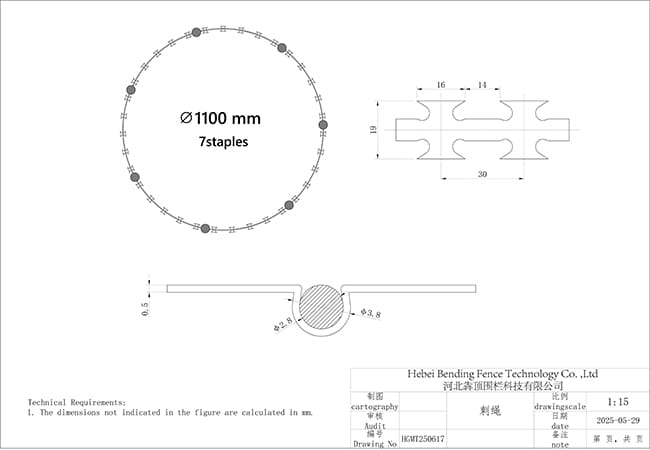

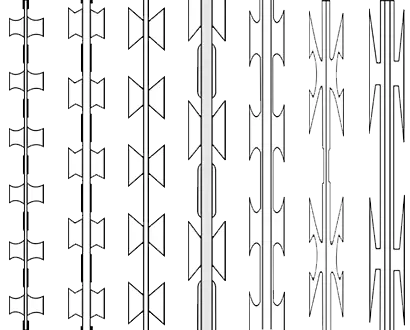

Barbed Wire Specifications
| Parameter | Specifications |
|---|---|
| Thickness (mm) | 0.5 ± 0.05 |
| Wire Diameter (mm) | 2.5 ± 0.1 |
| Barb Length (mm) | 10±1 / 12±1 / 18±1 / 22±1 / 28±1 / 30±1 / 60±2 / 65±2 |
| Barb Width (mm) | 13±1 / 15±1 / 18±1 / 32±1 / 21±1 |
| Barb Spacing (mm) | 26±1 / 33±1 / 37±1 / 45±1 / 42±1 / 100±2 |

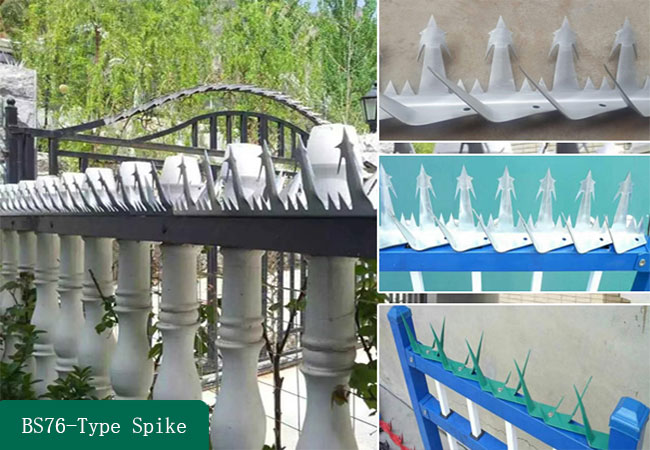

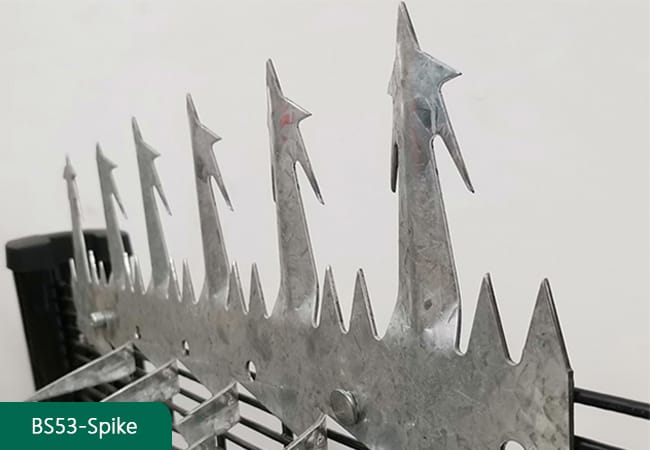

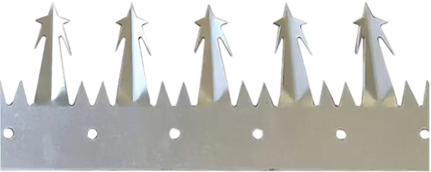

Spike Specifications
| Parameter | Specifications |
|---|---|
| Material | Q235 Plate / Q235 Plate + SS304 / SS304 |
| Length | 1.25 m |
| Thickness | 1.0 mm / 2.0 mm |
| Barb Length | 65 mm / 95 mm / 115 mm |
| Barb Spacing | 75 mm / 80 mm / 130 mm |
| Bottom Width | 22 mm / 45 mm / 50 mm |
| Weight | 0.28 kg / 0.8 kg / 1.8 kg |

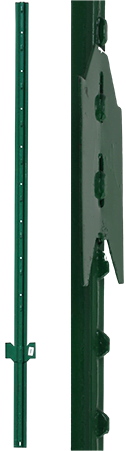

Recommended Post Specifications for Security Wire Installation
| Parameter | Recommended Options / Specifications |
|---|---|
| Product Name | Studded T Post / |
| Applicable Standard | ASTM A702-89 |
| Material | High-strength hot-rolled steel / Q235 rail steel / Low carbon steel |
| Post Shape | T-shaped cross-section with anchor plate |
| Weight Grade | Light (0.95 lbs/ft) / Regular (1.25 lbs/ft) / Heavy (1.33 lbs/ft) |
| Length | 4 ft / 5 ft / 6 ft / 7 ft / 8 ft / 10 ft |
| Surface Treatment | Powder Coated (Green / Black) / Hot-dip Galvanized / Black Bitumen Coated / Painted |
| Section Size (Cross-section) | approx. 1-3/8″ × 1-3/8″ × 1/8″ (35mm x 35mm x 3mm) |

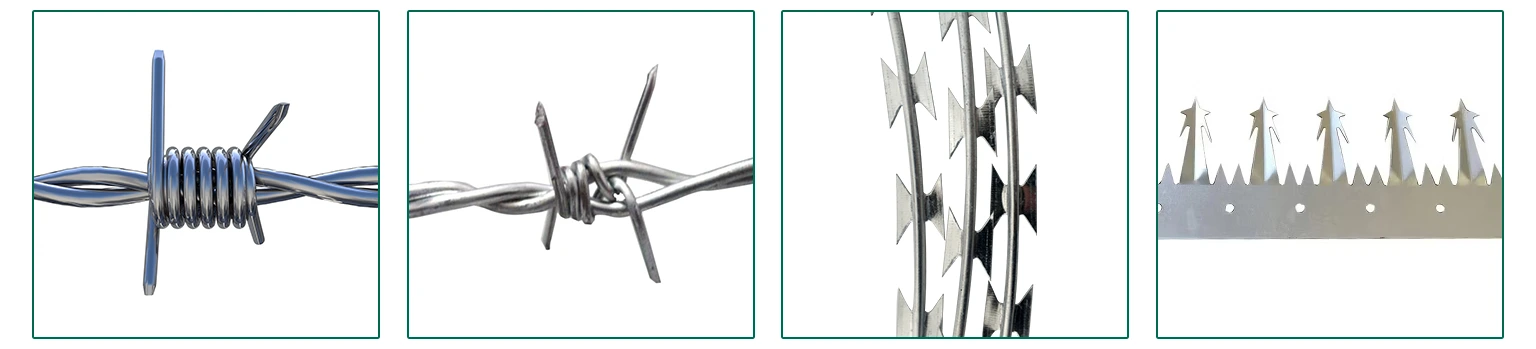

Special Accessories

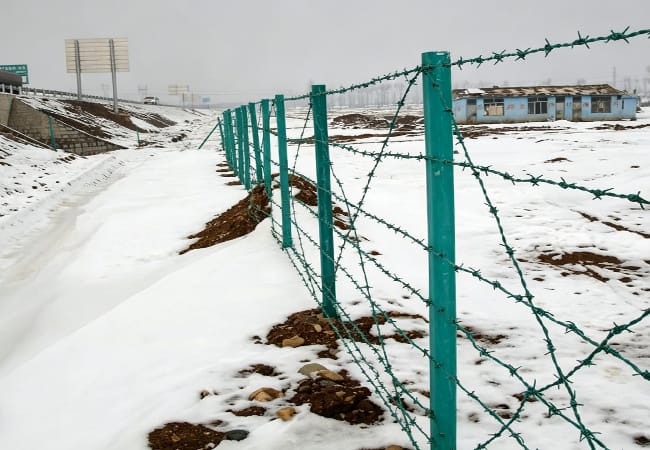

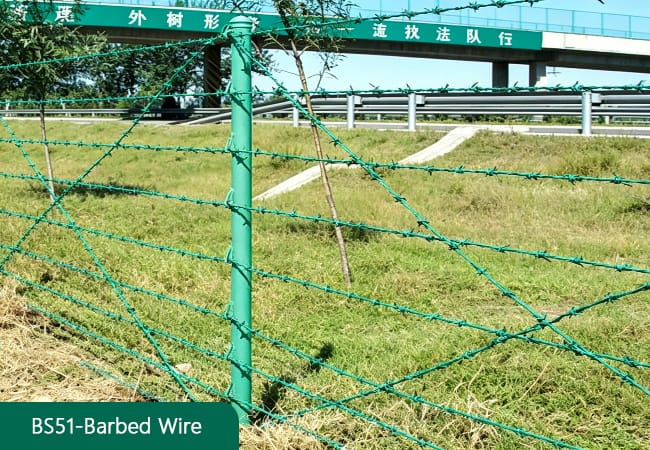

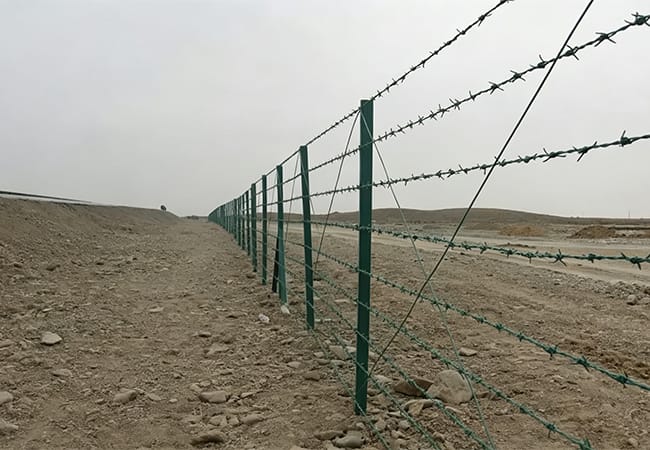

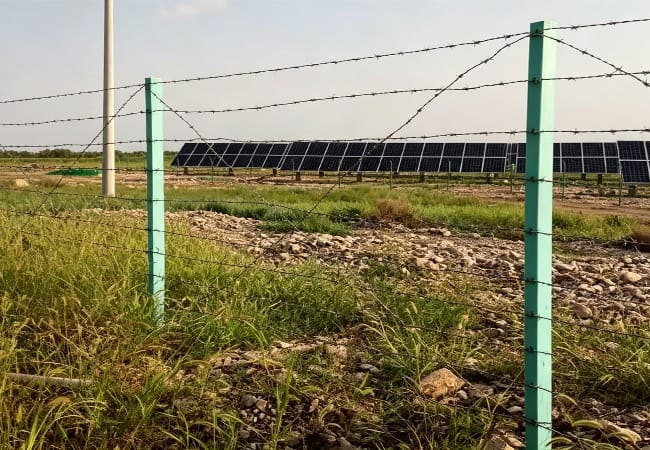

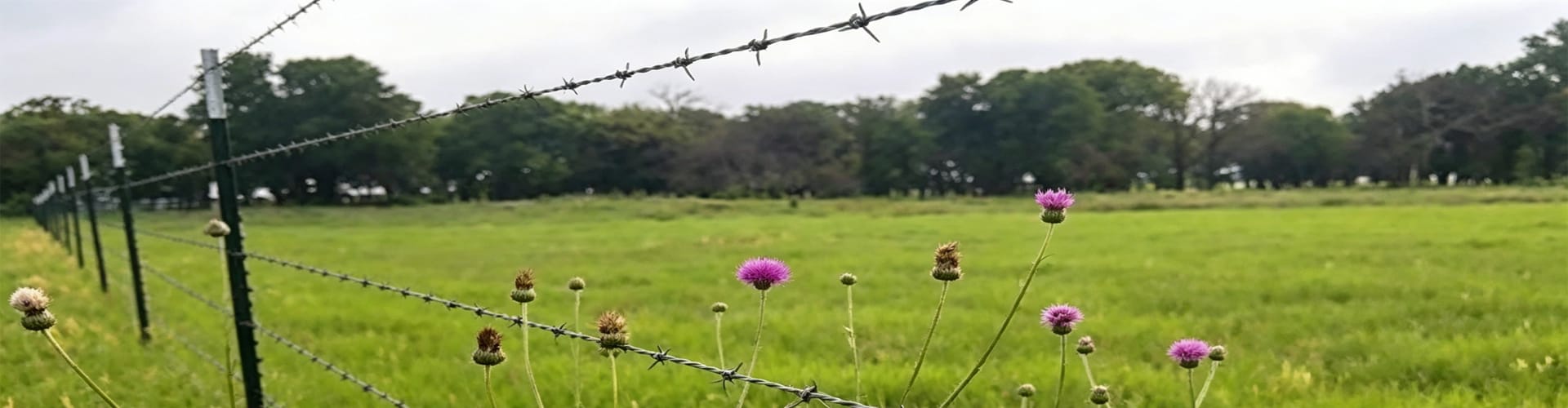

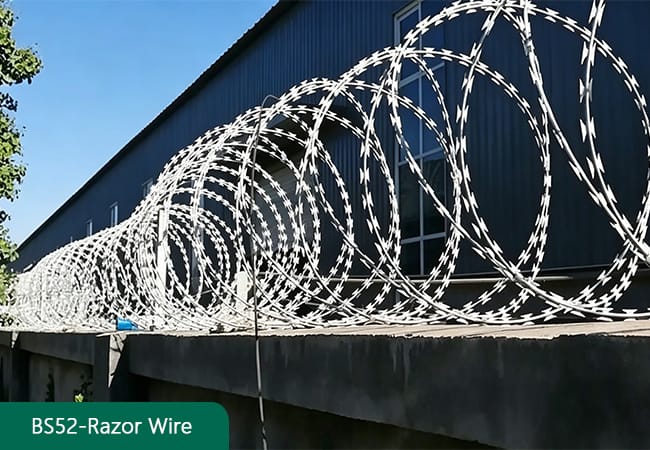

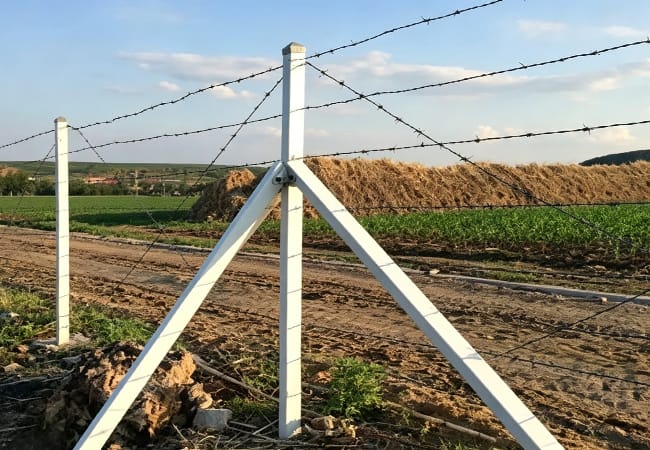

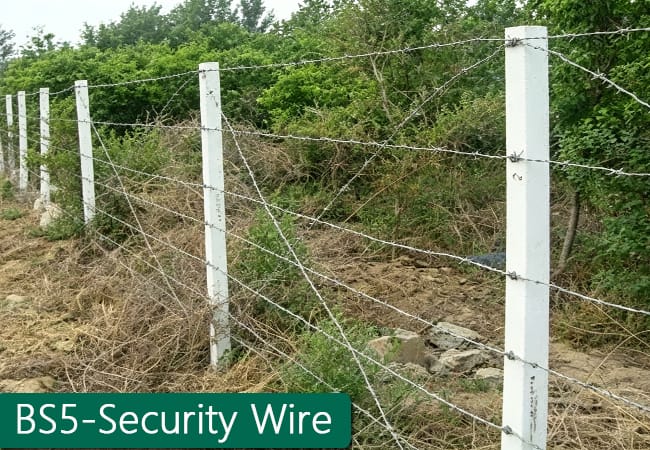

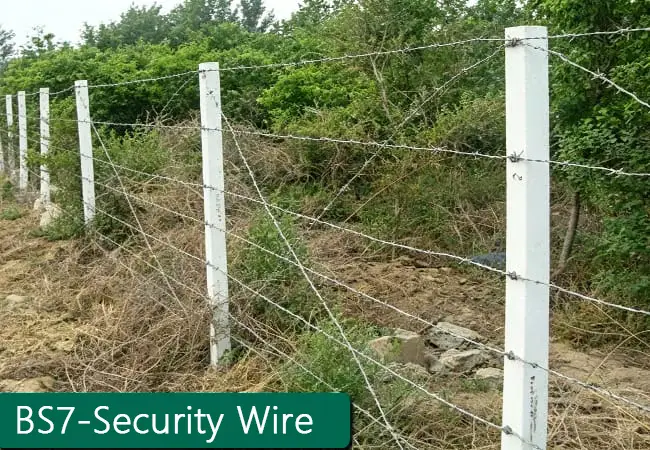

Applications of Security Wire
Detailed Introduction for Security Wire
The production and application of security wire require strict quality control and professional standards to ensure its high tensile strength, safety performance and long service life. Below is the expanded and detailed product introduction, with in-depth explanations of its features, materials, surface treatments and applications:

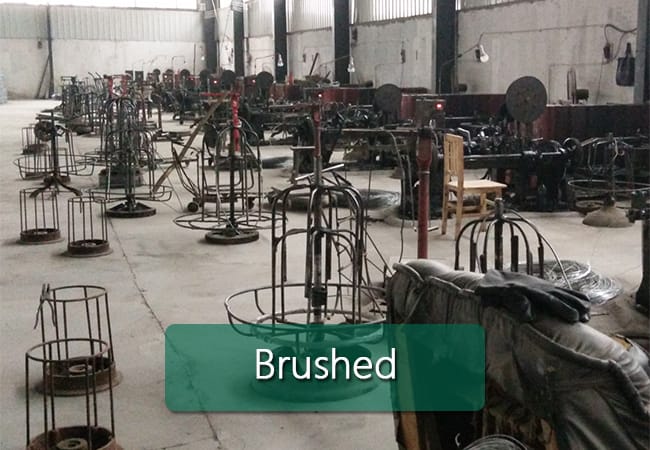

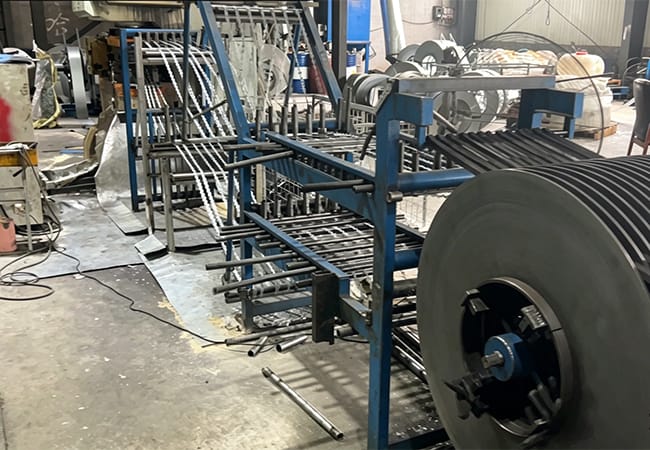

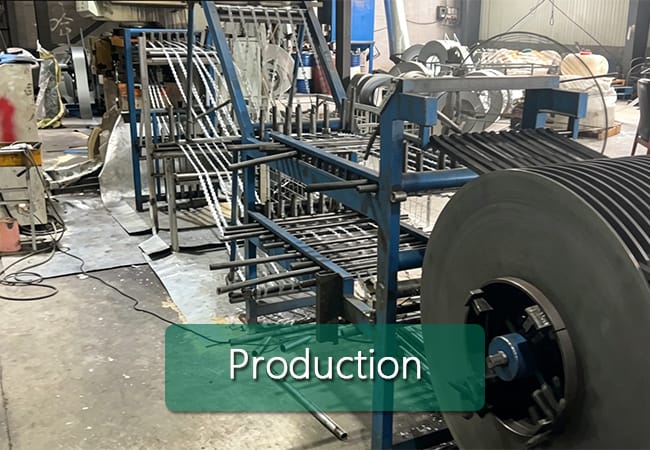

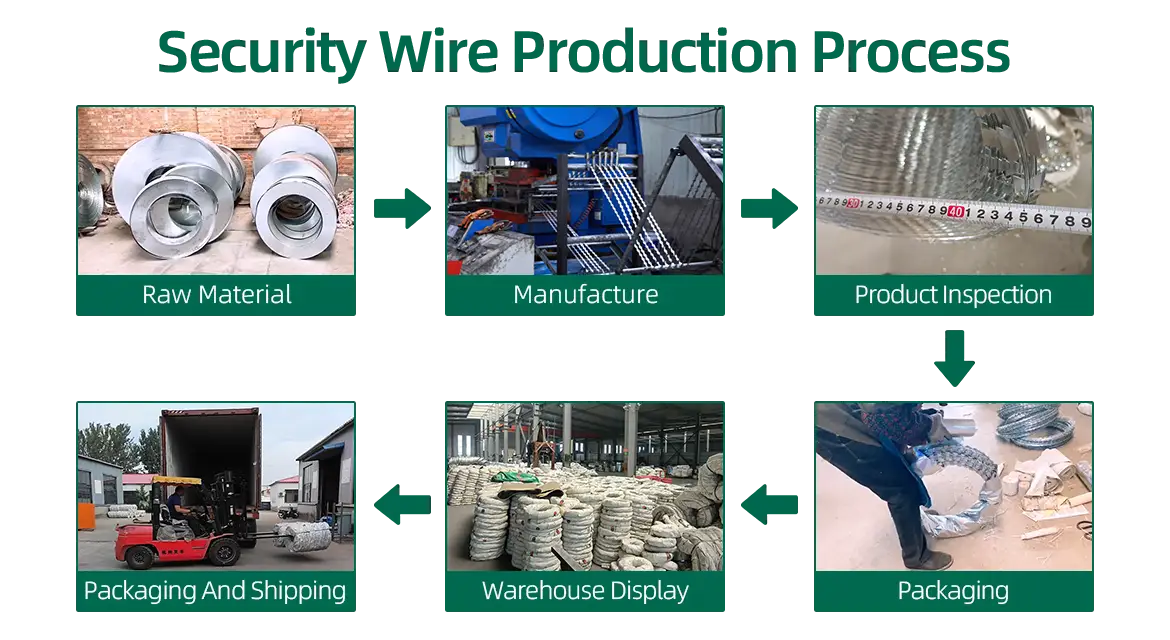

1. Premium Raw Material & Production Process
Before formal production, high-quality low-carbon steel billets are selected as raw materials to ensure stable product performance. First, the steel billets are drawn precisely through professional wire drawing equipment to form the required wire diameter; strict control is carried out during the drawing process to ensure uniform diameter, smooth surface and no cracks or damage. Then, through strict annealing and heat treatment processes, the internal stress of the wire is eliminated, greatly improving its toughness and tensile strength, and ensuring it is not easy to break or deform during use. The whole production process complies with international quality standards, providing a solid foundation for the high performance of security wire.
2. Surface Treatment & Anti-Corrosion Performance
Surface treatment is a key link affecting the service life of security wire, and every detail needs to be strictly controlled. First, professional surface treatment processes are adopted according to different application environments: electro galvanizing, hot-dip galvanizing, PVC coating, galvanized + PVC coating and stainless steel material are available for selection. Hot-dip galvanizing provides a thick and uniform zinc layer with ultra-high anti-rust and anti-corrosion performance; PVC coating enhances weather resistance and acid-alkali resistance. All surface treatments feature strong adhesion, no falling off and no cracking, ensuring long-term use in harsh outdoor, humid and high-corrosion environments without rusting or aging.
3. Mechanical Properties & Safety Performance
After strict production and treatment, security wire presents excellent mechanical and safety performance. It features ultra-high tensile strength, strong resistance to breakage, cutting and tearing, fully meeting the safety requirements of protective fencing and high-security applications. The wire body is straight, uniform and flexible, easy to bend, weave, weld and construct, while maintaining high structural stability. It can withstand long-term wind, rain, sun and external impact without deformation or damage, which guarantees the stability and safety of various protection systems.
4. Specification Customization & Processing Performance
Security wire supports complete specification customization to meet different engineering and application needs. Customers can customize wire diameter, length, surface treatment method and tensile strength index according to actual requirements. It has excellent processing performance, suitable for weaving high-security mesh, welding protective fence, making electric fence alloy wires, binding gabion baskets and manufacturing defensive barriers. The standardized and customizable design enables flexible application in various scenarios, with stable matching and convenient processing, greatly improving construction efficiency and application range.
5. Quality Inspection & Performance Testing
Before delivery, each batch of security wire requires a comprehensive quality inspection and performance test to ensure that the product quality meets international safety standards. First, professional testing tools are used to detect wire diameter uniformity, tensile strength, zinc layer thickness and surface quality; performance error is controlled within an extremely low range. Then, anti-corrosion test, bending test and weather resistance test are carried out to verify durability and stability. Check the appearance, toughness and processing performance one by one to ensure no defects. If any problems are found, the products will be reprocessed or eliminated immediately to ensure the highest quality and safety.

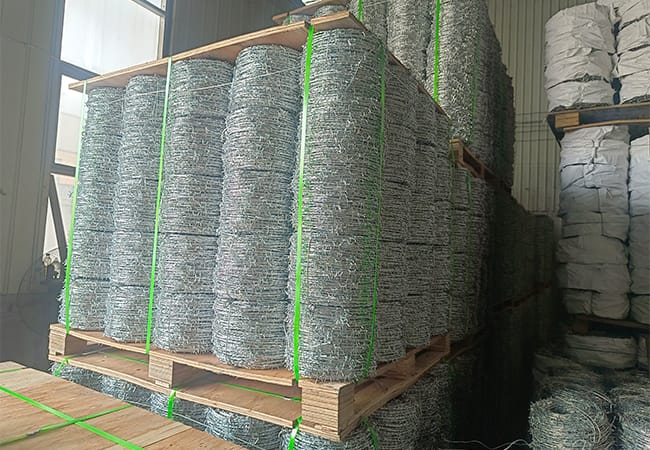

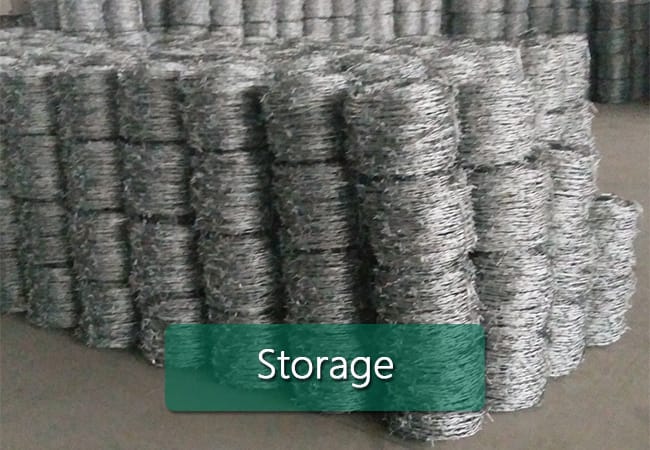

6. Packaging, Storage & Transportation
The final step of product control is packaging, storage and transportation, which ensures the integrity of security wire before application. First, use waterproof, moisture-proof and wear-resistant packaging materials for coil packing or straight cutting packing, with clear labels for easy identification. The packaging is firm to avoid friction damage during transportation. During storage, keep ventilated, dry and protected from rain to ensure no rust or oxidation. During transportation, take shockproof and anti-extrusion measures to avoid deformation. After strict inspection and proper packaging, the products can be officially delivered for various safety protection applications.
Security Wire by Hebei Bending Fence Technology
Hebei Bending Fence Technology Co., Ltd., located in Anping—the renowned “China Wire Mesh Hometown” of Hebei Province, is a professional manufacturer and exporter of high-quality metal fencing and security wire solutions with over 30 years of industry expertise. Our Security Wire is a flagship high-strength protective wire product, engineered with premium low-carbon steel or stainless steel and professional surface treatment for exceptional tensile strength, anti-cut performance and long-term durability.
Crafted via precise wire drawing, heat treatment and surface plating processes, our Security Wire features uniform texture, high toughness, strong rust resistance and excellent processing performance. It supports weaving, welding, bending and binding, making it an ideal raw material for all kinds of high-safety protection systems. We offer reliable surface treatments—hot-dip galvanizing, PVC coating and galvanized + PVC coating—ensuring outstanding corrosion, rust and weather resistance for long-lasting performance in harsh outdoor and high-security environments, with a service life of up to 30+ years.
