Power Plant 358 Fence
1. Anti-Climb
Ultra-dense 76.2×12.7mm mesh prevents climbing.
2. Anti-Cut
High-tensile steel resists bolt cutters and saws.
3. Corrosion Resistant
Hot-dip galvanized + PVC coating – withstands cooling tower mist, coastal salt, and industrial pollutants.
4. Rapid Install
Prefabricated panels + post system – minimal outage time for substation upgrades.

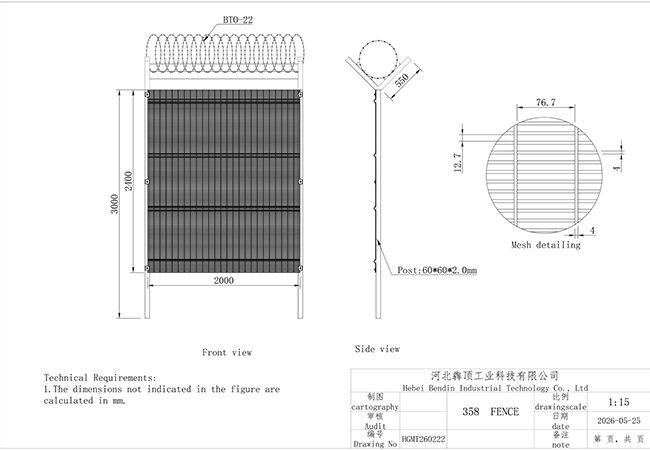

Panel Specifications
Power Plant 358 Fence Specifications
| Parameter | Specifications |
|---|---|
| Line Wire × Cross Wire | 4.0×3.0mm / 4.0×4.0mm / 4.5×3.0mm / 4.5×4.5mm |
| Hole Size | 76.2×12.7mm / 75×12mm |
| Panel Length | 2.0m / 2.2m / 2.4m / 3.0m |
| Panel Height | 1800mm / 2000mm / 2200mm / 2400mm / 2800mm / 3000mm |
| Number of Bends | Corresponding to height: 3 / 3 / 4 / 4 / 5 / 5 |
| Common Color | Green RAL6005 / Grey RAL7016 / Black RAL9005 |
Available Post Systems
Square Post
| Post Type | Specification |
|---|---|
| Hole Size | 60x60mm/80 x80mm/100 x100mm. |
| Thickness | 1.5 mm/1.8 mm/2.0 mm/2.5 mm |
| Panel Height | 1830 mm/2030 mm/2230 mm/2430 mm/2800 mm/3000 mm |
| Base Post | 1850mm/2050mm |
| Normal Post | 2400mm/2500mm/2800mm/3000mm/3500mm/3700mm. |

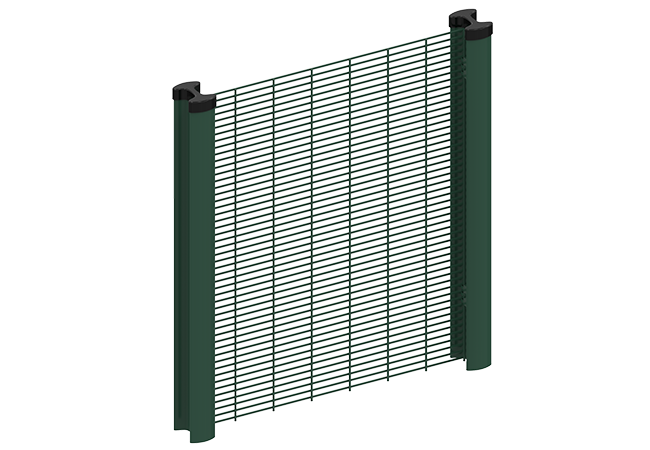

H Post
| Post Type | Specification |
|---|---|
| Hole Size | 100x55mm/150x150mm. |
| Thickness | 4.0 mm/5.0 mm |
| Panel Height | 1830 mm/2030 mm/2230 mm/2430 mm |
| Base Post | 1850mm/2050mm |
| Normal Post | 2400mm/2500mm/2800mm/3000mm |
Special Accessories
- Square Post
- H Post
Power Plant 358 Fence Case

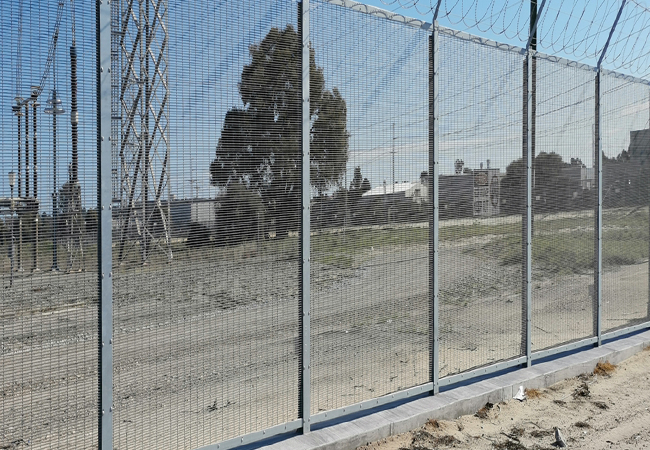

Cooling tower exclusion zone, fuel storage yard security.

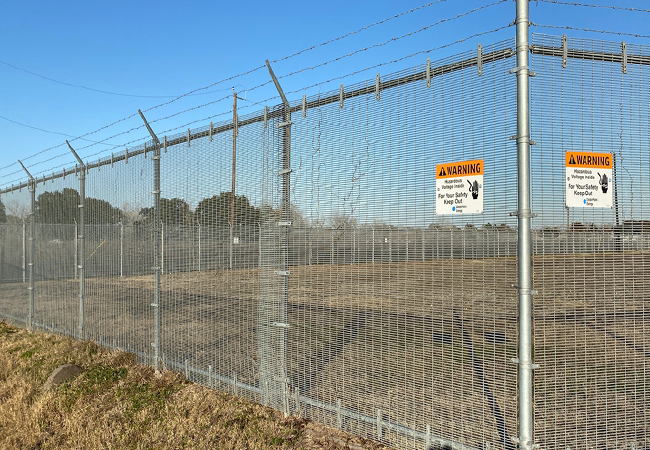

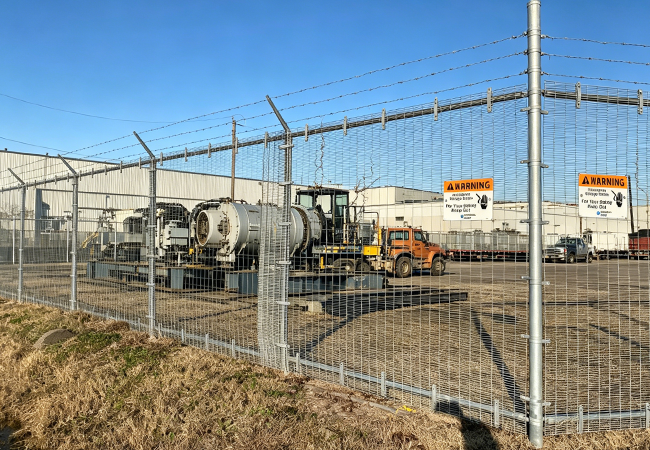

Double perimeter fencing with intrusion detection, vehicle checkpoint.

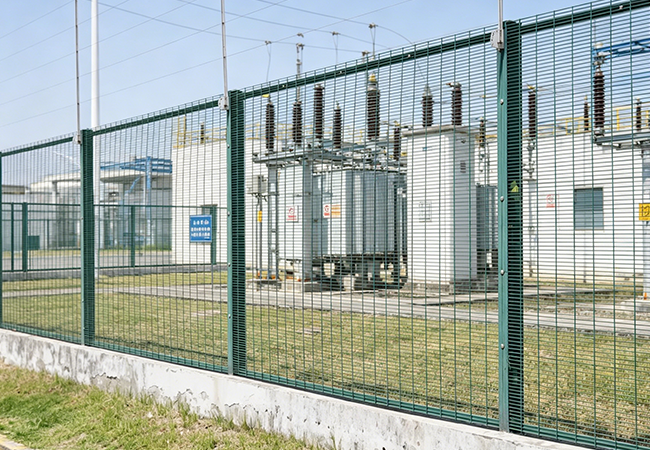

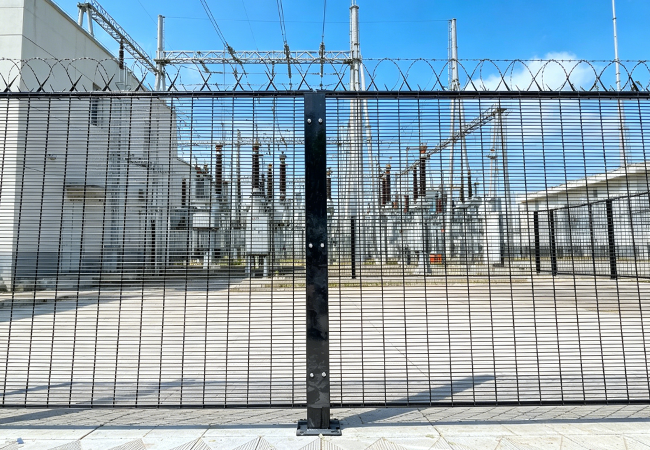

Urban substation anti-climb fence with anti-graffiti coating.

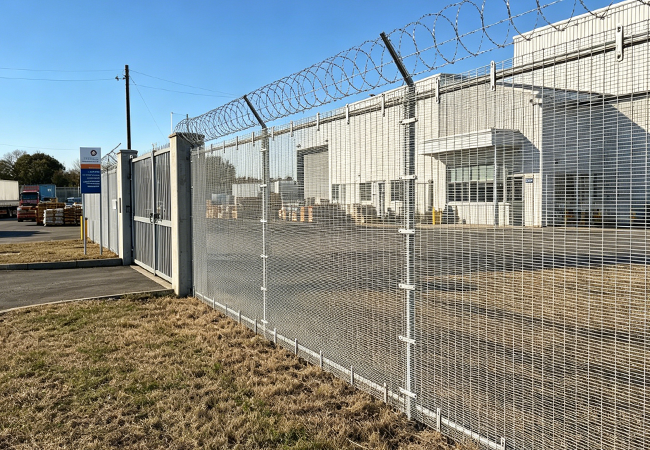

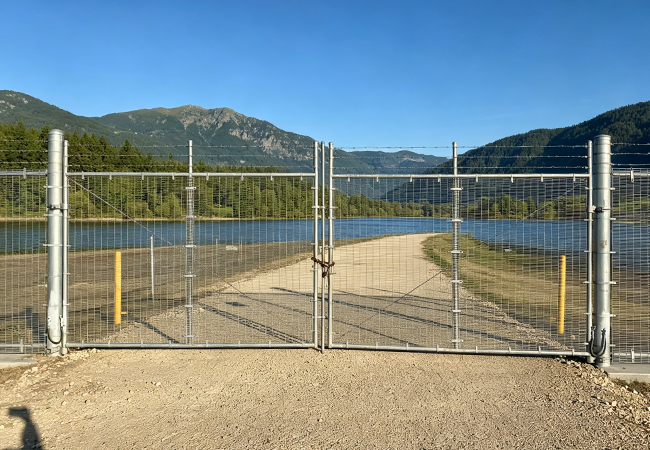

Dam crest fence, transformer yard isolation, access gate control.
6 Steps for Substation Perimeter Installation
Step 1: Security Zone Coordination
Work with plant safety officer. Mark fence line outside energized areas.
Step 2: Post Hole Excavation
Dig holes 1000mm deep. Avoid underground cables – use ground-penetrating radar.
Step 3: Post Setting & Concrete
Set posts plumb. Pour C25 concrete. Cure 48 hours.
Step 4: Panel Mounting
Slide panels into H-slots or attach with security clips. Tighten bolts (torque 45 Nm).
Step 5: Top Razor Wire & Sensors
Bolt Y-extensions. Install razor wire. Clip sensor cables to posts.
Step 6: Final Inspection & Handover
Check plumb, bolt torque, gate operation. Provide as-built drawing.
Choose BDFENCE – the reliable partner for energy infrastructure security.
1. Utility-Grade Materials & Anti-Corrosion
High-strength steel + hot-dip galvanizing + heavy PVC coating. Withstands cooling tower mist, industrial pollution, and coastal salt – 25+ years service life.
2. Customized for Power Plant Zones
Available in H-post, square, and I&M systems. Support custom heights, sensor-ready posts, and anti-ram gates – tailored for substations, switchyards, and fuel storage.
3. Expert Pre-Sales & 24/7 Technical Support
Free CAD layout, NERC compliance checklist, and tender documentation. After-sales: 7×24 responsive service, spare parts, and site visit support.
4. Full Industrial Chain – Factory Direct
Located in Anping. From wire drawing to coating – all in-house. Quality control, fast lead time, competitive pricing.
5. Global Power Plant Experience
Supplied coal, nuclear, solar, hydro, and substation projects across UK, USA, Germany, Australia, Canada, and more.
📌 In short: Premium steel + dual corrosion protection + compliance-ready + global logistics = BDFENCE, your trusted partner for power plant perimeter security.
