Hinged Joint Fence

Flexible & Impact-Resistant Perimeter Barrier | Hot-Dip Galvanized / PVC Coated | Pre-Made Rolls, Tool-Only Installation | No Welding Required

Send Your Inquiry Now

Hinged Joint Fence Core Advantages

1. Impact Resistance & Flexibility
Interlocked hinged wire joints absorb impact – redistributes stress, prevents permanent deformation.

2. Tidy & Professional Appearance
Neat, uniform mesh pattern with clean lines – enhances any landscape or industrial setting.

3. All-Weather Corrosion Protection
Hot-dip galvanized, polyester powder coated, or PVC/PE coated – rust-proof for long-term outdoor use.

4. Fast, Tool-Only Installation
Pre-made rolls + matched posts – no welding, no special equipment. Saves labor and time.

Send Inquiry Now

Product Details– BDFENCE

Hinged Joint Fence&Fixed Knot Fence

Parameter	Specifications
Type (Model)	7/150/813/50, 8/150/813/50, 8/150/902/50, 8/150/1016/50, 8/150/1143/50, 9/150/991/50, 9/150/1245/50, 10/150/1194/50, 10/150/1334/50
Incremental Vertical Hole Sizes (mm)	102+114+127+140+152+178 89(75)+89+102+114+127+140+152 89+102+114+127+140+152+178 102+114+127+140+152+178+203 114+127+140+152+178+203+229 89(75)+89+102+114+127+140+152+178 102+114+127+140+152+178+203+229 89(75)+89+102+114+127+140+152+178+203 89+102+114+127+140+152+178+203+229 89(75)+89+102+114+127+140+152+178+203+229
Gross Weight (kg)	19.3 / 20.8 / 21.6 / 22.6 / 23.6 / 23.9 / 26.0 / 27.3 / 28.4 / 30.8
Top & Bottom Wire (mm)	2.5
Inner Wire Diameter (mm)	2.0

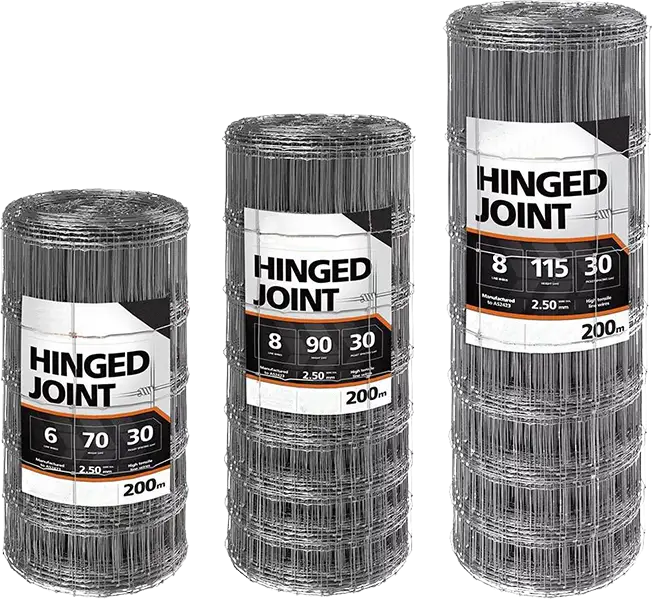

Roll Diameter (mm)	270

T Post

Parameter	Specifications
Item	T30, T35, T40, T50, T60, T65, T70, T80
Post Size (Width×Height×Thickness)	30×30×3.0mm, 35×35×3.5mm, 40×40×4.0mm, 50×50×5.0mm, 60×60×6.0mm, 65×65×6.5mm, 70×70×7.0mm, 80×80×8.0 mm
Length	Custom per customer requirement

Special Accessories

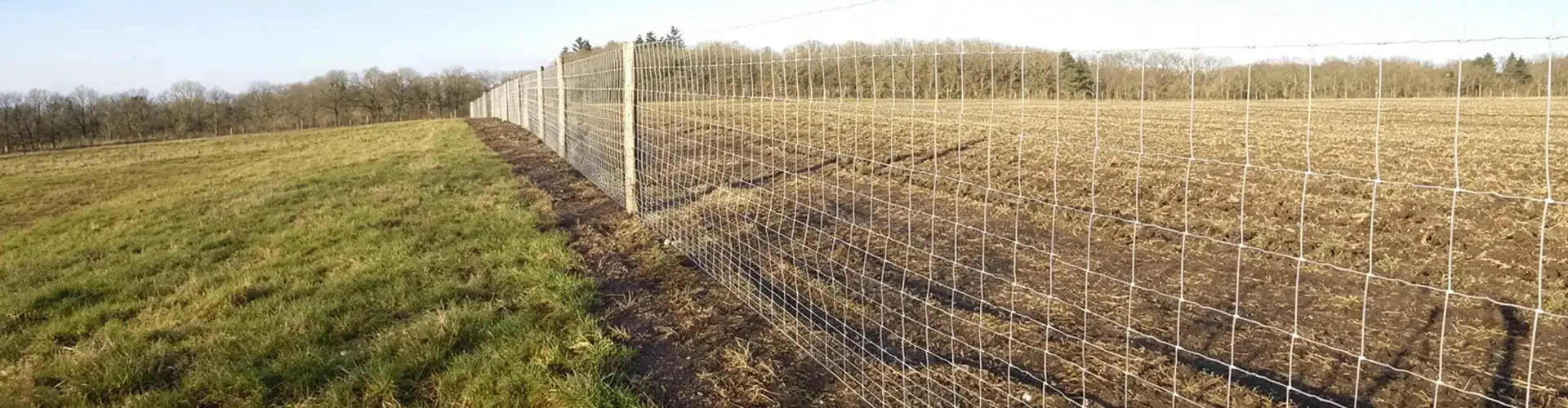

Applications of Farm Fence

Livestock breeding farms

Flexible hinged fence confines livestock. Impact-resistant mesh endures bumps; anti-corrosion coating resists manure, quick installation for pens & perimeters.

Grasslands

Marks grazing zones to avoid overgrazing. Fits gentle ground undulations, moisture-proof finish adapts field humidity and large-scale fencing.

Mountain pastures

Conforms to rugged sloped terrain. Tolerates falling stones and livestock impacts, weatherproof coating copes with harsh alpine climates for remote pasture fencing.

Suburban site enclosure

Works for suburban lot and construction boundary. Nice outlook suits surrounding scenery, fast installation for long-term site separation.

Detailed Installation Process & Product Introduction of Hinged Joint Fence

1. On-Site Cleaning and Positioning Marking

Clean the fencing site thoroughly to remove weeds, stones and debris, and level uneven ground for a flat construction base. Accurately mark the positions of fence posts and mesh laying range with professional measuring tools.

Set post spacing at 2–3 meters according to fence height and anti-impact demands. Bury 1/3 to 1/4 of the total post height underground to enhance wind and livestock impact resistance. Keep all marking lines straight for a uniform overall layout.

2. Foundation Digging and Post Fixing

Dig mounting holes 1.5–2 times the post diameter and clear loose soil at the hole bottom to avoid unbalanced stress. Place posts vertically and calibrate their verticality with a plumb line, then temporarily support them to prevent offset.

Fill holes with high-strength concrete and tamp tightly to eliminate air bubbles. Keep the concrete surface slightly higher than the ground to avoid waterlogging and corrosion. Allow concrete to cure for at least 24 hours; extend curing time in low-temperature and humid weather for firm fixation.

3. Mesh Panel Laying and Positioning

After full concrete curing, inspect meshes and posts for no deformation or blockage. Lift the hinged mesh and align its mounting holes with adjacent posts.

Adjust the mesh height to keep 5–10 cm clearance from the ground for anti-corrosion. Utilize the fence’s flexible hinged structure to adapt to sloped and uneven farm terrain. Maintain uniform gaps between panels for thermal expansion and fix meshes temporarily after positioning.

4. Accessory Fastening and Fixed Installation

Equip with anti-rust bolts, gaskets and customized agricultural fasteners that feature excellent anti-loosening and corrosion resistance for long-term outdoor farm use.

Install and fasten accessories evenly with professional tools, avoiding over-tightening damage or loose connection. Strengthen fixing points at mesh bending and docking areas, and inspect all joints one by one to eliminate installation loopholes.

5. Overall Calibration and Quality Inspection

Recheck post verticality and mesh flatness with level tools to ensure no skew or uneven height. Shake the fence gently to confirm integral firmness without loosening or shaking.

6. Surface Cleaning and Project Acceptance

Focus on the adaptability of hinged joints on complex terrain, ensuring flexible bending without jamming or deformation. Adjust and rectify any deviations to meet standard construction requirements.

Clean dust, concrete residues and stains on the fence surface to protect the galvanized or coated anti-rust layer. Do not use corrosive detergents to avoid surface damage.

Installation Notes

Complete final acceptance by checking installation spacing, verticality, structural firmness and surface integrity. The installation is qualified only when no deformation, rust or loose connection is found.

Wear standard safety protective gear during construction. Avoid scratching, colliding or squeezing the fence surface to protect the anti-corrosion coating and hinged structure, ensuring stable long-term farm fencing performance.

Why Choose BENDIN for Hinged Joint Fence?

1. Premium Steel & Multi‑Coating Options – We use Q195/Q235 low‑carbon steel with hot‑dip galvanizing, polyester powder coating, or PVC/PE coating. Rust‑proof, flexible – 25+ years service life.

2. Complete Type Range – 10 Standard Models – From 7/150/813/50 to 10/150/1334/50. Choose by livestock type, security level, and terrain. Incremental vertical hole sizes from 89mm to 229mm – tailored for sheep, cattle, or perimeter security.

3. Professional Finish & Durability – Hinged joint structure absorbs impact, preventing permanent deformation. Tidy, uniform mesh pattern enhances any landscape.

4. Fast, Tool‑Only Installation – Pre‑made rolls + post clips – no welding, no heavy equipment. Save 40% labour vs welded fences.

5. Factory Direct – Quality & Price – In‑house wire drawing, hinge forming, weaving, coating. Strict QC, fast lead time (10‑15 days), competitive pricing.

6. Global Hinged Joint Experience – Supplied ranches, farms, industrial sites, schools across Australia, UK, Germany, USA, South Africa and more.

📌 In short: Hinged flexibility + full coating + 10 type options + fast installation = BENDIN, your trusted hinged joint fence partner.
