Defensive Barriers
1. Ballistic & Blast Resistant
High-strength welded gabion net with non-woven fabric liner withstands gunfire and explosion shockwaves.
2. Anti-Collision & Anti-Intrusion
Reinforced joints and sturdy frame absorb impact – stops vehicles and forced entry.
3. Non-Woven Fabric Integration
Geotextile liner retains fine fill materials (sand, soil, gravel) while allowing drainage – prevents washout.
4. Rapid Deployment
Modular foldable design. Stack and assemble on-site in minutes – no special tools.
Product Details– BDFENCE
Defensive Barriers Specifications
| Parameter | Specifications |
|---|---|
| Wire Diameter | 4.0mm / 4.5mm / 5.0mm |
| Spring Wire | 4.0mm / 4.5mm |

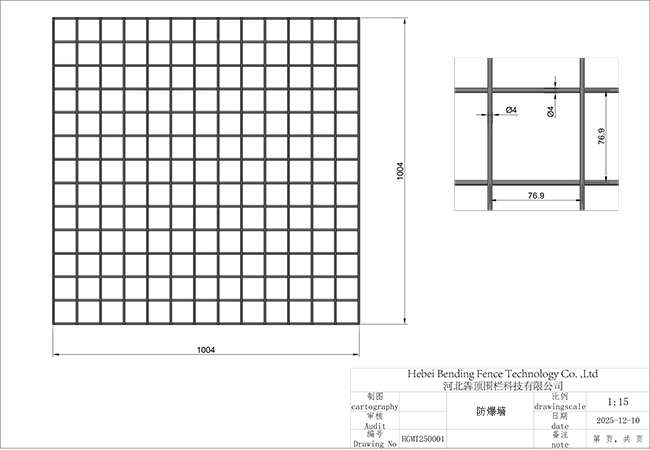

| Mesh Size | 76×76mm / 50×100mm / 100×100mm |
Geotechnical Cloth Specifications
| Unit | A (Height) | B (Width) | C (Length) |
| Mil 12B | 7′ | 5′ | 95′ |
| Mil 12G | 2.13m | 1.52 m | 28.94 m |
| Mil 11B | 3’3″ | 2’6″ | 30′ |
| Mil 11G | 1.0 m | 0.76 m | 9.14 m |
| Mil 10B | 4’6″ | 2′ | 32′ |
| Mil 10G | 1.37 m | 0.61 m | 10 m |
| Mil 9B | 7’3″ | 2′ | 90′ |
| Mil 9G | 2.21 m | 0.61 m | 27.74 m |
| Mil 8B | 5’6″ | 2′ | 10′ |
| Mil 8G | 1.68 m | 0.61 m | 3.05 m |
| Mil 7B | 2′ | 2′ | 10′ |
| Mil 7G | 0.61 m | 0.61 m | 3.05 m |
| Mil 6B | 2′ | 5′ | 32′ |
| Mil 6G | 0.61 m | 1.52 m | 10 m |
| Mil 5B | 3’3″ | 3’3″ | 32′ |
| Mil 5G | 1.0 m | 1.0 m | 10 m |
| Mil 4B | 2′ | 2′ | 4′ |
| Mil 4G | 0.61 m | 0.61 m | 1.21 m |
| Mil 3B | 2′ | 2′ | 10′ |
| Mil 3G | 0.61 m | 0.61 m | 3.05 m |
| Mil 2B | 4’6″ | 3’6″ | 32′ |
| Mil 2G | 1.37 m | 1.06 m | 10 m |
| Mil 1B | 7′ | 3’6″ | 18′ |
| Mil 1G | 2.13 m | 1.06 m | 5.5 m |

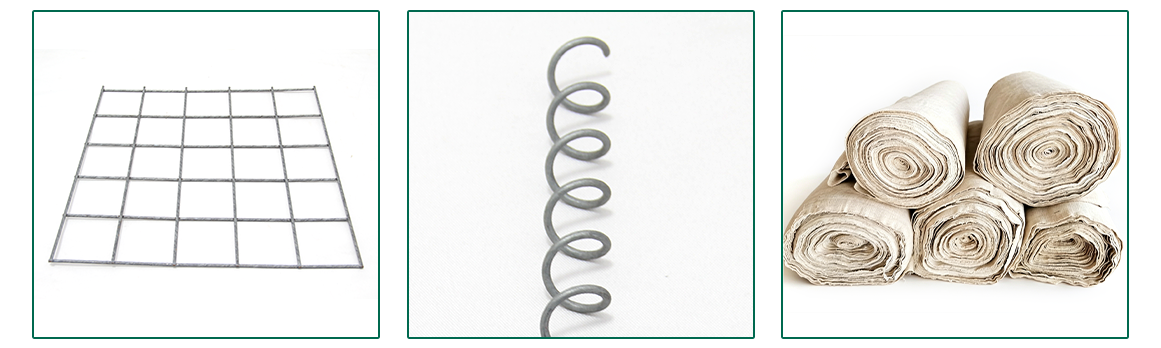

Special Accessories
Applications of Defensive Barriers
Installation Guide – Defensive Barriers
Step 1: Site Preparation
Clear debris. Level ground if needed. Mark barrier line (continuous or staggered).
Step 2: Base Layer Placement
Position first row of welded gabion boxes (with integrated non-woven fabric liner). Ensure level contact with ground.
Step 3: Unfold & Position
Unfold the integrated fabric-lined gabion box. Shape it to rectangular form. Secure corners with built-in ties.
Step 4: Fill with Material
Fill box with sand, gravel, or on-site soil. Tamp every 300mm layer for density. Fabric liner holds fill while allowing drainage.
Step 5: Close & Stack
Fold the integrated fabric top flap over the fill (no separate lid). Tie securely with supplied lacing wire. Stack second layer with offset seams. Lock with vertical pins or spring wire.
Step 6: Final Inspection & Camouflage
Check connection tightness, vertical alignment, and fabric integrity. Attach camo netting if required.
Why Choose BDFENCE for Defensive Barriers?
Choose BDFENCE – your partner for non-woven fabric welded gabion fortification.
1. Battlefield-Grade Welded Gabion Net
We use heavy-gauge low-carbon steel wire (4.0–5.0mm) with reinforced welding. No hot-dip galvanizing needed – the non-woven fabric liner protects fill while wire mesh provides structural integrity. Withstands gunfire, explosions, and impact.
2. Non-Woven Fabric Integration
Our geotextile liner (150–300g/m²) retains sand, gravel, or on-site soil while allowing drainage. Prevents washout from rain or flood. Double-stitched seams resist tearing under heavy loads.
3. Fully Customizable for Any Threat Level
Available in multiple mesh sizes (76×76 / 50×100 / 100×100mm), panel heights, and lengths. Foldable modular design for rapid stack – tailored to military, border, or flood control needs.
4. Expert Pre-Sales & Emergency Support
Our engineers provide free CAD layout, ballistic calculation, and tender documentation. After-sales: 24/7 support, spare parts, and field training for rapid deployment teams.
5. Full Industrial Chain – Factory Direct

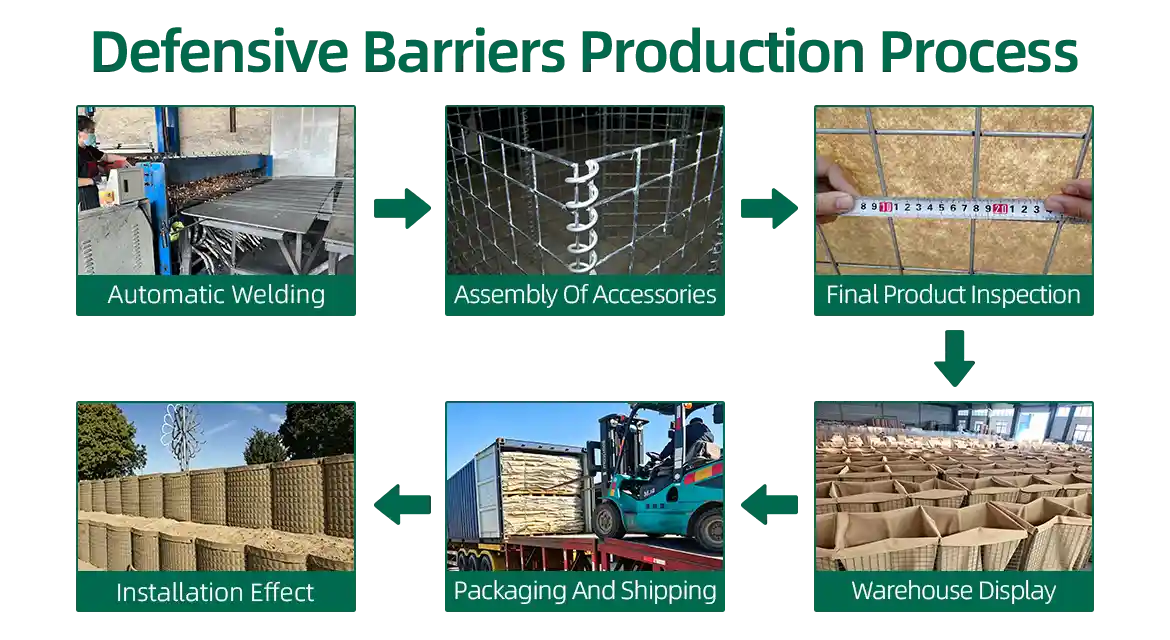

Located in Anping. From wire drawing to welded gabion production, fabric cutting to folding – all under one roof. Fast lead time (15 days for 1000 units), strict quality control, cost-effective.
6. Global Defense & Emergency Experience
Supplied military fortifications, border security, riot control units, and disaster relief agencies across Ukraine, USA, KSA, France, India, and more. Full compliance documents ready.
📌 In short: Heavy-gauge welded gabion net + non-woven fabric liner + foldable design + ballistic resistance + rapid deployment = BDFENCE, your trusted source for defensive barriers.
