Steel tubular fence Core Advantages
1. High Anti‑Collision & Rigidity
Heavy‑duty steel tube frame with reinforced joints – withstands vehicle impact, no deformation.
2. Secure & Anti‑Climb
Slim picket spacing (100‑125mm) prevents climbing. Strong welded construction.
3. All‑Weather Corrosion Protection
Hot‑dip galvanized + powder coated – resists rust, rain, snow and industrial chemicals.
4. Fast Modular Installation
Pre‑welded panel + post system – bolt together, no on‑site welding. Save labor.
Product Details– BDFENCE

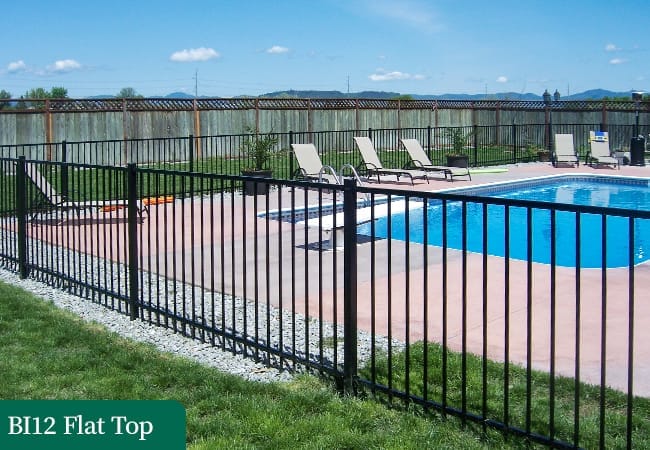

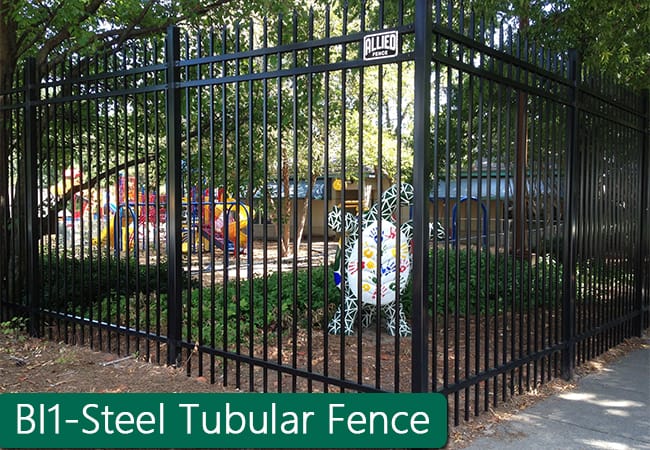

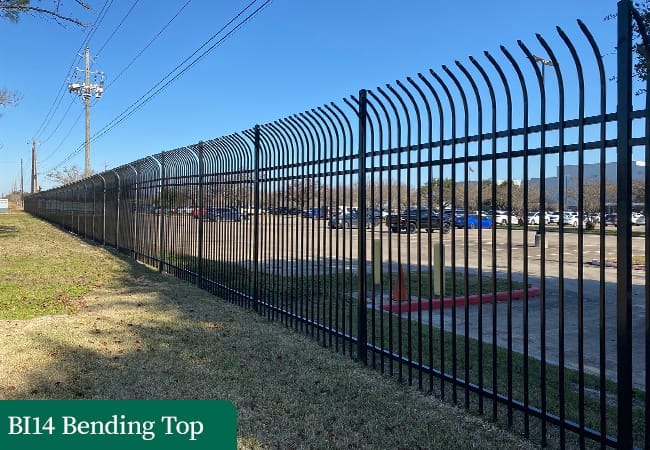

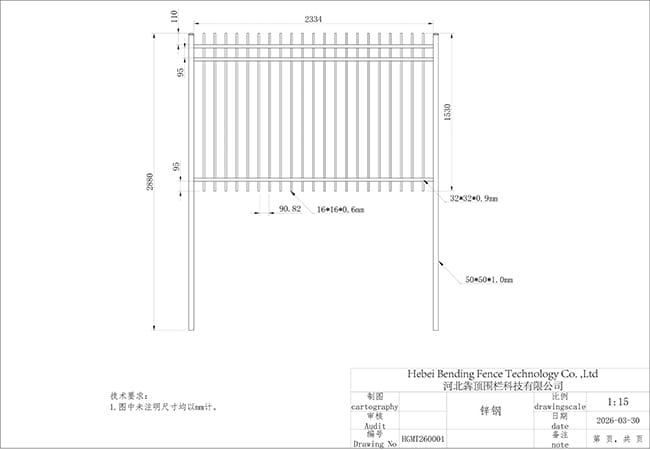

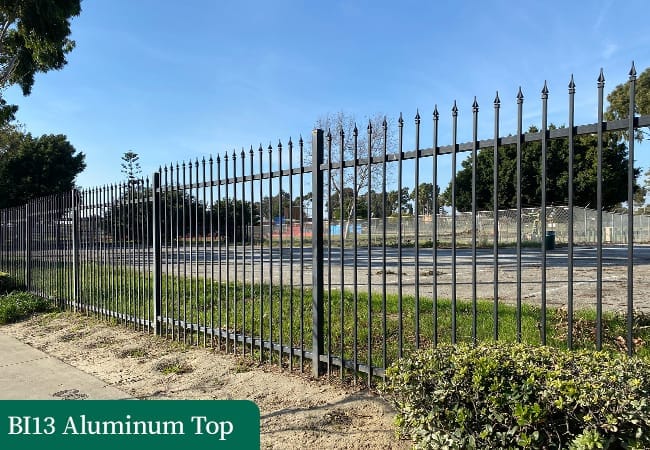

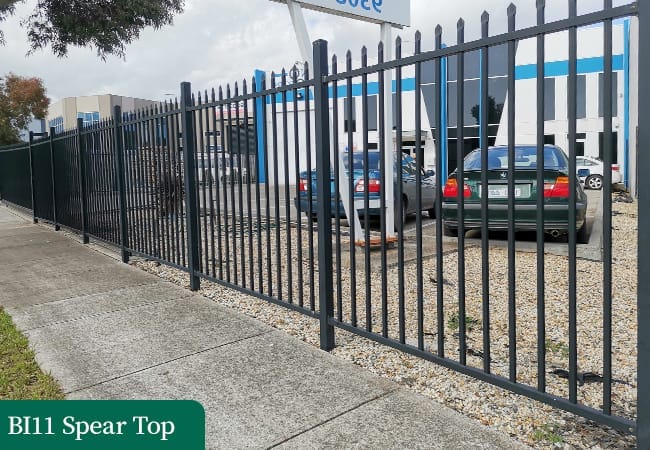

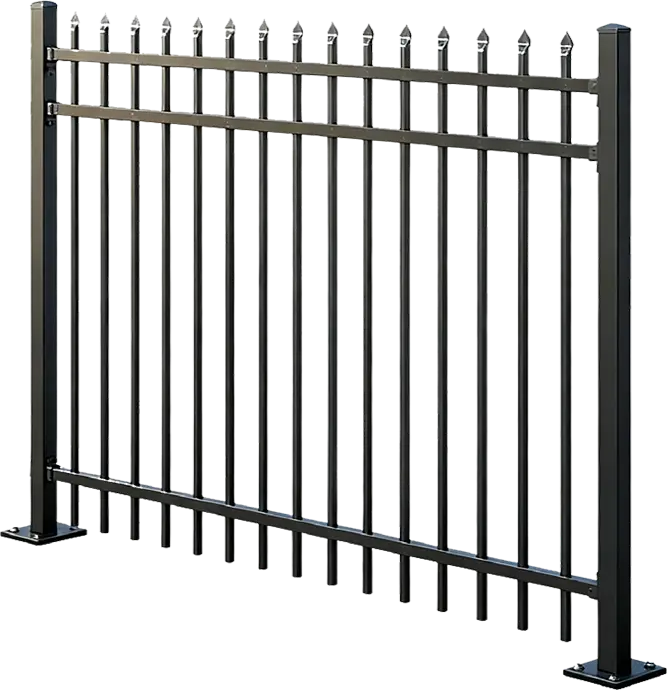

Flat Top / Spear Top / Aluminum Top / Bending Top Tubular Fence Specifications
| Parameter | Specifications |
|---|---|
| Width | 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m / 2.5 m / 3.0 m |
| Height | 1200 mm / 1500 mm / 1800 mm / 2000 mm / 2100 mm / 2400 mm |
| Post Size | 50×50mm / 60×60mm / 65×65mm / 75×75mm |
| Post Thickness | 1.5mm / 1.8mm / 2.0 mm |
| Rails Size | 25×25 mm, 25×38 mm, 38×38 mm, 40×40 mm, 45×45 mm |
| Rails Thickness | 1.0 mm / 1.2 mm / 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm |
| Rails Quantity | 2-rail / 3-rail / 4-rail |
| Rails Connector | bracket or clamp |
| Picket | 16×16×1.0/1.2 mm, 19×19×1.2/1.5 mm, 16×0.8 mm, 19×0.9 mm |
| Picket Spacing | 100 mm / 110 mm |
| Top Type | Spear top, flat top, bending top or aluminum top |
Flat Blade Type Tubular Fence Specifications
| Parameter | Specifications |
|---|---|
| Height | 1.2 m / 1.5 m |
| Width | 2.4 m |
| Post Size | 60×60 mm, 65×65 mm, 80×80 mm |
| Post Thickness | 2.0 mm |
| Connector | Bracket or clamp |
| Rail Size | 40×40 mm |
| Rail Thickness | 1.5 mm |
| Rail Quantity | 2-rails |
| Blade | 50×10×1 mm |
| Blade Spacing | 40 mm |

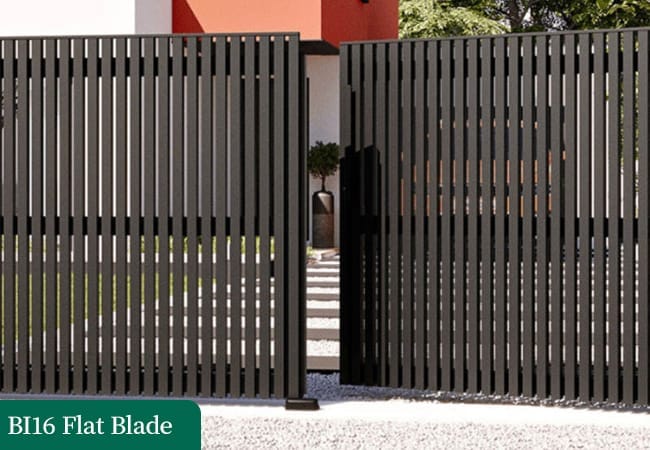

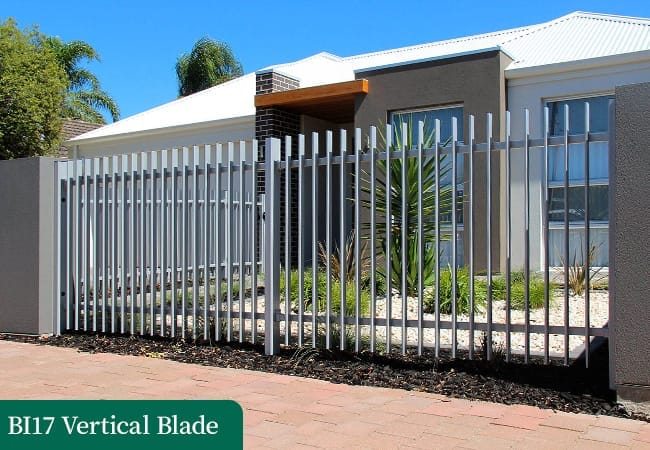

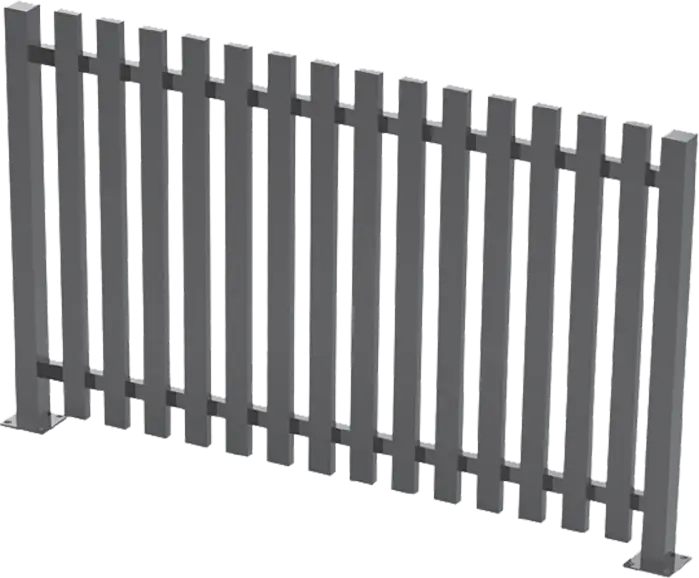

Vertical Blade Type Tubular Fence Specifications
| Parameter | Specifications |
|---|---|
| Height | 1.2 m / 1.5 m |
| Width | 2.4 m |
| Post Size | 60×60 mm, 65×65 mm, 80×80 mm |
| Post Thickness | 2.0 mm |
| Connector | Bracket or clamp |
| Rail Size | 40×40 mm |
| Rail Thickness | 1.5 mm |
| Rail Quantity | 2-rails |
| Blade | 50×10×1 mm |
| Blade Spacing | 50 mm |

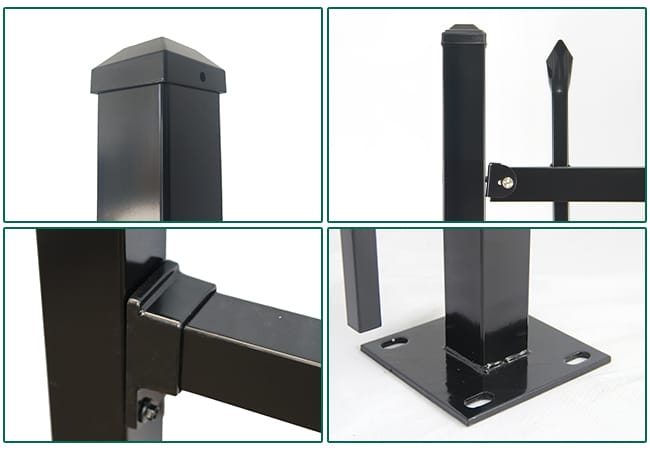

Tubular Post Specifications
| Parameter | Recommended Specification |
|---|---|
| Post Type | Square steel tube post |
| Post Size | 60×60×1.8 mm (for standard fence) / 80×80×2.0 mm (for blade fence or high‑wind areas) |
| Post Material | Hot‑dip galvanized steel (pre‑galvanized or post‑galvanized) |
| Post Length | 1.2 m / 1.5 m |
| Base Option | In‑ground direct bury or flange plate with anchor bolts |

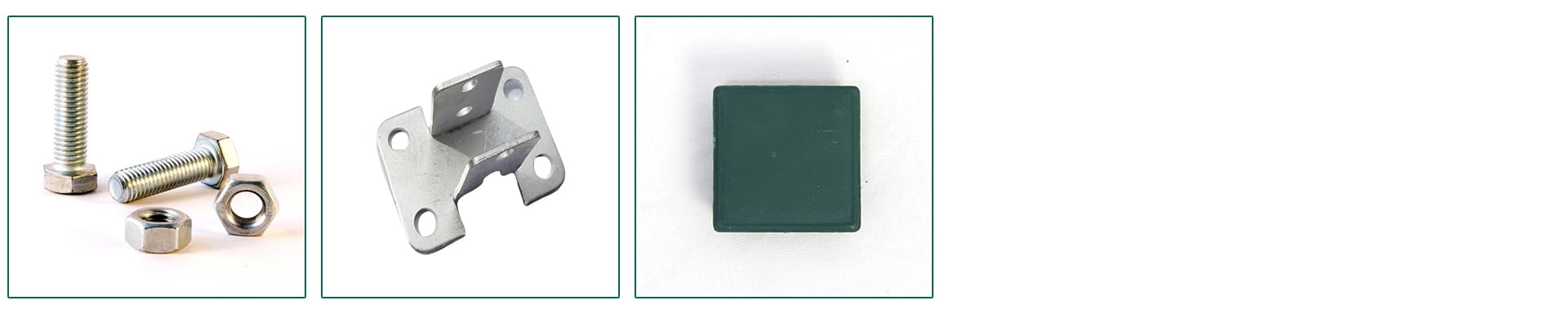

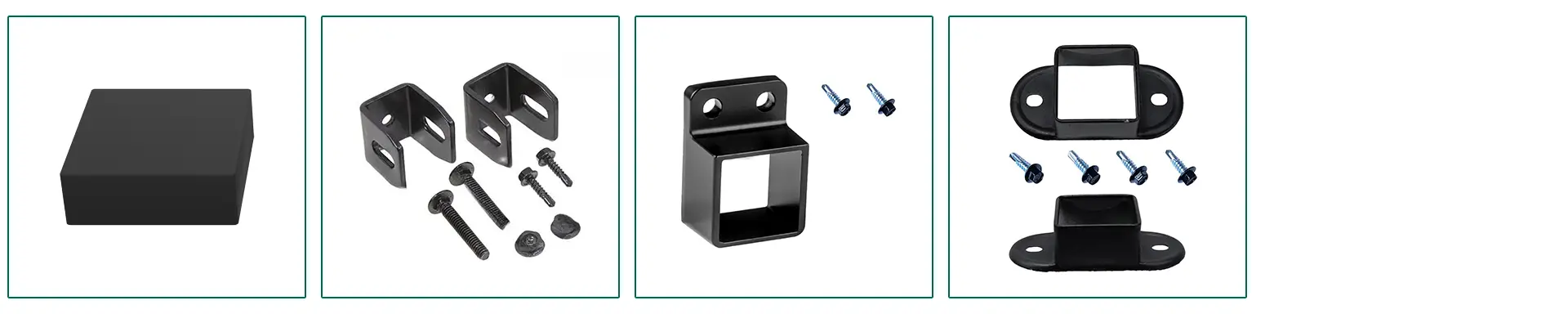

Special Accessories

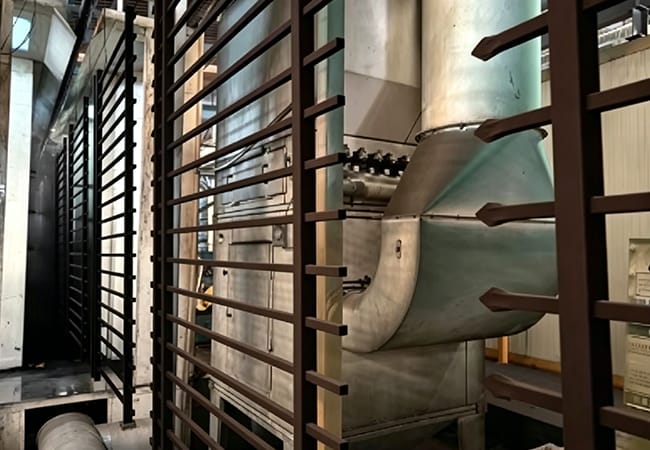

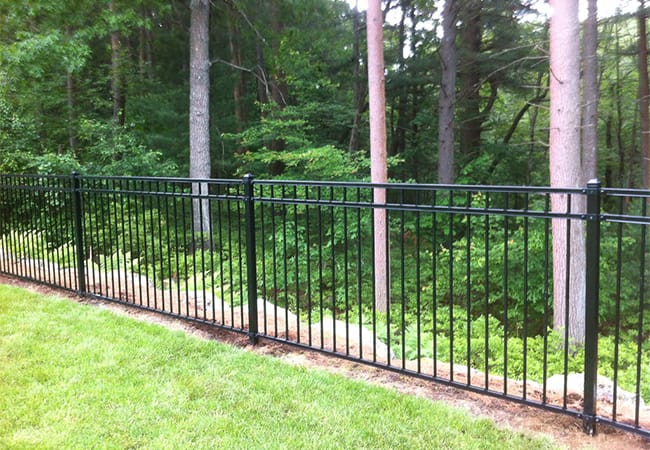

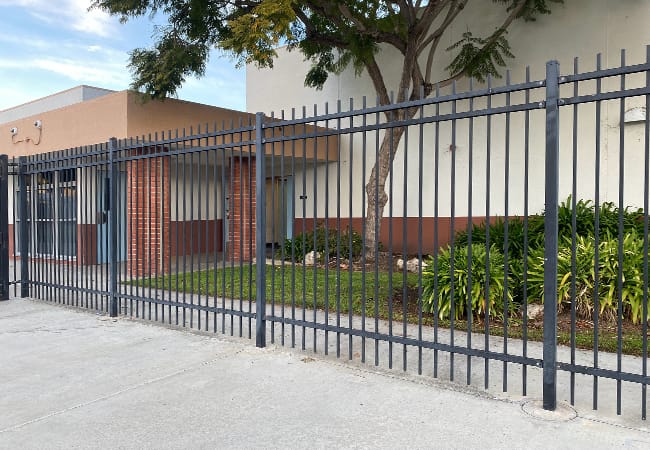

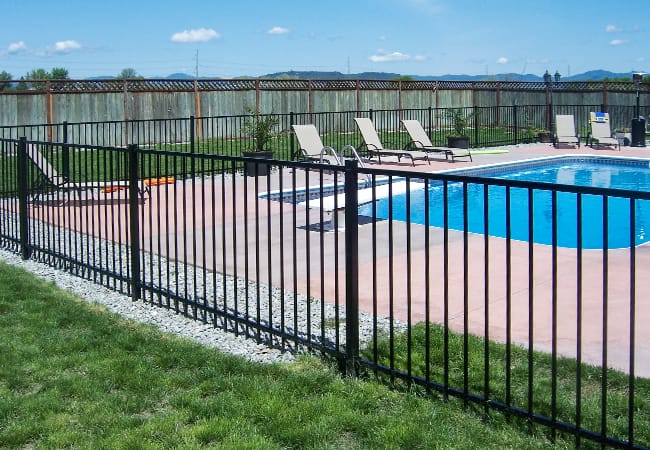

Applications of Tubular Fence

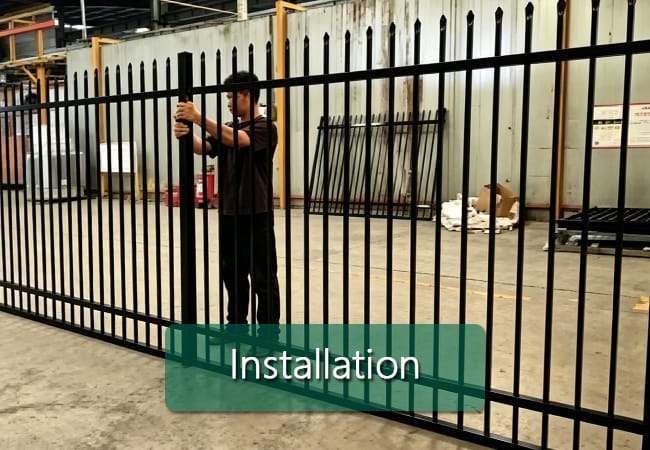

Detailed Installation Process for Steel Tubular Fence
The installation of steel tubular fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and aesthetic appearance of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
1. Site Preparation & Foundation Leveling
Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with compacted gravel or sand to ensure that the fence posts and panels can be placed stably and evenly. Next, according to the design drawings and actual installation requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and installation position of each post and panel. The foundation should be compacted with a compactor to achieve sufficient bearing capacity, and a layer of gravel cushion can be laid to improve stability. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire steel tubular fence structure.
2. Post Placement & Fixing
Post placement and fixing are core links affecting the overall stability of the steel tubular fence, and every detail needs to be strictly controlled. First, place the posts accurately along the marked lines, keeping equal spacing between each post as designed. For embedded installation, dig holes of proper depth, place the posts vertically and fix them with concrete to ensure firmness. For surface-mounted installation, use expansion bolts to secure posts to the hard ground firmly. Align the posts accurately along the marked lines, and connect adjacent posts to form an integrated unit. Check the verticality and alignment of each post to avoid skewing during panel installation.
3. Tubular Panel Installation & Connection
After the posts are fully fixed, tubular panel installation can be carried out. First, lift the steel tubular panels carefully and align them with the pre-drilled holes on the posts. During installation, adjust the height and position of the panels to maintain a neat and uniform appearance, ensuring horizontal and vertical alignment. Connect the panels and posts firmly with high-strength bolts and fasteners, and tighten all connectors to ensure stability. For long-distance fencing, install the panels in sequence to maintain overall balance and structural stability. Ensure the panel surface is flat and the structure is not distorted, which guarantees the fence’s stability and aesthetic effect.
4. Fastening & Reinforcement
Fastening and reinforcement directly affect the structural integrity and service life of the steel tubular fence. First, after panel installation is completed, check and tighten all bolts, nuts and connectors at intervals to ensure all connections are tight and firm. Pay special attention to tightening the corners and joints to prevent loosening or displacement. Double-check all connection points to ensure no gaps or loose components, which provides reliable protection for long-term use.
5. Alignment & Stability Check
After the installation of posts and panels are completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the verticality of the posts and the levelness of each panel: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the design. Then, check the overall straightness and structural stability: gently push the fence to ensure no obvious shaking or displacement. Check the tightness of all bolt connections and the firmness of the structure. If any problems are found (such as skewing, loose connections, uneven panels), adjust and reinforce them immediately to ensure structural safety and durability.
6. Site Cleaning & Final Acceptance
The final step of the installation process is site cleaning and acceptance, which ensures the aesthetic appearance of the fence and confirms that the installation is up to standard. First, remove excess debris, scraps and installation waste from the construction site, and clean the surface of the steel tubular fence to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and installation standards: check the fence dimensions, alignment, verticality, panel installation and connection firmness; check for surface damage, rust, or loose components; verify overall stability and protection performance. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the acceptance standards.
Note
During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the steel tubular surface during installation to avoid damage to the surface treatment layer (such as galvanizing, powder coating) which may affect the corrosion resistance and service life of the fence.
Why Choose BDFENCE for Steel Tubular Fence?
1. Premium Steel Tube & Dual Coating
We use Q235 galvanized steel tubes with hot‑dip galvanizing + powder coating. Impact‑resistant, rust‑proof – 25+ years service life.
2. Full Customization – Rails, Pickets, Posts, Blade Option
Panel lengths 1.5‑3.0m, heights 1.2‑2.4m. Choose 2/3/4 rails, picket sizes 16/19mm (square/round), spacing 100‑125mm. Posts 50/60/75mm square. Blade tubular version for max security – tailor for schools, factories, stadiums, residential.
3. High Anti‑Collision & Anti‑Climb
Heavy tube frame withstands vehicle bump. Tight picket spacing prevents climbing. Blade version adds sharp vertical deterrent.
4. Fast, Welding‑Free Installation
Pre‑welded panels + bolt‑on brackets – no on‑site welding. Save 30‑40% labor.
5. Factory Direct – Quality & Price

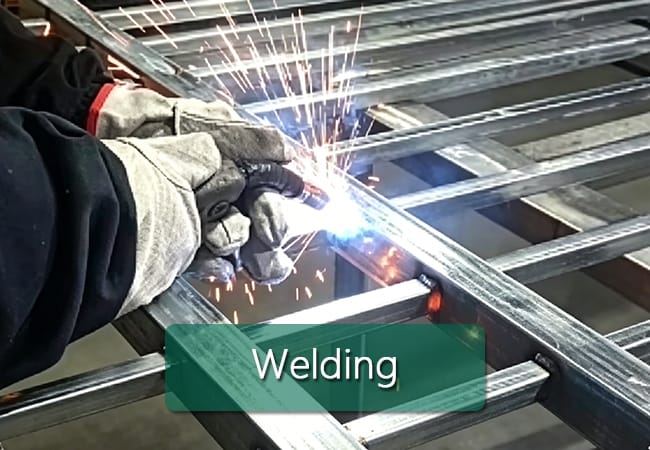

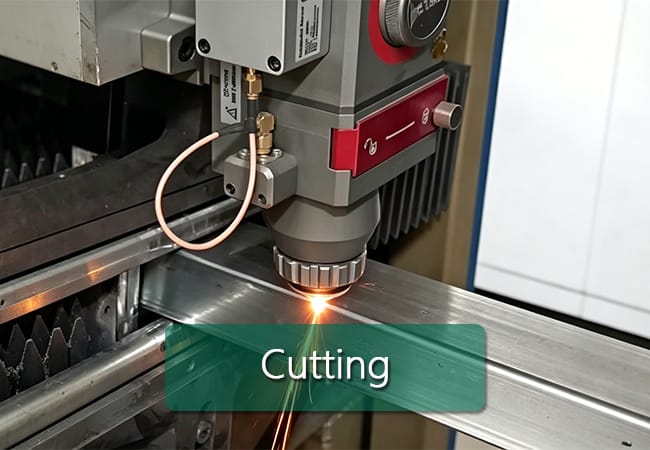

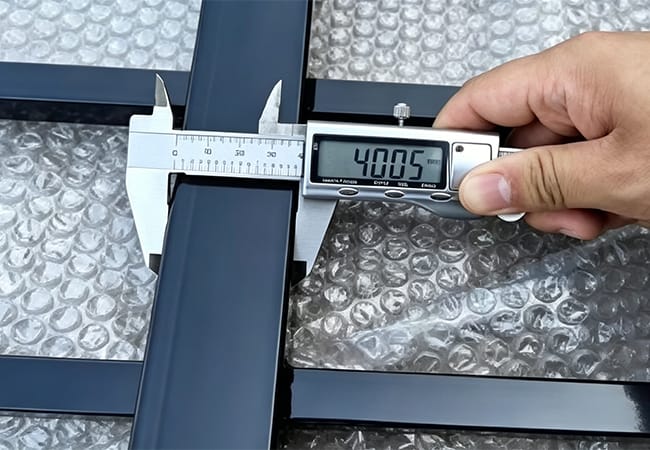

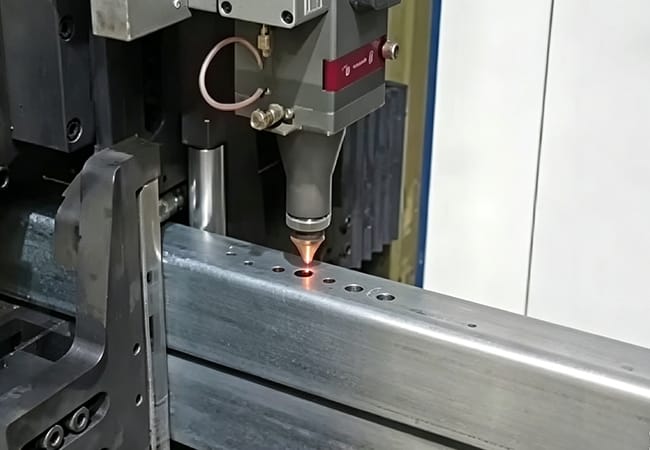

In‑house tube cutting, welding, galvanizing, coating, post forming. Strict QC, fast lead time (15‑20 days), competitive pricing.
6. Global Tubular Fence Experience
Supplied schools, factories, stadiums, residential estates across UK, Australia, Germany, UAE, Canada and more.
📌 In short: Heavy steel tube + dual coating + flexible rail/picket options + blade upgrade = BDFENCE, your trusted steel tubular fence partner.
