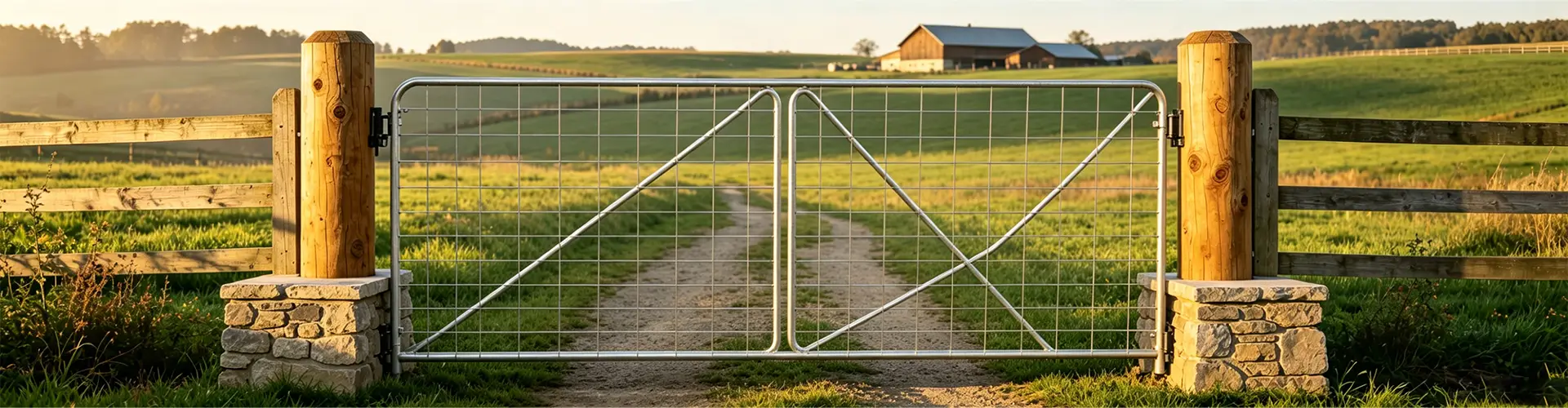

Farm Gate

Robust Welded Metal Gate with Strong Load-Bearing Capacity | Hot-Dip Galvanized / PVC Coated | Complete Kit with Hinges, Latches & Support Posts | Quick Simple Assembly

Send Your Inquiry Now

Farm Gate Core Advantages

1. Robust & Impact-Resistant
Thick welded metal frame with full weld joints – disperses external impact effectively, prevents bending or deformation under livestock collision.

2. Strong Load-Bearing Capacity
Reinforced steel tube construction handles heavy livestock pressure and daily opening/closing cycles – long-term reliability.

3. All-Weather Corrosion Protection
Hot-dip galvanized, polyester powder coated, or PVC/PE coated – rust-proof for all kinds of harsh outdoor farm environments.

4. Complete Kit – Quick Assembly
Prefabricated gate body + hinges, latches and support posts – no cutting or welding. Simple installation, saves labor and time.

Send Inquiry Now

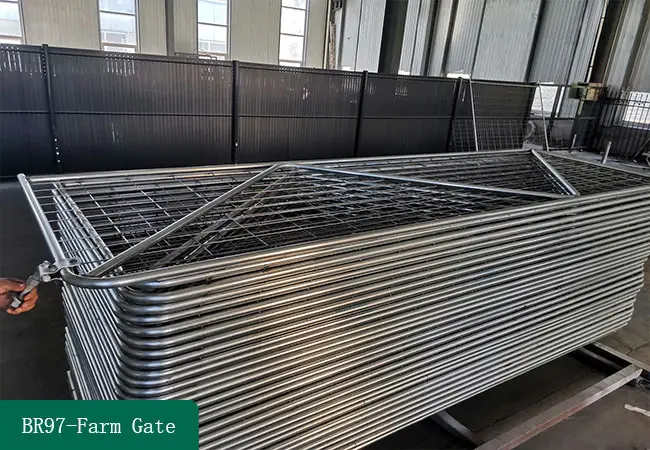

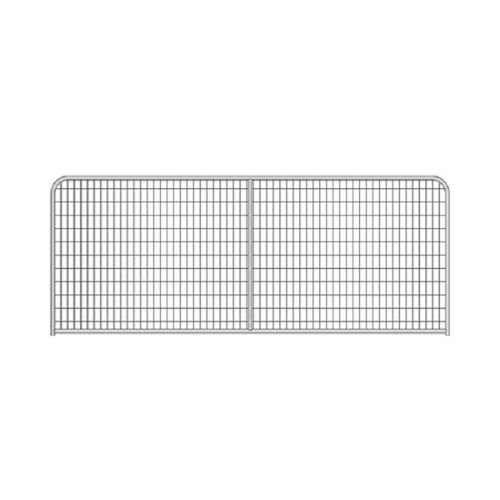

Product Details– BDFENCE

Farm Gate Specification

Parameter	Specifications
Material	Galvanized steel tube
Surface Treatment	Silver powder coating
Length (Gate Width)	90cm, 120cm, 150cm, 180cm, 240cm, 300cm, 360cm
Height	117cm
Application Scope	Farm & ranch protection, livestock containment, safety isolation
Specification Customization	Available according to drawings and customer requirements
Frame Type	Welded round or square steel tube frame
Gate Type	Single swing / Double swing

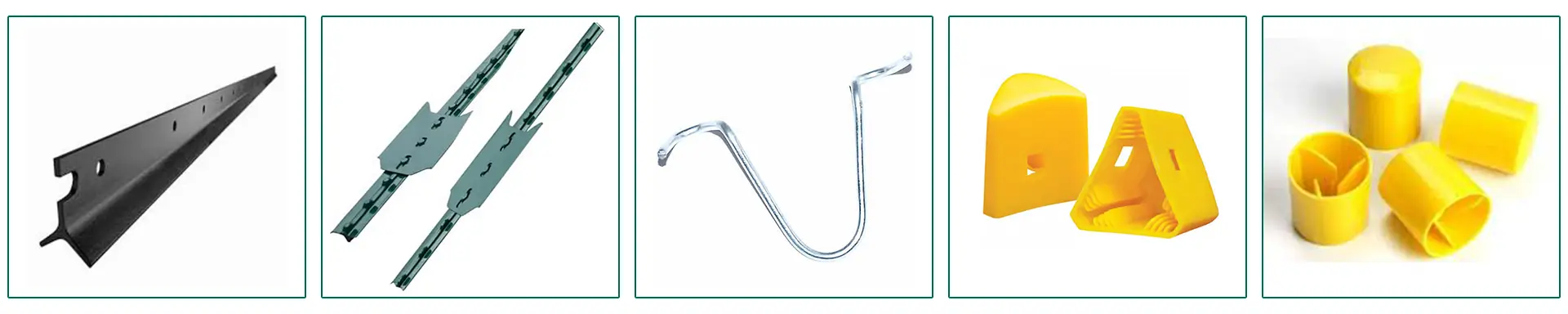

Special Accessories

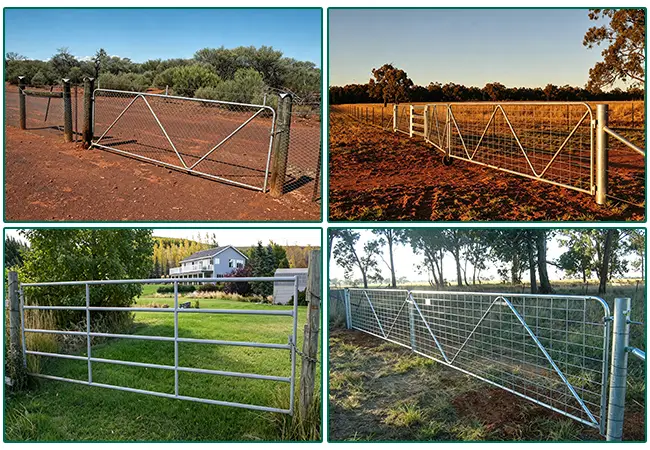

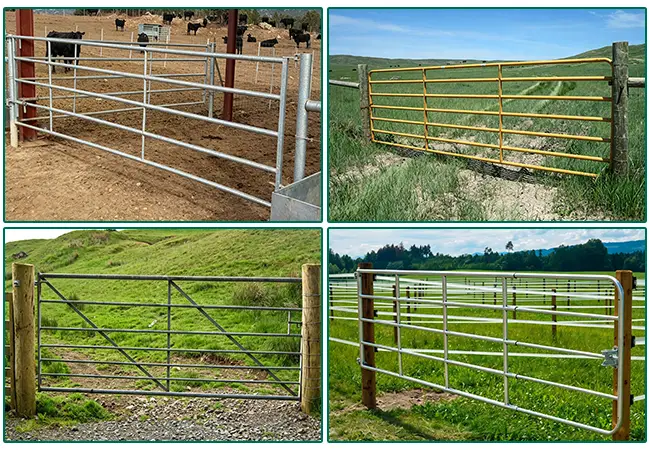

Applications of Farm Gate

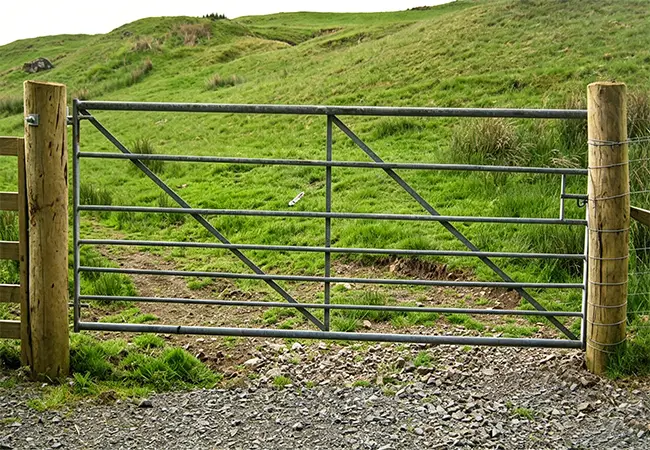

British Highland Pasture

Perfect for damp Scottish highland pastures, multi-rail cross bracing stands livestock impact, galvanized coating prevents rust from constant rain and mist.

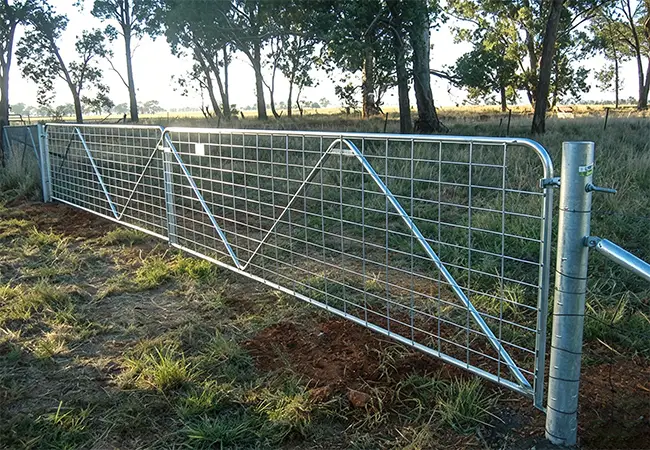

Australian Farm

Suited for divided Australian grazing lands, double triangular supports resist pastoral gusts, standard fittings connect seamlessly to existing fencing

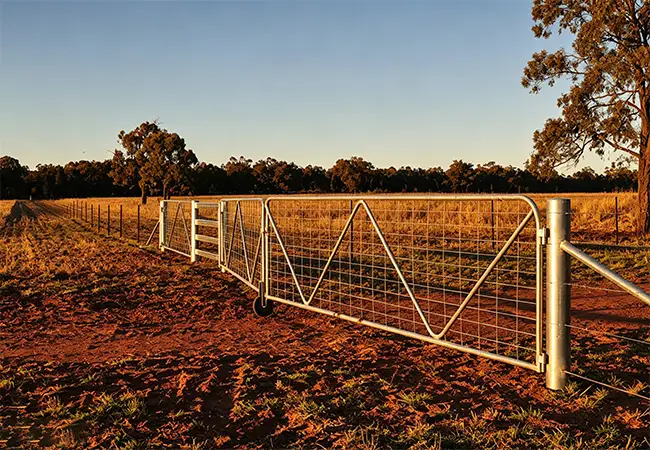

Australian Farm

Ideal for large Australian farms, wide span with support wheels enables smooth farm machinery access, galvanized mesh gate contains livestock and withstands long-term sunlight exposure.

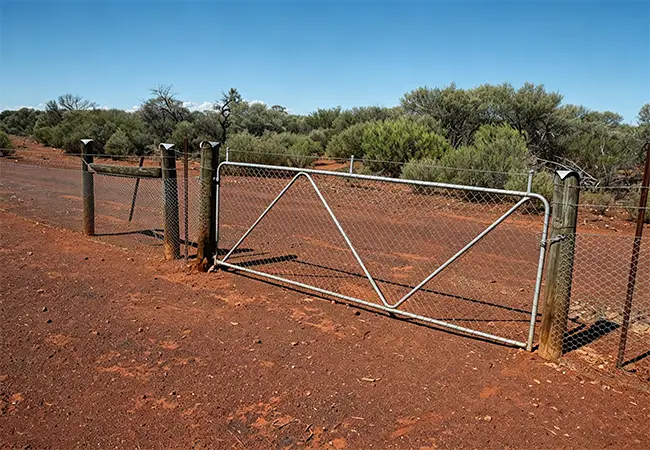

Australian Outback Pasture

Designed for Australian outback red soil pastures, hot-dip galvanized for anti-rust, triangular bracing resists strong wind, and wire mesh keeps wild animals out of grasslands.

Detailed Installation Process & Product Introduction of Farm Gate

1. On-Site Cleaning and Positioning Marking

Clean the gate installation passage thoroughly to remove weeds, stones, mud and construction debris, and level the gate doorway ground to ensure smooth opening and closing of the gate leaf. Accurately mark mounting positions of gate hinge posts, fixed stop posts and foundation range with professional measuring tools and level gauges.

Reserve standard doorway width according to gate specification: common farm gate width ranges from 1.8m to 6m. Bury 1/3 to 1/4 of the total hinge post and stop post height underground to enhance anti-shake, wind-resistant and livestock impact resistance. Keep all marking lines vertical and horizontal to guarantee parallel installation of double gate leaves and smooth switch operation.

2. Foundation Digging and Post Fixing

Dig mounting holes 1.8–2 times the gate post diameter and clear loose soil, ponding and gravel at the hole bottom to prevent foundation settlement and post tilt. Place hinge posts and limit stop posts vertically and calibrate their verticality with a plumb line, then fix wooden support brackets temporarily to avoid lateral offset during concrete solidification.

Fill holes with high-strength anti-frost concrete and tamp tightly layer by layer to eliminate internal air bubbles. Keep the concrete foundation surface 3–5 cm higher than the surrounding ground to drain rainwater rapidly and avoid base waterlogging and metal corrosion. Allow concrete to cure for at least 48 hours; extend curing time to 72 hours in low-temperature, rainy and humid weather for load-bearing firm fixation.

3. Gate Leaf Hoisting and Positioning

After complete concrete curing and foundation hardening, inspect farm gate leaf, hinge fittings and posts for no deformation, paint peeling or welding defect. Hoist the integral farm gate leaf stably, align reserved hinge mounting holes with embedded hinge bases on main posts.

Adjust gate leaf horizontal height to keep 3–8 cm ground clearance to reduce ground friction, prevent mud abrasion and prolong anti-corrosion service life. Fine-tune gate angle to fit slight slope doorway terrain, ensure single/double gate leaves open and close freely without scraping ground. Reserve 2–4 mm gap between double gate leaves for thermal expansion contraction, fix hinge components temporarily after positioning calibration.

4. Accessory Fastening and Fixed Installation

Equip with customized farm dedicated accessories including heavy-duty anti-rust hinges, lock latches, anti-loosening bolts, rubber gaskets and ground drop bolts. All hardware adopts hot-dip galvanized treatment, featuring strong anti-corrosion, anti-rust and anti-theft performance for long-term outdoor pasture and farm use.

Install and fasten all hardware accessories evenly with professional torque tools, avoid over-tightening causing gate frame deformation or under-tightening leading to hinge shaking. Reinforce welding joint and hinge stress points additionally, install ground drop bolt for windproof fixation, inspect every connecting fitting one by one to eliminate installation hidden dangers.

5. Overall Calibration and Quality Inspection

Recheck gate post verticality, gate leaf horizontal level and doorway parallelism with level tools. Test full opening and closing stroke repeatedly to confirm no jamming, friction or offset. Shake gate frame gently to verify integral structural firmness, no loose hinges, shaking frame or abnormal noise.

6. Surface Cleaning and Project Acceptance

Check terrain adaptability of the gate assembly, confirm the gate can adapt to farm slight slope ground, with flexible switch and no frame distortion. Adjust hinge tightness and stop block position to rectify installation deviations, fully meeting farm standard construction requirements.

Clean cement residues, dust, welding spots and surface stains on gate frame and hardware. Protect hot-dip galvanized and PVC coated anti-rust outer layer strictly. Prohibit strong acid, alkaline corrosive detergents to avoid coating peeling and metal rusting.

Installation Notes

Complete final acceptance by checking post verticality, doorway size, hinge flexibility, locking stability, foundation firmness and surface coating integrity. The installation is qualified only when no frame deformation, coating damage, rust spot, hardware loosening or switch jamming exists.

Wear standard safety protective gear including gloves, safety shoes and goggles during construction. Avoid violent collision, surface scratching and heavy extrusion on gate frame to protect anti-corrosion coating and hinge structure, ensuring long-term stable use in outdoor farm environments.

Why Choose BDFENCE for Farm Gate?

1. Premium Galvanized Steel & Silver Powder Coating – We use high‑quality galvanized steel tubes with silver powder coating . Rust‑proof, impact‑resistant, long-lasting – 25+ years service life in farm environments.

2. Complete Size Range – 7 Width Options – Widths from 90cm to 360cm (90, 120, 150, 180, 240, 300, 360cm). Standard 117cm height. Custom sizes available according to drawings and specifications.

3. Reinforced Welded Frame – Full penetration MIG welding at all joints – no weak points. Withstands livestock pressure, wind load, and daily use.

4. Customizable Specifications – We manufacture strictly according to customer drawings and requirements. Flexible customization for any farm or ranch project.

5. Complete Kit – Gate + Hardware + Posts – We supply everything: gate body, heavy‑duty hinges, latches, drop bolts, support posts, and post caps – one‑stop solution.

6. Fast, Simple Assembly – Prefabricated gate + bolt‑on hardware – no cutting or welding. Saves labor and installation time.

7. Factory Direct – Quality & Price – In‑house tube processing, welding, coating, and hardware fabrication. Strict QC, fast lead time (10‑15 days), competitive pricing.

8. Global Farm Gate Experience – Supplied cattle stations, horse ranches, sheep farms, and game reserves across Australia, USA, New Zealand, Germany, South Africa and more.

📌 In short: Galvanized steel frame + silver powder coating + 7 width options + complete hardware kit = BDFENCE, your trusted farm gate partner.
