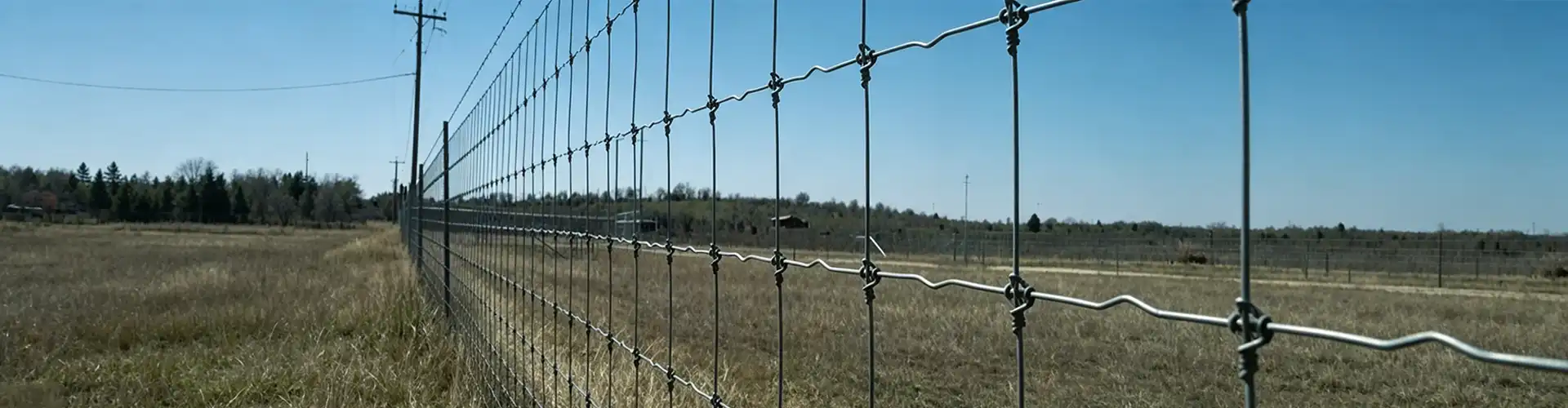

Fixed Knot Fence

Fixed Knot Fence safeguards livestock, farmland and pastures via robust galvanized fixed-knot woven wire construction

Fixed Knot Fence Core Advantages

1. Ultra-Strong Impact Resistance
Reinforced fixed knot connections evenly disperse heavy impact loads – prevents sagging or deformation from cattle, deer and large animals.

2. Neat & Uniform Mesh Appearance
Consistent mesh pattern with clean, symmetrical lines – enhances pasture, farmland and ranch landscapes.

3. All-Weather Corrosion Protection
Hot-dip galvanized, polyester powder coated, or PVC/PE coated – rust-proof for long-term outdoor farm and wildland use.

4. Quick Manual Installation
Pre-fabricated rolls + matched support posts – no field welding, no heavy equipment. Saves labor and accelerates construction.

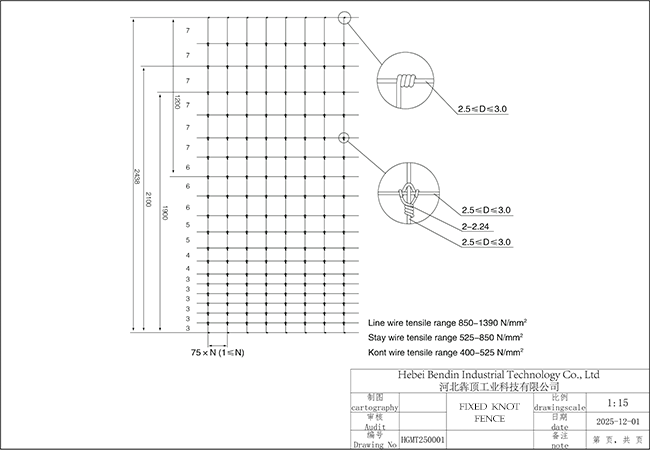

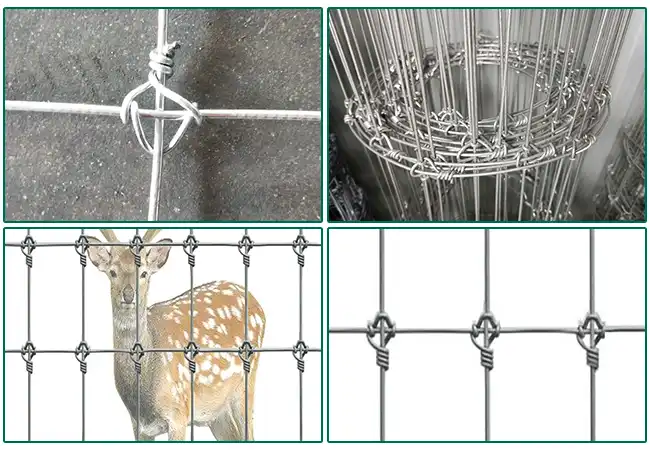

Product Details– BDFENCE

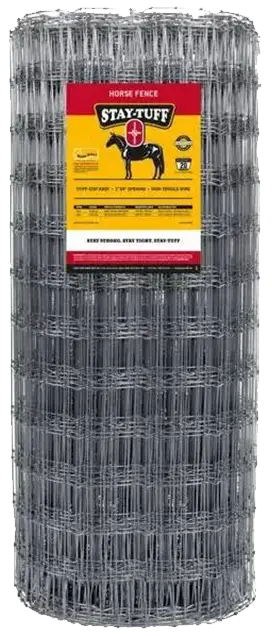

Fixed Knot Fence



ParameterSpecifications
Type (Model)7/150/813/50, 8/150/813/50, 8/150/902/50, 8/150/1016/50, 8/150/1143/50, 9/150/991/50, 9/150/1245/50, 10/150/1194/50, 10/150/1334/50
Incremental Vertical Hole Sizes (mm)102+114+127+140+152+178
89(75)+89+102+114+127+140+152
89+102+114+127+140+152+178
102+114+127+140+152+178+203
114+127+140+152+178+203+229
89(75)+89+102+114+127+140+152+178
102+114+127+140+152+178+203+229
89(75)+89+102+114+127+140+152+178+203
89+102+114+127+140+152+178+203+229
89(75)+89+102+114+127+140+152+178+203+229
Gross Weight (kg)19.3 / 20.8 / 21.6 / 22.6 / 23.6 / 23.9 / 26.0 / 27.3 / 28.4 / 30.8
Top & Bottom Wire (mm)2.5
Inner Wire Diameter (mm)2.0
Roll Diameter (mm)270

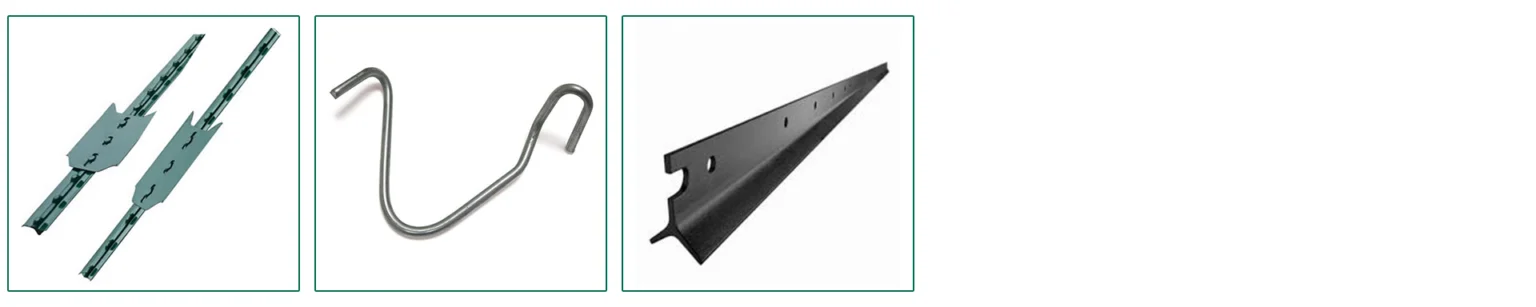

Post available



Studded T PostT-PostStart PicketY-Post

Special Accessories

Applications of Fixed Knot Fence

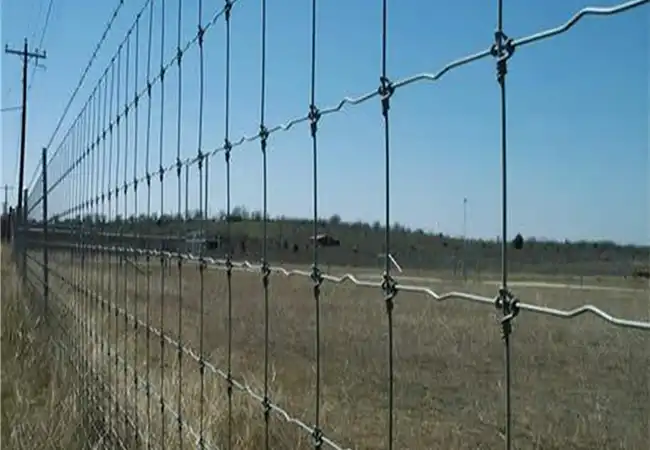

Wild Land
Fixed Knot Fence resists sagging under uneven terrain and wild shrub extrusion, maintaining stable enclosure for vast uncultivated land

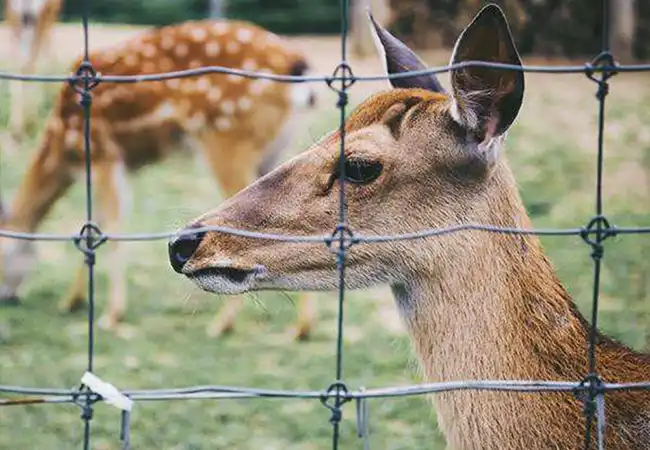

Deer Park

Tight fixed knot mesh stops small deer heads from getting stuck while withstanding frequent deer collisions without deformation.

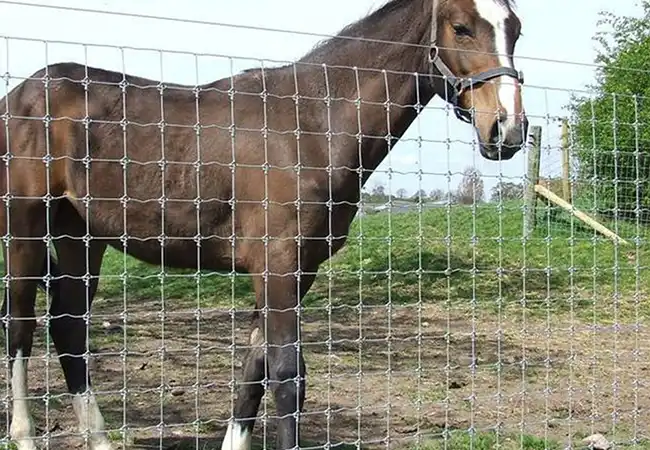

Horse Ranch
Smooth rigid fixed knot structure avoids sharp gaps that may scratch horses and holds up against strong horse kicks.

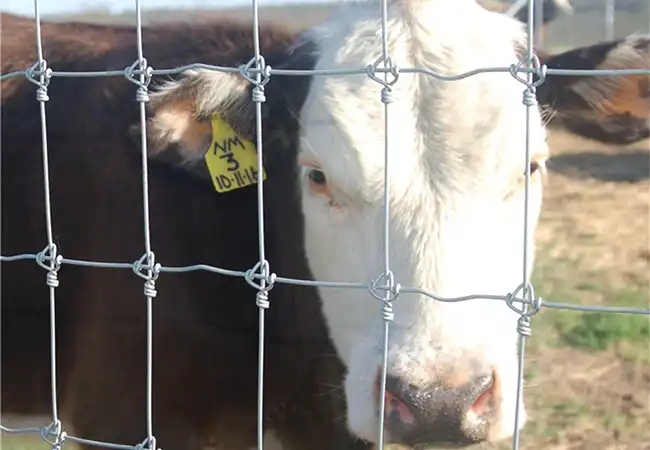

Cattle Farm

Solid fixed knot joints evenly disperse heavy impact from cattle charging to prevent mesh breakage or sagging.

Detailed Installation Process & Product Introduction of Fixed Knot Fence



1. On-Site Cleaning and Positioning Marking

Clean the fencing site thoroughly to remove weeds, stones and debris, and level uneven ground for a flat construction base. Accurately mark the positions of fence posts and mesh laying range with professional measuring tools.
Set post spacing at 2–3 meters according to fence height and heavy livestock anti-impact demands. Bury 1/3 to 1/4 of the total post height underground to enhance wind load and large animal impact resistance. Keep all marking lines straight for a uniform overall rigid layout.

2. Foundation Digging and Post Fixing

Dig mounting holes 1.5–2 times the post diameter and clear loose soil at the hole bottom to avoid unbalanced stress. Place posts vertically and calibrate their verticality with a plumb line, then temporarily support them to prevent offset.
Fill holes with high-strength concrete and tamp tightly to eliminate air bubbles. Keep the concrete surface slightly higher than the ground to avoid waterlogging and corrosion. Allow concrete to cure for at least 24 hours; extend curing time in low-temperature and humid weather for firm fixation to bear mesh lasting tension.

3. Mesh Panel Laying and Positioning

After full concrete curing, inspect meshes and posts for no deformation or blockage. Lift the fixed knot mesh and align its mounting holes with adjacent posts.
Adjust the mesh height to keep 5–10 cm clearance from the ground for anti-corrosion. Utilize the fence’s semi-rigid fixed knot structure to adapt to undulating farm, mountain and grassland terrain. Maintain uniform gaps between panels for thermal expansion and fix meshes temporarily after positioning to avoid mesh sagging.

4. Accessory Fastening and Fixed Installation

Equip with anti-rust bolts, gaskets and customized agricultural fasteners that feature excellent anti-loosening and corrosion resistance for long-term outdoor farm use.
Install and fasten accessories evenly with professional tools, avoiding over-tightening wire breakage or loose connection. Strengthen fixing points at mesh BDFENCE and docking areas, and inspect all fixed knot joints one by one to eliminate installation loopholes.

5. Overall Calibration and Quality Inspection

Recheck post verticality and mesh flatness with level tools to ensure no skew or uneven height. Shake the fence gently to confirm integral firmness without loosening, mesh displacement or knot separation.

6. Surface Cleaning and Project Acceptance

Focus on the structural stability of integrated fixed knots on complex terrain, ensuring stress dispersion without knot cracking or mesh deformation. Adjust and rectify any deviations to meet standard construction requirements.
Clean dust, concrete residues and stains on the fence surface to protect the galvanized or coated anti-rust layer. Do not use corrosive detergents to avoid surface damage and knot corrosion.

Installation Notes

Complete final acceptance by checking installation spacing, verticality, structural firmness and surface integrity. The installation is qualified only when no deformation, knot loosening, rust or loose connection is found.
Wear standard safety protective gear during construction. Avoid scratching, colliding or squeezing the fence surface to protect the anti-corrosion coating and locked fixed knot structure, ensuring stable long-term heavy-load farm fencing performance.

Why Choose BDFENCE for Fixed Knot Fence?

1. Premium Steel & Multi‑Coating Options – We use Q195/Q235 low‑carbon steel with hot‑dip galvanizing, polyester powder coating, or PVC/PE coating. Rust‑proof, impact‑resistant – 25+ years service life in harsh farm environments.

2. Complete Type Range – 10 Standard Models – From 7/150/813/50 to 10/150/1334/50. Choose by livestock type, animal weight, and terrain. Incremental vertical hole sizes from 89mm to 229mm – tailored for sheep, cattle, deer, horses, and wildlife.

3. Superior Fixed Knot Strength – Reinforced locked connections evenly disperse heavy impact loads from large animals. No slippage, no sagging, no permanent deformation. Outperforms hinged joint in high-stress applications.

4. Professional Finish & Long-Term Durability – Uniform mesh pattern enhances any rural landscape. Heavy-gauge top and bottom wires (2.5mm) resist animal pressure and weather extremes.

5. Fast, Manual Installation – Pre‑fabricated rolls + post clips + tensioners – no welding, no heavy equipment. One person can install hundreds of metres per day.

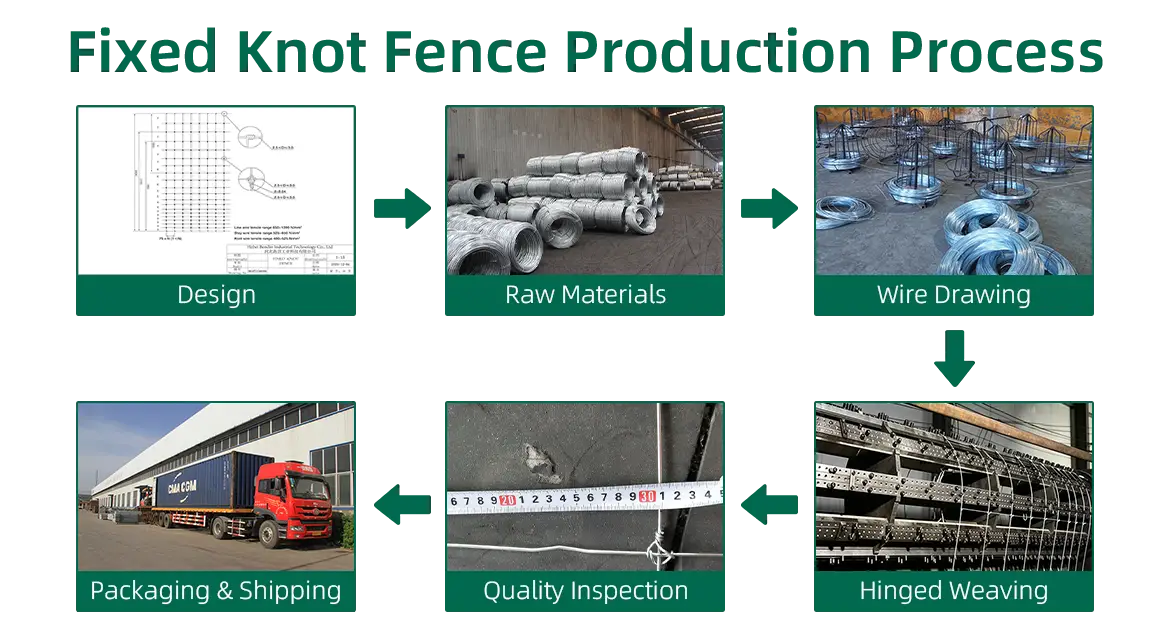

6. Factory Direct – Quality & Price – In‑house wire drawing, knot forming, weaving, coating, and post fabrication. Strict QC, fast lead time (10‑15 days), competitive pricing.

7. Global Livestock Fencing Experience – Supplied cattle ranches, sheep stations, deer farms, game reserves, and orchards across Australia, New Zealand, USA, Germany, South Africa and more.

📌 In short: Fixed knot strength + full coating + 10 type options + fast installation = BDFENCE, your trusted fixed knot fence partner.
