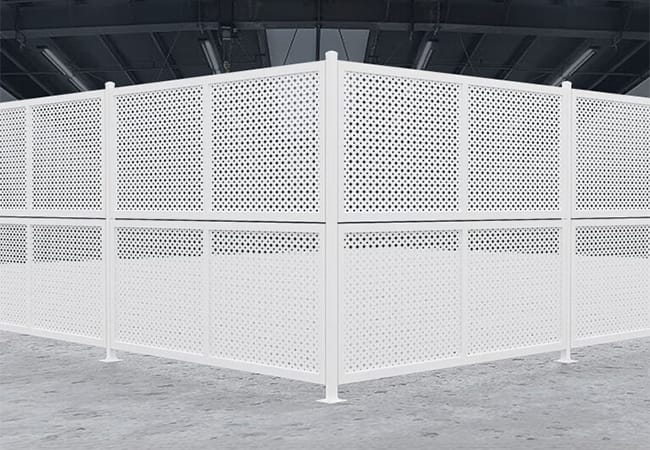

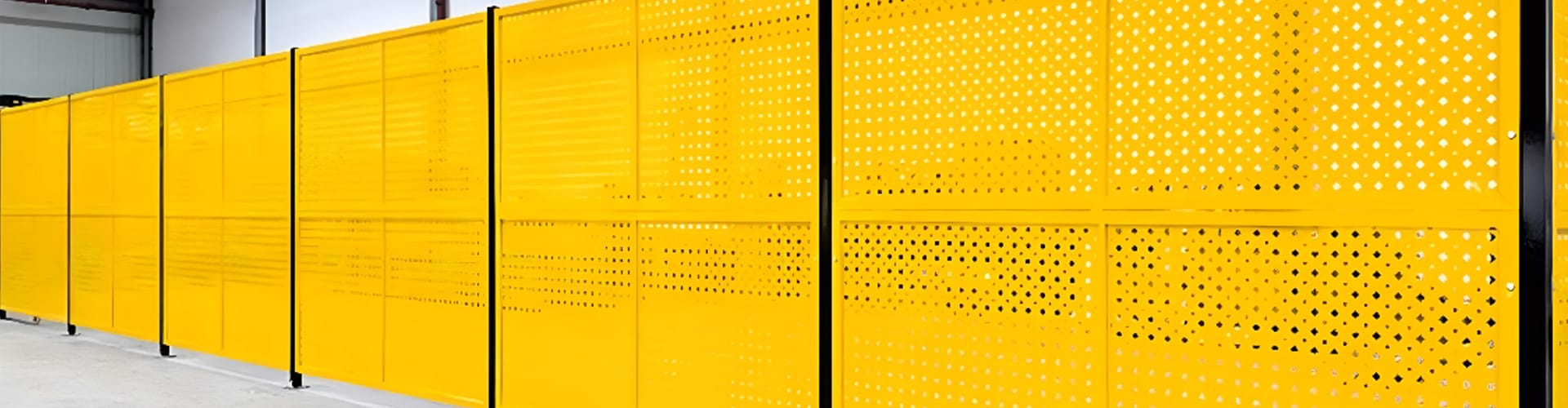

Sheet Workshop Fence
Sheet Workshop Fence is a practical industrial full-enclosed partition system with rigid enclosed panel design, delivering excellent dust isolation, noise reduction and space division performance. Made of quality color steel sheet and steel frame with stable structure, it effectively blocks dust, noise and sight to avoid cross interference in workshops.
It features galvanized, baked paint or electrostatic spray finishes for excellent corrosion, rust and impact resistance, suitable for factories, warehouses and indoor industrial environments. Modular panel design enables fast assembly and flexible layout, saving labor and installation time.
Durable and cost-effective, it is widely used in workshop zoning, equipment protection, noise reduction, dust isolation, warehouse separation and industrial safety enclosure applications.
Product Details– BDFENCE
What is a Sheet Workshop Fence?
Sheet Workshop Fence, also widely known as Enclosed Workshop Partition Fence or Full-Sealed Workshop Isolation Fence, is a practical, noise-reducing, and dust-proof industrial safety barrier characterized by its fully enclosed color steel panel and sturdy steel frame design, offering an optimal blend of space zoning, workshop protection, and long-term durability.

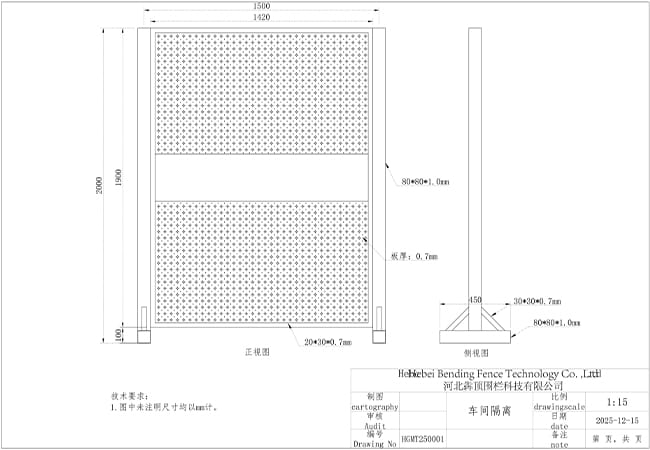

Sheet Workshop Fence Specifications
Panel Size (H x W):0.6-3.0m (any size).
Panel Material:Cold-rolled steel plate/Galvanized steel, stainless steel.
Panel Thickness:1.0mm, 1.2mm/0.8-2.0mm.
Perforation: Round holes 6mm, 8mm/ Square, slotted, custom holes.
Frame Tube: 20x30mm, 30x30mm square tube/20x20mm, 40x40mm.
Post:50x50mm, 60x60mm square tube/40x40mm, 80x80mm.
Post Thickness:1.2mm, 1.5mm/1.0-2.0mm.
Surface Treatment:Powder coating/Galvanized + powder coating.
Standard Colors:Yellow (RAL1023), Black, Gray/Blue, White, Custom RAL.

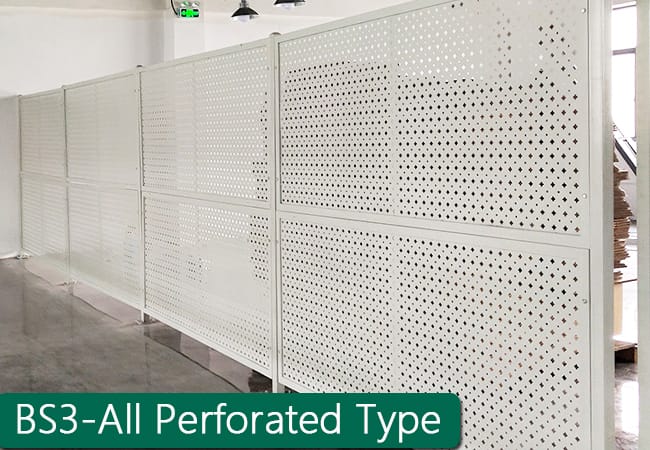

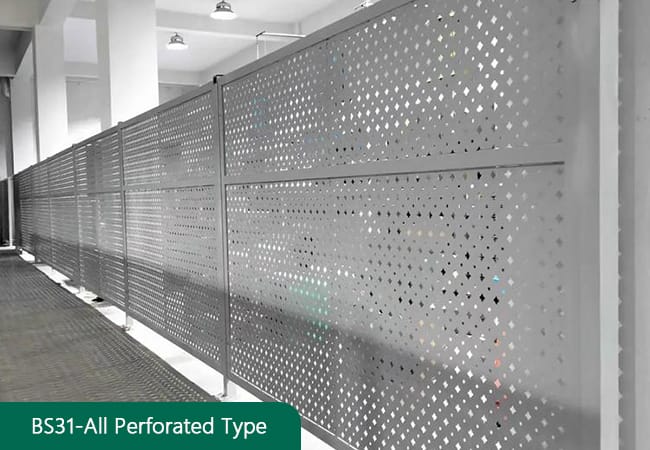

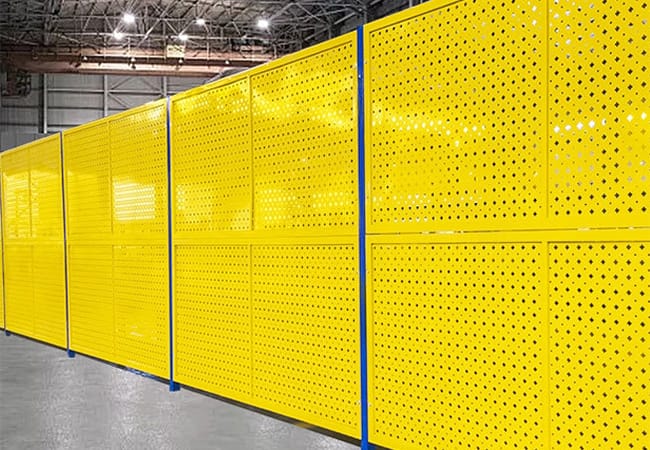

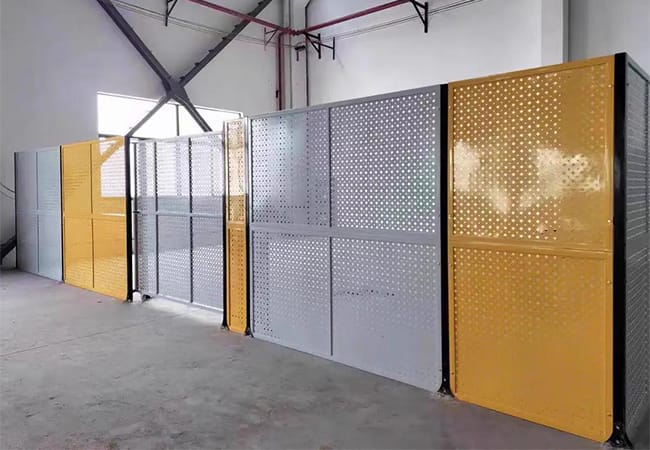

Various structures available for Sheet Workshop Fence
Introduction to Product Categories & Detailed Item Overview
Sheet Workshop Fence
Full-Service Industrial Chain

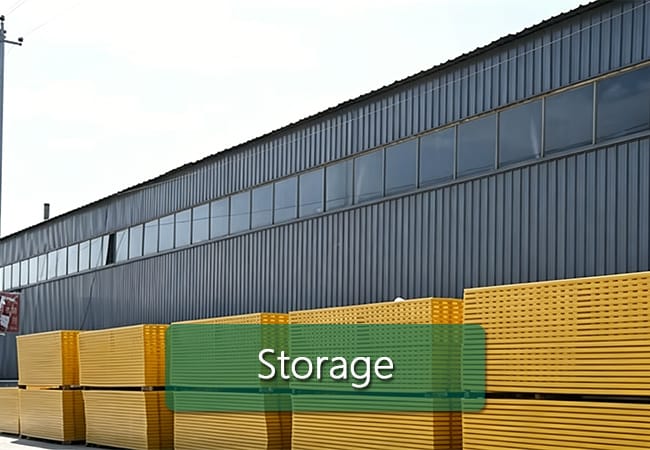

We provide a complete industrial chain covering production, coating, on-site installation and standardized warehousing services.
Applications of Sheet Workshop Fence
Safe & durable, beautiful appearance, perfect for home fencing.
High strength & anti-corrosion, ideal for factory & warehouse protection.
Environmentally friendly & decorative, blends well with landscape.
Anti-climbing & secure, provides safe protection for campus.

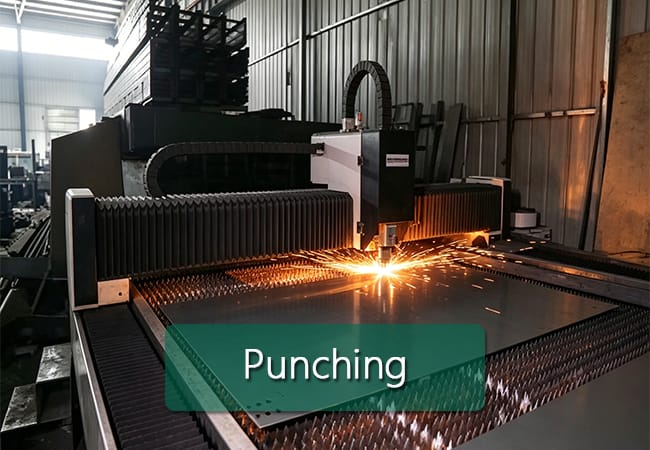

Production Process
30+ years metal fence design experience, 30+ technical team; modular & scene-specific customization
We select high-quality steel with strict testing, ensuring durability, corrosion resistance and stable performance for all fence products.

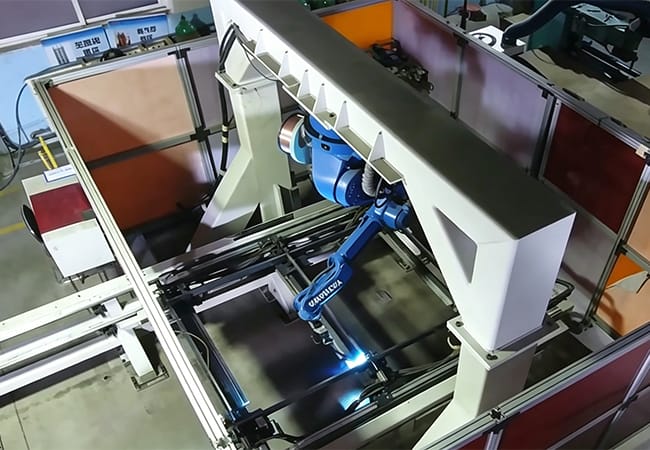

We adopt precise and solid welding technology, ensuring firm connection, smooth surface and high structural stability for fences.
Our fence posts are sturdy, load-bearing, anti-corrosion and precisely sized for easy installation and long service life.
Adopts professional bending technology for accurate shaping, stable structure and smooth radian to meet various installation needs.

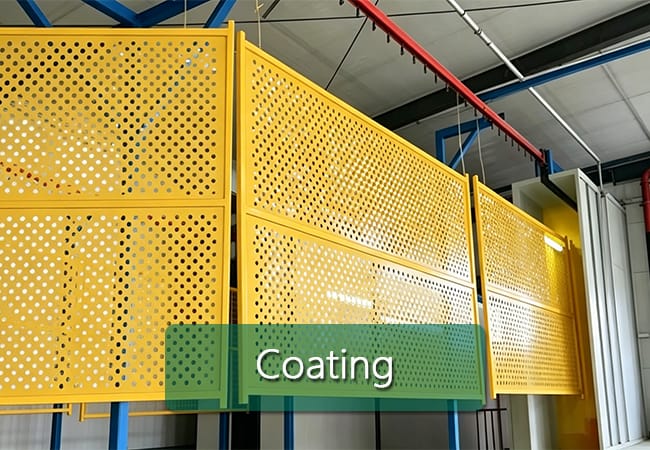

Professional surface treatment ensures excellent corrosion resistance, weatherability and long-lasting finish for fences.
Strict quality inspection at each process ensures fence quality meets standards, with no defects and stable performance.

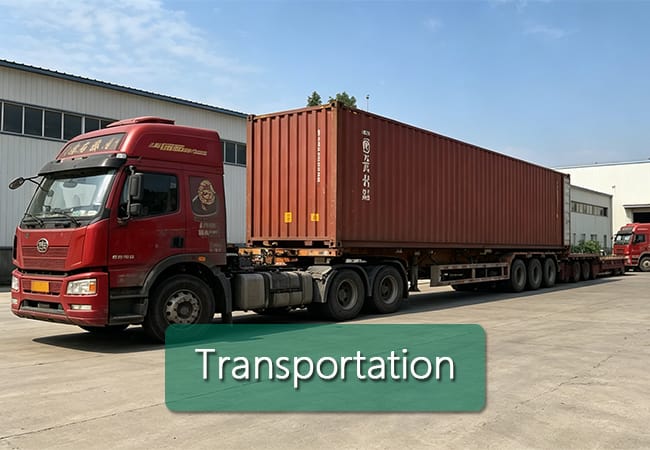

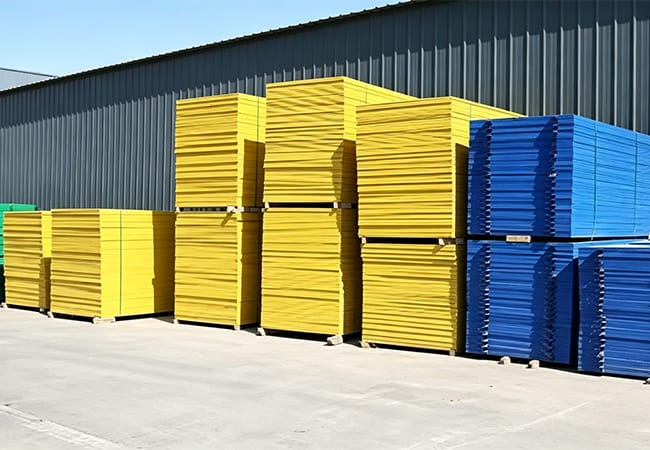

Standardized packaging protects products well; safe and efficient shipping ensures on-time delivery to global customers.

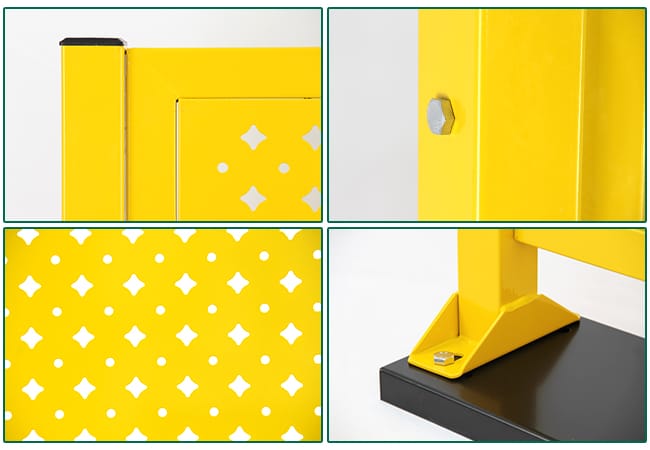

Special Accessories
- Sheet Workshop Fence
Related Product
Detailed Installation Process for Sheet Workshop Fence
The installation of sheet workshop fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and practicality of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
1. Site Preparation & Position Marking
Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire workshop or warehouse area, remove all obstacles such as equipment, wires, debris and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with cement mortar to ensure that the posts can be fixed stably and evenly. Next, according to the design drawings and actual workshop layout requirements, use professional measuring tools to mark the position of each post and the layout range of the panels. At the same time, mark the alignment lines to ensure the straightness and verticality of the entire sheet workshop fence structure.
2. Post Fixing & Position Adjustment
Post fixing and adjustment are core links affecting the overall stability of the sheet workshop fence, and every detail needs to be strictly controlled. First, check the steel posts for any damage or deformation; ensure all posts and expansion bolts are intact. Then, fix the posts firmly to the concrete floor with expansion bolts according to the marked positions. Erect the posts vertically, adjust their verticality with a plumb line, and tighten the bolts to ensure no shaking. Align the posts accurately along the marked lines and keep consistent spacing to match the panel size. Check the height and alignment of each post to avoid skewing during panel installation.
3. Sheet Panel Installation & Connection
After the posts are fully fixed, sheet panel installation and connection can be carried out. First, check the enclosed sheet panels for any damage, scratches or coating peeling; ensure all panels are intact and meet the installation requirements. Then, lift the panels to the position between two adjacent posts, align the mounting holes and fix them with bolts and nuts. Tighten the fasteners evenly to ensure the panel is closely attached to the posts with no gaps. Install adjacent panels in sequence and connect them firmly to form an integrated enclosed system. Ensure the panel surface is flat and not distorted, which guarantees the fence’s stability and isolation effect.
4. Reinforcement & Accessory Installation
Reinforcement and accessory installation directly affect the structural integrity and service life of the sheet workshop fence. First, install top rails and corner reinforcements to enhance overall rigidity. Check all connecting bolts and re‑tighten any loose parts to ensure firm connection. Reinforce the joints between panels and posts, especially at corners and turns, to prevent deformation during daily use. Double‑check all components to ensure no missing or damaged parts, providing reliable protection for long‑term use.
5. Alignment & Stability Check
After the installation of posts and panels is completed, a comprehensive alignment and stability check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the verticality of the posts and the flatness of the panels. Then, check the overall straightness and structural stability: gently push the fence to ensure no obvious shaking, displacement or loose connections. If any problems are found (such as skewing, loose connections or deformed panels), adjust and reinforce them immediately to ensure structural safety and durability.
6. Site Cleaning & Final Acceptance
The final step of the installation process is site cleaning and acceptance, which ensures a neat workshop environment and confirms that the installation is up to standard. First, remove excess bolts, packaging materials and installation tools from the site, and clean the surface of the sheet workshop fence to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and workshop safety standards: check dimensions, alignment, connection firmness and surface quality. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the standards.
Note
During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to protecting the surface coating of the sheet panels during installation to avoid scratches or damage that may affect corrosion resistance and service life.
Sheet Workshop Fence by Hebei Bending Fence Technology
Hebei Bending Fence Technology Co., Ltd., located in Anping—the renowned “China Wire Mesh Hometown” of Hebei Province, is a professional manufacturer and exporter of high-quality metal fencing and sheet workshop fence solutions with over 30 years of industry expertise. Our Sheet Workshop Fence is a fully enclosed industrial isolation system, engineered with high-strength color steel sheets and sturdy steel frames for excellent stability, dustproofing and noise reduction.
Crafted from premium steel materials with precision pressing and welding, our sheet workshop fence features a solid structure and strong impact resistance. We offer reliable surface treatments including galvanized, baked paint and electrostatic spraying, ensuring excellent rust and corrosion resistance for long-lasting performance in workshops, warehouses and industrial environments, with a service life of up to 20+ years.
Main Applications of Sheet Workshop Fence
Its main applications cover a wide range of industrial fields with high requirements for space isolation, dust control and noise reduction.

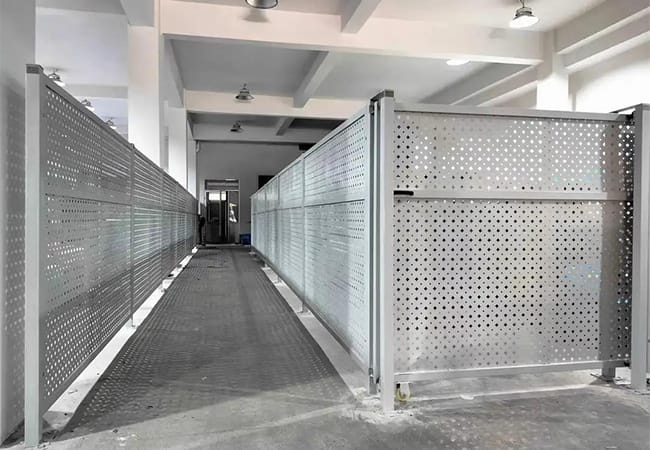

In factories, it is widely used for workshop zoning, equipment protection and production area isolation.
In warehouses, it serves as an ideal solution for goods classification, dangerous goods isolation and safe storage.
For processing workshops, it is suitable for noise reduction, dust isolation and cross‑interference prevention.
In logistics centers, it provides safe separation for sorting areas, storage zones and equipment regions.
In industrial plants, it ensures safe production by separating different working areas and protecting staff and equipment.
Core Advantages
High Structural Stability: Sturdy steel frame and fully enclosed sheet design, strong and deformation-resistant.
Superior Durability: High-quality surface treatment for excellent rust, corrosion and impact resistance.
Effective Isolation: Fully enclosed structure provides excellent dustproof, noise reduction and sight blocking.
Cost-Effective: Modular design for fast installation, easy maintenance and long service life.
Strong Flexibility: Customizable height and size to fit different workshop layouts and zoning needs.
