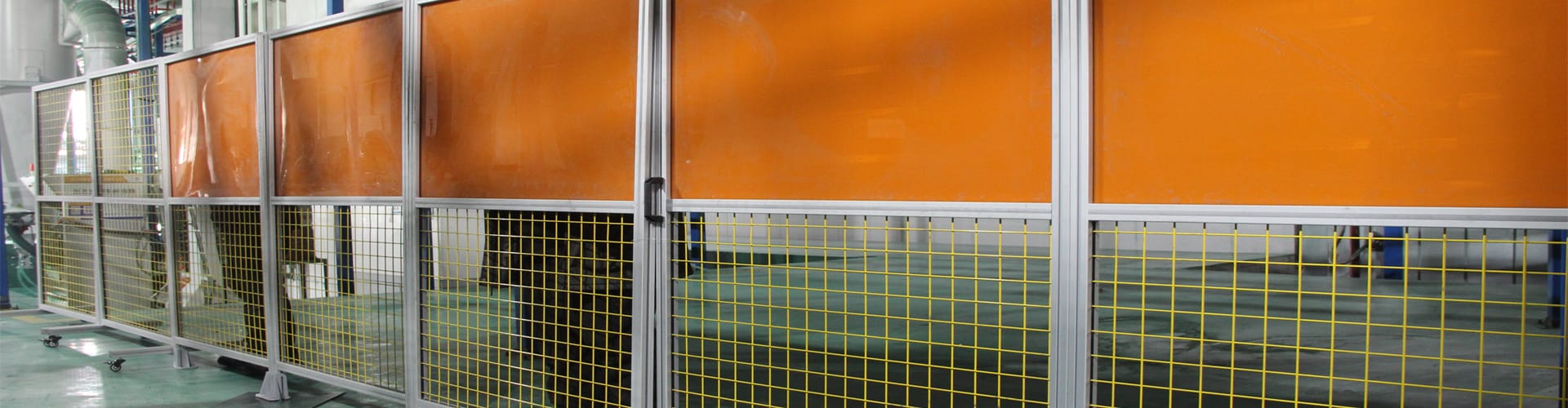

Arc Shield & Mesh Panel Workshop Isolation Net
Arc Shield & Mesh Panel Workshop Isolation Net is a robust welded wire mesh barrier with arc shielding structure, featuring great stability, reliable isolation and tidy industrial appearance. Made of high-quality low-carbon steel wire with firm welds, its combined panel structure improves compression resistance, preventing mesh deformation and collapse.
It adopts hot-dip galvanized, powder coated or PVC/PE coated finish, with superior corrosion, rust and wear resistance for long-term workshop operation. Modular mesh panels and supporting posts realize quick welding-free installation, effectively saving construction time and labor costs.
Neat, safe, practical and cost-effective, it is widely applied to workshops, factories, warehouses and processing plants for regional isolation, safety separation and partition protection.
Product Details– BDFENCE
What is Workshop Isolation Net with Arc Shield and Mesh Panel?
Arc Combined Isolation Fence, also widely known as Arc Shield Partition Net or Assembled Mesh Panel Fence, is a high-stability, practical and quick-install workshop partition system characterized by its unique arc-shaped shielding structure and integrated combined mesh panels, matching special supporting posts. Made of high-quality low-carbon steel wire with firm welding joints, the overall structure greatly improves compression resistance and anti-deformation performance.It adopts hot-dip galvanized, powder coated or PVC/PE coated surface treatment, with excellent corrosion resistance, rust resistance and wear resistance, suitable for long-term indoor workshop environment. Modular assembled structure realizes welding-free and fast installation, which effectively saves construction period and labor cost.With reasonable structure, safe isolation performance and high cost performance, it is widely applied to factory workshops, production areas, warehouses, processing workshops and internal regional division for safety partition and area isolation protection.

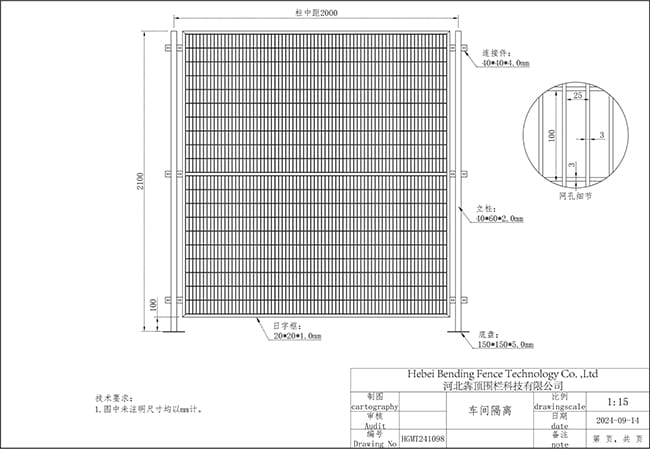

Arc Shield & Mesh Panel Workshop Isolation Net Specifications
Panel Size (HxW):0.6-3.0m custom size
Upper Arc Light Board:Arc top, PC / acrylic light board/Logo, warning text, transparent
Lower Mesh Panel:50x50mm, wire dia. 4.0mm/50x100mm,60x60mm
Frame Tube:20x30mm square tube/20x20mm, 30x30mm
Post:50x50mm, 60x60mm square tube/40x40mm, 80x80mm
Surface Treatment:Powder coating/Galvanized + powder coating
Color:Yellow (RAL1023), Black, Gray/Blue, White, Custom RAL

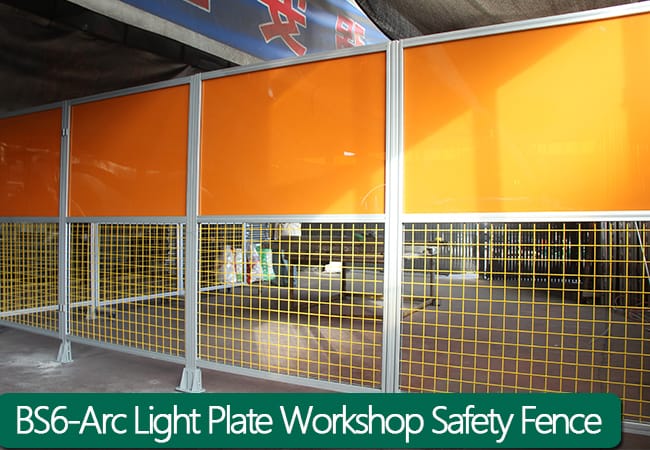

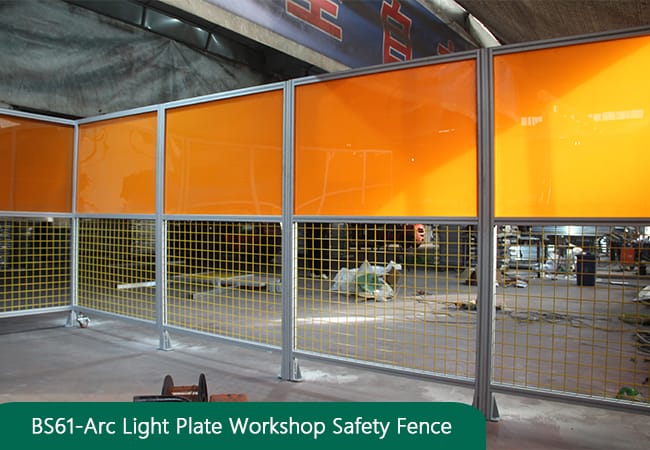

Various structures available for Arc Shield & Mesh Panel Workshop Isolation Net
Introduction to Product Categories & Detailed Item Overview
Arc Shield & Mesh Panel Workshop Isolation Net
Full-Service Industrial Chain

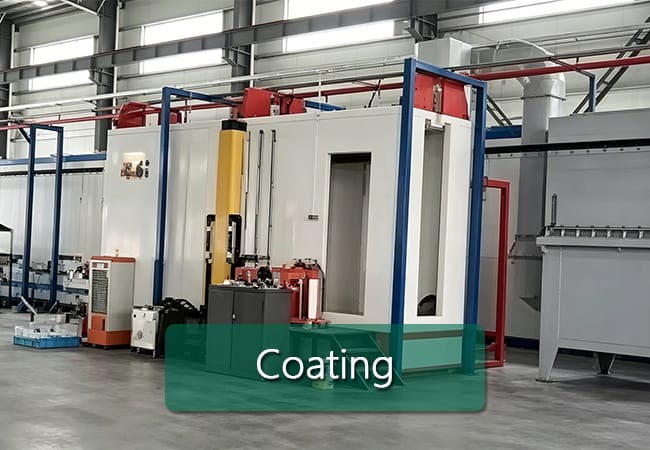

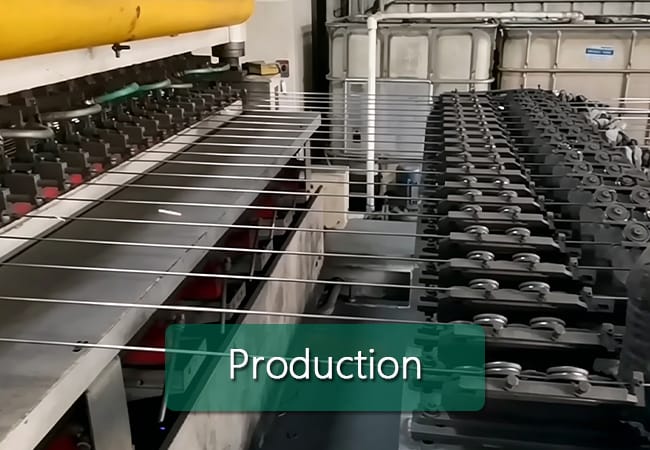

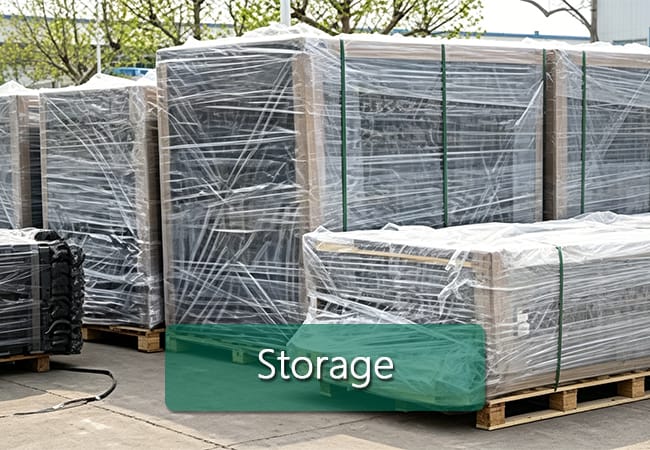

We provide a complete industrial chain covering production, coating, on-site installation and standardized warehousing services.

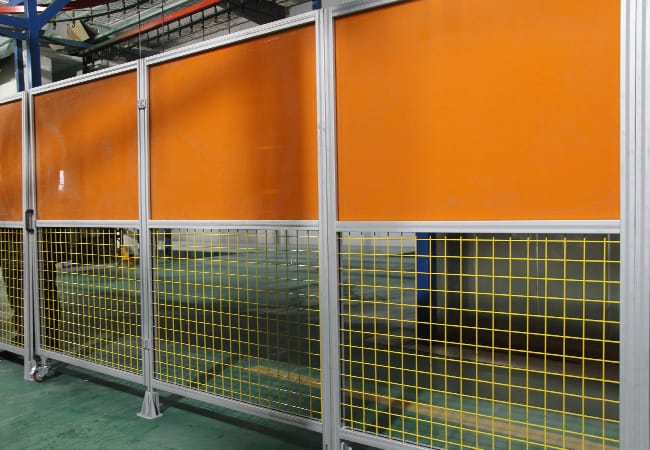

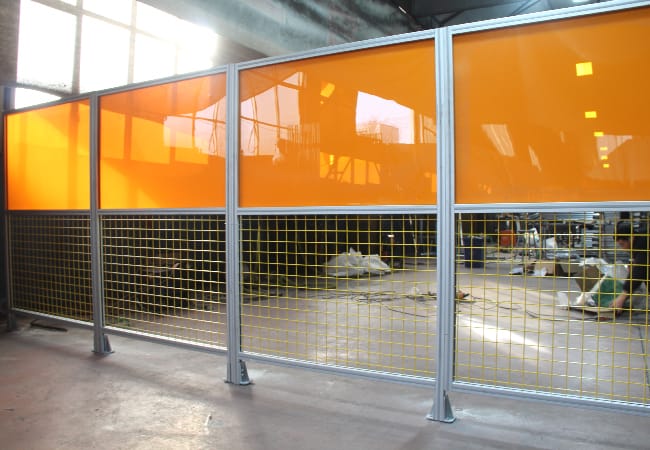

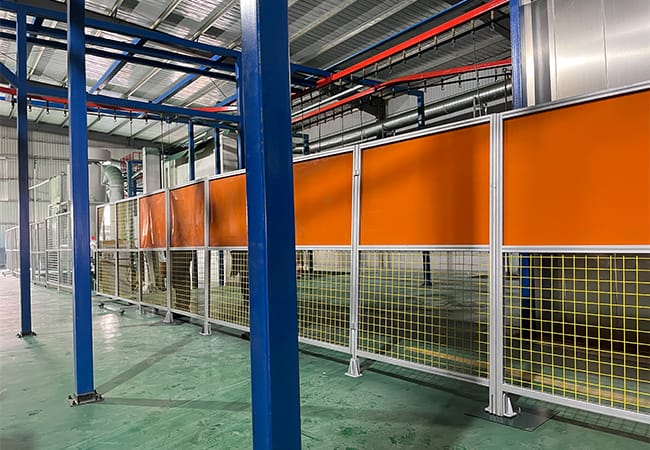

Applications of Arc Shield & Mesh Panel Workshop Isolation Net
Safe & durable, beautiful appearance, perfect for home fencing.
High strength & anti-corrosion, ideal for factory & warehouse protection.
Environmentally friendly & decorative, blends well with landscape.
Anti-climbing & secure, provides safe protection for campus.
Production Process
30+ years metal fence design experience, 30+ technical team; modular & scene-specific customization
We select high-quality steel with strict testing, ensuring durability, corrosion resistance and stable performance for all fence products.

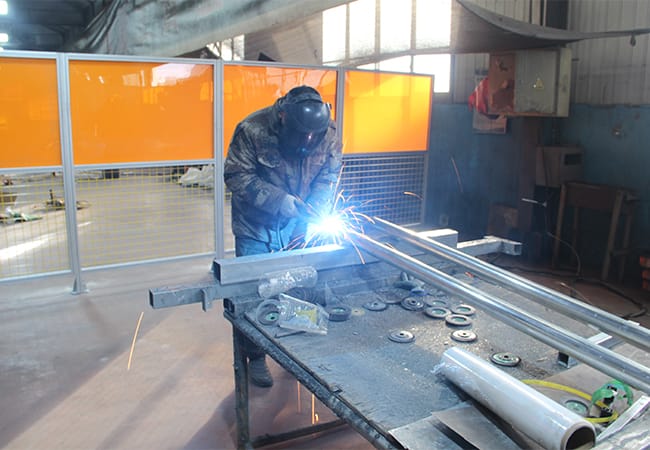

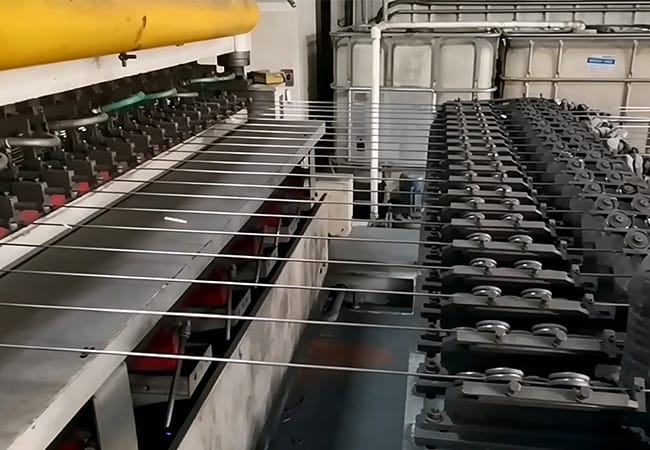

We adopt precise and solid welding technology, ensuring firm connection, smooth surface and high structural stability for fences.
Our fence posts are sturdy, load-bearing, anti-corrosion and precisely sized for easy installation and long service life.
Adopts professional bending technology for accurate shaping, stable structure and smooth radian to meet various installation needs.

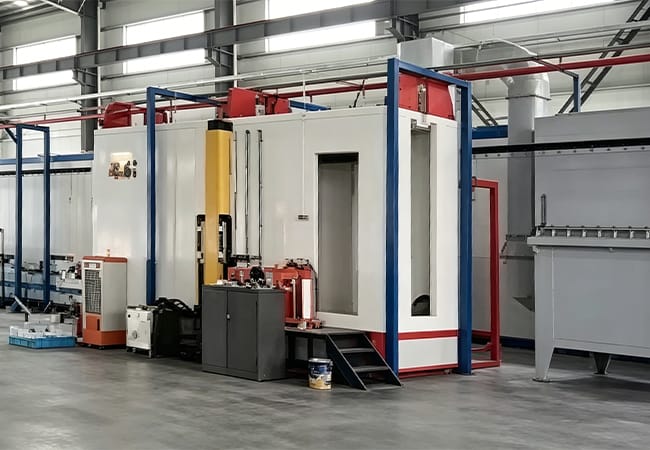

Professional surface treatment ensures excellent corrosion resistance, weatherability and long-lasting finish for fences.
Strict quality inspection at each process ensures fence quality meets standards, with no defects and stable performance.

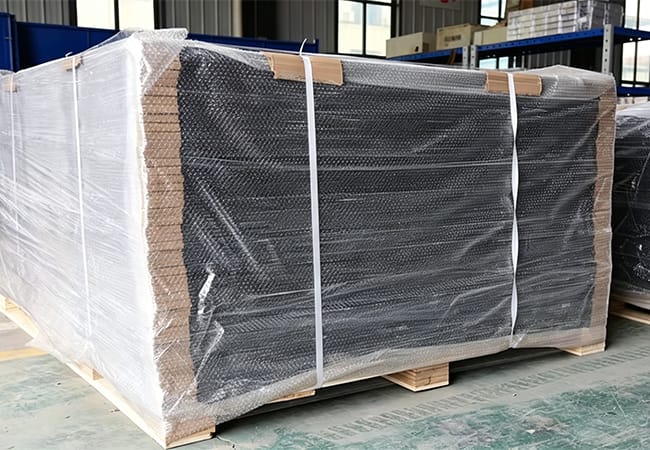

Standardized packaging protects products well; safe and efficient shipping ensures on-time delivery to global customers.

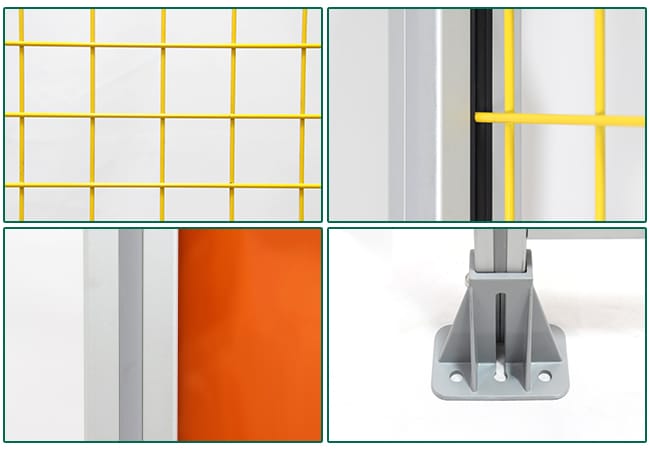

Special Accessories
- Arc Shield & Mesh Panel Workshop Isolation Net
Related Product
Detailed Installation Process for Arc Shield & Mesh Panel Workshop Isolation Net
The installation of workshop isolation net requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and aesthetic appearance of the partition barrier. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
1. Site Preparation & Marking
Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and drilling. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with fine soil or concrete to ensure that the isolation net can be installed vertically and stably. Next, according to the design drawings and actual installation requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the installation positions of each support post and arc shield mesh panel. The spacing between posts should be strictly in line with the design specifications (usually 2-3 meters, which can be adjusted according to the net height and load-bearing requirements), and the marking lines should be straight and clear to ensure that the overall layout of the isolation net is neat and consistent. At the same time, mark the depth of the post holes on the ground according to the height of the posts (generally, the buried depth of the posts is 1/3-1/4 of the total height, ensuring sufficient stability to resist external collision and impact).
2. Post Installation
Post installation is the core link affecting the overall stability of the arc shield & mesh panel workshop isolation net, and every detail needs to be strictly controlled. First, use an electric drill or excavator to dig holes at the marked positions; the diameter of the holes should be 1.5-2 times the diameter of the posts to leave enough space for pouring concrete and ensuring the firmness of the posts. After digging the holes, clean the soil and debris at the bottom of the holes to avoid uneven stress on the posts. Then, place the support posts vertically into the holes, and use a plumb line to check the verticality of the posts (both front and back, left and right directions should be perpendicular to the ground, with an error not exceeding 3mm), and use wooden stakes or temporary supports to fix the posts to prevent them from tilting during concrete pouring. Next, pour high-strength concrete (cement, sand and gravel ratio is usually 1:2:3) into the holes, and continuously tamp the concrete with a tamper during the pouring process to eliminate air bubbles and ensure that the concrete is closely combined with the posts and the hole wall. After pouring, smooth the surface of the concrete and make it slightly higher than the ground to prevent water accumulation from eroding the posts. Finally, let the concrete fully solidify; the solidification time is not less than 24 hours (the solidification time should be appropriately extended in low temperature or humid environment) to ensure that the posts are firmly fixed in the ground and cannot be shaken.
3. Fence Panel Positioning
After the concrete of the posts is completely solidified, the positioning of the arc shield mesh panel can be carried out. First, check the pre-drilled holes on the posts and the mesh panel to ensure that the hole positions are accurate, the hole diameter matches the fasteners, and there is no deformation or blockage. Then, use manual lifting tools to lift the arc shield mesh panel (pay attention to protecting the surface of the panel to avoid scratches or damage to the arc structure), and align the pre-drilled holes on the panel with the mounting holes on the two adjacent posts. During the alignment process, adjust the height and position of the panel: the bottom of the panel should be 5-10cm above the ground to prevent water accumulation and corrosion, and the arc shape of the panel should be smooth and consistent with the design requirements, without obvious wrinkles or deformation. At the same time, ensure that the gap between adjacent panels is uniform (usually 2-5mm) to avoid uneven stress caused by thermal expansion and contraction. After adjusting to the correct position, use temporary fixing clips to fix the panel and the posts temporarily to prevent the panel from shifting during the fastening process.
4. Fastening with Special Accessories
The fastening of special accessories directly affects the connection firmness between the mesh panel and the posts, and is an important guarantee for the service life of the isolation net. First, select matching special accessories according to the model of the isolation net, including screws, nuts, washers, brackets and fixing clips (preferably anti-rust and anti-loosening accessories to improve corrosion resistance and stability). Then, pass the screws through the pre-drilled holes of the panel and the posts, and install washers and nuts in sequence; when tightening, use a torque wrench to control the torque (usually 30-50N·m) to ensure that the screws are tightened evenly, without over-tightening (to avoid damaging the panel or posts) or under-tightening (to avoid looseness). For the arc structure part of the mesh panel, special curved brackets should be used to fix it, ensuring that the arc part is closely attached to the posts and the stress is uniform. After fastening all the accessories, check each connection point again to confirm that there is no looseness, and the accessories are installed in place, without missing or misplaced parts.
5. Level & Integrity Check
After the installation of the mesh panel and accessories is completed, a comprehensive level and integrity check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the levelness of the mesh panel and the verticality of the posts again: the levelness error of the panel should not exceed 2mm per meter, and the verticality error of the posts should not exceed 3mm in total. Then, check the overall alignment of the isolation net: the entire isolation net should be straight, the arc radian of each panel should be consistent, and there should be no obvious skew or unevenness. At the same time, check the connection firmness of each part: gently shake the mesh panel and posts to ensure that there is no obvious shaking, and the screws and accessories are not loose. If any problems are found (such as skew, looseness, uneven gap), adjust them in time: if the posts are skewed, you can chisel the concrete around the posts, adjust the verticality and re-pour the concrete; if the panel is uneven, adjust the position of the fasteners or add gaskets to ensure the flatness. In addition, check the arc part of the panel to ensure that there is no deformation, and the radian is smooth and in line with the design requirements.
6. Cleaning & Acceptance
The final step of the installation process is cleaning and acceptance, which ensures the aesthetic appearance of the isolation net and confirms that the installation is up to standard. First, use a clean cloth or air compressor to remove dust, debris, concrete residues and fingerprints on the surface of the support posts, mesh panels and accessories, especially the arc structure part and connection points, to avoid affecting the surface finish and corrosion resistance. If there are scratches or stains on the surface of the isolation net, use professional cleaning agents to clean them (avoid using corrosive cleaning agents to prevent damage to the surface treatment layer). Then, carry out a comprehensive acceptance according to the design drawings and installation standards: check the installation position, spacing, verticality, levelness and connection firmness of the isolation net; check whether the surface of the isolation net is intact, without scratches, deformation, rust or other defects; check whether the special accessories are complete and installed in place. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified in time until they meet the acceptance standards.
Note
During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the isolation net surface during installation to avoid damage to the surface treatment layer (such as galvanizing, spraying) which may affect the corrosion resistance and service life of the isolation net
Arc Shield & Mesh Panel Workshop Isolation Net by Hebei Bending Fence Technology
Hebei Bending Fence Technology Co., Ltd., located in Anping—the renowned “China Wire Mesh Hometown” of Hebei Province, is a professional manufacturer and exporter of high-quality metal fencing solutions with over 30 years of industry expertise. Our Arc Shield & Mesh Panel Workshop Isolation Net is a flagship high-stability workshop partition system, engineered with unique arc-shaped shielding structures and integrated combined mesh panels to deliver exceptional overall firmness, safety isolation performance and a neat industrial aesthetic.
Crafted from premium low-carbon steel wires via fully automatic precision welding, our Arc Shield & Mesh Panel Workshop Isolation Net features firm, stable joints and zero welding defects. The integrated arc and mesh panel design significantly boosts compression resistance and anti-deformation performance, effectively preventing panel sagging and collapse even in long-term workshop use. We offer three durable surface treatments—hot-dip galvanizing, powder coating and PVC/PE coating—ensuring outstanding corrosion, rust and wear resistance for long-lasting performance in indoor workshop environments, with a service life of up to 15+ years.
Detailed Installation Process and Application Scenarios of Arc Shield & Mesh Panel Workshop Isolation Net
Application Scenarios of Arc Shield & Mesh Panel Workshop Isolation Net.It has a wide range of applications, mainly covering workshop and factory-related fields that have high requirements for safety, stability and practicality.
In the field of factory workshops, it is widely used in production workshops, processing workshops, assembly workshops, workshop passages and the boundaries of operation areas. It can not only provide reliable safety isolation, but also maintain a clean and neat industrial visual effect inside the workshop.
In the field of warehousing and logistics, it can be used as an ideal isolation and protection facility for warehouses, storage workshops, goods stacking areas, logistics sorting areas and warehouse boundaries. It has strong compression resistance and anti-deformation performance to ensure the safe and orderly management of the warehousing area.
In the field of production factories, it is suitable for internal division of factories, isolation between production areas and office areas, equipment protection areas and raw material stacking areas. It can effectively divide functional areas, isolate operational hazards, and prevent accidental collisions and intrusion by irrelevant personnel.
In the field of processing and manufacturing, including precision processing workshops, heavy equipment workshops, parts processing areas and finished product storage areas, it can perfectly integrate the safety isolation function with the workshop industrial layout, making the production area more standardized and safer.
In the field of temporary isolation, it can be used as a temporary workshop partition, equipment maintenance isolation, construction renovation partition and temporary safety protection facility, featuring convenient installation, strong stability and reusability.
Core Advantages
Superior Security: Adopting high-density mesh design with high rigidity, it has excellent anti-climb, anti-theft and anti-damage capabilities. It can effectively block unauthorized intrusion, delimit the boundaries of workshop operation areas and warehousing areas, ensure the orderly development of production operations, and provide reliable protection for on-site safety.
Long‑Lasting Durability: Made of high-quality materials, it has strong weather resistance and UV resistance, which can adapt to various environments such as indoor workshops and semi-open-air storage areas. It is not easy to deform or fade, and can maintain stable performance for a long time without frequent maintenance.
Modern Aesthetics: With a neat and three-dimensional shape, the arc-shaped protective structure is simple and elegant, which can be perfectly integrated with workshop production, warehousing and other scenes. It does not occupy extra space, and balances practicality and industrial aesthetics to improve the overall environmental texture.
Cost‑Effective: Adopting modular design, the mesh panels and columns can be flexibly combined, no complex welding is required, the installation is efficient and fast, which greatly saves labor costs and construction time; daily maintenance is simple, effectively reducing the long-term use cost of workshop isolation facilities.
Excellent Flexibility: It can be flexibly adapted to irregular terrains such as different workshop areas and warehousing sites. Without complex on-site modification, it can quickly adjust the position of the mesh and maintain structural stability to meet various isolation needs.
