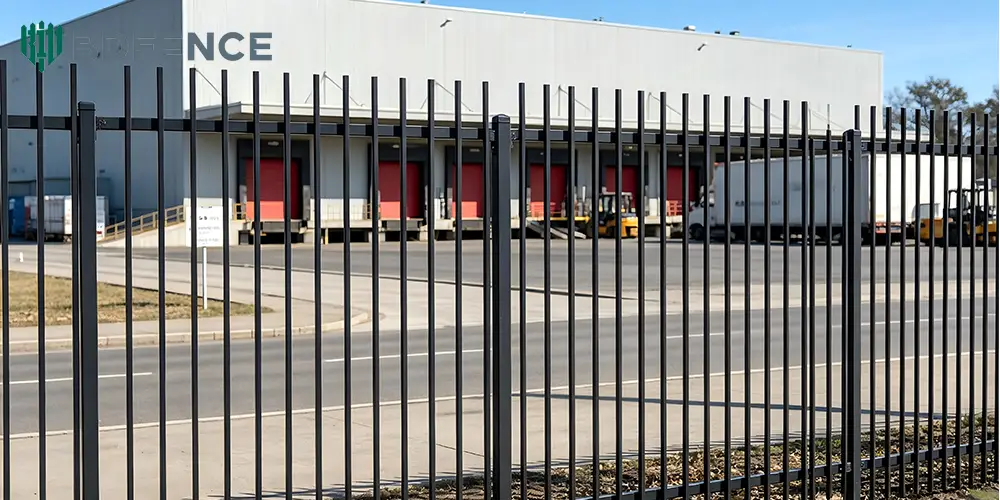

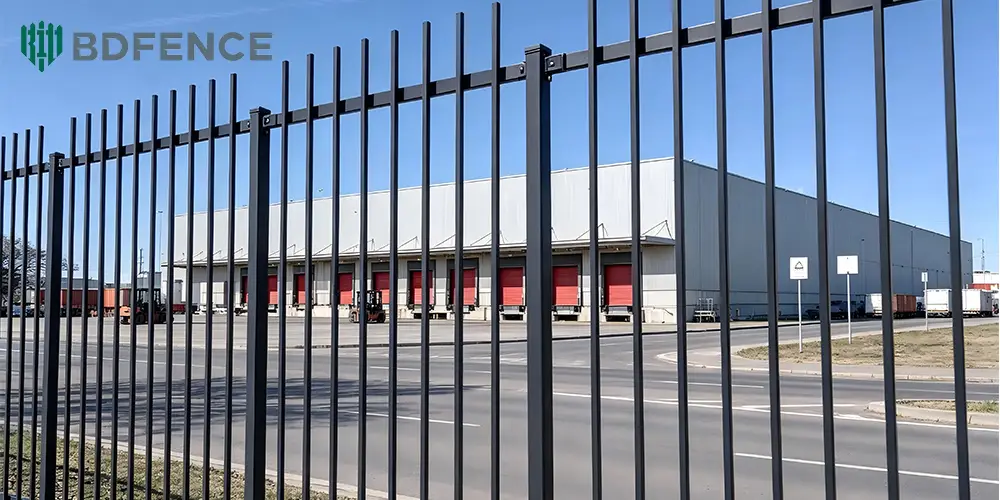

A logistics distribution center in Poland required a perimeter system around truck circulation areas, warehouse boundaries, staff access points, and the main vehicle entrance.
The customer needed a fence that provided a clean commercial appearance while remaining strong enough for daily logistics operations.
The main entrance created an additional requirement: the gate had to open frequently without occupying too much driveway space.
For this project, BDFENCE supplied a Steel Tubular Fence system with a matching sliding vehicle gate, together with steel posts, pedestrian gates, brackets, fasteners, and installation accessories.
Project Profile
| Project Item | Details |
|---|---|
| Country | Poland |
| Sector | Logistics and Distribution |
| Application | Warehouse Perimeter and Vehicle Access |
| Main Product | Steel Tubular Fence |
| Main Gate Type | Sliding Vehicle Gate |
| Fence Style | Vertical Steel Picket System |
| Access | Sliding Vehicle Gate + Pedestrian Gates |
| Supply Scope | Fence Panels, Posts, Sliding Gate, Pedestrian Gates, Fittings and Accessories |
The Logistics Center Needed More Than a Standard Perimeter
The site included warehouse buildings, loading areas, trailer movement, employee access, and regular truck traffic.
Therefore, the perimeter had to support both security and daily operation.
The fence system needed to:
- Define the logistics center boundary
- Maintain visibility around entrances
- Support frequent vehicle movement
- Provide controlled pedestrian access
- Match the commercial appearance of the facility
- Work with a wide vehicle opening
Because the main entrance handled trucks and service vehicles, the gate design became one of the most important parts of the project.
Why a Sliding Gate Was Selected
A conventional swing gate needs clear space for the gate leaves to open.
At a busy logistics entrance, that movement can interfere with truck lanes, parking areas, or internal traffic flow.
A sliding gate operates differently.
Instead of swinging into or out of the driveway, the gate moves sideways along the fence line.
For this logistics center, that helped keep the vehicle entrance more open and reduced conflict with the surrounding traffic area.
The Sliding Gate Had to Be Designed as a Structural System
A sliding gate is not simply a fence panel mounted on wheels.
The gate frame carries its own weight, the tubular infill, hardware, and repeated operating loads.
Therefore, the gate design needed to consider:
- Clear opening width
- Gate frame tube size
- Frame wall thickness
- Internal bracing
- Gate infill
- Guide system
- Support structure
- Closing and locking hardware
These components had to work together before the gate could operate reliably.
The Fence and Gate Needed the Same Visual Language
The customer did not want the vehicle entrance to look like a separate product added after the fence was installed.
Therefore, the sliding gate used a tubular steel infill that matched the main fence design.
The picket arrangement, finish, and overall appearance were coordinated so the entrance remained part of the same perimeter system.
This was especially important because the main vehicle gate was one of the most visible parts of the logistics center.
Truck Traffic Influenced the Entrance Layout
Logistics centers operate around vehicle movement.
The entrance therefore had to consider more than just gate width.
The project layout also needed to account for:
- Truck turning space
- Vehicle approach direction
- Queueing area
- Security checkpoint position
- Pedestrian movement
- Internal road alignment
The sliding gate helped keep the gate movement away from the main truck path.
Pedestrian Access Was Kept Separate from the Main Vehicle Gate
Employees and visitors did not need to use the wide sliding gate for normal foot access.
The project therefore included separate pedestrian gates.
These gates used the same tubular steel design as the surrounding fence.
That allowed the logistics center to manage vehicle and personnel access independently while maintaining one consistent perimeter appearance.
The Steel Posts Had Different Jobs
Not every post in the project carried the same load.
Normal fence posts supported fixed tubular panels.
Corner posts managed changes in direction.
Meanwhile, gate-related posts and support structures had to work with the sliding gate system.
For this reason, the project distinguished between:
- Line posts
- Corner posts
- End posts
- Pedestrian gate posts
- Sliding gate support posts
This was more practical than using one post specification across every part of the site.
What BDFENCE Supplied
| Component | Project Function |
|---|---|
| Steel Tubular Fence Panels | Main logistics center boundary |
| Line Posts | Support standard fence sections |
| Corner and End Posts | Support direction changes and terminations |
| Sliding Vehicle Gate | Main truck and service vehicle access |
| Pedestrian Gates | Employee and visitor access |
| Gate Support Components | Support the sliding gate system |
| Brackets and Fasteners | Connect fence panels and posts |
| Post Caps and Accessories | Complete the fence installation |
Panel Consistency Was Important on Long Fence Runs
A logistics center can include long straight boundary sections.
Small differences in panel width, picket spacing, or rail position can become noticeable after installation.
Therefore, BDFENCE checked:
- Panel width
- Panel height
- Picket spacing
- Rail position
- Picket alignment
- Panel squareness
- Weld condition
Consistent production helped the contractor maintain a cleaner perimeter line around the logistics site.
The Sliding Gate Required Separate Factory Checks
The gate had different production requirements from the fixed fence panels.
Before packing, BDFENCE checked the sliding gate frame, infill, structural alignment, and related components separately.
| Gate Item | Inspection Focus |
|---|---|
| Gate Frame | Overall dimensions and squareness |
| Steel Tubular Infill | Picket spacing and visual match |
| Frame Welds | Connection quality |
| Guide Components | Compatibility with the gate system |
| Support Components | Dimensions and fit |
| Hardware | Type and quantity |
Surface Finish Was Coordinated Across the Perimeter
The fence, sliding gate, pedestrian gates, and posts were all visible parts of the logistics center.
Therefore, the surface finish needed to remain consistent across the system.
The project finish was coordinated across:
- Fence panels
- Line posts
- Gate posts
- Sliding gate frame
- Pedestrian gates
- Visible brackets and components
This helped the entrance and main fence line age with a more uniform appearance.
Packaging the Sliding Gate Required a Different Approach
A sliding gate is larger and more structurally complex than a normal fence panel.
Therefore, it could not simply be packed in the same way as standard fence sections.
BDFENCE organized the shipment by component type.
Fence panels were stacked and secured, steel posts were bundled separately, and smaller brackets and fasteners were packed by category.
The sliding gate and related support components received separate identification so the installation team could locate the entrance materials quickly after delivery.
Installation Started with the Vehicle Entrance
The sliding gate location influenced the surrounding fence line, so the entrance layout had to be confirmed early.
The contractor first established:
- Vehicle gate opening
- Sliding direction
- Gate support positions
- Pedestrian entrances
- Fence corners
- Main post line
Once these points were fixed, the surrounding fence installation could proceed more accurately.
Typical Installation Sequence
- Confirm the logistics center perimeter
- Set out the sliding gate opening and movement direction
- Mark line, corner, and gate post positions
- Install the steel posts and gate supports
- Complete the required foundations
- Install the Steel Tubular Fence panels
- Install the sliding gate system
- Install pedestrian gates
- Check gate movement and alignment
- Check the complete fence line and connections
What the Completed System Delivered
| Logistics Requirement | Project Response |
|---|---|
| Secure Site Boundary | Rigid Steel Tubular Fence |
| Truck Access | Wide sliding vehicle gate |
| Reduced Gate Swing Area | Sideways sliding operation |
| Personnel Access | Separate pedestrian gates |
| Visual Consistency | Matching tubular infill across fence and gates |
| Long Fence Runs | Consistent panel and post system |
The completed perimeter allowed the logistics center to manage vehicle and personnel access without sacrificing the clean appearance of the boundary.
Why Sliding Gates Work Well for Logistics Centers
A sliding gate can be useful where the site needs a wide vehicle opening but cannot afford to lose driveway space to swinging gate leaves.
This can be particularly valuable around:
- Distribution centers
- Warehouses
- Truck yards
- Industrial factories
- Commercial service entrances
However, the final gate design should still match the opening width, operating frequency, site layout, support system, and project specification.
What Logistics Buyers Should Compare Between Quotations
Two suppliers may both quote a Steel Tubular Fence with a sliding gate while offering very different systems.
Before comparing price, check:
- Picket tube size and wall thickness
- Rail specification
- Fence post size and wall thickness
- Post spacing
- Sliding gate opening width
- Gate frame tube specification
- Internal gate bracing
- Gate support system
- Guide components
- Gate hardware
- Surface treatment
- Included accessories
A low gate price can sometimes reflect a lighter frame, smaller posts, or a different support arrangement.
Therefore, buyers should compare the complete gate and fence specification rather than the gate opening size alone.
Planning a Steel Tubular Fence and Sliding Gate Project?
For a more accurate quotation, send BDFENCE the available project information.
Useful details include:
- Project country
- Total fence length
- Fence height
- Panel width
- Picket size and wall thickness
- Picket spacing
- Rail size and wall thickness
- Post size and wall thickness
- Sliding gate clear opening
- Available sliding space beside the entrance
- Pedestrian gate sizes and quantities
- Surface treatment and color
- Site layout
- Project drawings or BOQ
- Destination port
If the sliding gate specification is still being developed, BDFENCE can review the site layout and available requirements before preparing the project quotation.
Why Choose BDFENCE for Logistics Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Steel Tubular Fence systems for logistics centers, warehouses, industrial factories, commercial developments, residential communities, and infrastructure projects.
Our project supply can include:
- Steel Tubular Fence panels
- Customized steel posts
- Pedestrian gates
- Sliding vehicle gates
- Gate support components
- Brackets and fasteners
- Post caps
- Galvanized and powder-coated finish options
Project buyers can send perimeter layouts, BOQ documents, gate drawings, tube schedules, and technical requirements directly to BDFENCE for review and quotation.
Project Takeaway
For this Poland logistics center, the key decision was not simply choosing Steel Tubular Fence.
The main entrance had to work with daily truck movement, so the gate type became part of the perimeter design from the beginning.
By combining a rigid tubular fence with a matching sliding gate, the project created a controlled boundary while keeping the vehicle entrance practical for logistics operations.
