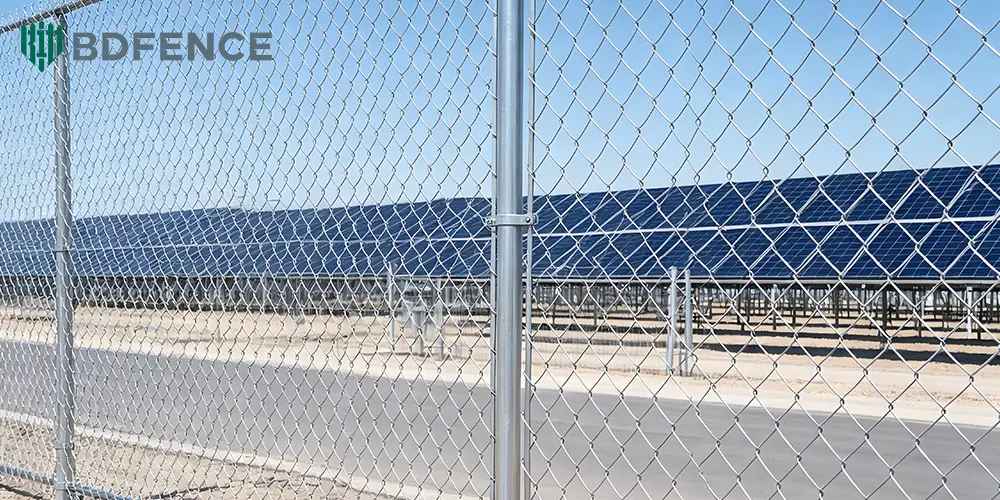

A utility-scale solar farm in Spain required a long perimeter fence around photovoltaic arrays, inverter zones, service roads, electrical equipment, and maintenance access points.
Because the site covered a large outdoor area, the fence needed to balance security, visibility, material efficiency, and installation practicality.
For this project, BDFENCE supplied a 2-inch mesh galvanized Chain Link Fence system with steel posts, tension components, pedestrian gates, vehicle gates, and installation accessories.
The result was a practical perimeter system designed around the daily operation of a large renewable energy site.
Project Profile
| Project Item | Details |
|---|---|
| Country | Spain |
| Sector | Renewable Energy |
| Application | Utility-Scale Solar Farm |
| Product | Galvanized Chain Link Fence |
| Mesh Opening | 2 Inch |
| Surface Finish | Galvanized |
| Main Function | Solar Farm Perimeter Control |
| Access | Pedestrian and Vehicle Gates |
| Supply Scope | Mesh, Posts, Tension Components, Gates and Accessories |
Why the Solar Farm Needed a Long Perimeter Fence
A solar farm may contain thousands of photovoltaic modules spread across a large site.
The perimeter also protects equipment such as:
- Inverters
- Transformers
- Electrical cabinets
- Monitoring equipment
- Maintenance areas
- Grid connection infrastructure
Therefore, the fence had to create a controlled site boundary while still allowing maintenance teams and security personnel to see through the perimeter.
Why 2″ Mesh Was Selected
The project required a practical mesh opening for a long commercial-scale boundary.
A 2-inch Chain Link Fence mesh provides a relatively open woven structure.
Compared with tighter mesh sizes, it generally uses less wire across the same fence area when the wire diameter remains the same.
That can be useful on a solar project where the perimeter may extend for a considerable distance.
The 2-inch mesh helped the project balance:
- Boundary control
- Open visibility
- Steel consumption
- Roll weight
- Installation handling
- Project cost
Why Galvanized Mesh Made Sense for the Site
The fence would remain outdoors throughout its service life.
For this project, the customer selected galvanized Chain Link Fence as a functional perimeter solution.
The galvanized finish provided a practical metallic surface without requiring a decorative color around the long solar boundary.
This suited a project where corrosion protection and operational performance were more important than architectural appearance.
The Fence Needed to Stay Visually Open
Visibility can be important around a solar power facility.
Maintenance teams may need to inspect the perimeter, access roads, and equipment areas from different positions on the site.
The open woven mesh allowed sightlines through the fence instead of creating a solid barrier.
This also helped preserve visibility around:
- Service roads
- Vehicle entrances
- Equipment compounds
- Perimeter inspection routes
Long Fence Runs Put More Attention on the Post System
A large solar farm may require many repeated fence sections.
For that reason, post spacing and post consistency become important.
The project included several post types:
- Line posts
- Corner posts
- Terminal posts
- Gate posts
Each post type performed a different role in the system.
Line posts supported standard mesh runs, while corner and terminal posts managed changes in direction and mesh tension.
Mesh Tension Was Important Across Long Boundaries
Chain Link Fence relies on correct tension to maintain a clean and stable fence line.
On a long solar perimeter, inconsistent tension can become more visible from section to section.
Therefore, the system included matching tension and connection components according to the approved fence specification.
These could include:
- Tension bars
- Tension bands
- Brace bands
- Wire ties
- Top support components where specified
- Bolts and nuts
- Post caps
The mesh, posts, and fittings were coordinated before shipment so the installer could follow a consistent method on site.
The Solar Farm Needed Vehicle Access
A solar facility requires regular maintenance and service access.
Vehicles may need to enter the site for:
- Equipment maintenance
- Panel inspection
- Vegetation management
- Electrical work
- Replacement parts
Therefore, vehicle gates were integrated into the perimeter layout.
The gate system considered the required clear opening, frame construction, mesh infill, gate posts, hinges, and locking hardware.

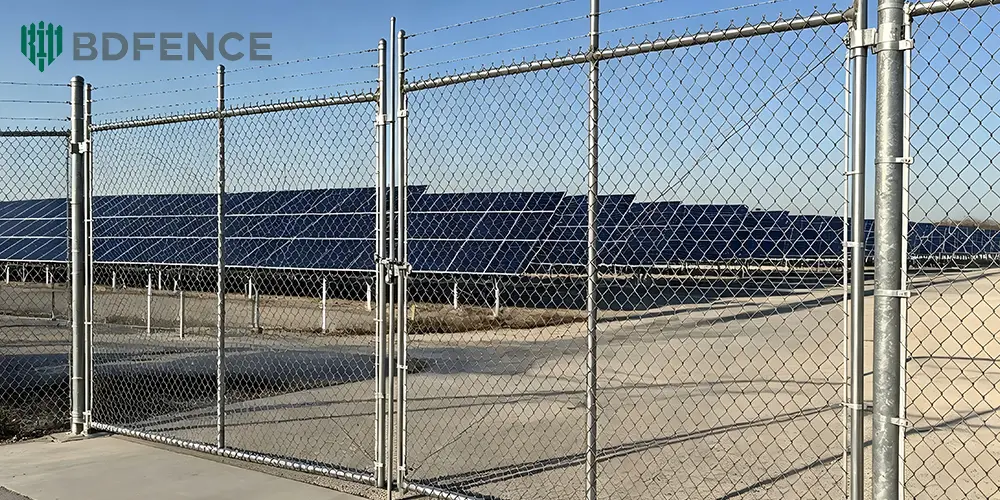

Pedestrian Gates Served Daily Site Access
Not every maintenance visit required opening a large vehicle gate.
The project also included pedestrian access points for authorized staff.
These smaller gates used matching Chain Link Fence infill so they remained visually connected to the surrounding perimeter.
Separating pedestrian and vehicle access also helped the site manage daily movement more efficiently.
What BDFENCE Supplied
| Component | Project Function |
|---|---|
| 2″ Mesh Chain Link Fence | Main solar farm perimeter |
| Line Posts | Support standard fence runs |
| Corner Posts | Support changes in direction |
| Terminal Posts | Anchor tensioned mesh sections |
| Tension Components | Maintain mesh position and stability |
| Pedestrian Gates | Staff access |
| Vehicle Gates | Maintenance vehicle access |
| Fence Fittings | Complete installation system |
Wire Specification Was Checked Together with the Mesh Opening
Mesh opening alone does not fully define a Chain Link Fence.
A 2-inch mesh can be manufactured with different wire diameters.
That means two products with the same opening can still differ in:
- Mesh weight
- Steel consumption
- Handling
- Material cost
Therefore, BDFENCE checked the actual wire specification together with the 2-inch mesh opening before production.
Factory Inspection Covered the Complete Fence Package
| Component | Inspection Focus |
|---|---|
| Chain Link Mesh | Mesh opening, wire specification, height and roll dimensions |
| Line Posts | Size, wall thickness, length and straightness |
| Corner / Terminal Posts | Dimensions and fitting compatibility |
| Tension Components | Type, dimensions and quantity |
| Pedestrian Gates | Frame dimensions and hardware positions |
| Vehicle Gates | Frame alignment, gate posts and accessories |
| Galvanized Surface | Visible condition |
Packaging Needed to Work for a Large Solar Project
A solar fence order can involve large quantities of mesh rolls, posts, and fittings.
Therefore, packaging was organized by component category.
Mesh rolls were prepared for export, while posts were bundled separately by type.
Smaller fittings and tension components were packed in identified groups.
Gate materials were also separated from standard fence-line components.
This helped the site team identify the correct materials after delivery.
Installation Followed the Solar Farm Boundary
The contractor first confirmed the full perimeter route before installing the mesh.
Important control points included:
- Fence corners
- Terminal positions
- Vehicle gates
- Pedestrian gates
- Changes in ground direction
The line posts were then positioned between these fixed points.
Once the supporting structure was ready, the mesh could be tensioned section by section.
Typical Installation Sequence
- Set out the solar farm perimeter
- Confirm corners, terminals and gate openings
- Install line, corner, terminal and gate posts
- Complete the required foundations
- Install support and tension components
- Unroll and position the 2″ mesh
- Tension the mesh along each fence section
- Secure the mesh to the posts
- Install pedestrian gates
- Install vehicle gates
- Check alignment and mesh tension
What the Completed Fence Delivered
| Solar Farm Requirement | Project Response |
|---|---|
| Long Perimeter Coverage | 2″ mesh Chain Link Fence |
| Open Visibility | Woven mesh construction |
| Outdoor Use | Galvanized steel system |
| Stable Fence Line | Matched posts and tension components |
| Staff Access | Pedestrian gates |
| Service Vehicle Access | Vehicle gates |
| Installation Compatibility | Mesh, posts, gates and fittings supplied together |
The completed fence created a practical boundary around the solar farm while keeping the site visually open for maintenance and monitoring.
Why 2″ Mesh Can Make Sense on Large Solar Perimeters
Solar projects often involve long fence lengths.
That makes material efficiency important.
A tighter mesh may use more wire per square meter, while a 2-inch opening can provide a more open structure with lower wire consumption when other specifications remain the same.
Across a large perimeter, that difference can influence:
- Total steel weight
- Mesh cost
- Container loading
- Site handling
- Installation speed
Therefore, the selected mesh opening should reflect the actual solar farm security requirement rather than simply using the tightest mesh available.
Why Buyers Should Compare More Than Mesh Price
Two suppliers can both quote 2-inch galvanized Chain Link Fence while offering very different complete systems.
Differences may include:
- Wire diameter
- Fence height
- Post diameter
- Post wall thickness
- Post spacing
- Terminal post design
- Tension system
- Gate specification
- Included fittings
Therefore, procurement teams should compare the full fence package rather than only the price of the mesh roll.
What Should a Solar Farm RFQ Include?
A more complete RFQ should provide:
- Project country
- Total perimeter length
- Fence height
- 2″ mesh requirement
- Wire diameter or gauge standard
- Galvanized finish requirement
- Line post specification
- Corner and terminal post specification
- Post spacing
- Top support or tension wire requirement
- Pedestrian gate dimensions and quantities
- Vehicle gate dimensions and quantities
- Site layout
- BOQ or fence schedule
- Destination port
If some details are still being finalized, BDFENCE can review the available solar project drawings and technical requirements before preparing the quotation.
Why Choose BDFENCE for Solar Farm Chain Link Fence?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for solar farms, warehouses, industrial facilities, logistics yards, utilities, sports facilities, and infrastructure projects.
Our project supply can include:
- 2″ mesh Chain Link Fence
- Other mesh opening options
- Different wire gauges
- Galvanized Chain Link Fence
- PVC-coated Chain Link Fence
- Line, corner and terminal posts
- Tension systems
- Pedestrian gates
- Vehicle gates
- Fence fittings and accessories
Project buyers can send BOQ documents, perimeter layouts, gate schedules, and technical specifications directly to BDFENCE for review and quotation.
Project Takeaway
For this solar farm project in Spain, the main value of the 2-inch galvanized Chain Link Fence was its balance.
The open mesh supported visibility. The galvanized finish suited long-term outdoor use. The post and tension system stabilized the long perimeter, while separate gates supported daily maintenance access.
Most importantly, the fence specification matched the operating needs of a large renewable energy site instead of using a heavier or tighter system without a clear project reason.
