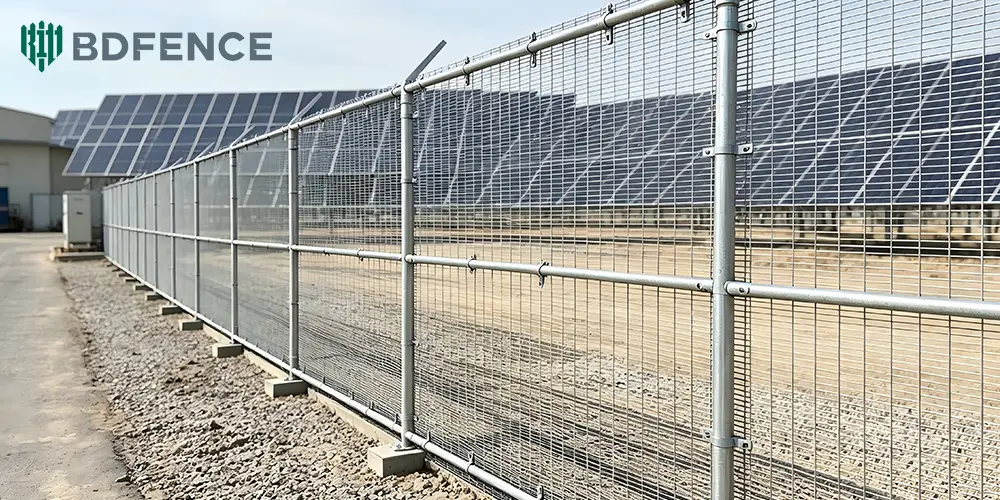

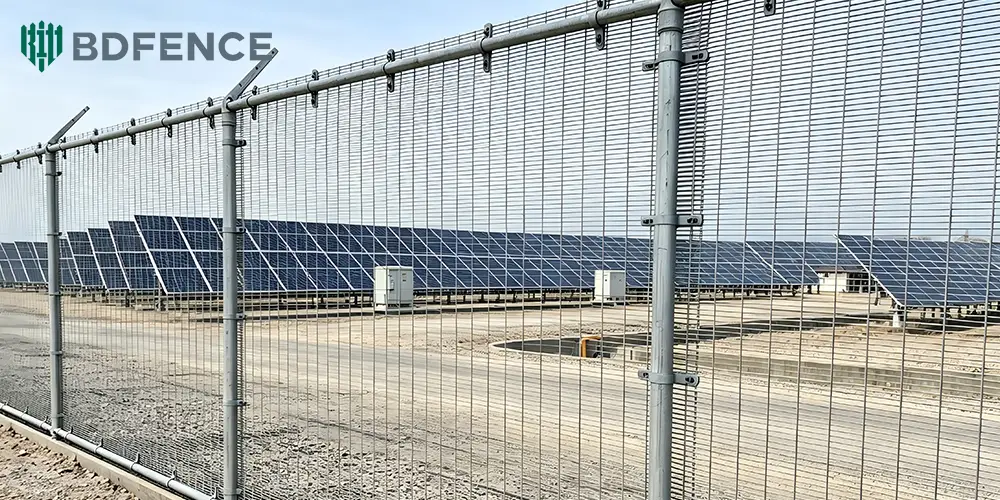

A utility-scale solar power plant in Chile required a perimeter fence around photovoltaic arrays, inverter areas, electrical equipment, maintenance roads, and controlled access points.
The fence needed to do more than mark the site boundary.
It had to reduce climbing opportunities, maintain visibility across the solar field, support long perimeter runs, and integrate with both pedestrian and vehicle access.
For this project, BDFENCE supplied a 2.4m High 358 Security Fence system with welded mesh panels, steel posts, security fixings, pedestrian gates, vehicle gates, and installation accessories.
Project Profile
| Project Item | Details |
|---|---|
| Country | Chile |
| Sector | Renewable Energy |
| Application | Utility-Scale Solar Power Plant |
| Product | 358 Security Fence |
| Fence Height | 2.4 m |
| Common Mesh Opening | 76.2 × 12.7 mm |
| Fence Structure | Rigid Welded Anti-Climb Mesh Panels |
| Access | Pedestrian and Vehicle Gates |
| Supply Scope | Panels, Posts, Security Fixings, Gates and Accessories |
Why the Solar Plant Needed a Controlled Perimeter
A large solar power plant contains more than photovoltaic panels.
The site can also include:
- Inverters
- Transformers
- Electrical cabinets
- Monitoring equipment
- Maintenance roads
- Service areas
- Grid connection equipment
Because of this, the perimeter had to separate the operating facility from surrounding land and limit uncontrolled access to critical equipment.
At the same time, maintenance teams needed clear access through designated gates.
Why 2.4m Fence Height Was Selected
The project required a taller perimeter than a normal low commercial fence.
A 2.4m fence provided a more substantial physical boundary around the solar facility.
However, increasing the height also affected other parts of the system.
The fence design therefore needed to consider:
- Panel height
- Post length
- Post wall thickness
- Panel fixing points
- Gate height
- Foundation requirements
For this reason, the 2.4m configuration was treated as a complete system rather than simply a taller mesh panel.
Why 358 Mesh Worked Well for the Solar Site
358 Security Fence uses a narrow rectangular welded mesh.
A common configuration is approximately 76.2 × 12.7 mm.
The narrow opening provides very limited conventional hand and foot holds compared with many larger-opening fence systems.
That made the fence suitable for a site where anti-climb characteristics were important.
At the same time, the mesh remained open enough for security and maintenance teams to keep visibility through the perimeter.
Visibility Was Important Around the Solar Arrays
A solid wall would have created a very different type of boundary.
For this solar power plant, the open welded mesh allowed personnel to maintain sightlines into and out of the facility.
This could support:
- Perimeter inspection
- Security monitoring
- Maintenance observation
- Visual checks near access roads
Therefore, the project could increase perimeter control without unnecessarily blocking the view across the solar field.
Long Perimeter Runs Required Consistent Panels
Solar power plants can cover large areas.
That means the fence may extend across long perimeter sections.
When thousands of meters of fencing are installed, small production differences can become visible on site.
For this reason, BDFENCE checked key panel details during production, including:
- Panel height
- Panel width
- Mesh opening
- Wire diameter
- Panel flatness
- Weld condition
- Overall dimensions
Consistent panel production helped the installer maintain a cleaner and more uniform fence line.
The Post System Had to Match the 2.4m Panels
The welded mesh panels needed a suitable steel support system.
For a 2.4m fence, post selection becomes especially important because the taller panels place more demand on the supporting structure.
The post system therefore considered:
- Post section size
- Wall thickness
- Post length
- Post spacing
- Installation method
- Foundation conditions
A strong 358 panel paired with an undersized post would not create a well-balanced perimeter.
Security Fixings Connected the Panels to the Posts
The connection between panel and post formed another important part of the system.
Depending on the project design, 358 Fence can use components such as:
- Fixing bars
- Steel clamps
- Security plates
- Anti-tamper bolts
- Security nuts
- Washers
- Post caps
For the solar plant, the fixing system was coordinated with the 2.4m panels and steel posts.
This helped create a consistent connection method along the perimeter.
Vehicle Access Was Essential for Solar Plant Operations
Maintenance teams need to move vehicles, tools, and replacement equipment into the solar facility.
Therefore, the perimeter required vehicle gates in addition to normal fence sections.
The gate design needed to coordinate:
- Opening width
- Gate frame
- 358 mesh infill
- Gate posts
- Hinges
- Locks and closing hardware
- Connection with adjacent fence sections
Gate posts received additional attention because they had to support moving gate frames rather than fixed panels.
Pedestrian Gates Supported Daily Maintenance Access
Not every maintenance visit required a vehicle entrance.
Pedestrian gates provided smaller controlled access points for staff and authorized personnel.
These gates used matching 358 mesh infill so they remained visually and structurally connected to the surrounding fence line.
What BDFENCE Supplied
| Component | Project Function |
|---|---|
| 2.4m 358 Fence Panels | Main solar plant perimeter |
| Steel Line Posts | Support standard fence sections |
| Corner Posts | Support changes in direction |
| Gate Posts | Support pedestrian and vehicle access |
| Security Fixings | Connect panels to posts |
| Anti-Tamper Fasteners | Secure the fence assembly |
| Pedestrian Gates | Personnel access |
| Vehicle Gates | Maintenance and service vehicle access |
Outdoor Exposure Was Part of the Fence Specification
A solar power plant is an outdoor facility by definition.
Fence panels, posts, gates, and fittings remain exposed to the local environment throughout their service life.
Therefore, surface treatment had to be considered across the complete perimeter system.
The project finish was coordinated across the main steel components according to the confirmed requirements.
This helped the panels, posts, gates, and visible fittings age more consistently.
Quality Control Covered the Complete Fence Package
| Component | Inspection Focus |
|---|---|
| 358 Panels | Mesh opening, wire diameter, dimensions, welds and flatness |
| Steel Posts | Section size, wall thickness, length and straightness |
| Security Fixings | Type, dimensions and quantity |
| Pedestrian Gates | Frame dimensions, hinges and hardware positions |
| Vehicle Gates | Frame alignment, posts and connection components |
| Surface Finish | Visible condition and consistency |
This helped confirm that the project was ready as a complete perimeter package rather than a collection of unrelated fence components.
Export Packing Followed the Component Type
The project included large welded panels, long posts, gate components, and small security fittings.
Therefore, each product type required a different packing approach.
BDFENCE stacked and secured the 358 panels for transport. Posts were bundled separately, while security fixings and smaller accessories were packed by category.
Gate components were also identified separately.
This reduced unnecessary sorting after the materials reached the solar plant site.
Installation Began with the Solar Plant Layout
Before installing panels, the contractor confirmed the fence route around the facility.
The key positions included:
- Perimeter corners
- Changes in direction
- Vehicle access points
- Pedestrian gates
- Service roads
Once these locations were established, the steel posts could be installed according to the approved layout.
Typical Installation Sequence
- Set out the solar plant perimeter
- Confirm gate and corner locations
- Mark steel post positions
- Install the posts
- Complete the required foundations
- Position the 2.4m 358 panels
- Secure panels with the specified fixing system
- Install pedestrian gates
- Install vehicle gates
- Check fence alignment and connections
Because the fence used rigid welded panels, accurate post positioning was important before the panels were fixed in place.
What the Completed Solar Perimeter Achieved
| Solar Plant Requirement | Fence Response |
|---|---|
| Controlled Site Boundary | 2.4m welded security perimeter |
| Anti-Climb Character | Narrow 358 mesh opening |
| Visibility | Open welded mesh structure |
| Long Fence Runs | Consistent panels and post system |
| Personnel Access | Matching pedestrian gates |
| Maintenance Access | Vehicle security gates |
| System Compatibility | Panels, posts, fixings and gates supplied together |
The completed system created a defined high-security boundary around the solar power plant without turning the site into a visually closed compound.
Why Solar Projects Should Not Compare Panel Price Alone
A large solar project can involve a significant perimeter length.
Therefore, a small specification difference can create a large difference in total project value.
Two suppliers may both quote 2.4m High 358 Fence while using different:
- Wire diameters
- Panel widths
- Post sizes
- Post wall thicknesses
- Post spacing
- Fixing systems
- Gate specifications
- Surface treatments
For this reason, procurement teams should compare the complete perimeter system rather than only the panel price per piece.
What Should a Solar Fence RFQ Include?
For a more accurate quotation, provide the available project information:
- Project country
- Total perimeter length
- Required fence height
- Mesh specification
- Wire diameter
- Panel width
- Post size and wall thickness
- Post spacing
- Security fixing requirements
- Surface treatment and color
- Pedestrian gate dimensions and quantities
- Vehicle gate dimensions and quantities
- Site layout
- BOQ or fence schedule
- Destination port
If the perimeter specification is still being reviewed, BDFENCE can evaluate the available drawings and requirements before preparing the quotation.
Why Choose BDFENCE for Solar Power Plant Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures 358 Security Fence systems for solar power plants, data centers, utilities, industrial facilities, infrastructure sites, and other controlled-access projects.
Our project supply can include:
- 358 welded security panels
- Different fence heights
- Customized steel posts
- Security fixing systems
- Anti-tamper fasteners
- Pedestrian gates
- Vehicle gates
- Surface treatment options
- Installation accessories
Project buyers can send BOQ documents, perimeter layouts, fence schedules, and gate drawings directly to BDFENCE for technical review and quotation.
Project Takeaway
The key decision in this Chile solar project was not simply choosing a 2.4m fence.
The project needed a complete perimeter system that could protect a large outdoor energy facility while keeping the site visible and accessible for authorized maintenance teams.
The 358 mesh provided the anti-climb character, while the posts, security fixings, gates, and surface treatment turned the welded panels into a working solar plant perimeter.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Why use 358 Fence around a solar power plant?
358 Fence provides narrow welded mesh with limited conventional hand and foot holds while maintaining visibility through the perimeter. This can make it suitable for controlled renewable energy and utility sites.
Is 2.4m high 358 Fence suitable for solar farms?
A 2.4m configuration can be used where it matches the approved security requirement. The post system, fixing method, gates, foundations, and site conditions should be considered together with the fence height.
Can 358 Fence maintain visibility around solar panels?
Yes. The welded mesh remains visually open, allowing observation through the perimeter while providing a rigid physical boundary.
Can BDFENCE supply large vehicle gates for solar plants?
Yes. BDFENCE can supply vehicle gates with matching 358 mesh infill, suitable gate posts, hinges, locking hardware, and related components according to the project design.
Can the fence be galvanized or powder coated?
Yes. Surface treatment and color can be specified according to the project environment and technical requirements.
Can BDFENCE supply a complete solar perimeter package?
Yes. The supply can include 358 panels, posts, security fixings, pedestrian gates, vehicle gates, fasteners, and installation accessories.
Can I send a solar project BOQ for quotation?
Yes. BDFENCE can review the BOQ, perimeter drawing, fence schedule, gate requirements, and technical specifications before preparing a quotation.
