How to Calculate the Quantity and Cost of 358 Fence for Your Project

When buyers request a 358 Fence quotation, the first question is often:

“How much will this project cost?”

However, the final price cannot be calculated accurately from total perimeter length alone.

A complete 358 Security Fence project may include:

• Welded mesh panels
• Line posts
• Corner and end posts
• Security fixing bars or clamps
• Anti-tamper fasteners
• Pedestrian gates
• Vehicle gates
• Top security components
• Surface treatment
• Packing and freight

Therefore, a useful budget starts by calculating quantities first and unit prices second.

Step 1: Confirm the Total Fence Length

Start with the complete site perimeter or fence layout.

If the project includes several separate fence runs, calculate each section individually rather than using only one total number.

You should identify:

• Main perimeter length
• Internal security zones
• Gate openings
• Unfenced sections
• Changes in direction
• Separate compounds

The drawing is more useful than a single perimeter number because it also shows where special posts and gates will be required.

Step 2: Deduct Gate Openings

Gate openings reduce the number of standard fence panels.

A simple formula is:

Net Fence Length = Total Perimeter Length − Total Gate Openings − Other Unfenced Sections

For example:

This 1,184m becomes the starting point for panel calculation.

Step 3: Calculate the Number of 358 Fence Panels

358 Fence uses rigid welded panels, so panel width is critical.

The basic formula is:

Panel Quantity = Net Fence Length ÷ Panel Width

Round up to the next full panel.

For example, if the net fence length is 1,184m and the panel width is 2.5m:

1,184 ÷ 2.5 = 473.6

Therefore, the project needs approximately:

474 standard panels

Why Panel Width Matters So Much

A wider panel reduces the number of individual fence sections.

That can affect:

• Panel quantity
• Post quantity
• Number of fixing sets
• Installation time
• Transport handling

However, panel width should still match the approved structural and installation design.

Do not choose a wider panel only to reduce post quantity.

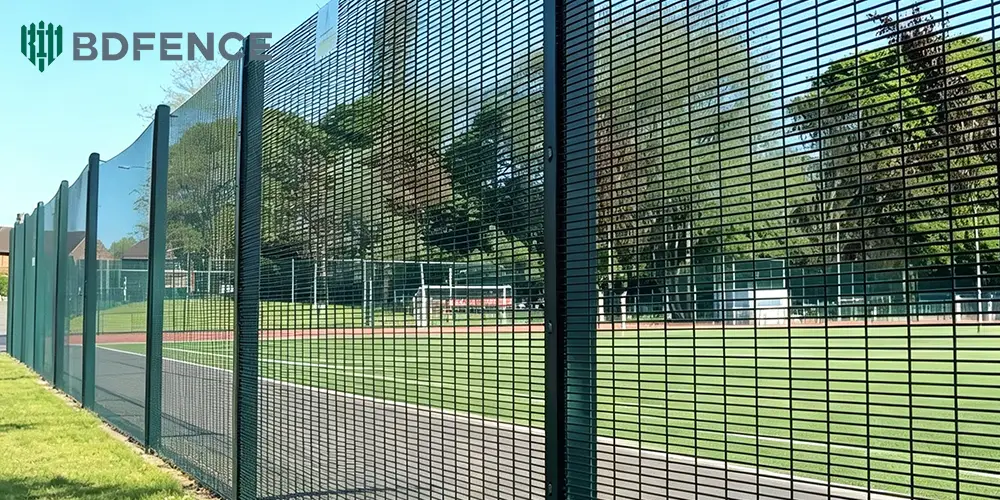

Step 4: Calculate Line Posts

For rigid 358 Fence, line posts usually follow the panel layout.

A simplified straight fence run with 474 panels will need roughly one post between each panel, plus terminal posts at the ends.

However, the final number depends on:

• Separate fence runs
• Corners
• Gate openings
• End positions
• Changes in direction

Therefore, post quantity should be calculated from the layout rather than using one universal formula.

Step 5: Separate Line Posts from Corner, End, and Gate Posts

Not every post performs the same job.

A proper BOQ should separate:

• Line posts
• Corner posts
• End posts
• Pedestrian gate posts
• Vehicle gate posts

Gate posts may be larger or heavier than normal line posts.

This can have a significant impact on total project cost.

Step 6: Calculate Security Fixing Sets

358 Fence panels need secure connections to the posts.

Depending on the project, the fixing system may use:

• Full-length fixing bars
• Steel clamps
• Security plates
• Anti-tamper bolts
• Special nuts

The quantity depends on:

• Panel height
• Post type
• Fixing method
• Number of connection points

A 3m-high panel may require a different fixing arrangement from a 2m panel.

Step 7: Add Pedestrian Gates

Pedestrian gates should be counted separately from standard panels.

For each gate, the quotation may include:

• Gate frame
• 358 mesh infill
• Gate posts
• Hinges
• Locking hardware
• Surface treatment
• Installation accessories

A project with many personnel entrances can have a much higher gate cost than a site with the same perimeter length but only one gate.

Step 8: Add Vehicle Gates

Vehicle gates usually have a larger effect on project cost.

Their price can depend on:

• Clear opening width
• Gate height
• Swing or sliding design
• Gate frame section
• Frame wall thickness
• 358 mesh infill
• Gate post size
• Gate hardware
• Manual or automated operation

For this reason, large gate openings should be listed separately in the RFQ.

Step 9: Confirm Fence Height

Fence height directly affects material usage.

A taller 358 Fence normally means:

• More panel steel
• Longer posts
• More coating area
• More fixing points
• Heavier gates
• Higher shipping weight

Therefore, a 3m 358 Fence should not be priced as simply 50% more mesh than a 2m fence.

Step 10: Confirm Wire Diameter

Wire diameter is one of the main drivers of panel weight and cost.

Common project directions may include:

• 3mm wire
• 4mm wire
• 5mm wire

When the panel dimensions remain similar, thicker wire means more steel in every square meter of mesh.

That affects:

• Panel weight
• Steel consumption
• Unit price
• Handling
• Gate infill weight
• Shipping

Why 4mm and 5mm Fence Can Change the Budget Quickly

The difference between 4mm and 5mm wire may look small on paper.

Across hundreds or thousands of panels, the steel difference becomes much more important.

This is why buyers should never compare two 358 Fence quotations without confirming the actual wire diameter.

Step 11: Confirm Mesh Specification

A common 358 mesh is approximately 76.2 × 12.7 mm.

However, buyers should still confirm the actual mesh requirement before quotation.

Different welded mesh specifications can change:

• Wire consumption
• Panel rigidity
• Panel weight
• Production cost

Step 12: Add the Surface Treatment Cost

Surface treatment can be a meaningful part of the total price.

Possible project directions include:

• Galvanized finish
• Powder-coated finish
• Galvanized + powder-coated system

The final choice depends on:

• Project environment
• Corrosion requirement
• Required color
• Architectural appearance
• Project specification

For large perimeter projects, coating several thousand square meters of steel can have a significant effect on the final budget.

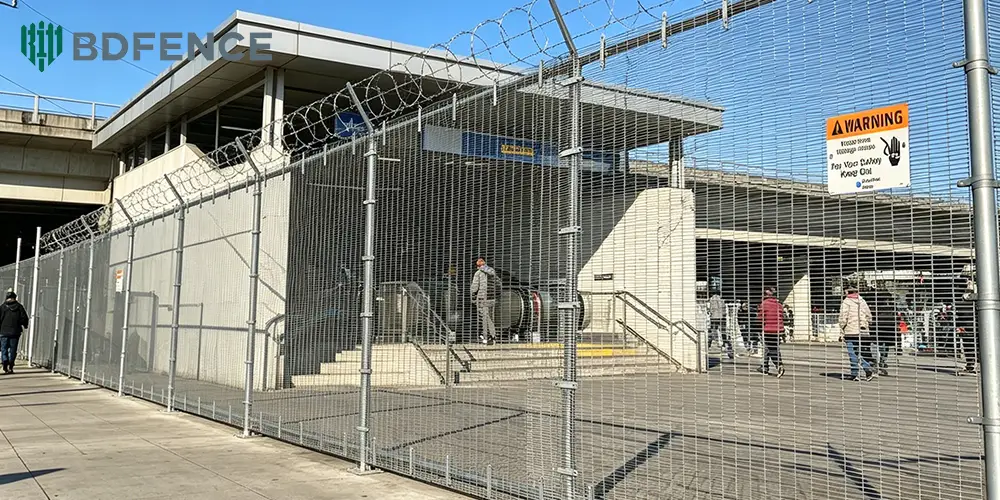

Step 13: Add Top Security if Required

Some projects require additional security above the main 358 panels.

This may include:

• Post extensions
• Barbed wire
• Razor wire
• Other approved security topping

This adds cost through:

• Additional steel
• Longer or stronger posts
• Security wire
• Extra fittings
• Installation labor

Top security should therefore be included in the original quotation rather than added after the main fence has already been priced.

Step 14: Add Packing and Export Cost

International fence projects need export packing.

The cost can depend on:

• Panel dimensions
• Panel weight
• Post length
• Gate size
• Bundle quantity
• Protection requirements

Rigid 358 panels take up different space from rolled Chain Link Mesh.

For export buyers, this needs to be included in the total project budget.

Step 15: Calculate Freight

Freight can become a significant cost for large projects.

The shipping calculation depends on:

• Total steel weight
• Container quantity
• Loading efficiency
• Destination port
• Gate dimensions
• Local logistics requirements

A heavier wire specification or taller fence can increase both product cost and freight cost.

A Simple 358 Fence Cost Formula

A practical project budget can be written as:

Total Project Cost = Panels + Posts + Security Fixings + Gates + Top Security + Surface Treatment + Packing + Freight

If local installation is included in the buyer’s budget, add:

+ Foundations + Installation Labor + Equipment + Local Transport

A Sample 1,200m Project Calculation

Assume the project has:

• Total perimeter: 1,200m
• Two 6m vehicle gates
• Four 1m pedestrian gates
• Panel width: 2.5m
• Fence height: 2.4m
• 358 mesh specification

First, calculate net fence length:

1,200 − 12 − 4 = 1,184m

Then calculate standard panels:

1,184 ÷ 2.5 = 473.6

Round up:

474 panels

The next step is to calculate:

• Line posts
• Corner and end posts
• 12 gate posts if each of the 6 gate openings uses two posts
• Security fixing sets
• Gate frames and hardware
• Surface treatment
• Packing
• Freight

This creates a much more realistic project budget than multiplying 1,200m by one fence price.

Why “Price Per Meter” Can Be Misleading

Price per meter is useful for early comparison, but it can hide important differences.

Two suppliers may quote the same “358 Fence price per meter” while using different:

• Wire diameters
• Panel widths
• Fence heights
• Post sections
• Post wall thicknesses
• Fixing systems
• Coating systems
• Gate specifications

Therefore, price per meter should only be compared after the technical specification is aligned.

Why Panel Price Is Not the Same as System Price

The welded panel is only one part of the complete 358 Fence system.

For some projects, gates, heavy posts, top security, and surface treatment can add a significant amount to the final cost.

A low panel price can therefore create a misleading impression if the rest of the system is not included.

How Fence Height Changes the Total Project Cost

Suppose a project has the same 1,000m perimeter.

Moving from 2.0m to 2.4m changes:

• Total mesh area
• Panel weight
• Post length
• Fixing quantity
• Gate height
• Coating area
• Shipping weight

Moving again from 2.4m to 3.0m may also require a stronger support system.

This is why fence height should be confirmed before comparing prices.

How Wire Diameter Changes the Total Project Cost

The wire difference affects every panel in the project.

For a small perimeter, the cost difference may be manageable.

For a 3,000m or 5,000m security perimeter, the effect becomes much larger.

Buyers should therefore ask:

Does the project need 3mm, 4mm, or 5mm wire?

Do not automatically select the thickest wire if the approved security requirement does not need it.

Gate Quantity Can Change the Budget More Than Expected

Two projects can both have 2,000m of fence but very different total prices.

One project may have:

• 1 vehicle gate
• 2 pedestrian gates

Another may have:

• 6 vehicle gates
• 12 pedestrian gates

The second project requires more:

• Gate frames
• Gate posts
• Hardware
• Fabrication
• Foundations

Therefore, gate schedules should always be included in the cost calculation.

How to Build a Better 358 Fence BOQ

Should You Add Spare Panels and Accessories?

Large projects may benefit from a small spare-material quantity.

Possible spares include:

• Extra panels
• Line posts
• Fixing bars
• Security bolts
• Post caps
• Gate hardware

The reserve should depend on project size, installation conditions, and long-term maintenance planning.

A Better Way to Estimate Cost Before Final Quotation

If you are still in the budgeting stage, prepare the project in this order:

1. Confirm perimeter length
2. Deduct gate openings
3. Confirm fence height
4. Confirm panel width
5. Confirm wire diameter
6. Calculate panel quantity
7. Calculate post quantity
8. Count corner, end, and gate posts
9. Confirm fixing system
10. Add gate quantities
11. Add top security if required
12. Select surface treatment
13. Add packing and freight

This gives buyers a much more reliable budget than asking only for a general price per meter.

What Information Should You Send BDFENCE?

For a more accurate quantity calculation and quotation, send:

• Project country
• Project type
• Total perimeter length
• Perimeter drawing
• Fence height
• Panel width
• Mesh opening
• Wire diameter
• Post size and wall thickness if specified
• Post spacing
• Security fixing requirement
• Pedestrian gate sizes and quantities
• Vehicle gate sizes and quantities
• Top security requirement
• Surface treatment
• RAL color if required
• BOQ if available
• Destination port

BDFENCE can review the available project information and help organize panels, posts, gates, security fixings, and accessories into a complete quotation.

How BDFENCE Supports Large 358 Fence Projects

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures 358 Security Fence systems for data centers, airports, industrial plants, solar farms, logistics centers, utilities, infrastructure projects, and other controlled-access facilities.

Our project supply can include:

• 358 welded mesh panels
• Different wire diameters
• Different fence heights
• Customized line posts
• Corner and end posts
• Heavy-duty gate posts
• Security fixing bars
• Anti-tamper fasteners
• Pedestrian security gates
• Vehicle security gates
• Top-security components
• Galvanized and powder-coated finishes
• Installation accessories

Project buyers can send perimeter drawings, BOQ documents, fence schedules, and gate details directly to BDFENCE for review and quotation.

Final Answer: How Do You Calculate 358 Fence Quantity and Cost?

Start with the perimeter drawing and calculate the net fence length after deducting gate openings.

Divide the net length by the panel width to calculate the number of standard 358 panels.

Then calculate line posts, corner posts, end posts, gate posts, and security fixing sets separately.

After that, add pedestrian gates, vehicle gates, top security, surface treatment, packing, and freight.

The final project cost should be calculated as a complete system rather than only a panel price or a simple price per meter.

For the most accurate quotation, make sure every supplier is pricing the same panel size, wire diameter, post specification, fixing system, gate schedule, and coating requirement.

Contact BDFENCE

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)

Phone:
+86 18703182863

WhatsApp:
+86 18703287372

Email:
info@bd-fence.com

Website:
https://bd-fence.com/

FAQ

How do I calculate how many 358 Fence panels I need?

Subtract gate openings and unfenced sections from the total perimeter, then divide the remaining fence length by the panel width. Round up to the next full panel.

How many posts do I need for 358 Fence?

Post quantity depends on the number of panels, separate fence runs, corners, end positions, and gates. Line posts, corner posts, end posts, and gate posts should be calculated separately.

Does 358 Fence price depend on fence height?

Yes. Taller fencing uses more mesh steel, longer posts, more coating area, more fixing points, and heavier gate components.

Does wire diameter affect 358 Fence cost?

Yes. Thicker wire increases steel consumption and panel weight, which can affect both product price and shipping cost.

Should gates be included when calculating fence cost?

Yes. Pedestrian and vehicle gates can significantly affect the total project price because they require frames, gate posts, mesh infill, hardware, and additional fabrication.

Is price per meter enough to compare 358 Fence suppliers?

No. Buyers should also compare wire diameter, panel size, post size, post wall thickness, security fixings, gate specifications, surface treatment, and included accessories.

Can BDFENCE calculate quantities from a perimeter drawing?

Yes. BDFENCE can review the fence layout, panel size, post positions, gate schedule, security requirements, and BOQ before preparing a project quotation.

Can BDFENCE quote panels, posts, gates and fixings together?

Yes. BDFENCE can supply the complete 358 Fence system including welded panels, steel posts, security fixings, pedestrian gates, vehicle gates, top-security components, and accessories.
