When buyers compare Chain Link Fence specifications, wire gauge can quickly become confusing.
A 9 Gauge fence may already be strong enough for a commercial warehouse or logistics yard, while a 6 Gauge fence can add much more steel, weight, and cost.
So the real question is not:
“Is 6 Gauge better than 9 Gauge?”
A better question is:
“Does this project actually need the additional steel in 6 Gauge mesh?”
First, Understand What Gauge Means
Gauge describes wire thickness, but buyers need to be careful because gauge systems can vary between markets.
In general, a lower gauge number means a thicker wire.
Therefore:
- 6 Gauge is thicker than 9 Gauge
- 9 Gauge is thicker than many lighter commercial mesh options
For international purchasing, BDFENCE recommends confirming the actual wire diameter in millimeters rather than relying on gauge alone.
This helps avoid misunderstandings between suppliers using different gauge standards.
6 Gauge vs 9 Gauge: Quick Comparison
| Item | 6 Gauge Chain Link Fence | 9 Gauge Chain Link Fence |
|---|---|---|
| Wire Character | Heavy-duty | Commercial / industrial |
| Steel Content | Higher | Lower than 6 Gauge |
| Mesh Weight | Heavier | Lighter |
| Handling | More demanding | Easier |
| Post Requirement | May require stronger support | Often suitable with standard heavy commercial posts |
| Project Cost | Higher | More economical |
| Typical Direction | High-security and heavy-duty applications | Commercial and industrial perimeter fencing |

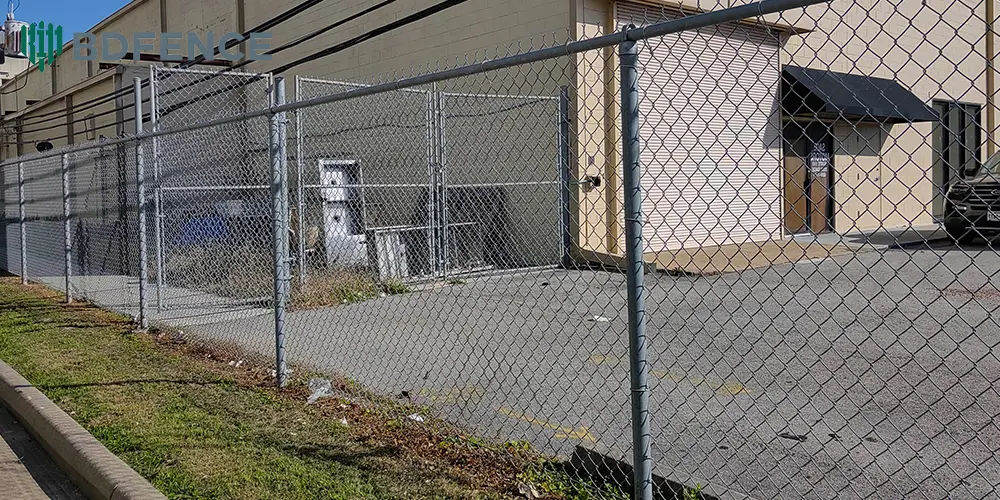

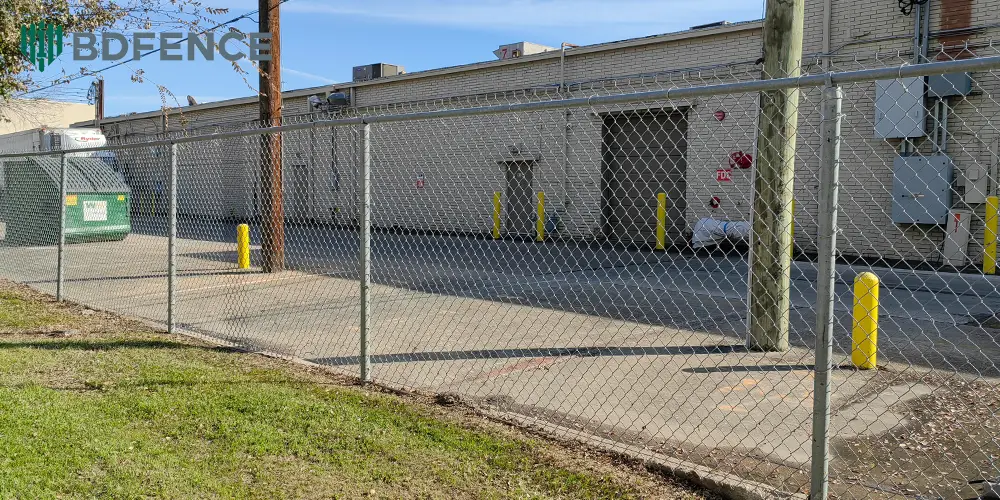

Why 9 Gauge Is Common in Commercial and Industrial Fencing
9 Gauge Chain Link Fence is widely considered for projects that need a substantial perimeter without moving into the heaviest wire category.
It can suit applications such as:
- Warehouses
- Logistics centers
- Industrial plants
- Commercial storage yards
- Utility compounds
- Truck yards
For many of these projects, 9 Gauge provides a practical balance between wire strength, mesh weight, post requirements, and total cost.
When 6 Gauge Starts to Make Sense
6 Gauge becomes more relevant when the perimeter needs a heavier physical barrier.
Possible applications may include:
- High-security industrial facilities
- Critical utility compounds
- Restricted infrastructure sites
- Correctional or controlled facilities
- Areas with higher impact exposure
- Projects that specifically require heavy-gauge mesh
However, the project should justify the additional steel.
The Difference Is More Than Wire Thickness
Moving from 9 Gauge to 6 Gauge changes the complete fence system.
The heavier mesh can influence:
- Roll weight
- Post loading
- Terminal post requirements
- Tension components
- Gate infill weight
- Shipping weight
- Installation handling
This is why a 6 Gauge project should not simply copy the same support specification used for lighter mesh.
Think in Kilograms, Not Only Gauge Numbers
Gauge looks simple on a specification sheet, but steel weight shows the real commercial impact.
Thicker wire means more steel per square meter.
Across a long perimeter, that extra steel can become significant.
For example, the difference becomes much larger when the project includes:
- 500 meters of fence
- 1,500 meters of fence
- 3,000 meters of fence
- Several kilometers of perimeter
For this reason, buyers should ask whether the heavier wire creates useful security value across the entire site.
Does 6 Gauge Need Stronger Posts?
Not automatically in every case, but the support system should be reviewed.
Heavier mesh places more weight and tension into the fence structure.
Therefore, buyers should check:
- Line post diameter
- Post wall thickness
- Terminal post size
- Corner post size
- Post spacing
- Foundation design
A heavy mesh attached to a light support system does not create a balanced fence.
Terminal Posts Become More Important
Chain Link Fence relies on tension.
The mesh pulls toward terminal points, end posts, and corners.
As wire becomes heavier, these positions deserve closer attention.
The project may need to review:
- Terminal post section
- Wall thickness
- Brace system
- Tension bars
- Tension bands
- Foundation size
This becomes especially important on tall or long fence runs.
Fence Height Changes the Decision
Wire gauge should never be selected without fence height.
A 1.8m 9 Gauge fence and a 3m 9 Gauge fence are not the same system.
Likewise, a 3m 6 Gauge security fence creates much more mesh weight than a lower commercial fence.
As height increases, buyers should review:
- Post size
- Post length
- Foundation depth
- Terminal support
- Gate frame
- Top security
Mesh Size Also Changes Steel Consumption
Wire gauge is only one part of the mesh specification.
Mesh opening also affects how much wire is used per square meter.
A tighter mesh uses more wire than a more open mesh.
Therefore, a heavy wire combined with a tight opening can create a very heavy fence.
Buyers should always compare:
- Wire diameter
- Mesh opening
- Fence height
These three values help define the real mesh weight.
Which Is Better for a Warehouse?
For many warehouse projects, 9 Gauge is already a strong commercial option.
A warehouse perimeter often needs:
- Controlled access
- Visibility
- Long fence runs
- Vehicle gates
- Reasonable project cost
Unless the site has a higher security classification or specific heavy-duty requirement, 6 Gauge may add cost without creating enough additional value.
Which Is Better for a Logistics Yard?
Logistics yards can include trailers, trucks, outdoor storage, and frequent vehicle movement.
9 Gauge Chain Link Fence can work well for many logistics projects.
However, some high-value or restricted sections may justify heavier mesh.
Instead of upgrading the entire perimeter, the project can evaluate higher-risk zones separately.
Which Is Better for a High-Security Facility?
A high-security facility may justify 6 Gauge if the approved design requires a heavier physical barrier.
However, wire thickness alone does not define security.
The project should also consider:
- Fence height
- Mesh opening
- Post specification
- Terminal structure
- Gate design
- Top security
- Access control
Heavy mesh works best when the rest of the perimeter matches it.
Can One Site Use Both 6 Gauge and 9 Gauge?
Yes, if the project design allows it.
This can be a practical way to control cost.
For example:
| Project Zone | Possible Direction |
|---|---|
| Main Industrial Perimeter | 9 Gauge |
| High-Value Equipment Area | 6 Gauge |
| General Warehouse Boundary | 9 Gauge |
| Restricted Utility Compound | 6 Gauge where specified |
| Low-Risk Internal Separation | 9 Gauge or lighter according to design |
This allows the project to place heavier steel where it creates the most value.
Gate Weight Can Increase Quickly with 6 Gauge Mesh
A vehicle gate already carries its own frame weight.
Adding heavy 6 Gauge Chain Link Mesh increases the infill weight.
That can affect:
- Gate frame size
- Gate-post size
- Hinge specification
- Sliding hardware
- Automation system
- Foundation design
For large gates, this effect should be reviewed before finalizing the mesh specification.
Shipping Cost Is Easy to Forget
Heavy mesh also affects logistics.
More steel means more shipment weight.
Across a large export order, 6 Gauge can influence:
- Roll weight
- Container payload
- Number of containers
- Forklift requirements
- Site unloading
Therefore, international buyers should compare the total delivered project cost, not only the mesh price.
Does 6 Gauge Always Last Longer?
Thicker wire provides more steel, but outdoor life also depends on corrosion protection.
A heavy wire with poor surface treatment can still deteriorate.
Buyers should also confirm:
- Galvanized finish
- PVC-coated finish
- Core wire specification
- Post protection
- Gate protection
- Fitting protection
Wire thickness and corrosion protection solve different problems.
Galvanized 6 Gauge vs PVC-Coated 6 Gauge
The finish should follow the project environment and visual requirement.
Galvanized mesh may suit industrial and functional perimeter applications.
PVC-coated mesh may be selected where color or additional outer protection is required.
For PVC-coated mesh, buyers should confirm both:
- Steel core wire diameter
- Finished coated diameter
The finished diameter alone should not be used to compare steel content.
When 9 Gauge Is the Smarter Purchase
9 Gauge can be the better commercial decision when:
- The project does not require extreme heavy-duty mesh
- The fence covers a long perimeter
- Cost efficiency matters
- The site is commercial or industrial rather than specialized high security
- The approved specification permits 9 Gauge
In these situations, upgrading to 6 Gauge everywhere may simply increase steel and freight cost.
When 6 Gauge Is Worth Paying For
6 Gauge becomes more valuable when:
- The project specification requires it
- The site has a high security requirement
- Heavy physical mesh is a design priority
- The fence may face greater impact exposure
- The supporting posts and gates are designed for the heavier system
The key is that the additional steel should answer a defined project requirement.
Do Not Compare Gauge Without Confirming the Standard
This is especially important for international procurement.
Gauge numbers can be interpreted differently in different markets.
A clearer RFQ should state:
- Gauge number
- Applicable gauge standard if required
- Actual wire diameter in millimeters
This reduces the risk of suppliers quoting different wire sizes under the same gauge label.
How to Compare 6 Gauge and 9 Gauge Quotations
| Specification | What to Confirm |
|---|---|
| Wire Size | Actual diameter, not gauge alone |
| Mesh Opening | Same opening for both quotations |
| Fence Height | Same finished height |
| Post Size | Diameter or section and wall thickness |
| Post Spacing | Same structural layout |
| Terminal Posts | Heavy enough for mesh tension |
| Gate Infill | Same mesh specification |
| Finish | Galvanized or PVC-coated |
| Accessories | Tension bars, bands, braces and fittings |
A Better Way to Choose Between 6 Gauge and 9 Gauge
Use the project in this order:
- Define the security level
- Confirm fence height
- Confirm mesh opening
- Confirm actual wire diameter
- Review the total perimeter length
- Check line and terminal posts
- Review gate sizes
- Check top security requirements
- Calculate shipping impact
- Compare complete system cost
This is more reliable than choosing 6 Gauge simply because it sounds stronger.
What Should You Send BDFENCE for a Heavy-Duty Chain Link Fence Quote?
For an accurate quotation, provide:
- Project country
- Project application
- Total perimeter length
- Fence height
- Mesh opening
- Gauge requirement
- Actual wire diameter if specified
- Galvanized or PVC-coated finish
- Line-post size and wall thickness
- Terminal-post requirements
- Post spacing
- Top security requirement
- Pedestrian gate sizes and quantities
- Vehicle gate sizes and quantities
- BOQ or perimeter drawing
- Destination port
If you are still deciding between 6 Gauge and 9 Gauge, BDFENCE can review the available project information and prepare suitable configurations for comparison.
How BDFENCE Supplies Heavy-Duty Chain Link Fence
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for industrial plants, warehouses, logistics yards, power facilities, infrastructure projects, high-security sites, and other perimeter applications.
Our project supply can include:
- 6 Gauge Chain Link Fence
- 9 Gauge Chain Link Fence
- Other wire diameter options
- Galvanized Chain Link Fence
- PVC-coated Chain Link Fence
- Line posts
- Corner and terminal posts
- Heavy-duty gate posts
- Tension systems
- Pedestrian gates
- Vehicle gates
- Top-security components
- Fence fittings and accessories
Project buyers can send BOQ documents, perimeter drawings, gate schedules, and technical specifications directly to BDFENCE for review and quotation.
Final Answer: 6 Gauge or 9 Gauge?
Choose 9 Gauge when the project needs a strong commercial or industrial Chain Link Fence without the additional weight and cost of a very heavy mesh.
Choose 6 Gauge when the project specifically requires a heavier physical barrier, higher steel content, or a more demanding security specification.
However, do not upgrade the wire without reviewing the rest of the fence.
Posts, terminal supports, tension components, gates, foundations, shipping weight, and surface treatment should all match the selected mesh.
For many projects, the best specification is not the heaviest wire available. It is the lightest specification that still meets the approved security and performance requirements.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Is 6 Gauge Chain Link Fence stronger than 9 Gauge?
6 Gauge uses thicker wire than 9 Gauge under commonly used gauge systems, so it contains more steel. However, complete fence performance also depends on mesh opening, height, posts, tensioning, gates, and foundations.
Is 9 Gauge Chain Link Fence heavy duty?
9 Gauge is widely used for commercial and industrial perimeter fencing and can be considered a substantial specification for many projects. Whether it is heavy enough depends on the approved project requirements.
When should I use 6 Gauge Chain Link Fence?
6 Gauge may be appropriate for high-security, restricted, heavy-duty, or impact-exposed applications where the project specification requires a heavier mesh.
Is 6 Gauge better for warehouses?
Not automatically. Many warehouses can use 9 Gauge effectively. 6 Gauge may add unnecessary cost if the security design does not require the additional steel.
Does 6 Gauge require stronger fence posts?
The post and terminal system should be reviewed because heavier mesh increases weight and tension. Post size, wall thickness, spacing, foundations, and gate posts may need adjustment.
Does 6 Gauge Chain Link Fence cost more?
Usually, heavier wire increases steel consumption, mesh weight, shipping weight, and potentially support-system cost. The complete project cost should be compared rather than only the mesh price.
Can a project use both 6 Gauge and 9 Gauge?
Yes, if the approved project design allows it. 9 Gauge can be used on general perimeter sections while 6 Gauge is reserved for higher-risk areas.
Can BDFENCE quote both 6 Gauge and 9 Gauge options?
Yes. BDFENCE can review your BOQ, perimeter layout, fence height, mesh opening, gate requirements, and security level and prepare suitable Chain Link Fence configurations for comparison.
