An industrial manufacturing plant in Saudi Arabia required a new perimeter fence to separate its production area, storage zones, service roads, and controlled entrances from the surrounding land.
Unlike a standard commercial boundary, this project needed a taller perimeter. The fence also had to work with vehicle gates, pedestrian access points, corner sections, and additional top security.

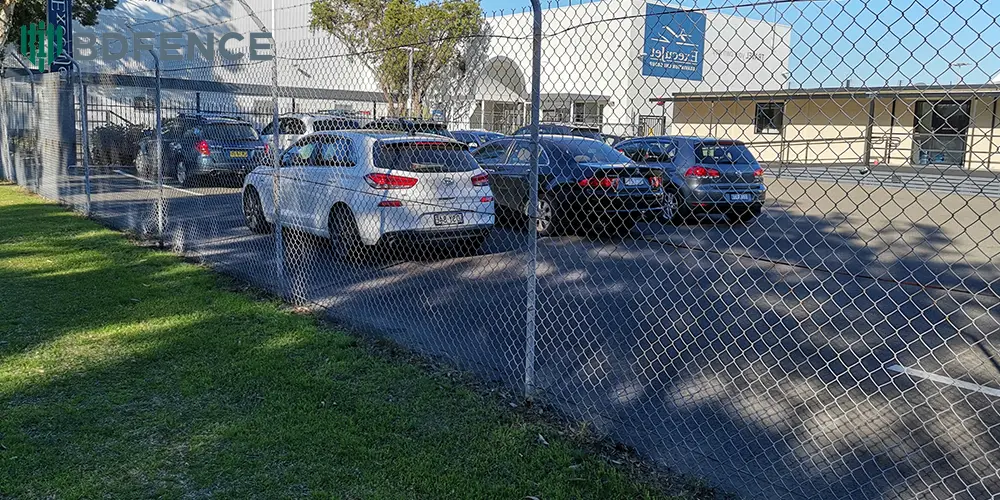

BDFENCE supplied a 3m High Chain Link Security Fence system with galvanized mesh, steel posts, tension components, gates, fittings, and security-top accessories according to the confirmed project requirements.
The project shows an important point for industrial buyers: once a Chain Link Fence reaches 3 meters in height, the mesh is only one part of the specification. Posts, foundations, tensioning, gates, corners, and top security must work together as one perimeter system.
Project Profile
| Project Item | Details |
|---|---|
| Country | Saudi Arabia |
| Sector | Industrial Manufacturing |
| Application | Industrial Plant Perimeter Security |
| Product | Chain Link Security Fence |
| Fence Height | 3m |
| Finish | Galvanized |
| Access System | Vehicle and Pedestrian Gates |
| Top Security | Additional Security Top According to Project Specification |
| Supply Scope | Mesh, Posts, Gates, Tension Components, Fittings and Accessories |
Why the Industrial Plant Needed a 3m Perimeter
The plant contained several zones with different functions. Some areas handled production, while others were used for materials, equipment, vehicle movement, and utility services.
Therefore, the perimeter needed to do more than show where the property ended.
The fence had to support:
- Clear separation between the industrial site and surrounding land
- Controlled pedestrian entry
- Controlled truck and service-vehicle access
- Protection of outdoor equipment and storage areas
- Long industrial perimeter runs
- Additional security at the top of the fence
A 3m fence height provided a more substantial physical boundary than a typical lower commercial Chain Link Fence.
A 3m Chain Link Fence Changes the Post Requirement
One of the most important parts of this project was the support structure.
Increasing fence height also increases the exposed area of the fence. As a result, the project team cannot simply take a lower Chain Link Fence design and extend the mesh upward.
The post system needs to be reviewed together with:
- Fence height
- Post spacing
- Mesh specification
- Wire diameter
- Site conditions
- Top security configuration
- Foundation design
Line posts, corner posts, terminal posts, and gate posts may also perform different structural functions.
Long Straight Runs Needed Reliable Mesh Tension
Industrial plants can have long perimeter sections along service roads and property boundaries.
On these sections, good mesh tension helps the finished fence maintain a clean and consistent line.
The system therefore included the required tension components and fittings rather than treating the mesh roll as a standalone product.
Special attention was given to:
- Start and end points
- Corner locations
- Changes in fence direction
- Gate openings
- Long straight fence runs
Corner and Terminal Posts Had a Different Job
A line post supports the fence along a normal run. However, a corner or terminal point receives tension from a different direction.
For that reason, the industrial perimeter used different post functions according to the fence layout.
This is especially important on a tall Chain Link Fence because poor support at a terminal or corner can affect the alignment of a much larger fence section.
Top Security Was Treated Separately from Fence Height
A 3m fence is already a substantial boundary, but some industrial projects require an additional security element above the main mesh.
The top configuration can vary according to the project specification and local requirements.
Depending on the approved design, a Chain Link Security Fence may use:
- Extension arms
- Barbed wire
- Other approved security-top configurations
BDFENCE treats this as a separate part of the specification because the top system can influence post design, total installed height, fittings, packing, and installation.
The Vehicle Entrance Could Not Be Treated Like a Normal Fence Section
Industrial plants regularly receive trucks, maintenance vehicles, deliveries, and staff vehicles.
Therefore, the main vehicle entrance required a dedicated gate system.
The gate specification considered:
- Required clear opening
- Vehicle type
- Gate frame structure
- Chain link mesh infill
- Gate post size
- Hinges and hardware
- Locking requirements
Gate posts were reviewed separately from normal line posts because they carry the moving gate load rather than only supporting fence mesh.
Pedestrian Access Was Separated from Vehicle Traffic
The plant also required pedestrian access for employees and authorized visitors.
A separate pedestrian gate allowed foot traffic to move through a controlled entrance without sharing the main vehicle opening.
The gate used Chain Link Fence infill so that it remained visually consistent with the surrounding industrial perimeter.
What BDFENCE Supplied for the Industrial Perimeter
| Component | Function |
|---|---|
| Galvanized Chain Link Mesh | Main 3m high perimeter barrier |
| Line Posts | Support long straight fence runs |
| Corner Posts | Support changes in perimeter direction |
| Terminal Posts | Support mesh tension at fence ends |
| Gate Posts | Support pedestrian and vehicle gates |
| Tension Components | Maintain mesh tension and alignment |
| Vehicle Gates | Control truck and service-vehicle access |
| Pedestrian Gates | Provide controlled personnel access |
| Top Security Components | Provide additional perimeter protection where specified |
| Fittings and Fasteners | Complete the fence assembly |
Why the Complete System Matters More at 3m Height
Buyers sometimes compare Chain Link Fence quotations mainly by mesh price per meter.
For a 3m industrial fence, this can create an incomplete comparison.
The project cost and performance also depend on:
- Wire diameter
- Mesh opening
- Post diameter or section
- Post wall thickness
- Post spacing
- Corner and terminal post specification
- Tension system
- Top security
- Gate structure
- Foundation requirements
Therefore, two quotations for “3m Chain Link Fence” may represent very different fence systems.
Galvanized Finish Matched the Industrial Application
For this project, the fence was primarily a functional industrial perimeter.
The galvanized finish provided a practical surface-treatment direction for outdoor steel components while maintaining the familiar appearance of industrial Chain Link Fence.
However, the surface treatment was considered across the system rather than only on the mesh.
Posts, gate frames, tension components, and related exposed steel also needed suitable protection for outdoor use.
Factory Quality Checks Focused on System Compatibility
Before packing, BDFENCE checked the main fence components according to the confirmed production specification.
| Item | Inspection Focus |
|---|---|
| Chain Link Mesh | Mesh opening, wire specification, roll dimensions and appearance |
| Line Posts | Diameter or section, wall thickness, length and finish |
| Terminal Posts | Specification and compatibility with the tension system |
| Gate Posts | Dimensions and compatibility with gate structure |
| Vehicle Gates | Frame dimensions, mesh infill and hardware positions |
| Pedestrian Gates | Frame alignment and component fit |
| Fittings | Type, size and quantity |
Packaging Was Organized for Industrial-Site Installation
A complete Chain Link Fence shipment contains components with very different shapes and sizes.
Mesh rolls, long posts, gates, fittings, and smaller hardware should not be mixed without identification.
BDFENCE organized the shipment by component type so that the receiving and installation teams could identify the required materials more efficiently.
Mesh rolls and posts were secured for transport, while smaller fittings and connection components were packed separately.
Installation Started with the Perimeter Layout
Before installing the mesh, the contractor needed to establish the complete fence line.
This included:
- Property boundary
- Corner positions
- Terminal points
- Vehicle entrances
- Pedestrian entrances
- Changes in ground level
This step was especially important because a mistake in post positioning could affect long fence runs and gate openings.
Typical Installation Sequence
- Confirm the industrial perimeter layout
- Mark line, corner, terminal, and gate post positions
- Prepare foundations according to the approved project design
- Install and align the steel posts
- Install the required rails, braces, or tension components
- Unroll and tension the Chain Link Mesh
- Secure the mesh to the support system
- Install the approved top security components
- Install pedestrian and vehicle gates
- Check final alignment, tension, access operation, and fittings
What the 3m Fence System Achieved
| Industrial Requirement | Fence Response |
|---|---|
| Tall Perimeter Boundary | 3m high Chain Link Fence system |
| Long Fence Runs | Post and tension system for continuous perimeter sections |
| Industrial Outdoor Use | Galvanized finish |
| Additional Security | Project-specified top security configuration |
| Truck Access | Dedicated vehicle gates |
| Personnel Access | Separate pedestrian gates |
| Complete Installation | Mesh, posts, gates, fittings and accessories supplied as a system |
What Industrial Buyers Should Learn from This Project
For a tall Chain Link Security Fence, specifying only “3m high” is not enough for an accurate quotation.
The fence height should be connected to the rest of the system.
Before ordering, buyers should confirm:
- Actual wire diameter and applicable gauge standard
- Mesh opening
- Fence height
- Post specification
- Post spacing
- Corner and terminal post requirements
- Top security configuration
- Gate dimensions
- Surface treatment
- Site and foundation conditions
This makes supplier quotations easier to compare and reduces specification gaps before production.
What to Include in a 3m Chain Link Fence RFQ
For a more accurate industrial project quotation, send BDFENCE:
- Project country
- Project sector
- Total perimeter length
- Required fence height
- Mesh opening
- Actual wire diameter or specified gauge system
- Surface treatment
- Post specification if available
- Post spacing
- Top security requirement
- Vehicle gate sizes and quantities
- Pedestrian gate sizes and quantities
- Perimeter drawings
- BOQ or fence schedule
- Destination port
If some structural details have not yet been finalized, BDFENCE can review the available fence drawings and technical requirements before preparing the quotation.
Why Choose BDFENCE for Industrial Chain Link Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for industrial plants, warehouses, logistics yards, utility facilities, solar projects, commercial sites, and infrastructure applications.
Our project supply can include:
- Galvanized Chain Link Mesh
- PVC-Coated Chain Link Mesh
- Customized fence heights
- Line, corner, and terminal posts
- Heavy-duty gate posts
- Pedestrian gates
- Vehicle gates
- Tension components
- Top security components
- Installation fittings and accessories
Project buyers can send drawings, BOQ documents, fence schedules, gate details, and technical specifications directly to BDFENCE for review and quotation.
Project Takeaway
The key requirement for this Saudi Arabian industrial plant was not simply more fence height.
The 3m perimeter needed stronger coordination between the mesh, posts, tension points, gates, and security top.
By treating these components as one system, the project could create a continuous industrial boundary while maintaining dedicated access for employees, trucks, and service vehicles.
For buyers planning a similar project, the most useful RFQ is not “Please quote 3m Chain Link Fence.” A perimeter drawing, wire specification, post requirement, gate schedule, and top-security detail will produce a much more meaningful quotation.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Is a 3m Chain Link Fence suitable for industrial plants?
Yes. A 3m Chain Link Fence can be used for industrial perimeter applications when the mesh, posts, foundations, tension system, gates, and other components are specified for the project conditions.
Does a 3m Chain Link Fence need stronger posts?
Fence height affects the support system. Post size, wall thickness, spacing, foundations, site conditions, and top-security configuration should therefore be reviewed together rather than selecting posts from height alone.
Can barbed wire be installed above a 3m Chain Link Fence?
Yes, where permitted and specified by the project. The required extension arms, wire configuration, total height, and post design should be confirmed before production.
Can BDFENCE supply both fence and gates?
Yes. BDFENCE can supply Chain Link Fence mesh, posts, pedestrian gates, vehicle gates, tension components, fittings, and related accessories as a complete project package.
Should I specify chain link wire by gauge or millimeters?
Actual wire diameter is useful because gauge systems can vary between markets. If a project specification uses gauge, buyers should also identify the applicable gauge standard or confirm the corresponding wire diameter.
Can the fence be PVC coated instead of galvanized?
Yes. BDFENCE can manufacture galvanized and PVC-coated Chain Link Fence according to confirmed project requirements.
Can BDFENCE quote from an industrial plant perimeter drawing?
Yes. Buyers can send perimeter drawings, BOQ documents, gate schedules, fence specifications, and destination information for technical review and quotation.
