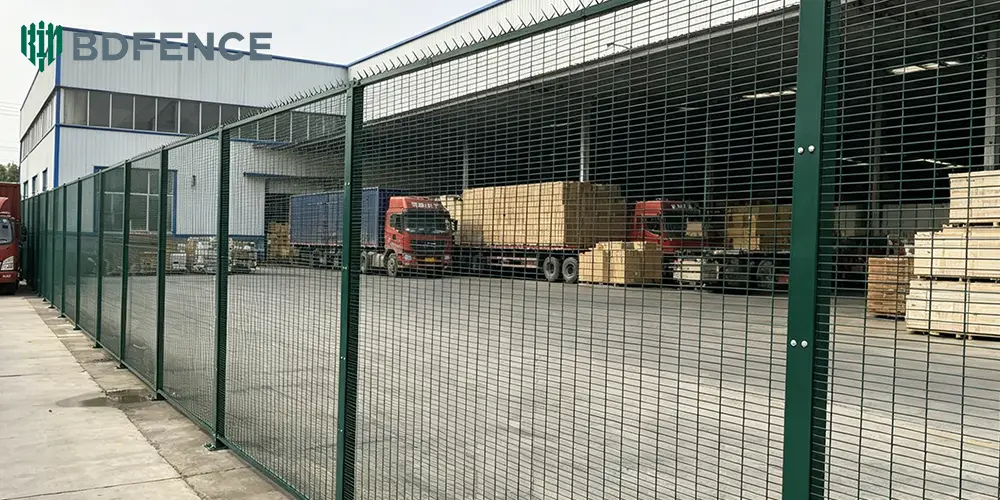

A logistics distribution center in Belgium required a high-security perimeter around warehouse buildings, loading areas, trailer parking, truck lanes, and controlled entrances.
The project needed more than welded mesh panels.
Because trucks, employees, visitors, and maintenance teams entered the site through different access points, the fence had to work together with both pedestrian and vehicle gates.
BDFENCE supplied a 358 Security Fence and Gate System with welded anti-climb panels, steel posts, security fixings, pedestrian gates, vehicle gates, gate posts, and installation accessories.
Project Profile
| Project Item | Details |
|---|---|
| Country | Belgium |
| Sector | Logistics and Distribution |
| Application | Logistics Center Perimeter and Access Control |
| Main Product | 358 Security Fence |
| Common Mesh Opening | 76.2 × 12.7 mm |
| Access System | Pedestrian Gates and Vehicle Gates |
| Post System | Security Line Posts and Heavy-Duty Gate Posts |
| Supply Scope | Panels, Posts, Security Fixings, Gates and Accessories |
The Logistics Center Needed Two Systems to Work as One
For this project, the perimeter fence and the entrance system could not be designed separately.
The logistics center included:
- Warehouse buildings
- Loading docks
- Truck circulation lanes
- Trailer parking
- Outdoor service areas
- Employee access points
- Visitor entrances
The fence needed to protect these areas while still allowing authorized movement through the site.
Therefore, the main challenge was not simply selecting 358 mesh. It was making sure the fixed fence and the moving gate sections followed the same security logic.
Why 358 Security Fence Was Selected
The project required a perimeter with stronger anti-climb characteristics than a general commercial mesh fence.
358 Fence uses a narrow welded mesh, commonly around 76.2 × 12.7 mm.
This narrow opening provides limited conventional hand and foot holds.
At the same time, the mesh remains visually open enough for security teams to observe the perimeter.
That combination suited a logistics site where both perimeter control and visibility were important.
Truck Entrances Became the Most Important Gate Zones
The logistics center relied on regular truck and delivery traffic.
As a result, vehicle gates needed to support frequent operation while maintaining the security level of the surrounding perimeter when closed.
The gate design considered:
- Clear opening width
- Gate height
- Gate frame structure
- 358 mesh infill
- Gate post size
- Hinges or gate-operating system
- Locking hardware
- Connection with the adjacent fence
The vehicle entrance was therefore treated as a structural part of the perimeter rather than simply a gap between two fence sections.
Gate Posts Needed More Attention Than Normal Line Posts
A normal fence post supports a fixed welded panel.
A gate post performs a different job.
It must support a moving frame and handle concentrated loads around the entrance.
For this reason, gate posts were reviewed separately from standard line posts.
Important gate-post factors included:
- Gate width
- Gate height
- Frame weight
- Post section
- Wall thickness
- Foundation requirement
- Operating frequency
This was especially important for wide vehicle entrances used by logistics traffic.
Pedestrian Gates Served a Different Type of Access
Employees and visitors did not need to use the truck entrance for normal foot traffic.
The project therefore included separate pedestrian gates.
These gates used matching 358 mesh infill so that the access points remained visually connected to the surrounding fence.
The pedestrian gate package coordinated:
- Gate frame
- 358 mesh infill
- Gate posts
- Hinges
- Locking hardware
- Adjacent fence connection
This allowed the site to separate pedestrian and vehicle access without weakening the overall perimeter design.
The Gate Height Needed to Match the Fence Security Level
A tall security fence with a much lower entrance gate can create an obvious weak point.
Therefore, the gate height was reviewed together with the surrounding 358 Fence.
The project team needed the entrances to remain consistent with the main perimeter in terms of:
- Height
- Mesh type
- Security fixings
- Frame construction
- Post strength
This helped the entire boundary work as one security system.
Security Fixings Were Important Along the Main Fence Line
The 358 panels needed a secure connection to the steel posts.
Depending on the confirmed design, the project used suitable security fixing components.
These can include:
- Fixing bars
- Steel clamps
- Security plates
- Anti-tamper bolts
- Security nuts
- Post caps
The connection method helped keep the rigid welded panels aligned along the logistics center perimeter.
Long Perimeter Runs Required Consistent Panel Production
Logistics centers often have long straight fence sections around warehouses and parking areas.
Small differences in panel size or post position can become noticeable when many panels are installed in sequence.
For this reason, BDFENCE checked:
- Panel height
- Panel width
- Mesh opening
- Wire diameter
- Panel flatness
- Weld condition
- Overall geometry
Consistent production supported a cleaner fence line and easier installation.
The Perimeter Needed to Remain Visible
A logistics center has frequent movement near the site boundary.
Security teams may need to observe:
- Truck lanes
- Trailer parking
- Loading zones
- Service roads
- Entrance areas
The welded 358 mesh maintained sightlines through the perimeter instead of creating a solid visual barrier.
This helped the physical fence and site monitoring work together.
What BDFENCE Supplied
| Component | Project Function |
|---|---|
| 358 Welded Mesh Panels | Main logistics center perimeter |
| Security Line Posts | Support standard fence sections |
| Corner and End Posts | Support perimeter changes and terminations |
| Security Fixing System | Connect panels securely to posts |
| Pedestrian Gates | Employee and visitor access |
| Vehicle Gates | Truck and service-vehicle access |
| Heavy-Duty Gate Posts | Support larger entrance structures |
| Gate Hardware | Support operation and access control |
Gate Frames Needed Their Own Factory Checks
A vehicle gate is structurally different from a fixed 358 panel.
Therefore, BDFENCE checked the gate system separately during production.
| Gate Component | Inspection Focus |
|---|---|
| Gate Frame | Overall dimensions and squareness |
| 358 Mesh Infill | Mesh specification and frame fit |
| Gate Posts | Section size, wall thickness and length |
| Hinges | Position and compatibility |
| Locking Hardware | Type and installation position |
| Surface Finish | Visible condition and consistency |
The Fence and Gate Finish Needed to Match
The gates were highly visible parts of the perimeter.
Therefore, the project finish was coordinated across:
- 358 fence panels
- Line posts
- Gate posts
- Pedestrian gate frames
- Vehicle gate frames
- Visible security fittings
This helped the entrance system remain visually consistent with the main fence.
Packaging Followed the Installation Function
The project included welded panels, long posts, gate frames, security fixings, and smaller hardware.
Each group required different packing and identification.
BDFENCE stacked and secured the fence panels, bundled posts by type, and packed smaller fixing components separately.
Gate materials were identified independently so the installation team could locate the entrance components without sorting through the full fence shipment.
Installation Started with the Gate Openings
The gate positions influenced the surrounding fence layout.
Therefore, the contractor first confirmed:
- Main truck entrance
- Vehicle exit points
- Pedestrian entrances
- Fence corners
- End positions
- Normal fence post line
Once these control points were fixed, the remaining post positions could be laid out more accurately.
Typical Installation Sequence
- Confirm the logistics center perimeter
- Mark all vehicle and pedestrian entrances
- Set out line, corner, end, and gate posts
- Install the steel posts
- Complete the required foundations
- Install 358 welded fence panels
- Secure panels with the approved fixing system
- Install pedestrian gates
- Install vehicle gates
- Check gate operation, fence alignment, and connection points
What the Completed System Delivered
| Logistics Requirement | Project Response |
|---|---|
| Anti-Climb Perimeter | 358 welded security mesh |
| Long Site Boundary | Consistent panel and post system |
| Truck Access | Matching vehicle security gates |
| Personnel Access | Separate pedestrian security gates |
| Security Visibility | Open welded mesh construction |
| Secure Connections | Security fixing system |
| Complete Perimeter | Fence and gate system supplied together |
The completed perimeter allowed the logistics center to maintain controlled access without separating the gate design from the main security fence.
Why the Gate System Can Cost More Than Buyers Expect
When comparing fence quotations, buyers sometimes focus on the panel price and treat gates as a small accessory.
For logistics projects, this can be misleading.
A wide security gate may require:
- Heavier gate frame tubes
- Stronger gate posts
- Larger foundations
- More expensive hardware
- Additional fabrication
- Matching 358 mesh infill
Therefore, gate design can have a significant effect on the total project cost.
What Buyers Should Compare Between Quotations
Two suppliers can both quote “358 Security Fence with gates” while offering very different systems.
Compare:
- Wire diameter
- Panel dimensions
- Fence height
- Line post size
- Line post wall thickness
- Security fixing system
- Vehicle gate opening width
- Vehicle gate frame specification
- Gate post size and wall thickness
- Pedestrian gate specification
- Surface treatment
- Included hardware
Only after these details match does the price comparison become reliable.
What Should a Logistics Center RFQ Include?
For a more accurate quotation, send BDFENCE:
- Project country
- Total perimeter length
- Fence height
- Panel width
- 358 mesh specification
- Wire diameter
- Line post size and wall thickness
- Post spacing
- Security fixing requirement
- Pedestrian gate dimensions and quantities
- Vehicle gate clear openings
- Gate type
- Gate post requirements
- Surface treatment and color
- Perimeter drawing
- Gate schedule
- BOQ
- Destination port
If the gate structure has not yet been finalized, BDFENCE can review the site layout and available project requirements before preparing the quotation.
Why Choose BDFENCE for Logistics Security Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures 358 Security Fence systems for logistics centers, data centers, industrial facilities, utilities, renewable energy projects, and other controlled-access sites.
Our project supply can include:
- 358 welded security panels
- Customized steel posts
- Security fixing systems
- Anti-tamper fasteners
- Pedestrian security gates
- Vehicle security gates
- Heavy-duty gate posts
- Gate hardware
- Surface-treatment options
- Installation accessories
Project buyers can send BOQ documents, logistics-center layouts, fence schedules, and gate drawings directly to BDFENCE for technical review and quotation.
Project Takeaway
For this Belgium logistics center, the most important decision was not simply choosing 358 Security Fence.
The fixed fence and the entrance system needed to follow the same security logic.
The 358 panels created the anti-climb perimeter, while heavy-duty gate posts, matching mesh infill, pedestrian gates, vehicle gates, and security hardware maintained that perimeter at the access points.
For logistics buyers, this is why the fence and gate schedule should be quoted together rather than as separate purchases.
