Choosing the height of a Chain Link Fence is one of the first decisions in a commercial security project.
However, the tallest fence is not always the best fence.
A warehouse boundary, logistics yard, parking area, utility compound, and restricted industrial zone may all need different levels of perimeter control.
As fence height increases, the project also needs to review posts, foundations, tension components, gates, wind exposure, and any top-security system.
Therefore, the correct height should match the security function of the site rather than simply using the highest available option.
Start with What the Fence Needs to Protect
Before selecting a height, identify what is behind the fence.
A commercial boundary around visitor parking carries a different risk from a fence around outdoor inventory or critical equipment.
Useful questions include:
- Is the fence only defining the property line?
- Is valuable equipment stored outside?
- Does the site operate after normal working hours?
- Are trucks or service vehicles moving near the fence?
- Does the project need controlled access?
- Is climbing resistance important?
- Will barbed wire or another top system be added?
These answers help determine whether the site needs a lower commercial boundary or a taller security perimeter.
Common Chain Link Fence Heights for Commercial Projects
| Fence Height | General Project Direction |
|---|---|
| 1.2–1.5 m | Basic boundary control and lower-risk areas |
| 1.8 m | General commercial perimeter |
| 2.0 m | Warehouses, business sites and stronger boundary control |
| 2.4 m | Logistics yards, industrial sites and higher-security commercial areas |
| Above 2.4 m | Project-specific security applications |
These ranges are general selection directions only. Final fence height should follow local regulations, approved drawings, and project security requirements.
When 1.2–1.5m Chain Link Fence Can Be Enough
Lower fencing can work where the main purpose is to define space rather than create a strong security barrier.
Possible uses include:
- Internal commercial boundaries
- Landscape separation
- Low-risk parking areas
- Equipment-free service zones
At this level, the fence is mainly controlling movement and defining the site rather than providing a significant anti-climb obstacle.

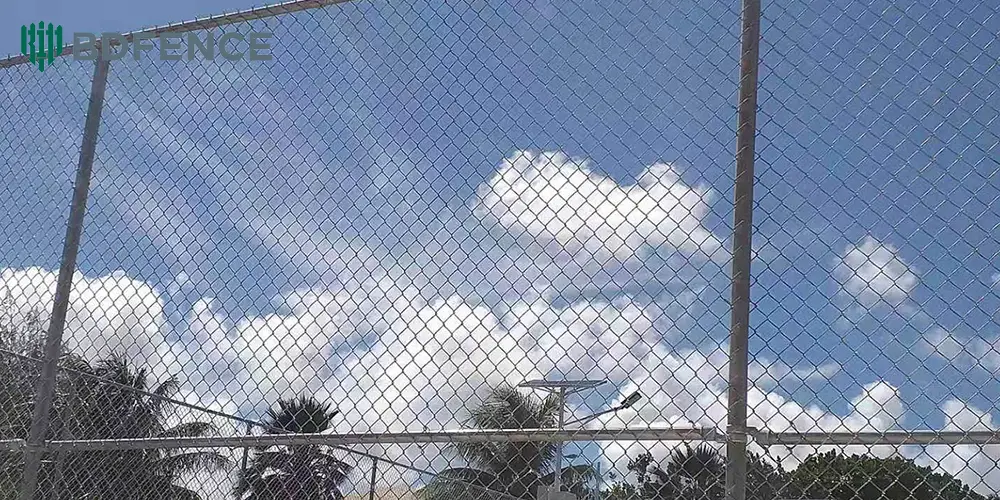

Why 1.8m Is Common for Commercial Perimeters
A 1.8m Chain Link Fence provides more presence than a low boundary while remaining practical for many commercial projects.
It may suit:
- Office properties
- Commercial warehouses
- Business parks
- General storage areas
- Employee parking boundaries
For many buyers, 1.8m is a useful starting point when the fence needs to control access but the site does not require a heavy industrial security system.
When 2.0m Makes More Sense
A 2.0m fence creates a more substantial perimeter and may be useful around sites with higher-value assets or more active operations.
Typical examples include:
- Warehouses with outdoor storage
- Commercial service yards
- Distribution facilities
- Equipment compounds
- Industrial-commercial sites
At this height, buyers should also review whether the current post and tension specifications remain suitable.

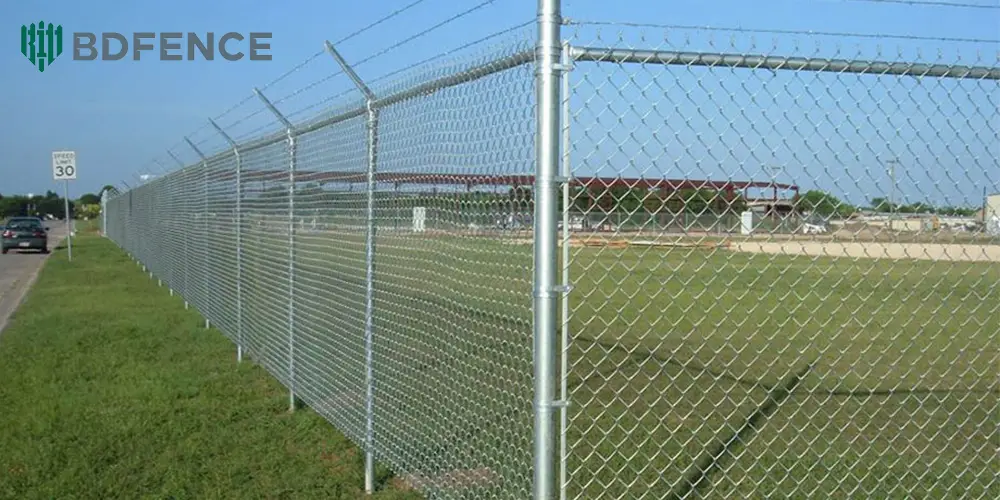

Why 2.4m Is Often Used for Higher-Security Commercial Sites
A 2.4m Chain Link Fence can suit projects where the perimeter needs stronger physical control.
This may include:
- Logistics yards
- Truck depots
- Industrial facilities
- Utility compounds
- Secure storage areas
- High-value outdoor equipment zones
However, moving from 1.8m to 2.4m changes more than the amount of mesh.
The complete support system should be reviewed.
Height Changes the Post Requirement
As the fence gets taller, the posts carry more load.
Therefore, buyers should review:
- Post diameter or section size
- Post wall thickness
- Post length
- Post spacing
- Foundation depth
- Corner and terminal post strength
A taller mesh installed on an undersized post system can create a weak overall fence.
Terminal and Corner Posts Become More Important
Chain Link Fence is tensioned between structural points.
Line posts support the mesh along straight runs, but terminal and corner posts carry different loads.
As fence height increases, these positions deserve more attention because they anchor the tensioned mesh.
Therefore, a 2.4m commercial fence should not automatically use the same terminal post specification as a much lower boundary.
Fence Height Also Changes Mesh Weight
A taller fence simply contains more mesh per meter of perimeter.
If the wire gauge and mesh opening remain the same, increasing height increases:
- Steel weight
- Roll weight
- Handling requirements
- Post loading
- Shipping weight
- Project cost
For a long commercial perimeter, these differences can become significant.
Wire Gauge Should Be Reviewed with Height
Fence height should not be selected separately from the wire specification.
A 2.4m fence made with heavy wire is a very different system from a 2.4m fence made with lighter mesh.
Therefore, buyers should confirm:
- Actual wire diameter or gauge standard
- Mesh opening
- Fence height
- Post system
- Tension system
These items work together to define the complete fence.
How Mesh Size Changes the Height Decision
A tighter mesh opening uses more wire across the same fence area.
Therefore, a tall fence with 1-inch mesh may weigh more than a similar-height fence with 2-inch mesh.
That can influence:
- Post loading
- Tension components
- Material cost
- Shipping weight
For this reason, height, mesh opening, and wire diameter should be reviewed together.
Should Commercial Security Fencing Include Barbed Wire?
Some commercial and industrial projects add barbed wire above the Chain Link Fence where permitted and required by the approved design.
This creates an additional perimeter deterrent above the main mesh.
However, barbed wire should not be treated as a substitute for a correctly designed main fence.
The project still needs to confirm:
- Main fence height
- Post strength
- Top extension design
- Barbed wire arrangement
- Gate treatment
When a 2.0m Fence with Barbed Wire May Differ from a 2.4m Fence
These two systems may have different security strategies.
A 2.0m fence with top extensions may create a different barrier than a plain 2.4m fence.
The better option depends on:
- Local requirements
- Site risk
- Perimeter design
- Visibility
- Maintenance
- Top-security restrictions
Therefore, buyers should compare the complete security configuration rather than height alone.
Gate Height Should Match the Perimeter Logic
A tall fence with a much lower gate creates an inconsistent boundary.
Therefore, pedestrian and vehicle gates should be reviewed together with the main fence height.
Gate design may need to consider:
- Finished gate height
- Chain link mesh infill
- Gate frame size
- Gate post strength
- Hinges
- Locking hardware
- Top security if required
Wide vehicle gates deserve additional attention because their structural behavior differs from fixed fence sections.
Which Height Is Better for a Warehouse?
For a general warehouse perimeter, 1.8m or 2.0m may be suitable depending on the site risk and project requirements.
If the warehouse includes outdoor inventory, valuable equipment, or frequent truck activity, a taller configuration may be worth considering.
The buyer should review:
- Outdoor storage
- Truck routes
- Gate frequency
- Night operation
- Security monitoring
Which Height Is Better for a Logistics Yard?
Logistics yards often contain trailers, parked vehicles, cargo, and loading equipment.
For this reason, 2.0m to 2.4m Chain Link Fence is often considered depending on the approved security requirement.
Some projects also add barbed wire above specified perimeter sections.
However, the fence should still maintain practical vehicle access through correctly designed gates.
Which Height Is Better for Industrial Sites?
Industrial facilities can vary greatly in risk.
A normal manufacturing boundary may use a different fence height from a restricted equipment compound.
| Industrial Zone | Possible Height Direction |
|---|---|
| General Property Boundary | 1.8–2.0 m |
| Main Factory Perimeter | 2.0–2.4 m |
| Outdoor Storage Zone | 2.0–2.4 m |
| Restricted Utility Area | 2.4 m or project-specific |
One Commercial Site Can Use Different Heights
Large sites do not always need one fence height everywhere.
For example, a logistics property may use:
- A lower internal boundary
- A 2.0m main commercial perimeter
- A 2.4m fence around high-value storage
- Additional top security near restricted zones
If the approved design permits it, this approach can direct more steel and security investment toward the areas that need it most.
How Height Changes Price Per Meter
Higher fencing uses more mesh and often requires heavier supporting components.
That means price can increase through:
- More mesh area
- Longer posts
- Stronger terminal posts
- More coating area
- Heavier gates
- Higher shipping weight
- More demanding foundations
Therefore, buyers should compare complete installed-system specifications rather than only the mesh price.
Why the Highest Fence Is Not Always the Best Value
Using 2.4m fence around every section of a large commercial site can add a significant amount of steel.
If some areas only require basic boundary control, that extra height may not create enough security value to justify the additional cost.
A better approach is to classify the site by risk and then assign the correct fence height to each zone.
A Practical Commercial Height Guide
| Commercial Security Need | Possible Height Direction |
|---|---|
| Basic Boundary Control | 1.2–1.5 m |
| General Commercial Security | About 1.8 m |
| Warehouse / Service Yard | About 1.8–2.0 m |
| Logistics / Industrial Perimeter | About 2.0–2.4 m |
| Restricted Commercial Zone | 2.4 m or project-specific |
These ranges are only general guidance and should not replace engineering, local regulations, or approved security specifications.
What Should Buyers Compare Between Quotations?
If two suppliers both quote a 2.4m Chain Link Fence, the systems may still be very different.
Compare:
- Actual fence height
- Wire diameter or gauge
- Mesh opening
- Post size
- Post wall thickness
- Post spacing
- Corner and terminal posts
- Top rail or tension wire
- Surface treatment
- Gate height and frame specification
- Top-security system
- Included fittings
Once these details match, the price comparison becomes much more meaningful.
What Should You Send BDFENCE for a Height Recommendation?
If the fence height is not yet confirmed, send BDFENCE the available project information.
Useful details include:
- Project country
- Commercial or industrial application
- Total perimeter length
- Site security level
- Preferred fence height
- Mesh opening
- Wire gauge or diameter
- Post requirements
- Barbed wire or top-security requirement
- Pedestrian gate dimensions and quantities
- Vehicle gate dimensions and quantities
- Site layout
- BOQ or fence schedule
- Destination port
BDFENCE can then review the fence height together with the wire, mesh, posts, gates, and top-security requirements.
How BDFENCE Supplies Commercial Chain Link Fence
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for warehouses, logistics yards, industrial facilities, commercial sites, utility compounds, sports facilities, and infrastructure projects.
Our project supply can include:
- Different Chain Link Fence heights
- Different mesh openings
- Different wire gauges
- Galvanized mesh
- PVC-coated mesh
- Line, corner and terminal posts
- Top rails and tension systems
- Top extensions where specified
- Pedestrian gates
- Vehicle gates
- Fence fittings and accessories
Project buyers can send drawings, BOQ documents, perimeter layouts, and gate schedules directly to BDFENCE for review and quotation.
Final Answer: What Height Chain Link Fence Do You Need?
Use the commercial risk level to choose the height.
Lower fences around 1.2–1.5m can work for basic boundary control.
Around 1.8m is a common direction for general commercial perimeter fencing.
Around 2.0m can suit warehouses and more active commercial sites.
Around 2.4m may be more appropriate for logistics yards, industrial perimeters, secure storage, and other higher-control areas.
However, fence height should never be selected alone.
The wire gauge, mesh size, posts, tension system, gates, foundations, and any barbed-wire topping should all support the same commercial security requirement.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
What is the best Chain Link Fence height for a commercial property?
There is no single best height. Around 1.8m is commonly considered for general commercial boundaries, while warehouses, logistics yards, and higher-security areas may require 2.0m to 2.4m or another project-specific height.
Is 6-foot Chain Link Fence high enough for commercial security?
A fence around 6 feet, or approximately 1.8m, can suit many general commercial applications. Higher-risk sites may require a taller perimeter or additional security features.
Is 8-foot Chain Link Fence better for warehouses?
An 8-foot fence, approximately 2.4m, can provide a more substantial boundary, but it is not automatically required for every warehouse. The final height should reflect site risk, assets, posts, gates, and local requirements.
Should commercial Chain Link Fence have barbed wire?
Only where permitted and required by the approved project design. Barbed wire can provide an additional top deterrent, but it should be used with a correctly designed main fence and support system.
Does a taller Chain Link Fence need stronger posts?
The post system should be reviewed as fence height increases. Post size, wall thickness, spacing, terminal posts, foundations, and mesh weight can all affect the final design.
Can one commercial property use different fence heights?
Yes, if the project design allows it. Different heights can be used for low-risk boundaries, main perimeters, outdoor storage, and restricted areas.
Can BDFENCE supply 1.8m, 2.0m and 2.4m Chain Link Fence?
BDFENCE can manufacture Chain Link Fence in different heights according to the confirmed mesh opening, wire specification, finish, post system, and project requirements.
Can I send a commercial site plan for quotation?
Yes. BDFENCE can review site layouts, perimeter lengths, fence heights, gate positions, mesh specifications, post schedules, top-security requirements, and BOQ documents before preparing a quotation.
