Choosing the right Chain Link Fence mesh is only half of the specification. The posts are what keep the complete perimeter standing, aligned, and properly tensioned.
For project buyers, two questions appear frequently:
What size posts should I use for a Chain Link Fence, and how far apart should the posts be?
There is no single post size or spacing that works for every project.
A 1.8m commercial boundary, a 2.4m logistics-yard fence, and a 3m industrial security perimeter place very different demands on the support system.
Therefore, post selection should start with the complete fence specification rather than a standard post chart alone.
First, Identify Which Post You Are Specifying
Not every post in a Chain Link Fence performs the same job.
A typical perimeter may contain:
- Line posts
- Corner posts
- End posts
- Terminal posts
- Gate posts
Using one post specification everywhere may look simpler on a BOQ. However, it does not reflect how the loads move through the fence.
Line Posts
Line posts support the mesh along normal straight fence runs.
They are installed repeatedly between terminal points and help maintain the height and alignment of the perimeter.

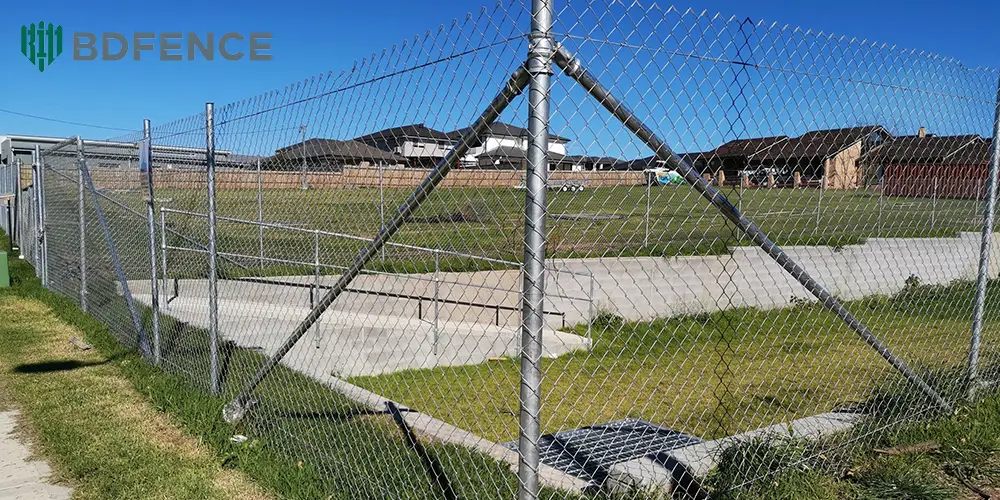

Corner and Terminal Posts
Corner, end, and terminal posts deal with concentrated mesh tension.
For example, when a long section of Chain Link Mesh is tensioned toward an end post, that post must resist the pulling force from the fence run.
At a corner, the direction changes. Therefore, the post and bracing arrangement may need to handle tension from more than one fence section.
For this reason, corner and terminal posts are commonly specified more heavily than standard line posts.

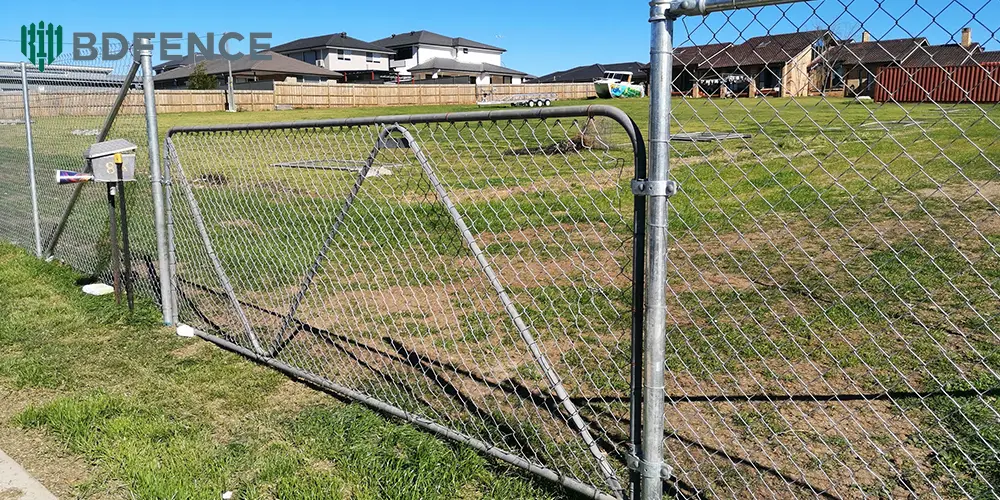

Gate Posts
Gate posts have another job entirely.
They need to support the gate structure and its movement.
A small pedestrian gate and a wide industrial vehicle gate should not automatically use the same post.
Gate post selection can depend on:
- Gate opening width
- Gate height
- Gate frame weight
- Swing or sliding design
- Hardware configuration
- Frequency of use
What Does “Chain Link Fence Post Size” Actually Mean?
When requesting a quotation, simply writing “60mm post” is usually not enough.
A proper post specification may need to identify:
- Outside diameter or section dimensions
- Wall thickness
- Total post length
- Steel specification where required
- Surface treatment
- Installation method
For example, two round posts can have the same outside diameter but different wall thicknesses.
They may look almost identical in a product photo, yet their steel weight and structural characteristics can be different.
Therefore, buyers should compare diameter and wall thickness together.
How Fence Height Changes the Post Requirement
Fence height is one of the first factors to review.
As the fence becomes taller, more mesh is exposed above the ground. The support system may therefore need to become stronger.
A practical purchasing direction looks like this:
| Fence Height | Typical Project Direction | Post Consideration |
|---|---|---|
| 1.2–1.5m | Basic boundary applications | Relatively light support may be suitable depending on site conditions |
| 1.8m | General commercial perimeter | Review standard commercial line and terminal posts |
| 2.0m | Warehouse and service areas | Post strength becomes more important |
| 2.4m | Industrial and logistics perimeter | Review stronger posts, terminals and foundations |
| 3.0m | Tall security perimeter | Complete post, tension, bracing and foundation system requires closer review |
These are selection directions rather than universal engineering specifications. Final post dimensions should match the actual project design, loads, installation method, and applicable requirements.
Wire Diameter Also Affects the Support System
A heavier Chain Link Mesh places more material between the posts.
Therefore, wire diameter should not be separated from post selection.
For example, a project using heavier wire for an industrial perimeter may require a different support approach from a light-duty boundary using thinner wire, even when both fences have the same height.
If your specification uses wire gauge, confirm the gauge system or actual wire diameter. Gauge conventions can differ between markets.
For PVC-coated mesh, also clarify whether the specified diameter refers to the steel core or the finished coated diameter.
Mesh Opening Matters Too
Mesh opening affects the amount of steel in the fence and the behavior of the mesh system.
Common Chain Link Fence specifications may use different diamond openings according to the project.
When comparing post requirements, buyers should therefore provide both:
- Mesh opening
- Wire diameter
This gives the supplier a much clearer picture than fence height alone.
How Far Apart Should Chain Link Fence Posts Be?
There is no universal spacing for every Chain Link Fence project.
Post spacing is normally selected according to the complete system and project requirements.
For many project applications, buyers may encounter spacing in the approximate range of 2m to 3m. However, this should not be treated as an automatic specification for every site.
The final spacing can depend on:
- Fence height
- Wire diameter
- Mesh opening
- Post size
- Post wall thickness
- Wind exposure
- Terrain
- Security level
- Top security system
- Project standard
2m, 2.5m or 3m Post Spacing: What Changes?
For buyers, post spacing is also a cost decision.
| Spacing Direction | What Happens |
|---|---|
| Closer Spacing | More posts and foundations are required along the same perimeter |
| Medium Spacing | Balances post quantity with the required fence design |
| Wider Spacing | Reduces post quantity but increases the distance each fence section spans |
This is why choosing the widest possible spacing simply to reduce the number of posts is not always the right approach.
Post spacing should remain compatible with the structural and installation requirements of the fence.
See What Happens on a 1,000m Perimeter
Post spacing becomes easier to understand when buyers look at a complete project rather than one fence section.
For a simplified 1,000m straight perimeter, the approximate number of intervals would be:
| Approximate Post Spacing | Approximate Number of Fence Intervals |
|---|---|
| 2.0m | 500 |
| 2.5m | 400 |
| 3.0m | About 333 |
Actual post quantities will also depend on corners, terminals, gates, separate fence runs, and site layout.
However, the example shows why spacing affects much more than the post price.
It can also change:
- Foundation quantity
- Concrete requirement
- Fittings
- Installation labor
- Transport weight
- Total project cost
Why Wider Post Spacing Is Not Automatically Cheaper
A buyer may look at a 3m spacing proposal and assume it must be cheaper than a 2.5m design because fewer posts are required.
That comparison can be incomplete.
If wider spacing requires heavier posts, different foundations, or other structural changes, part of the saving can disappear elsewhere in the system.
Therefore, compare the complete installed fence concept rather than the number of line posts alone.
Wind Exposure Can Change the Decision
Chain Link Fence has an open mesh structure, but wind conditions still matter, especially on tall fences and systems with additional materials attached.
Projects in exposed locations should consider:
- Fence height
- Local wind conditions
- Post spacing
- Post strength
- Foundation design
- Any additional screen or privacy material
If privacy screening is added to Chain Link Fence, the wind behavior of the perimeter can change significantly.
In that situation, buyers should not assume that the original open-mesh post specification remains suitable.

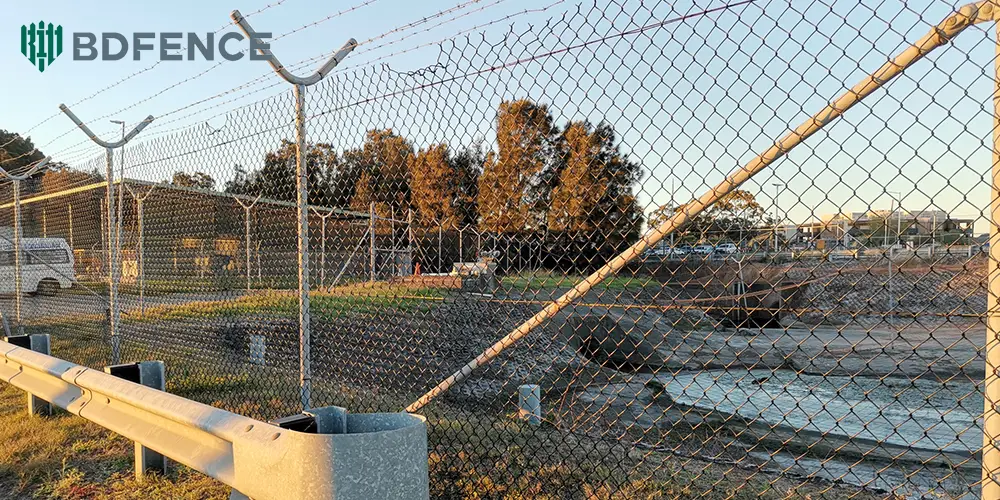

Top Security Adds Another Load to the Post
Industrial and security projects may add a security system above the main Chain Link Mesh.
Depending on the approved design, this may include extension arms and barbed wire or another specified configuration.
The supplier should know this before confirming the post system because top security can affect:
- Total fence height
- Post length
- Post specification
- Top fittings
- Terminal details
- Installation
Do not finalize the main fence posts first and treat the security top as an unrelated accessory later.
Post Length Is Not the Same as Fence Height
This is an important RFQ detail.
A 2.4m high Chain Link Fence does not necessarily use a 2.4m long post.
The total post length must also account for the installation method.
For example, a post embedded into a concrete foundation requires additional length below the finished ground level.
A base-plated post follows a different installation concept.
Therefore, an RFQ should distinguish between:
- Finished fence height
- Total post length
- Embedment or base-plate arrangement
Do All Posts Need the Same Wall Thickness?
Not necessarily.
Because posts perform different jobs, a project may use different specifications for different positions.
| Post Type | Main Function | Selection Direction |
|---|---|---|
| Line Post | Support normal fence runs | Standard project post specification |
| Corner Post | Handle direction change and mesh tension | May require a heavier specification |
| Terminal Post | Terminate tensioned mesh sections | May require a heavier specification |
| Gate Post | Support moving gate structure | Selected according to gate size and load |
This approach can use steel more efficiently than making every post identical without considering its function.
Gate Posts Should Be Specified from the Gate Backward
For vehicle entrances, start with the gate rather than choosing the post first.
Confirm:
- Clear opening width
- Gate height
- Gate type
- Frame specification
- Mesh infill
- Hardware
- Expected operation
Then determine the supporting gate post requirement.
This is particularly important for wide industrial and logistics entrances.
What About Square Posts Instead of Round Posts?
Chain Link Fence is commonly associated with round tubular posts, but some project designs may use square or rectangular steel sections.
The choice can depend on:
- Project standard
- Architectural preference
- Gate design
- Connection method
- Required structural specification
Therefore, buyers should not compare round and square posts by outside dimension alone.
Section shape, wall thickness, steel weight, connections, and structural requirements all matter.
Galvanized or Powder-Coated Posts?
The post finish should match the overall fence system and project environment.
Galvanized posts are widely used for functional commercial and industrial Chain Link Fence projects.
PVC-coated or colored Chain Link Mesh may also be combined with compatible coated posts where a colored perimeter is required.
For outdoor projects, review corrosion protection across:
- Mesh
- Line posts
- Terminal posts
- Gate posts
- Gate frames
- Brackets
- Fittings
A durable mesh does not solve the problem if supporting components have unsuitable protection.
Foundation Design Is Part of Post Selection
A strong steel post cannot perform correctly if its foundation is unsuitable for the site.
Foundation requirements can change according to:
- Fence height
- Post spacing
- Post size
- Soil conditions
- Wind conditions
- Gate loads
- Top security
- Local engineering requirements
For this reason, universal foundation dimensions should not be copied from one project to another without review.
Terrain Can Change the Post Layout
A flat warehouse perimeter and an uneven infrastructure site may use the same Chain Link Mesh but require different installation planning.
Slopes, level changes, drainage channels, retaining structures, and corners can influence where posts need to be positioned.
Therefore, large projects should provide a perimeter drawing whenever possible.
A drawing allows the supplier to understand where normal line posts stop and special posts begin.
How to Compare Chain Link Fence Post Quotations
When comparing suppliers, do not compare only the outside post diameter.
| Quotation Item | What the Buyer Should Confirm |
|---|---|
| Line Post | Diameter/section, wall thickness and total length |
| Corner Post | Size, wall thickness and bracing arrangement |
| Terminal Post | Size and compatibility with mesh tension |
| Gate Post | Size matched to gate dimensions and structure |
| Post Spacing | Distance between posts |
| Surface Treatment | Galvanizing or specified coating system |
| Installation | Embedded or base-plated post design |
| Accessories | Caps, braces, bands, tension components and fasteners |
Once these details are aligned, price comparisons become much more meaningful.
A Practical Post Selection Workflow for Buyers
Instead of asking a supplier, “What post do you recommend?”, prepare the specification in this order:
- Confirm the total perimeter length
- Confirm fence height
- Specify mesh opening
- Specify actual wire diameter or gauge standard
- Define the project environment
- Identify the required post spacing
- Mark corners and terminal points
- Confirm pedestrian and vehicle gates
- Confirm top security requirements
- Provide site drawings and foundation information where available
The supplier can then review the post system against a much clearer project scope.
What Should Be Included in Your RFQ?
For an accurate Chain Link Fence quotation, send:
- Project country
- Project application
- Total fence length
- Finished fence height
- Mesh opening
- Actual wire diameter or gauge standard
- Galvanized or PVC-coated finish
- Preferred post spacing
- Line post specification if already designed
- Corner and terminal post specification
- Total post length or installation method
- Top security requirement
- Pedestrian gate sizes and quantities
- Vehicle gate sizes and quantities
- BOQ or perimeter drawing
- Destination port
If the post specification has not been finalized, send the available fence drawing and project requirements to BDFENCE for review before quotation.
How BDFENCE Supplies Chain Link Fence Post Systems
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for warehouses, logistics yards, industrial plants, solar farms, utility facilities, commercial sites, and infrastructure projects.
Our project supply can include:
- Galvanized Chain Link Mesh
- PVC-Coated Chain Link Mesh
- Round steel posts
- Customized post sizes and wall thicknesses
- Line posts
- Corner and terminal posts
- Gate posts
- Braces and tension components
- Pedestrian gates
- Vehicle gates
- Top security components
- Installation fittings and accessories
Project buyers can send BOQ documents, fence schedules, perimeter drawings, gate details, and technical specifications directly to BDFENCE for review and quotation.
Final Answer: What Chain Link Fence Post Size and Spacing Should You Use?
There is no single Chain Link Fence post size or spacing that is correct for every project.
A lower commercial fence and a 3m industrial security perimeter should not automatically share the same support system.
Start with fence height, mesh opening, wire diameter, site exposure, and security requirements. Then determine line-post spacing and review corner, terminal, and gate posts separately.
For many projects, buyers may see post spacing around 2m to 3m. However, the final spacing and post specification should follow the actual fence design and project conditions rather than a universal rule.
Most importantly, compare the complete system. A Chain Link Fence is not only mesh between two posts. It is a combination of mesh, posts, tension components, foundations, gates, fittings, and access points that must work together.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
How far apart should Chain Link Fence posts be?
Many projects may use spacing in the approximate 2m to 3m range, but there is no universal spacing. Fence height, post size, mesh specification, wind exposure, terrain, top security, and project requirements should all be considered.
What size post should I use for a 1.8m Chain Link Fence?
Fence height alone is not enough to determine the correct post size. Wire diameter, mesh opening, post spacing, wall thickness, site conditions, and the post’s function should also be reviewed.
Does a 2.4m Chain Link Fence need larger posts?
A taller fence generally requires closer review of the support system. Post size, wall thickness, spacing, foundations, terminal points, and site exposure should be considered together.
Do corner posts need to be stronger than line posts?
They may require a heavier specification because corners and terminal points handle mesh tension differently from normal line posts. The final specification depends on the project design.
What size post should I use for a Chain Link Fence gate?
Gate posts should be selected according to gate width, height, frame weight, gate type, hardware, and expected use rather than using the normal line-post specification automatically.
Is 3m post spacing suitable for Chain Link Fence?
It can be suitable for some systems, but it should not be treated as a universal rule. The complete fence specification and project conditions need to support the selected spacing.
Should I specify post wall thickness in my RFQ?
Yes. Outside diameter alone does not fully define a steel post. Buyers should specify or confirm both post section size and wall thickness.
Can BDFENCE help review a Chain Link Fence BOQ?
Yes. BDFENCE can review perimeter drawings, BOQ documents, fence heights, mesh specifications, post schedules, gate requirements, and other available technical information before preparing a quotation.
