The structural design of a security fence directly determines its protection capability, durability, and service life. Among various high-security fencing systems, 358 mesh fence is widely recognized as one of the most reliable perimeter protection solutions due to its unique small mesh structure, strong welded framework, and excellent anti-climb performance.
A well-designed 358 security fence combines high-strength steel wire mesh panels, reinforced fence posts, professional fixing systems, and corrosion-resistant surface treatments to create a complete security barrier. It is widely used in prisons, airports, military facilities, data centers, industrial plants, and other high-security projects.
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) is a professional manufacturer and exporter of premium metal fencing solutions. With over 30 years of industry experience, a 15,000㎡ modern production facility, 190+ employees, and products exported to more than 70 countries, BDFENCE provides customized 358 fence systems designed for global security applications.
What Is 358 Mesh Fence?
358 mesh fence is a high-security welded wire fencing system named after its standard mesh specification:
- 3 inches (76.2 mm) horizontal opening
- 0.5 inches (12.7 mm) vertical opening
- 8 gauge wire diameter (approximately 4.0 mm)
This unique mesh design creates a strong physical barrier that prevents climbing, reduces cutting access, and maintains excellent visibility.
Unlike traditional chain link fence, 358 mesh fence uses closely spaced welded wires that provide higher rigidity and better security performance.
Main Structural Components of 358 Security Fence
A complete 358 security fence system consists of several important structural components working together.
358 Welded Mesh Fence Panel
The fence panel is the primary security component.
It is manufactured by welding horizontal and vertical steel wires together to form a rigid mesh structure.
Small Mesh Opening Design
The narrow aperture provides:
- Anti-climb performance
- Anti-cut resistance
- Improved security visibility
The small opening prevents fingers and toes from obtaining a grip, making climbing extremely difficult.
High-Strength Welded Structure
Each wire intersection is securely welded to create a strong panel.
Advantages include:
- High impact resistance
- Better structural stability
- Reduced deformation
- Long service life
Fence Post Structure Design
The fence post provides vertical support for the entire 358 fence system.
Types of 358 Fence Posts
Common post options include:
Square Steel Posts
Square posts are widely used due to their:
- High strength
- Easy installation
- Stable connection
Rectangular Steel Posts
Rectangular posts provide additional load-bearing capacity for large security projects.
Heavy-Duty Security Posts
For prisons, airports, and military projects, reinforced posts can be customized for higher security requirements.
Fence Panel Connection System
A reliable connection system is essential for maintaining the overall strength of the fence.
Secure Fixing Methods
Common installation methods include:
- Security bolts
- Anti-tamper fasteners
- Clamps
- Brackets
These systems prevent unauthorized removal of fence panels.
Modular Installation Design
358 mesh fence panels are designed for efficient installation.
Benefits include:
- Faster construction
- Easier replacement
- Lower installation costs
- Improved project efficiency
Structural Design Features of 358 Mesh Fence
The design advantages of 358 fence make it suitable for high-security applications.
Anti-Climb Structure
The most important feature of 358 fence is its anti-climb design.
The 12.7 mm narrow opening:
- Prevents hand grip
- Prevents foothold
- Reduces climbing possibility
This makes it an ideal solution for:
- Prison fence systems
- Restricted areas
- Critical infrastructure protection
Anti-Cut Design
The dense welded mesh structure makes cutting more difficult.
The closely arranged wires:
- Reduce tool access space
- Increase cutting time
- Improve perimeter security
High Visibility Security Design
Unlike solid walls, 358 fence provides clear visibility.
This allows:
- CCTV monitoring
- Security patrol observation
- Better site management
Surface Treatment and Durability Design
Long-term outdoor performance depends heavily on corrosion protection.
Hot-Dip Galvanized 358 Fence
Hot-dip galvanization creates a protective zinc coating on steel surfaces.
Benefits:
- Excellent rust resistance
- Improved outdoor durability
- Longer service life
Powder Coated 358 Mesh Fence
Electrostatic powder coating provides:
- UV resistance
- Weather protection
- Attractive appearance
Available colors include:
- RAL 6005 Green
- RAL 7016 Grey
- RAL 9005 Black
- Custom colors
Dual Protection System
For demanding environments, BDFENCE recommends:
Hot-Dip Galvanizing + Polyester Powder Coating
This combination provides enhanced protection against:
- Rain
- Humidity
- Salt spray
- Industrial corrosion
358 Fence Installation Structure
Proper installation ensures the maximum performance of a security fence system.
Foundation Design
Fence posts can be installed through:
- Concrete embedding
- Base plate mounting
- Chemical anchors
The installation method depends on:
- Ground conditions
- Fence height
- Security requirements
Security Accessories
Additional components may include:
- Razor wire
- Barbed wire
- Security gates
- Intrusion detection systems
These accessories enhance overall perimeter protection.
Applications of 358 Security Fence Structure
Due to its advanced structural design, 358 fence is widely used in demanding environments.

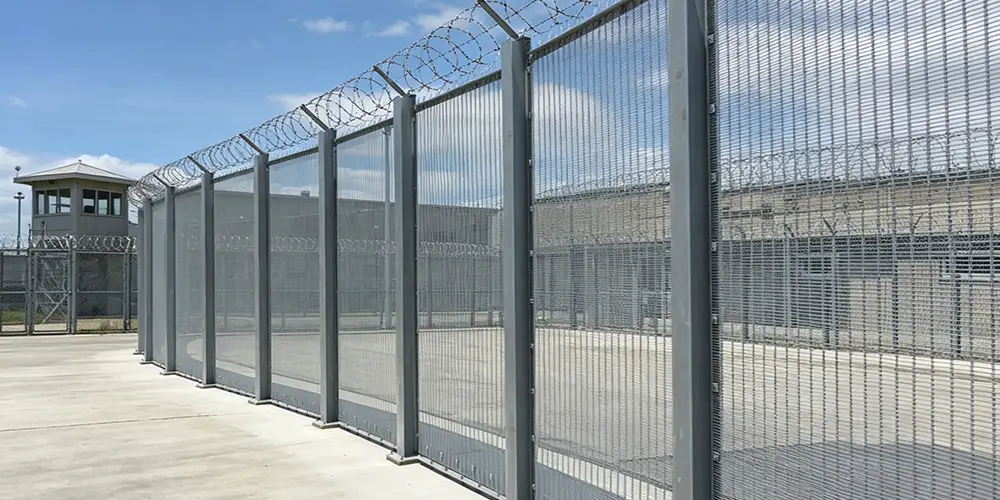

Prison and Correctional Facilities
358 fence provides:
- Anti-climb protection
- High strength
- Long-term reliability
It is one of the preferred solutions for prison perimeter security.
Airport and Transportation Facilities
Applications include:
- Airport boundaries
- Railway facilities
- Restricted operational areas
Industrial and Critical Infrastructure
Suitable for:
- Power plants
- Data centers
- Chemical facilities
- Manufacturing sites
Why Choose BDFENCE 358 Mesh Fence?
BDFENCE provides professional 358 fence solutions with advanced manufacturing capabilities.
Advanced Manufacturing Equipment
Our 15,000㎡ factory is equipped with over 80 advanced machines, including:
- Automatic wire mesh welding machines
- Laser cutting machines
- Powder coating lines
- PE coating systems
- Automated production equipment
Strict Quality Control
Every 358 mesh fence order follows complete inspection procedures:
- Raw material inspection
- Welding quality inspection
- Mesh size inspection
- Surface treatment inspection
- Finished product inspection
- Trial installation verification
Customized Security Solutions
BDFENCE supports customization of:
- Fence height
- Wire diameter
- Mesh size
- Post design
- Surface coating
- Security accessories
Conclusion
The structural design of 358 security fence determines its outstanding performance in high-security applications. With its small mesh opening, strong welded structure, reinforced posts, and corrosion-resistant coating system, 358 mesh fence provides reliable protection against climbing, cutting, and unauthorized intrusion.
As a professional fencing manufacturer, Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) combines advanced manufacturing technology, strict quality control, and global project experience to deliver customized 358 fence solutions worldwide.
Whether your project requires prison perimeter fencing, airport security barriers, industrial protection systems, or critical infrastructure fencing, BDFENCE provides reliable solutions designed for long-term security performance.
Contact BDFENCE
Looking for a professional 358 mesh fence manufacturer?
BDFENCE provides customized 358 security fence systems, technical support, factory-direct pricing, and global delivery services for contractors, distributors, and project owners.
WhatsApp: +86 18703287372
Email: mazhijia18@gmail.com
Contact BDFENCE today for your high-security fencing project.
Frequently Asked Questions (FAQ)
Q1: What is the structure of 358 mesh fence?
A: A 358 mesh fence system mainly consists of welded wire mesh panels, steel posts, fixing brackets, security fasteners, and surface coating systems.
Q2: Why does 358 fence have better security performance?
A: The narrow 12.7 mm mesh opening prevents climbing and reduces access for cutting tools, making it highly resistant to intrusion.
Q3: What materials are used for 358 security fence?
A: 358 fence is commonly manufactured using high-quality low-carbon steel wire with hot-dip galvanizing and powder coating protection.
Q4: Can the structure of 358 fence be customized?
A: Yes. BDFENCE can customize panel height, wire diameter, post types, coating options, and accessories according to project requirements.
Q5: Where is 358 mesh fence commonly installed?
A: It is widely used in prisons, airports, military facilities, data centers, industrial plants, and critical infrastructure projects.
