Choosing the right Chain Link Fence gauge is not simply a matter of buying the thickest wire available.
For commercial and industrial projects, the best gauge depends on how the fence will be used, how tall it is, what mesh opening is required, how strong the posts are, and how much of the perimeter needs heavier protection.
In other words, wire gauge should be selected as part of the complete fence system.
A warehouse yard, utility site, logistics center, storage area, and general property boundary may all need different specifications.
What Does Gauge Mean in Chain Link Fence?
Gauge describes the wire size used to manufacture the Chain Link Fence mesh.
Within the same gauge system, a lower gauge number generally means a thicker wire.
For example, 9 gauge wire is generally heavier than 11 gauge wire.
However, buyers should confirm the actual wire diameter because gauge systems can vary between markets.
Therefore, the safest specification is always the actual wire diameter or the exact gauge standard shown in the project documents.
Why Gauge Matters in Commercial and Industrial Projects
Wire gauge affects more than the look of the mesh.
It changes:
- Steel consumption
- Fence weight
- Mesh rigidity
- Handling
- Material cost
- Overall fence feel
For a long perimeter, even a small change in wire size can create a noticeable difference in total project cost.
Do You Always Need the Heavier Gauge?
No.
Using a heavier wire everywhere may increase project cost without adding useful value in lower-risk areas.
For example, a commercial warehouse might need heavier mesh around storage yards and truck access zones, while a secondary boundary may not require the same specification.
Therefore, it can be more efficient to match the gauge to the function of each fence section.

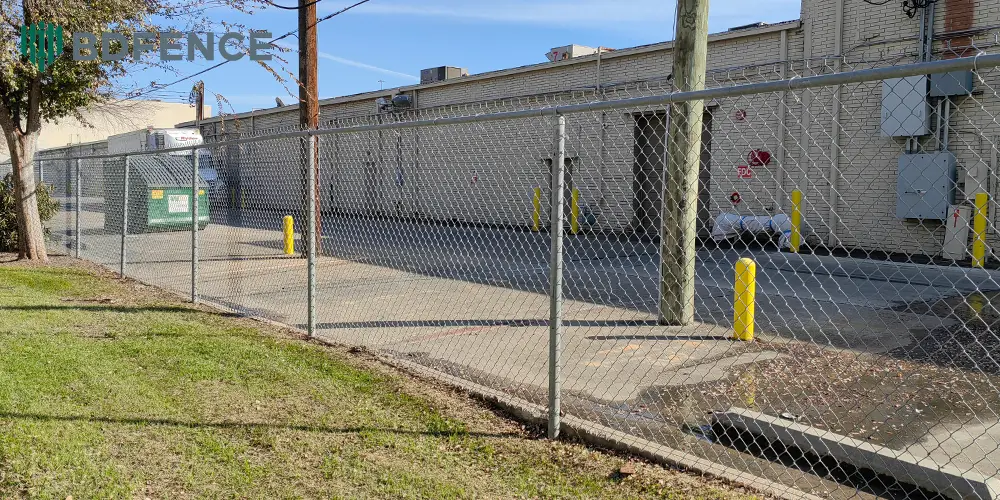

Where 9 Gauge Chain Link Fence Makes Sense
9 gauge wire is often considered when the project needs a heavier mesh specification.
Typical commercial or industrial uses may include:
- Warehouse perimeters
- Logistics yards
- Industrial facilities
- Storage areas
- Utility compounds
- Commercial service zones
The heavier wire can create a more substantial mesh and may suit areas with higher daily activity.
However, the final choice should still match the project design.

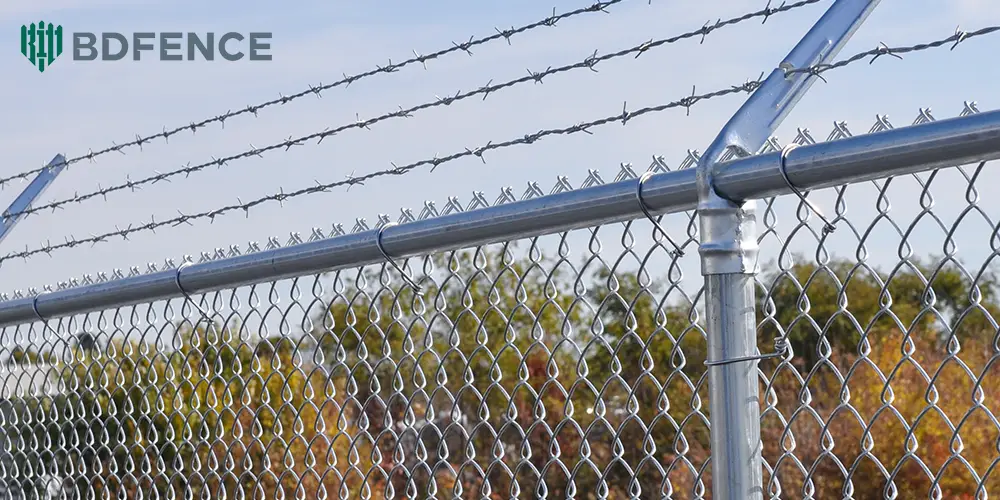

Where 11 Gauge Chain Link Fence May Be Enough
11 gauge wire may work well where the project needs a lighter-duty boundary.
Possible applications include:
- General commercial boundaries
- Secondary perimeter sections
- Low-risk industrial areas
- Temporary or supporting fence zones
Because it uses less steel, 11 gauge can also help control material cost.
If the lighter wire meets the approved requirement, there may be no need to upgrade every section to 9 gauge.
How Fence Height Changes the Gauge Decision
A taller fence places more demand on the complete system.
Therefore, the wire gauge should be reviewed together with:
- Post size
- Post wall thickness
- Post spacing
- Top rail or tension system
- Foundation design
For example, a 1.5-meter fence and a 2.4-meter fence may use different support requirements even if the mesh opening is the same.
This is why gauge should not be chosen without considering fence height.
How Mesh Opening Affects the Choice
Mesh size changes the amount of wire used per square meter.
A smaller opening generally requires more wire.
As a result, a heavier gauge combined with a tighter mesh can increase fence weight and material cost quickly.
Buyers should therefore compare these two items together:
- Wire gauge or diameter
- Mesh opening
Looking at only one of them can give an incomplete picture.
Should Warehouses Use 9 Gauge or 11 Gauge?
For commercial warehouses, the answer depends on how active the perimeter is.
A warehouse with frequent truck movement, outdoor storage, and controlled service access may benefit from a heavier mesh.
In contrast, a quieter secondary boundary may not need the same specification.
Before deciding, review:
- Truck traffic
- Outdoor storage
- Fence height
- Access points
- Security level
- Total perimeter length
For many warehouse projects, 9 gauge is often considered for the main perimeter, while lighter specifications may be used in lower-demand areas if the design allows.
What Gauge Works for Industrial Facilities?
Industrial sites often contain several security zones.
For example, the main production area may need stronger fencing than a secondary utility boundary.
Therefore, one industrial project can use different wire gauges in different sections.
A practical approach is to divide the site into:
- Main perimeter
- Storage yard
- Utility area
- Parking boundary
- Restricted zone
Then select the wire specification according to the function of each area.
Do Stronger Posts Make a Lighter Gauge Acceptable?
Not automatically.
Posts and mesh perform different functions.
A stronger post system can improve the support structure, but it does not change the actual thickness of the mesh wire.
Likewise, heavy wire does not compensate for undersized posts.
Therefore, buyers should treat mesh and posts as separate but connected design decisions.
How Gauge Affects Cost Per Meter
Thicker wire uses more steel, so heavier gauges usually cost more when all other specifications remain the same.
However, total fence cost also depends on:
- Fence height
- Mesh opening
- Post system
- Surface treatment
- Fence fittings
- Gates
- Order quantity
For this reason, buyers should not compare gauge price alone.
The complete fence system gives a better view of project cost.
Galvanized vs PVC-Coated Wire
Coating can make gauge comparisons more confusing.
For PVC-coated Chain Link Fence, the quoted diameter may refer to either:
- The steel core wire
- The finished coated diameter
These are different measurements.
Therefore, always ask the supplier to confirm the steel core diameter.
This helps avoid comparing two coated products that only appear to use the same gauge.
A Practical Gauge Selection Guide
| Project Situation | Typical Direction |
|---|---|
| General commercial boundary | Lighter gauge may be enough |
| Main warehouse perimeter | Heavier gauge often preferred |
| Industrial storage yard | Heavier gauge may be suitable |
| Secondary industrial boundary | Moderate gauge may be enough |
| High-activity service area | Heavier gauge often makes sense |
| Low-risk perimeter section | Use the specification required by the design |
Do Not Choose Gauge from Price Alone
A lower gauge cost can be attractive, especially on a long fence line.
However, the better approach is to check whether the lighter wire still meets the project requirement.
If it does, it may help control cost.
If it does not, the lower initial price can create problems later.
Therefore, the decision should come from the technical requirement first and the price second.
What Should You Ask the Supplier?
Before ordering Chain Link Fence, ask for the exact specification.
Important questions include:
- What gauge system is being used?
- What is the actual wire diameter?
- What is the mesh opening?
- Is the wire galvanized or PVC coated?
- What post size is included?
- What is the post wall thickness?
- What post spacing is recommended?
- Are fence fittings included?
- Are gates included?
These details make supplier comparison much more reliable.
What Information Should You Send for a Quote?
For an accurate quotation, send BDFENCE:
- Total fence length
- Fence height
- Required gauge or actual wire diameter
- Mesh opening
- Surface treatment
- Post dimensions
- Post wall thickness
- Post spacing
- Gate quantities and sizes
- Fence fittings requirements
- Project drawings or BOQ
- Destination country or port
If some details are not final, send the information you already have. BDFENCE can review the available requirements before preparing the quotation.
Why Choose BDFENCE?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for commercial, industrial, warehouse, logistics, and infrastructure projects.
Our supply can include:
- Galvanized Chain Link Fence
- PVC-Coated Chain Link Fence
- Different wire gauges
- Steel posts
- Tension components
- Fence fittings
- Pedestrian gates
- Vehicle gates
In addition, buyers can send drawings, BOQ documents, gate schedules, and technical specifications for review.
Final Answer: What Gauge Chain Link Fence Should You Use?
There is no single gauge that fits every commercial or industrial project.
Use a heavier gauge where the perimeter needs more substantial mesh and a lighter gauge where the project allows a more economical specification.
Most importantly, select the wire gauge together with fence height, mesh opening, posts, coating, and access requirements.
That gives you a better-balanced fence system and a more realistic project budget.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Is 9 gauge better than 11 gauge Chain Link Fence?
9 gauge is generally heavier than 11 gauge within the same gauge system. However, the better option depends on the project requirement, fence height, mesh size, and budget.
What gauge is best for commercial Chain Link Fence?
There is no universal best gauge. Commercial projects with higher activity may use heavier wire, while lighter-duty boundaries may use a lighter gauge.
What gauge should I use for an industrial fence?
Industrial projects often use different specifications in different zones. Main perimeters and storage yards may need heavier mesh, while secondary areas may use a lighter specification.
Does thicker wire make Chain Link Fence stronger?
Thicker wire generally creates a heavier and more rigid mesh. However, the complete fence also depends on posts, spacing, tension components, and foundations.
Does gauge affect Chain Link Fence price?
Yes. Heavier wire uses more steel, so it usually increases mesh weight and material cost when other specifications remain the same.
Can BDFENCE supply different Chain Link Fence gauges?
Yes. BDFENCE can manufacture different wire specifications according to the confirmed project standard and requirements.
Can I send a BOQ for quotation?
Yes. BDFENCE can review BOQ documents, fence drawings, gate schedules, and technical specifications before preparing a quotation.
