Proper installation is essential to the structural stability, appearance, and long-term performance of a Steel Tubular Fence system. For commercial developments, industrial facilities, residential communities, schools, logistics centers, and other large projects, installation must be planned before the fencing materials arrive at the construction site.
Unlike small residential fence installations, large-scale Steel Tubular Fence projects may involve thousands of meters of fence panels, different post configurations, pedestrian and vehicle gates, fence fittings, multiple installation zones, and strict construction schedules.
For EPC contractors, developers, distributors, and project procurement teams, understanding the complete installation process can help reduce material errors, improve site efficiency, and prevent unnecessary project delays.
This Steel Tubular Fence Installation Guide explains the main installation stages, including drawing review, site preparation, post layout, foundation construction, fence panel installation, gate installation, fence fittings, alignment inspection, and final project acceptance.
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures customized Steel Tubular Fence systems for commercial, industrial, infrastructure, and large engineering projects worldwide.
Why Proper Steel Tubular Fence Installation Matters
A high-quality fence system can only achieve its expected performance when the installation is completed correctly.
Improper installation may result in:
- Uneven fence lines
- Incorrect post spacing
- Unstable fence panels
- Gate alignment problems
- Loose fence fittings
- Premature structural problems
- Additional installation costs
For large projects, even a small dimensional error can become significant when repeated across hundreds or thousands of fence sections.
For this reason, contractors should establish a clear installation plan before construction begins.
Steel Tubular Fence System Components
Before installation, the contractor should understand all components included in the fencing system.
A typical Steel Tubular Fence project may include:
- Steel tubular fence panels
- Intermediate posts
- Corner posts
- End posts
- Gate posts
- Pedestrian gates
- Vehicle gates
- Fence brackets
- Bolts and fasteners
- Post caps
- Base plates where required
- Gate hinges and locking components
- Other fence fittings
All components should be checked against the approved drawings, bill of quantities, packing list, and installation requirements before work begins.
Pre-Installation Planning for Large Fence Projects
For large commercial and industrial fencing projects, installation planning should begin before the products are delivered to the site.
The contractor should coordinate:
- Approved fence drawings
- Site boundary information
- Fence specifications
- Post spacing
- Foundation requirements
- Gate locations
- Material delivery sequence
- Installation schedule
Review Approved Project Drawings
Installation teams should work from the latest approved project drawings.
Important information to verify includes:
- Total fence length
- Fence height
- Panel width
- Post dimensions
- Post spacing
- Corner locations
- Elevation changes
- Gate positions
- Foundation details
If there is any difference between the site conditions and the approved drawings, the issue should be confirmed before installation continues.
Check the Bill of Quantities
Before installation, the contractor should compare delivered materials with the project BOQ and packing list.
Check the quantities of:
- Fence panels
- Line posts
- Corner posts
- Gate posts
- Pedestrian gates
- Vehicle gates
- Fence fittings
- Installation accessories
For large projects, materials can also be divided and labeled according to installation zones to improve site management efficiency.
Tools and Equipment Required for Installation
The exact equipment depends on the fence design, foundation type, and site conditions.
Typical installation equipment may include:
- Measuring tape
- Surveying equipment
- String line
- Spirit level or laser level
- Post hole equipment
- Concrete mixing equipment
- Drilling equipment
- Wrenches and socket tools
- Temporary supports
- Lifting equipment where required
- Personal protective equipment
Large projects should prepare equipment according to the approved construction method statement and local site safety requirements.

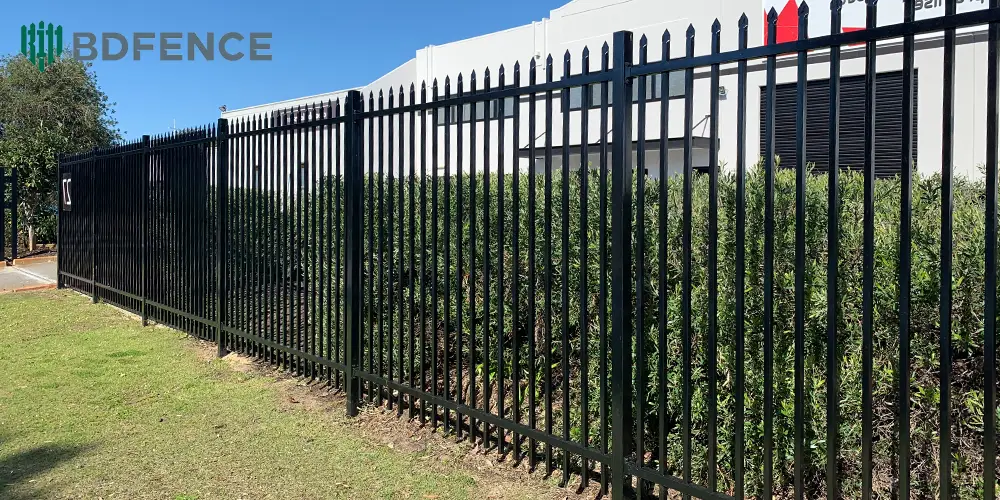

Step 1: Confirm the Fence Line and Site Boundary
The first installation step is confirming the exact fence alignment.
The contractor should identify:
- Property boundaries
- Fence start and end points
- Corner positions
- Gate locations
- Changes in elevation
- Restricted construction areas
Establish the Fence Line
Surveying equipment, stakes, and string lines can be used to establish the planned fence alignment.
A clear reference line helps maintain consistent positioning throughout the installation.
Identify Underground Services
Before excavation or drilling begins, the contractor should confirm the location of underground services according to project and local safety procedures.
Potential underground infrastructure may include:
- Electrical cables
- Water pipes
- Gas lines
- Communication cables
- Drainage systems
This step is particularly important for industrial facilities, commercial developments, and infrastructure projects.
Step 2: Mark Steel Fence Post Positions
After confirming the fence line, post positions should be marked according to the approved panel width and installation drawings.
Correct post spacing is critical because Steel Tubular Fence panels are manufactured to specific dimensions.
Incorrect spacing may create:
- Panel installation difficulties
- Uneven gaps
- Misaligned fence sections
- Additional site modification
Start with Critical Positions
It is usually practical to identify critical structural positions first, including:
- Corner posts
- End posts
- Gate posts
- Changes in fence direction
Intermediate post positions can then be established according to the approved layout.
Allow for Gate Openings
Gate positions should be confirmed before installing adjacent fence posts.
The installation team should verify:
- Gate opening width
- Gate post spacing
- Gate operating direction
- Vehicle clearance
- Pedestrian clearance
- Required access control components

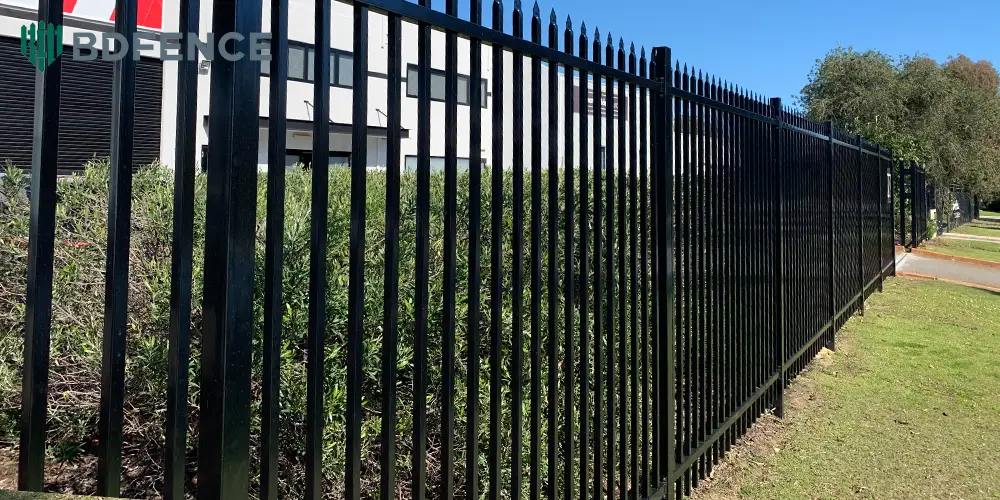

Step 3: Prepare Fence Post Foundations
The foundation method should follow the approved structural design and site requirements.
Common Steel Tubular Fence installation methods include:
- Posts embedded in concrete foundations
- Base-plated posts fixed to concrete
- Project-specific foundation systems
Concrete Foundation Installation
For embedded posts, holes are prepared according to the approved foundation dimensions.
Foundation size should be determined according to factors such as:
- Fence height
- Post dimensions
- Ground conditions
- Wind loading
- Local engineering requirements
The installation team should not rely on one universal foundation size for every project.
Base Plate Installation
Where the fence is installed on an existing concrete structure, base-plated posts may be specified.
The contractor should confirm:
- Base plate dimensions
- Anchor bolt specifications
- Concrete condition
- Post alignment
- Structural fixing requirements
Step 4: Install Steel Tubular Fence Posts
Posts form the structural support system for the fence and must be installed accurately.
Check Post Vertical Alignment
Each post should be checked for vertical alignment before the foundation or fixing system is finalized.
Poor post alignment can affect:
- Panel installation
- Fence appearance
- Gate alignment
- Overall structural consistency
Check Post Height
Post height should remain consistent with the approved fence elevation.
For sloping sites, installation should follow the approved stepped or raked fence design rather than adjusting post heights without technical confirmation.
Allow Foundations to Stabilize
Where concrete foundations are used, sufficient curing and stabilization should be allowed before the fence panels are fully loaded.
The required curing procedure should follow the project specification, concrete design, environmental conditions, and site construction requirements.
Step 5: Install Steel Tubular Fence Panels
After the posts are correctly positioned and sufficiently secured, Steel Tubular Fence panels can be installed.
Position the Fence Panel
The panel should be positioned between the corresponding posts according to the approved installation detail.
Before final fixing, check:
- Panel height
- Horizontal alignment
- Vertical alignment
- Ground clearance
- Spacing between adjacent components
Install Fence Fittings
Panels are connected to posts using the specified fence fittings.
Depending on the Steel Tubular Fence design, these may include:
- Steel brackets
- Clamps
- Bolts
- Nuts
- Fasteners
- Special fixing components
The contractor should use the fittings specified for the supplied fence system rather than substituting incompatible components without approval.
Do Not Fully Tighten Too Early
Where the fixing system allows adjustment, installers can initially position and lightly secure the panels before completing final alignment.
After the fence section has been checked, fasteners can be tightened according to the approved installation requirements.
Step 6: Maintain Fence Alignment Across Long Sections
Maintaining alignment becomes increasingly important on large projects where hundreds of panels may be installed continuously.
Installation teams should regularly check:
- Fence line
- Panel level
- Post verticality
- Top-line consistency
- Ground clearance
Checking alignment continuously is more efficient than correcting a long completed section later.
Step 7: Install Pedestrian and Vehicle Gates
Gate installation requires more accurate positioning than standard fence sections because gates contain moving components and must maintain correct clearances during long-term operation.
For commercial and industrial projects, gates may also need to integrate with:
- Access control systems
- Security locks
- Vehicle management systems
- Automatic gate operators
- Facility security procedures
Confirm Gate Post Positions
Before installing the gate, verify the distance and alignment between the gate posts.
Check:
- Clear opening width
- Gate height
- Post spacing
- Foundation position
- Opening direction
- Required ground clearance
Install Heavy-Duty Gate Posts
Gate posts normally carry greater loads than standard fence posts and may therefore require different post or foundation specifications.
The contractor should follow the approved gate drawings and structural requirements rather than using standard line-post foundations without confirmation.
Install Hinges and Gate Leaf
After the gate posts are properly secured, the gate leaf can be positioned and connected using the specified hinges and fence fittings.
Before final tightening, check:
- Gate alignment
- Opening clearance
- Hinge position
- Movement throughout the opening range
- Connection stability
Install Locking Components
Depending on the gate configuration, installation may include:
- Gate locks
- Latches
- Drop bolts
- Stops
- Access control preparation
The completed gate should open and close smoothly without interfering with adjacent fence panels or the ground surface.
Step 8: Installing Steel Tubular Fence on Sloped Ground
Many industrial, commercial, and infrastructure projects include changes in ground elevation.
The installation method should be determined during the design stage rather than improvised after materials arrive on site.
Stepped Fence Installation
With stepped installation, individual panels remain generally level while their elevations change progressively along the slope.
This method may be suitable where:
- Standard rectangular panels are used
- Ground levels change significantly
- The architectural design permits a stepped top line
Raked Fence Installation
Depending on the fence design and manufacturing configuration, customized panels may follow the slope more closely.
Raked installations should be confirmed with the manufacturer before production because panel geometry, post positioning, and connection details may differ from standard fence sections.
Control Ground Clearance
Excessive gaps below the fence can reduce the effectiveness and appearance of the completed perimeter.
Contractors should therefore consider ground clearance when reviewing:
- Site elevations
- Panel dimensions
- Post positions
- Drainage areas
- Changes in terrain
Step 9: Install Corner, End, and Transition Sections
Corners, fence ends, changes in direction, and transitions between different fence heights require additional attention.
Corner Sections
Corner posts should be positioned according to the approved fence angle and connection detail.
The installation team should verify:
- Post position
- Panel connection angle
- Fence alignment
- Structural stability
End Sections
Fence termination points should use the specified end-post configuration and fittings.
These locations may occur next to:
- Buildings
- Walls
- Security gates
- Existing perimeter systems
Different Fence Heights
Some large projects use different fence heights for different security or functional zones.
Transition sections should be clearly identified on the drawings so the installation team uses the correct:
- Fence panels
- Posts
- Fence fittings
- Elevation arrangement
Step 10: Final Tightening and Fence Fittings Inspection
After panel positioning and alignment are confirmed, the installation team should complete the final fixing of the fence system.
All fence fittings should be checked systematically.
Check Panel-to-Post Connections
Verify that brackets, bolts, clamps, and other fasteners are installed in the correct positions.
Check for Loose Components
Loose fittings can affect both fence stability and long-term maintenance requirements.
The contractor should inspect:
- Panel brackets
- Bolts and nuts
- Post caps
- Gate hinges
- Gate locks
- Other connection components
Use the Correct Fasteners
Substituting different bolts, brackets, or fittings without technical confirmation may affect installation compatibility.
For project procurement, sourcing the fence panels, posts, gates, and compatible fence fittings as one coordinated system can help reduce this risk.
Step 11: Inspect the Completed Steel Tubular Fence
A final inspection should be completed before the fence section is accepted.
Fence Alignment Inspection
Check:
- Overall fence line
- Panel level
- Post verticality
- Top-line consistency
- Panel spacing
Surface Condition Inspection
Powder-coated and galvanized surfaces should be checked for visible damage caused during transportation, handling, or installation.
Any site repair requirements should follow the approved project procedure and coating specification.
Gate Operation Inspection
Every gate should be operated during final inspection.
Check:
- Opening and closing movement
- Hinge performance
- Gate clearance
- Lock operation
- Drop bolts where applicable
- Alignment with adjacent fencing
Common Steel Tubular Fence Installation Mistakes
Many installation problems can be avoided through better planning and dimensional control.
Incorrect Post Spacing
This is one of the most common installation problems.
If post spacing does not match the supplied panel and fixing system, installers may need to modify the fence on site.
Always confirm panel width, connection details, and required post spacing before foundation construction.
Installing Posts Before Confirming Gate Locations
Gate openings should be established before adjacent posts are permanently fixed.
Incorrect gate spacing can affect:
- Gate installation
- Vehicle clearance
- Pedestrian access
- Adjacent fence alignment
Ignoring Changes in Ground Level
Installing standard panels without considering terrain may create excessive gaps or inconsistent top lines.
Sloping sections should be reviewed during the drawing and procurement stages.
Using Incompatible Fence Fittings
Locally sourced brackets or fasteners may not always match the supplied panels and posts.
For large projects, confirm fitting dimensions and connection methods before replacing specified components.
Failing to Check Alignment During Installation
Small positioning errors can accumulate across long fence sections.
Regular alignment checks help prevent extensive rework later.
Improper Material Handling
Dragging panels, stacking them incorrectly, or allowing coated surfaces to contact abrasive materials can damage the finish before installation.
Contractors should establish suitable unloading and temporary storage areas before materials arrive.
How to Manage Steel Tubular Fence Installation for Large Projects
Large-scale installation requires more than technical installation knowledge. Material management and construction sequencing can significantly affect project efficiency.
Divide the Project into Installation Zones
For long perimeter projects, dividing the site into zones can simplify:
- Material distribution
- Installation scheduling
- Progress tracking
- Quality inspection
Label Materials by Specification
Projects with multiple fence heights, post types, or gate configurations should use clear material identification.
Labels can help distinguish:
- Different panel heights
- Different post types
- Gate components
- Fence fittings
- Installation zones
Coordinate Deliveries with Construction Progress
For very large projects, delivering all materials to the site at once may not always be the most efficient solution.
Project procurement teams can coordinate production and shipment batches according to:
- Construction sequence
- Site storage capacity
- Installation progress
- Project deadlines
Keep Spare Components Available
Large projects may benefit from an agreed quantity of spare installation components, particularly commonly used fence fittings and fasteners.
Spare-component requirements should be discussed during procurement rather than after installation begins.
Steel Tubular Fence Installation Quality Checklist
| Inspection Item | What to Check |
|---|---|
| Fence Line | Correct boundary and alignment |
| Post Spacing | Matches approved panel and fixing dimensions |
| Post Alignment | Vertical and correctly positioned |
| Foundations | Installed according to approved structural requirements |
| Fence Panels | Correct height, level and spacing |
| Ground Clearance | Consistent with project requirements |
| Fence Fittings | Correct type, position and fixing |
| Surface Finish | No unacceptable installation damage |
| Pedestrian Gates | Alignment, clearance and locking operation |
| Vehicle Gates | Opening movement, hinges and locking components |
| Final Fence Line | Consistent appearance across completed sections |
What Information Should Be Confirmed Before Ordering?
Good installation begins during procurement.
Before ordering Steel Tubular Fence for a commercial or industrial project, buyers should confirm:
- Total fence length
- Required fence height
- Panel width
- Vertical picket dimensions
- Horizontal rail dimensions
- Post specifications
- Post spacing
- Surface treatment
- RAL color
- Foundation type
- Pedestrian gate dimensions and quantities
- Vehicle gate dimensions and quantities
- Fence fittings
- Site elevation conditions
- Project drawings
Providing these details to the manufacturer before production helps ensure that the supplied system matches the planned installation method.
Why Complete Fence System Procurement Matters
For large engineering projects, purchasing only the fence panels and sourcing all other components independently can increase coordination requirements.
A complete Steel Tubular Fence package can include:
- Fence panels
- Posts
- Pedestrian gates
- Vehicle gates
- Fence fittings
- Installation accessories
Coordinated supply can help contractors improve component compatibility and simplify material management.
Why Choose BDFENCE for Steel Tubular Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures customized Steel Tubular Fence systems for distributors, contractors, developers, industrial buyers, and large engineering projects.
Customized Manufacturing
BDFENCE can manufacture fencing systems according to project requirements for:
- Fence height
- Panel width
- Picket dimensions
- Rail dimensions
- Post specifications
- Surface treatment
- RAL colors
- Gate configurations
Complete Fence System Supply
BDFENCE can supply:
- Steel Tubular Fence panels
- Steel posts
- Pedestrian gates
- Vehicle gates
- Fence fittings
- Installation accessories
Support for EPC Contractors and Project Buyers
For large projects, BDFENCE can support procurement teams with:
- Technical specification confirmation
- Drawing review
- BOQ coordination
- Production planning
- Quality inspection
- Export packaging
- Container loading
- International shipment coordination
Bulk Production Capability
Large commercial and industrial projects may require thousands of panels and multiple gate configurations.
BDFENCE can coordinate bulk manufacturing according to approved specifications, quantities, and project delivery schedules.
Conclusion
Successful Steel Tubular Fence installation begins long before the first post is placed in the ground.
For commercial, industrial, residential development, educational, and infrastructure projects, contractors should coordinate fence design, post spacing, foundations, gates, fence fittings, terrain conditions, and material delivery before installation begins.
The key installation stages include:
- Reviewing approved drawings
- Confirming the fence line
- Marking post positions
- Preparing foundations
- Installing and aligning posts
- Installing fence panels
- Installing compatible fence fittings
- Installing pedestrian and vehicle gates
- Managing sloping and transition sections
- Completing final quality inspection
For large projects, sourcing a coordinated fencing system from an experienced manufacturer can also help reduce specification mismatches and improve installation preparation.
BDFENCE provides customized Steel Tubular Fence systems for global distributors, EPC contractors, developers, industrial companies, and project procurement teams.
Contact BDFENCE for Your Steel Tubular Fence Project
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Website: https://bd-fence.com/
Phone: +86 18703182863
WhatsApp: +86 18703287372
Email: info@bd-fence.com
FAQ
How do you install Steel Tubular Fence?
A typical installation process includes confirming the fence line, marking post positions, preparing foundations, installing posts, fixing fence panels with compatible fence fittings, installing gates, checking alignment, and completing a final inspection.
What is the correct spacing between Steel Tubular Fence posts?
Post spacing depends on the supplied panel width, connection system, and approved project drawings. Contractors should use the manufacturer’s confirmed installation dimensions rather than assuming one standard spacing for every fence system.
Should Steel Tubular Fence posts be installed in concrete?
Embedded concrete foundations are common, but base-plated posts and other engineered foundation systems can also be used. The correct method depends on fence height, ground conditions, wind loads, structural design, and project requirements.
Can Steel Tubular Fence be installed on sloping ground?
Yes. Depending on the fence design and terrain, stepped or customized raked installation methods may be used. Sloping sections should ideally be identified before manufacturing.
Can BDFENCE provide fence fittings with Steel Tubular Fence?
Yes. BDFENCE can supply compatible brackets, fasteners, post accessories, gate hardware, and other fence fittings together with panels and posts.
Can Steel Tubular Fence gates be customized?
Yes. Pedestrian and vehicle gates can be customized according to required width, height, frame structure, surface treatment, locking configuration, and project access requirements.
What should EPC contractors provide before ordering?
For an accurate project solution, contractors should provide the total fence length, fence height, panel specifications, post requirements, surface treatment, gate schedule, fence fittings requirements, drawings, BOQ documents, site conditions, and destination.
Can BDFENCE supply Steel Tubular Fence for large projects?
Yes. BDFENCE supports bulk procurement for distributors, EPC contractors, developers, industrial facilities, and other large engineering projects with customized manufacturing, quality inspection, export packaging, and shipment coordination.
