Project Introduction
Oil and gas facilities require reliable perimeter protection systems to secure valuable equipment, control unauthorized access, and maintain safe operation areas.
In 2026, Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) completed a large-scale chain link fence project for an oil storage facility located in Saudi Arabia.
The project required a fencing system capable of protecting a large outdoor area while maintaining visibility for security monitoring.
BDFENCE supplied a complete galvanized chain link fence solution, including fence mesh, steel posts, security gates, tension systems, and installation accessories.
The final system covered more than 11 kilometers of perimeter protection around storage tanks, equipment areas, maintenance roads, and restricted operational zones.
Project Overview
Project Information
Item Details
Country Saudi Arabia
Project Type Oil Storage Facility
Product Galvanized Chain Link Fence
Fence Length 11,200 meters
Protected Area 185,000㎡
Fence Height 2500mm
Mesh Opening 50×50mm
Wire Diameter 4.0mm
Surface Treatment Heavy Hot Dip Galvanized
Vehicle Gates 14 sets
Pedestrian Gates 32 sets
Production Time 32 working days
Shipment 17 × 40HQ containers
Products Supplied by BDFENCE
For this industrial security project, BDFENCE provided:
- 11,200 meters galvanized chain link fence mesh
- 3,850 galvanized steel fence posts
- 11,200 meters tension wire system
- 14 heavy-duty vehicle access gates
- 32 pedestrian security gates
- Complete clamps, fittings, and installation accessories
Project Background and Customer Requirements
Industrial Security Requirements
The oil storage facility contained:
- Large fuel storage tanks
- Pipelines and processing equipment
- Maintenance workshops
- Control buildings
- Vehicle operation areas
Because of the high-value assets located inside the facility, the customer required a perimeter fence system that could provide continuous protection around the entire site.
The main requirements included:
- Prevent unauthorized access
- Maintain security visibility
- Reduce long-term maintenance
- Operate reliably in desert conditions
Harsh Desert Environment
The project location experiences extreme outdoor conditions:
- High temperatures above 45°C
- Strong sunlight exposure
- Sand and dust accumulation
- Limited rainfall but high corrosion risk from industrial conditions
The fencing system required excellent corrosion resistance and long outdoor service life.
BDFENCE Chain Link Fence Solution
Complete Perimeter Security System
BDFENCE designed a complete chain link fence system based on the customer’s site requirements.
The solution included:

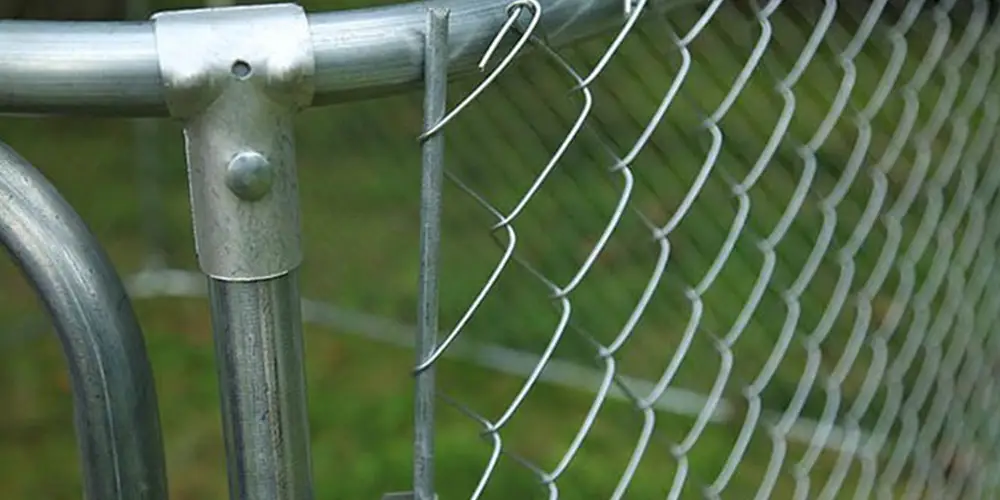

- Heavy galvanized chain link mesh
- Reinforced steel posts
- Top support rails
- Tension wire system
- Security gates
- Anti-loosening accessories
The complete system ensured stable performance across the entire oil storage perimeter.
Customized Chain Link Fence Specifications
Fence Mesh Specifications
- Height: 2500mm
- Mesh opening: 50×50mm
- Wire diameter: 4.0mm
- Edge type: Knuckled and twisted
- Finish: Heavy hot dip galvanized
Fence Post Specifications
- Post type: Galvanized steel pipe
- Post spacing: Designed according to project layout
- Foundation: Concrete embedded installation

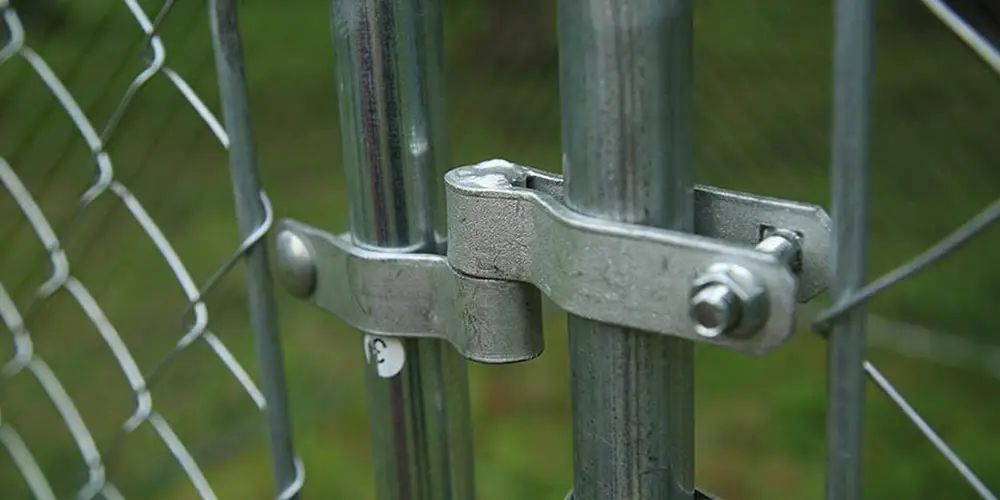

Security Gate System
Vehicle Access Gates
The facility required multiple vehicle entrances for:
- Maintenance vehicles
- Emergency vehicles
- Material transportation
The gates included:
- Heavy-duty steel frames
- Double swing structures
- Reinforced hinges
- Security locking systems
Pedestrian Access Gates
Pedestrian gates were installed near:
- Control buildings
- Maintenance areas
- Employee entrances
Features:
- Matching chain link mesh design
- Galvanized frame structure
- Easy operation
- Long service life
Manufacturing and Quality Control
Large-Scale Production
BDFENCE completed production of:
- 11,200 meters chain link fence
- 3,850 fence posts
- 46 customized gates
Production was completed according to the customer’s construction schedule.
Raw Material Inspection
Before production, BDFENCE inspected:
- Steel wire diameter
- Zinc coating thickness
- Tensile strength
- Steel surface quality
Mesh Manufacturing Inspection
During production, quality checks included:
- Mesh opening accuracy
- Wire weaving consistency
- Roll length verification
- Edge finishing quality
Final Product Inspection
Before shipment:
- Fence quantity verification
- Gate operation testing
- Accessory checking
- Packaging inspection
All products were approved before container loading.
Packaging and International Delivery
Export Packaging
To protect products during transportation, BDFENCE used:
- Steel pallets
- Waterproof wrapping
- Protective film
- Reinforced steel straps
Container Shipment
The complete order was shipped in:
17 × 40HQ containers
The loading plan was optimized to maximize container space utilization and reduce unnecessary transportation costs.
Installation Results
The local installation team completed the project according to BDFENCE’s technical drawings.
The completed system achieved:
- 11,200 meters continuous perimeter protection
- 185,000㎡ facility security coverage
- Improved access management
- Reliable protection around critical equipment
- Reduced future maintenance requirements

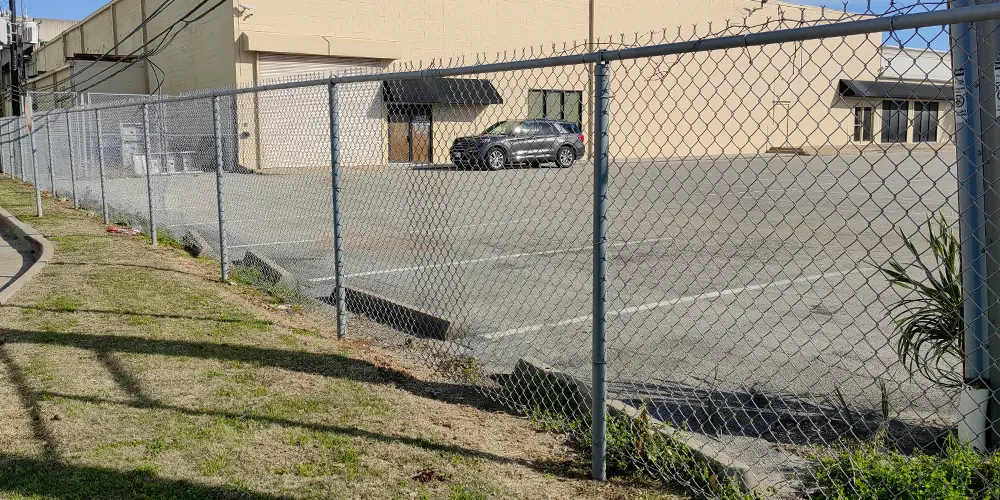

The galvanized chain link fence system now provides long-term perimeter protection for the oil storage facility.
Why Chain Link Fence Was Selected
Suitable for Large Perimeter Areas
Chain Link Fence is an ideal solution for projects requiring kilometers of boundary protection.
Advantages:
- Efficient installation
- Flexible layout
- Competitive project cost
Excellent Security Visibility
The open mesh design allows:
- CCTV monitoring
- Security patrol observation
- Natural airflow
Durable Outdoor Performance
Heavy hot dip galvanized wire provides:
- Strong corrosion resistance
- Long service life
- Reduced maintenance frequency
Why Choose BDFENCE?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) specializes in manufacturing professional fencing solutions for industrial, commercial, and infrastructure projects.
BDFENCE provides:
- 30+ years metal fencing experience
- 15,000㎡ production facility
- 190+ employees
- 80+ advanced machines
- ISO9001 and CE certifications
- Export experience to more than 70 countries
Our products include:
- Chain Link Fence
- 358 Security Fence
- Steel Tubular Fence
- 3D Fence
- 2D Fence
- Temporary Fence
Contact BDFENCE for Your Chain Link Fence Project
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Website: https://bd-fence.com/
phone:+86 18703182863
WhatsApp: +86 18703287372
Email: info@bd-fence.com
FAQ
Why is chain link fence suitable for oil and gas facilities?
Chain link fence provides reliable perimeter protection, excellent visibility, and cost-effective coverage for large industrial areas.
What type of chain link fence is recommended for desert environments?
Heavy hot dip galvanized chain link fence is recommended because it provides better corrosion resistance and longer outdoor service life.
Can BDFENCE customize industrial chain link fence systems?
Yes. BDFENCE can customize fence height, wire diameter, mesh size, posts, gates, coating, and accessories according to project requirements.
Does BDFENCE provide complete perimeter security solutions?
Yes. BDFENCE supplies complete systems including fence mesh, posts, gates, accessories, packaging, and technical support.
