Illustrative Project Scenario | Residential Community Boundary Fence
A residential community requires a fence system that can provide a clear property boundary while maintaining a clean appearance around homes, gardens and shared outdoor areas.
For this project scenario in Canada, the developer selected a PVC-coated Chain Link Fence system for the community perimeter and pedestrian access areas.
Compared with traditional galvanized mesh, PVC-coated chain link fencing provides an additional colored protective layer while giving developers more choices for matching the surrounding environment.
However, selecting the right fence system involves more than choosing a green or black mesh appearance. Wire diameter, mesh opening, coating quality, posts, gates and installation details all affect the final result.
This case explains how a residential community fence project can be planned from a supplier’s perspective. It is an illustrative application scenario and does not represent a confirmed BDFENCE completed project.
Project Overview
| Project Item | Details |
|---|---|
| Country | Canada |
| Industry | Residential Community / Housing Development |
| Product | PVC-Coated Chain Link Fence |
| Application | Residential boundary fence and pedestrian access |
| Main Requirements | Appearance, durability, low maintenance and community separation |
| Main Components | PVC-coated mesh, steel posts, fittings and gates |
| Project Type | Illustrative residential fence application scenario |

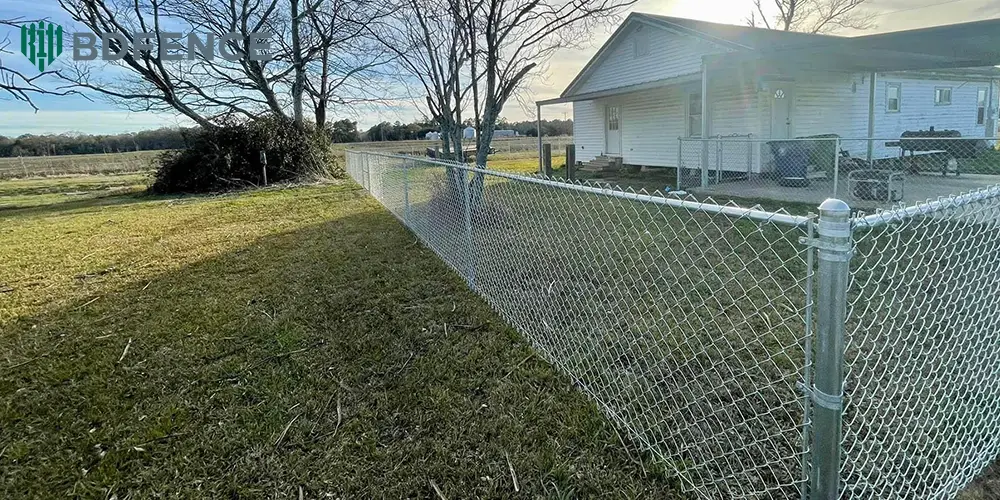

Project Background: A Fence for Community Living Areas
The residential community included multiple housing units, internal walkways and shared outdoor spaces.
The developer needed a fence system that could define private boundaries while keeping an open view between different areas.
A fully solid barrier could provide separation, but it may reduce visibility and create a closed feeling around the community.
PVC-coated chain link fencing offered a practical balance.
The mesh structure allows visibility through the fence while the PVC coating provides a finished appearance suitable for residential surroundings.
For this type of project, the fence is not only a security product. It is also part of the overall community environment.
Why PVC-Coated Chain Link Fence Was Selected
Residential developers often consider several factors when selecting perimeter fencing.
- appearance;
- weather resistance;
- maintenance requirements;
- installation efficiency;
- overall project cost.
PVC-coated chain link fencing adds a polymer layer over the steel wire, creating a finished surface that can match different design preferences.
Common colors include green and black, although the available options depend on the project specification.
The coating can also provide an additional protective layer for outdoor applications.
However, buyers should not evaluate the fence only by color.
The steel core diameter, coating thickness, mesh opening and support system also influence the final fence performance.
Mesh Specification Was the First Purchasing Decision
The chain link mesh is the most visible part of the fence, but several specifications need confirmation before production.
The buyer should define:
- mesh opening;
- wire diameter;
- fence height;
- PVC coating requirement;
- steel core specification.
For PVC-coated products, one detail is especially important.
The quoted wire diameter may refer to the steel core or the finished outside diameter after coating.
These are different measurements.
A clear specification should identify both when required.
For example, a project may specify the steel wire diameter first and then define the finished coated diameter.
This helps different suppliers quote the same product.
Posts and Mesh Needed to Work Together
A chain link fence is not only a mesh roll.
The supporting structure affects the final installation quality.
For a residential community, the fence system may include:
- line posts;
- terminal posts;
- top rails;
- tension components;
- ties and fittings.
The post arrangement should match the approved fence design.
Factors such as fence height, mesh specification, ground conditions and gate locations can influence the post requirements.
A complete quotation should make clear whether it includes only mesh or the full fence system.
Pedestrian Gates for Daily Community Access
Residential communities usually require regular pedestrian movement.
The fence design therefore needs suitable access points.
Pedestrian gates should match the surrounding fence appearance while providing convenient daily use.
A complete gate system may include:
- gate frame;
- mesh infill;
- hinges;
- locking hardware;
- support posts.
The gate should not be treated as a simple opening in the mesh.
Its structure and hardware need to match the expected usage frequency.
Surface Finish and Climate Considerations
Outdoor residential fencing needs to consider local weather conditions.
Canada has different climates across regions, including areas with snow, rain and seasonal temperature changes.
For this reason, the coating specification should match the project location.
Important details include:
- PVC coating quality;
- steel core protection;
- post coating;
- fitting corrosion resistance.
A complete fence system should consider all metal components, not only the visible mesh.
Installation Planning Before the Fence Arrives
For residential community projects, fence installation usually happens together with other construction activities.
The contractor may need to coordinate with:
- landscape installation;
- road construction;
- sidewalk areas;
- property entrances;
- drainage systems.
Because of this, the fence layout should be confirmed before production starts.
The supplier needs to understand where standard fence sections will be used and where special sections may be required.
For example, corners, gates and short boundary sections may need different arrangements compared with a straight fence line.
Early planning helps reduce site adjustments and keeps the finished fence appearance consistent.
Comparing PVC-Coated Chain Link Fence Quotations
When residential developers compare suppliers, the lowest price does not always represent the best value.
Different suppliers may quote different materials under a similar product description.
| Component | Items to Confirm |
|---|---|
| Chain Link Mesh | Wire diameter, mesh opening, height and PVC coating details |
| Steel Core | Core diameter and finished coated diameter |
| Posts | Section size, wall thickness, length and coating |
| Fittings | Tension bands, ties, rails and connection parts |
| Pedestrian Gates | Frame, hinges, locks and support structure |
| Packing | Roll quantity, component identification and shipment arrangement |
A quotation that only includes PVC-coated mesh may appear cheaper than a complete fence package.
Before selecting a supplier, buyers should confirm whether the offer includes the required posts, fittings and gates.
Special Sections Around Residential Properties
Residential communities usually contain more than straight fence sections.
The fence may connect with:
- building walls;
- parking areas;
- community entrances;
- landscape sections;
- shared facilities.
These locations may require special planning.
A standard mesh roll or panel may not always fit the final opening.
The supplier should receive the project layout before production so that special sections can be considered.
This reduces the need for cutting and modification during installation.
How BDFENCE Supports Residential Chain Link Fence Projects
When customers contact BDFENCE for residential fencing projects, we review the available project information first.
Useful documents may include:
- site drawings;
- BOQ documents;
- fence specifications;
- gate requirements;
- installation details.
Based on the project information, we can review:
- mesh specifications;
- wire diameter;
- PVC coating requirements;
- post system;
- fittings and gates.
The purpose is to make sure the quotation matches the customer’s actual project requirements.
For international buyers, clear specifications before production help reduce misunderstandings during installation.
Send Your Residential Fence Drawing or BOQ
If you are planning a residential community fence project, send your documents to Contact BDFENCE.
Useful information includes:
- fence length;
- required height;
- mesh opening;
- wire diameter;
- PVC coating requirements;
- gate locations;
- delivery destination.
Even if the project is still in the planning stage, the available drawings can help us understand the required fence system.
A clear specification creates a more accurate quotation.
What This Residential Community Example Shows
A PVC-coated chain link fence project involves more than selecting a colored mesh.
The final result depends on the relationship between mesh, wire diameter, coating, posts, fittings and access points.
For residential developments, the fence should provide a practical boundary while matching the appearance and daily use requirements of the community.
By confirming the full system before ordering, developers and contractors can reduce installation problems and improve project control.
Why Choose BDFENCE?
BDFENCE manufactures metal fencing products for overseas contractors, distributors and project buyers.
Our team has more than 30 years of experience in metal fence manufacturing.
The factory covers approximately 15,000㎡ with more than 190 employees and over 80 machines.
Our product range includes Chain Link Fence, 358 Fence and Steel Tubular Fence.
For residential and commercial projects, BDFENCE can supply chain link mesh, posts, fittings and gates according to confirmed project requirements.
FAQ
Why choose PVC-Coated Chain Link Fence for residential communities?
PVC-coated chain link fencing provides a finished appearance with color options while maintaining the open visibility and practical structure of chain link mesh.
What information should be confirmed before ordering PVC-coated chain link fence?
Buyers should confirm wire diameter, mesh opening, fence height, PVC coating details, steel core size, posts, fittings and gate requirements.
Is PVC-coated chain link fence suitable for cold climates?
It can be used in many outdoor environments when the coating system and steel components match the local climate and project requirements.
Does PVC coating replace galvanizing?
PVC coating and galvanizing are different protection methods. The correct solution depends on the project specification and required corrosion protection system.
Can BDFENCE supply posts and fittings with PVC-coated chain link mesh?
Yes. BDFENCE can supply chain link mesh together with posts, fittings, gates and related components according to customer requirements.
Can BDFENCE quote from an existing residential project BOQ?
Yes. Customers can send drawings, BOQ documents or technical specifications for quotation review.
