A sports facility does not use its fence in only one way.
Along one side, the fence may simply mark the property boundary. Around a playing area, it may need to contain balls. Near an entrance, it must work with pedestrian access. Behind a goal, additional fence height may also be required.

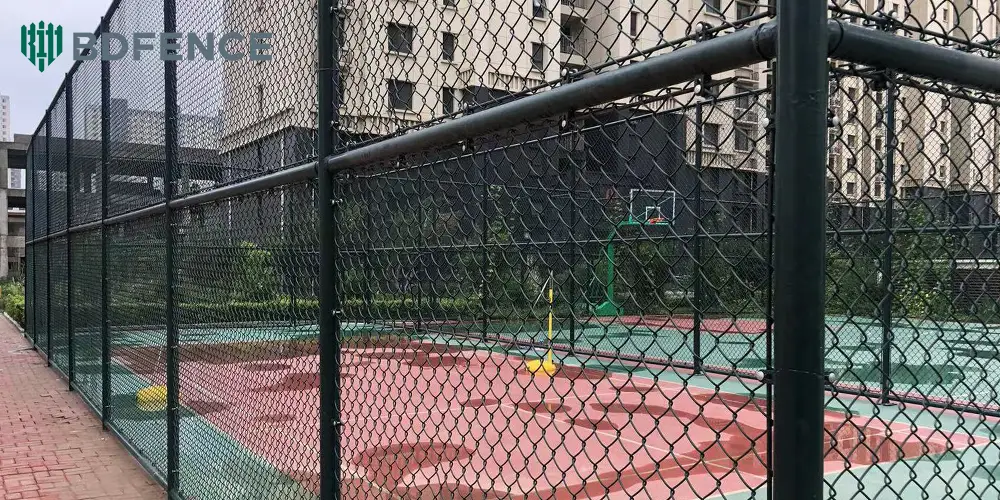

That was the starting point for this outdoor sports facility project in the United Kingdom.
Instead of treating the entire site as one continuous fence line, the perimeter was reviewed according to how each section would actually be used.
BDFENCE supplied a green PVC-coated Chain Link Fence system with mesh, steel posts, supporting components, gates, and installation accessories for the project.
Project Profile
| Project Item | Details |
|---|---|
| Country | United Kingdom |
| Sector | Outdoor Sports Facility |
| Product | PVC-Coated Chain Link Fence |
| Fence Color | Green |
| Main Use | Sports Area and Perimeter Enclosure |
| Access | Pedestrian and Maintenance Gates |
| Supply Scope | Mesh, Posts, Supporting Components, Gates and Accessories |
The Fence Height Did Not Need to Stay the Same Everywhere
One of the first project decisions concerned height.
A standard property boundary and the area behind a goal do not perform the same job. Therefore, specifying one fence height across every section would not necessarily provide the most practical solution.
The site was considered as several functional zones:
| Sports Facility Zone | Fence Function |
|---|---|
| General Boundary | Define and control the perimeter |
| Playing Area | Separate activity from surrounding space |
| Behind Goal Areas | Provide additional ball containment where required |
| Pedestrian Entrance | Provide controlled player and staff access |
| Maintenance Entrance | Allow access for equipment and site servicing |
This zone-based approach allowed the fence configuration to follow the sports facility rather than forcing the facility to follow one standard panel height.
Why Green PVC-Coated Chain Link Mesh Was Selected
The fence would remain highly visible around the playing area.
For that reason, the finish had both a technical and visual role.
Green PVC-coated mesh provided a colored outer surface that could sit more naturally beside grass, landscaping, and the outdoor sports environment.
At the same time, Chain Link Fence retained an open mesh structure. Players, staff, and visitors could see through the perimeter rather than facing a solid visual barrier.
For this type of project, that combination made more sense than treating the fence only as a property boundary.
The Important Wire Dimension Was Hidden Under the Green Coating
The visible PVC layer was not the only wire specification that mattered.
For PVC-coated Chain Link Fence, buyers need to distinguish between:
- Steel core wire diameter
- Finished diameter after coating
The finished diameter includes the PVC layer. Therefore, it should not automatically be interpreted as the diameter of the steel wire underneath.
For the sports facility, the wire construction had to be confirmed before production so the supplied mesh matched the required fence specification.
This is particularly important when quotations from different suppliers use different ways to describe coated wire.
Mesh Opening Was Reviewed Together with the Wire
Wire diameter alone does not define a Chain Link Fence.
The mesh opening changes the amount of wire in the fence and influences the overall mesh construction.
Therefore, BDFENCE reviewed the required mesh opening together with:
- Core wire diameter
- Finished coated diameter
- Fence height
- Roll dimensions
- Post configuration
This prevented one specification from being considered separately from the rest of the fence system.
The Posts Had to Follow the Changing Fence Loads
A taller fence section places different demands on its supporting structure than a lower general boundary.
For this reason, the post arrangement was not treated as an afterthought.
The project review considered:
- Line posts
- Terminal posts
- Corner positions
- Gate posts
- Post spacing
- Top support
- Tension components
Where fence height or site function changed, the supporting system also needed to remain suitable for that section.
Ball Containment Changed the Way Some Fence Sections Were Used
A normal perimeter fence mainly controls movement across a boundary.
A sports enclosure may also need to keep balls inside the playing zone.
This creates a different operating condition.
Sections near active play can receive repeated contact, while areas behind goals may require additional height depending on the sport and facility design.
Therefore, the sports use of the fence was considered when planning the mesh and supporting structure.
The Bottom of the Mesh Needed Attention Too
Sports fence specifications often focus on height because tall fencing is visually obvious.
However, the bottom edge also matters.
If the mesh is not correctly tensioned or the lower section is poorly installed, the fence line can lose its intended form.
Depending on the project design, the lower edge can be controlled with the specified tension system or other supporting arrangement.
This helps keep the mesh positioned along the fence line during normal use.
Pedestrian Access Was Part of the Fence Layout
Players and staff needed practical entry points into the facility.
Therefore, pedestrian gates were positioned as part of the fence plan rather than added after the mesh layout had been completed.
Each gate area required coordination between:
- Opening width
- Gate frame
- Gate posts
- Chain link infill
- Hinges
- Latch hardware
The green mesh also needed to visually connect with the surrounding PVC-coated fence.
A Wider Gate Served a Different Purpose
Not everyone enters a sports facility on foot.
Maintenance work may require access for mowing equipment, service carts, or other site equipment.
Therefore, a wider access point was included where required by the site plan.
This prevented the pedestrian entrance from being used for a job it was not designed to perform.
It also allowed the project to separate everyday user access from occasional maintenance access.
Color Coordination Extended Beyond the Mesh
Ordering green mesh does not automatically create a visually coordinated green fence.
Posts, gate frames, rails, and visible components also affect the final appearance.
For this reason, the project finish schedule was reviewed across the complete visible fence system.
This was particularly important around gates, where several steel components meet within a relatively small area.
Factory Inspection Focused on Installation Compatibility
Before packing, BDFENCE checked the individual components as parts of one installation system.
| Item | Inspection Focus |
|---|---|
| Chain Link Mesh | Mesh opening, dimensions and overall mesh condition |
| Coated Wire | Confirmed wire specification and visible coating condition |
| Posts | Dimensions, wall thickness and required type |
| Gate Frames | Dimensions, alignment and infill compatibility |
| Fittings | Type and matching application |
| Accessories | Quantity and packing category |
This reduced the risk of sending individually correct parts that did not work together efficiently on site.
Roll Mesh and Steel Components Needed Different Packing Logic
Chain link mesh, posts, gates, and small fittings do not have the same shape or handling requirements.
Therefore, the export packing plan separated them by product type.
Mesh rolls were prepared for transport, steel posts were bundled, and gate components were organized separately.
Smaller fittings and installation accessories were grouped so they could be identified more easily after arrival.
For the installer, clear component organization reduces unnecessary sorting before fence installation begins.
Installation Started with the Gates, Corners and End Points
For a Chain Link Fence system, the critical positions should be identified before long mesh runs are tensioned.
The site team first established:
- Fence line
- Corner points
- End points
- Pedestrian gates
- Maintenance gate
- Changes in fence height
Posts could then be positioned according to the approved layout.
After the supporting structure was ready, the mesh was installed and tensioned section by section.
What the Sports Facility Gained from the Completed System
The completed Chain Link Fence did more than surround the site.
| Project Need | Fence Response |
|---|---|
| Visible Sports Perimeter | Green PVC-coated mesh |
| Open Sightlines | Chain link mesh construction |
| Different Site Functions | Fence configuration by zone |
| Ball Control | Higher sections where required by the facility design |
| Daily User Access | Pedestrian gate system |
| Maintenance Access | Wider equipment entrance |
| Complete Installation | Mesh, posts, gates, fittings and accessories supplied together |
Most importantly, the project did not treat “PVC-coated Chain Link Fence” as one generic product.
The mesh, wire construction, height, posts, gates, and finish were considered according to how the sports facility would actually use them.
What Sports Facility Buyers Should Put in the RFQ
A request such as “Please quote green Chain Link Fence for a football field” leaves too many decisions open to supplier interpretation.
A more useful RFQ should include the available technical information:
- Sports facility type
- Total fence length
- Required fence heights by area
- Mesh opening
- Steel core wire diameter
- Finished PVC-coated diameter
- PVC color
- Line post specification
- Terminal post specification
- Post spacing
- Top support requirement
- Bottom tension requirement
- Pedestrian gate sizes and quantities
- Maintenance gate sizes and quantities
- Project drawings or BOQ
- Destination port
If different areas require different heights, mark them on the fence layout or BOQ rather than requesting one specification for the entire site.
Why Choose BDFENCE for Sports Chain Link Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for sports facilities, commercial properties, industrial sites, warehouses, infrastructure projects, and general perimeter applications.
Our project supply can include:
- PVC-coated Chain Link Fence mesh
- Galvanized Chain Link Fence mesh
- Line posts
- Terminal and corner posts
- Top rails and supporting components
- Tension components
- Pedestrian gates
- Vehicle or maintenance gates
- Fence fittings and accessories
Buyers can send BDFENCE a sports facility layout, BOQ, fence schedule, or gate drawing for technical review and quotation.
Project Takeaway
The most important decision in this UK sports facility project was not simply choosing green PVC-coated mesh.
It was matching each section of the fence to what happened beside it.
General boundaries defined the site. Playing-area sections supported sports use. Higher sections provided additional containment where required. Pedestrian gates handled daily access, while a wider entrance supported maintenance.
That is the practical advantage of treating Chain Link Fence as a complete site system rather than purchasing mesh rolls in isolation.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Why use PVC-coated Chain Link Fence around a sports facility?
PVC-coated mesh provides a colored outer surface while retaining the open structure of Chain Link Fence. Green is often suitable for sports grounds and landscaped outdoor areas where the appearance of the perimeter matters.
What wire diameter should be specified for PVC-coated sports fencing?
The required diameter depends on the project design. Buyers should clearly distinguish the steel core wire diameter from the finished diameter after PVC coating rather than specifying only an ambiguous coated-wire size.
Does every section of a sports fence need the same height?
Not necessarily. General boundaries, playing areas, and sections behind goals can have different functions. The required heights should follow the approved sports facility design and project specification.
Can BDFENCE supply tall Chain Link Fence for ball containment?
BDFENCE can manufacture Chain Link Fence systems in different heights and coordinate the mesh with suitable posts and supporting components according to the confirmed project specification.
Can the gates match the PVC-coated fence?
Yes. Pedestrian, maintenance, and vehicle gates can be supplied with matching chain link infill and coordinated finishes according to project requirements.
Can BDFENCE quote from a sports field drawing?
Yes. Send the site layout, fence heights, mesh and wire requirements, post specifications, gate schedule, BOQ, and destination information for review and quotation.
