Project Overview

Water treatment facilities require reliable perimeter fencing to protect pumping stations, treatment equipment, chemical storage areas, maintenance zones, control buildings, and other restricted operational sections.

Because these facilities often cover large sites, the fencing system must provide a practical balance between security, visibility, corrosion resistance, installation efficiency, and total project cost.

For a new municipal water treatment plant development, the project contractor required a complete perimeter fencing system capable of protecting the facility while supporting vehicle access, employee entry, maintenance operations, and security monitoring.

After reviewing the project drawings, fence layout, access requirements, and technical specifications, BDFENCE supplied a customized Chain Link Fence system for the project.

The complete supply package included galvanized Chain Link Fence mesh, steel posts, reinforced corner posts, pedestrian gates, vehicle gates, fence fittings, tension components, and installation accessories.

Project Highlights

Customer Background

The customer was an EPC contractor responsible for civil works and external infrastructure for the water treatment plant.

The facility included:

• Water treatment buildings
• Pumping stations
• Equipment areas
• Maintenance workshops
• Chemical storage zones
• Control buildings
• Vehicle service roads

The procurement team required a fence manufacturer capable of supporting both large-volume production and complete system supply.

The customer wanted to avoid sourcing mesh, posts, gates, and fence fittings from different manufacturers because component mismatches could create installation delays.

BDFENCE was selected based on its Chain Link Fence manufacturing capability, customization support, quality control process, export packaging, and project supply experience.

What the Project Required

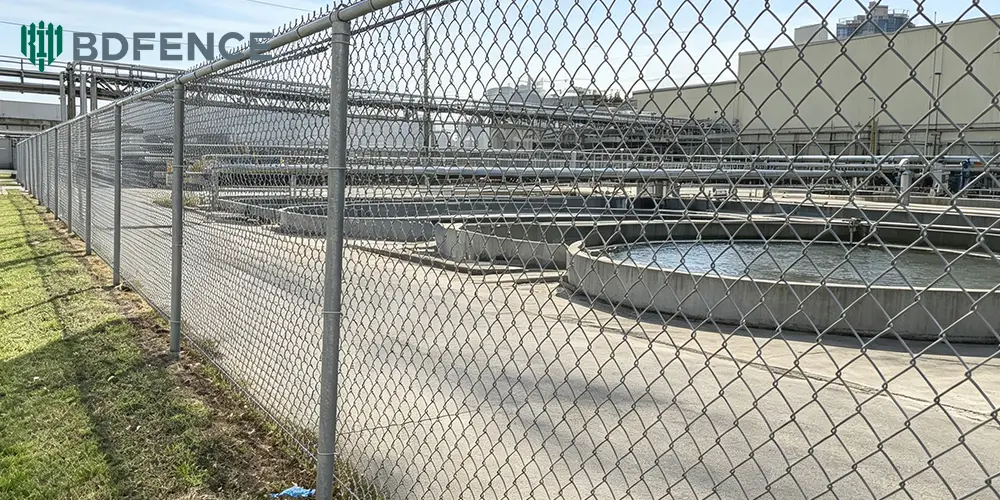

Long-Distance Perimeter Protection

The water treatment plant required approximately 10.5 kilometers of continuous perimeter fencing.

The fence needed to establish clear boundaries around:

• Treatment equipment
• Pumping infrastructure
• Maintenance areas
• Utility zones
• Restricted technical sections

For a perimeter of this scale, the customer needed a fencing system that could be installed efficiently without creating unnecessary material complexity.

Visibility for Security Monitoring

Security teams required clear observation along important perimeter sections.

The Chain Link Fence needed to support:

• CCTV monitoring
• Security patrols
• Routine facility inspections
• Vehicle observation

The open mesh structure provided physical separation while maintaining visibility through the perimeter.

Corrosion Resistance

Water treatment facilities can involve humid environments and long-term outdoor exposure.

The customer therefore placed particular emphasis on:

• Wire corrosion protection
• Steel post protection
• Gate durability
• Fence fittings durability
• Low long-term maintenance requirements

A heavy hot dip galvanized fencing system was selected according to the project requirements.

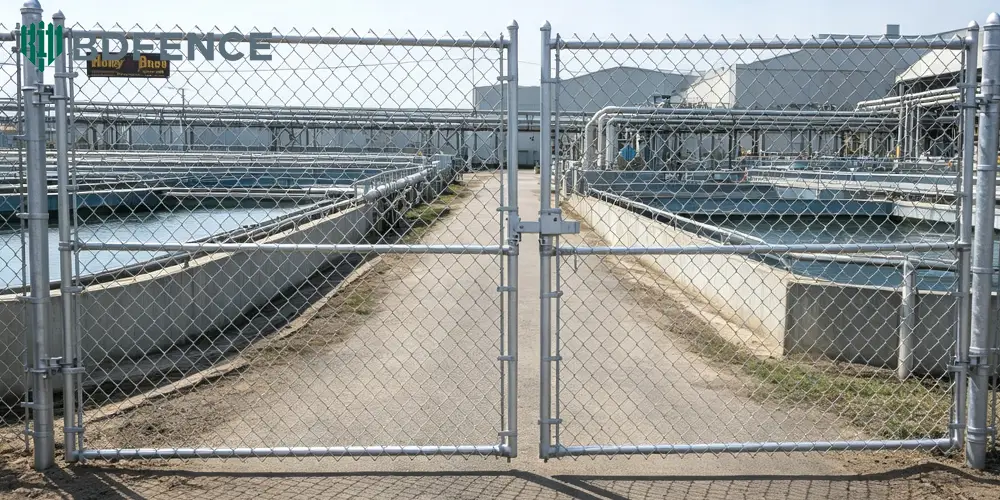

Controlled Vehicle Access

Multiple vehicle gates were required for:

• Maintenance vehicles
• Equipment deliveries
• Service trucks
• Emergency access

These gates needed to integrate with the main perimeter system and use compatible posts and fittings.

Controlled Personnel Access

Pedestrian access points were required for:

• Plant operators
• Maintenance teams
• Security personnel
• Authorized contractors
• Technical visitors

Why Chain Link Fence Was Selected

Cost-Effective for a 10.5 km Perimeter

For large infrastructure facilities, total perimeter length has a significant impact on project cost.

Chain Link Fence was selected because it offered an effective balance between:

• Material cost
• Installation efficiency
• Visibility
• Durability
• Large-area coverage

Flexible Installation

The project perimeter included long straight sections as well as changes in direction and terrain.

The flexible woven mesh structure made Chain Link Fence suitable for adapting to different site conditions while maintaining a continuous perimeter.

Easy Integration with Gates

The system could be coordinated with both pedestrian and vehicle gates using matching mesh infill and suitable gate posts.

Good Visibility

The open mesh structure allowed security teams to maintain visual observation across the perimeter without using a solid barrier.

Key Project Challenges

Challenge 1: Maintaining Specification Consistency Across 10.5 km

A project of this size required thousands of individual components.

Small differences between production batches could affect installation efficiency.

BDFENCE therefore controlled:

• Wire diameter
• Mesh opening
• Roll dimensions
• Post dimensions
• Surface treatment
• Fence fittings

Challenge 2: Multiple Post Configurations

The complete perimeter required different structural posts for different locations.

These included:

• Line posts
• Corner posts
• Terminal posts
• Gate posts

Correct production, labeling, and packaging were important to ensure that the installation team could identify each component quickly after delivery.

Challenge 3: Managing Thousands of Fence Fittings

A long Chain Link Fence perimeter requires a large number of small connection and tensioning components.

The project included:

• Tension bars
• Tension bands
• Brace bands
• Clamps
• Bolts and nuts
• Post caps
• Gate hardware

Missing small accessories could stop installation even if all fence rolls and posts had already arrived.

Challenge 4: Coordinating Delivery with Construction Progress

The customer required fence materials according to the civil construction schedule.

Production and shipment therefore needed to coordinate:

• Material preparation
• Bulk fence production
• Gate manufacturing
• Quality inspection
• Export packaging
• Container loading
• Delivery schedule

BDFENCE Chain Link Fence Solution

After reviewing the approved project requirements, BDFENCE prepared a complete Chain Link Fence package for the water treatment plant.

The supplied system included:

• 2,400 mm high Chain Link Fence mesh
• Heavy hot dip galvanized steel wire
• Line posts
• Reinforced corner posts
• Terminal posts
• Gate posts
• Pedestrian gates
• Vehicle gates
• Fence fittings
• Tension components
• Installation accessories

Customized Chain Link Mesh

The fence mesh was manufactured according to the confirmed 50 × 50 mm opening and 4.0 mm wire specification.

Production focused on maintaining consistent:

• Mesh geometry
• Wire diameter
• Roll dimensions
• Edge condition
• Surface finish

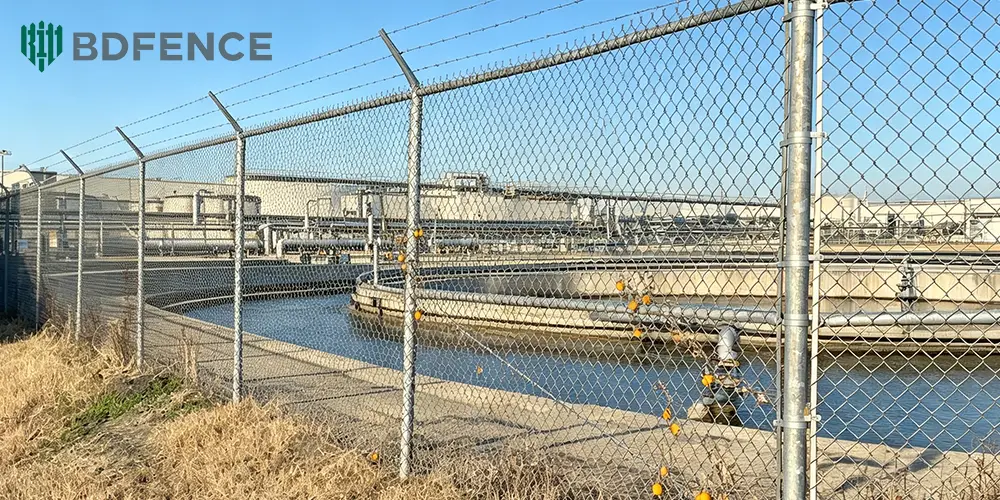

Complete Steel Post System

Different post types were supplied according to their positions in the perimeter layout.

This helped the contractor maintain consistent structural support across straight sections, corners, fence ends, and access points.

Customized Access Gates

Pedestrian and vehicle gates were manufactured according to the approved gate schedule.

Matching Chain Link Fence infill helped maintain a consistent appearance across the perimeter.

Complete Fence Fittings Package

BDFENCE supplied the required tensioning, fixing, and gate components together with the main fence system.

Providing the major components from one manufacturer helped reduce:

• Compatibility problems
• Missing accessory risks
• Supplier coordination workload
• Installation delays

Technical Specifications

The Chain Link Fence system was manufactured according to the approved water treatment plant perimeter drawings, technical specifications, gate schedule, and site requirements.

Manufacturing Process

For a 10.5-kilometer infrastructure perimeter, production consistency was one of the key requirements. Mesh rolls, posts, gates, and fence fittings needed to work together as one coordinated system after arriving at the project site.

Raw Material Inspection

Before production started, the steel wire and structural steel materials were checked against the confirmed project requirements.

Inspection focused on:

• Wire diameter
• Steel tube dimensions
• Post wall thickness
• Material condition
• Required quantities
• Specification consistency

Chain Link Mesh Production

Steel wire was formed and woven into the specified diamond mesh configuration using Chain Link Fence production equipment.

Production control focused on:

• 50 × 50 mm mesh opening
• 4.0 mm wire diameter
• Consistent mesh geometry
• Roll height
• Roll length
• Edge configuration

Maintaining consistent mesh dimensions was particularly important because the project required a large quantity of fence rolls produced across multiple batches.

Steel Post Fabrication

Posts were manufactured according to their intended positions within the perimeter.

Different post configurations were prepared for:

• Long straight fence sections
• Fence corners
• Fence termination points
• Pedestrian gates
• Vehicle gates

Post dimensions, connection positions, and surface condition were checked before packaging.

Gate Manufacturing

The project required 24 pedestrian gates and 16 vehicle gates at different access points throughout the facility.

Gate manufacturing included:

• Steel frame fabrication
• Chain link mesh infill
• Welding
• Hinge preparation
• Locking component preparation
• Gate post coordination

Each gate configuration was manufactured according to the approved gate schedule.

Hot Dip Galvanized Corrosion Protection

Long-term outdoor exposure was an important consideration for the water treatment plant perimeter.

The project therefore specified a galvanized finish for the main fencing components according to the approved requirements.

The corrosion protection system was intended to support:

• Outdoor exposure
• Humid operating conditions
• Reduced corrosion risk
• Long-term perimeter use
• Lower maintenance requirements

For international projects, the required galvanizing specification should always be confirmed according to the environmental conditions and project documentation.

Quality Control

Quality inspection covered the complete Chain Link Fence system rather than only the woven mesh.

Chain Link Mesh Inspection

Production batches were checked for:

• Wire diameter
• Mesh opening
• Fence height
• Roll dimensions
• Mesh consistency
• Edge condition
• Surface condition

Steel Post Inspection

Posts were inspected for:

• Post dimensions
• Wall thickness
• Post length
• Straightness
• Surface treatment
• Connection compatibility

Fence Fittings Inspection

Although fence fittings represent a relatively small percentage of the overall shipment volume, they are essential for completing the installation.

BDFENCE checked the required quantities and specifications of:

• Tension bars
• Tension bands
• Brace bands
• Rail ends
• Clamps
• Post caps
• Tie components
• Bolts and nuts
• Gate hinges
• Gate locking hardware

Accessories were organized according to the project supply list before shipment.

Gate Inspection

Pedestrian and vehicle gates were checked for:

• Overall dimensions
• Frame alignment
• Welding condition
• Mesh infill
• Hinge positions
• Opening operation
• Locking component compatibility
• Surface condition

Final Pre-Shipment Inspection

Before container loading, the project team verified the main components against the confirmed order and packing list.

Final checks included:

• Chain link mesh quantities
• Post quantities
• Gate quantities
• Fence fittings quantities
• Product identification
• Packaging condition

Export Packaging

Packaging was planned not only to protect the products during international transportation but also to help the contractor identify and distribute materials after arrival.

Chain Link Fence Roll Packaging

Chain link mesh was rolled and secured for transportation according to the shipment plan.

The packaging arrangement helped reduce:

• Mesh deformation during handling
• Uncontrolled roll movement
• Loading difficulties
• Unloading difficulties

Steel Post Packaging

Steel posts were bundled according to type and specification.

Separate identification helped distinguish:

• Line posts
• Corner posts
• Terminal posts
• Gate posts

Fence Fittings Packaging

Small fence fittings were packed separately and identified according to their intended use.

This helped the contractor manage:

• Quantity verification
• Material storage
• Distribution to installation teams
• Installation preparation

Gate Packaging

Pedestrian and vehicle gates were protected separately because of their larger dimensions and hardware requirements.

Container Loading and International Delivery

A 10.5-kilometer fencing package required careful container planning because the shipment included mesh rolls, long steel posts, gates, and many different accessory packages.

The loading plan considered:

• Mesh roll dimensions
• Post lengths
• Gate dimensions
• Fence fittings packages
• Weight distribution
• Loading sequence
• Container space utilization

The objective was to use container space efficiently while reducing unnecessary movement and making destination unloading more practical.

Installation Process

After delivery, the local construction team installed the Chain Link Fence according to the approved perimeter drawings and foundation design.

Step 1: Fence Line Setting Out

The installation team first confirmed:

• Perimeter alignment
• Corner locations
• Fence termination points
• Pedestrian gate positions
• Vehicle gate positions
• Post spacing

Step 2: Post Installation

Line posts, corner posts, terminal posts, and gate posts were installed according to their designated positions.

The contractor checked:

• Post spacing
• Vertical alignment
• Foundation stability
• Corner positioning
• Gate opening dimensions

Step 3: Tension System Installation

The required rails, braces, tension components, and associated fence fittings were installed according to the approved fence configuration.

Special attention was given to corners, terminations, and gate locations where additional support was required.

Step 4: Chain Link Mesh Installation

The mesh rolls were positioned along the fence line before being tensioned and connected to the supporting system.

Installation included:

• Mesh unrolling
• Vertical positioning
• Mesh tensioning
• Tension bar installation
• Tension band fixing
• Intermediate post connections

Step 5: Gate Installation

Pedestrian and vehicle gates were installed at the designated controlled access points.

Final gate checks included:

• Gate alignment
• Opening clearance
• Hinge operation
• Locking components
• Gate post stability
• Connection with adjacent fence sections

Step 6: Final Perimeter Inspection

After installation, the contractor inspected the completed perimeter for:

• Fence alignment
• Mesh tension
• Post stability
• Fence fitting connections
• Gate operation
• Visible surface damage

Project Results

After completion, the water treatment plant achieved approximately 10.5 kilometers of continuous perimeter fencing around the main operational areas.

The completed Chain Link Fence system provided:

• Clear perimeter boundary control
• Protection of restricted operational zones
• Open visibility for security monitoring
• Controlled pedestrian access
• Controlled vehicle access
• Flexible coverage across the large site
• Corrosion protection for outdoor use

Efficient Coverage of a Large Perimeter

The roll-based Chain Link Fence system allowed the contractor to cover long fence sections without relying on thousands of individual rigid panels.

This made the system particularly practical for the 10.5-kilometer infrastructure perimeter.

Improved Access Management

The combination of pedestrian and vehicle gates created designated access points for employees, contractors, maintenance vehicles, equipment deliveries, and emergency operations.

Maintained Security Visibility

The open mesh structure allowed security personnel to observe important areas through the perimeter while maintaining a clear physical boundary.

Simplified Project Procurement

The customer sourced the major fencing components as one coordinated package:

• Chain link mesh
• Steel posts
• Pedestrian gates
• Vehicle gates
• Fence fittings
• Tension components
• Installation accessories

This reduced the need to coordinate multiple suppliers and helped improve component compatibility during installation.

Why This Chain Link Fence Solution Worked

Suitable for Long Infrastructure Perimeters

With more than 10 kilometers of boundary to protect, the project required a fencing system suitable for efficient large-area coverage.

Flexible for Different Site Conditions

The woven mesh structure allowed the system to accommodate different perimeter sections and gradual changes in site conditions.

Compatible with Multiple Access Points

Pedestrian and vehicle gates could be integrated into the same perimeter system using matching mesh, suitable gate posts, and compatible fence fittings.

Good Balance of Security and Visibility

The fence established a physical boundary while maintaining open visibility for security monitoring and routine plant inspection.

Complete System Supply Reduced Procurement Complexity

Supplying mesh, posts, gates, tension components, and fittings together helped reduce compatibility risks and simplified material coordination.

Why Choose BDFENCE for Chain Link Fence Projects?

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures customized Chain Link Fence systems for international EPC contractors, infrastructure developers, distributors, industrial companies, and project procurement teams.

Complete Chain Link Fence System Supply

BDFENCE can supply:

• Galvanized Chain Link Fence
• PVC-Coated Chain Link Fence
• Steel posts
• Top rails
• Brace components
• Tension components
• Fence fittings
• Pedestrian gates
• Vehicle gates
• Installation accessories

Customized Project Manufacturing

Chain Link Fence systems can be customized according to:

• Fence height
• Mesh opening
• Wire diameter
• Roll dimensions
• Post specifications
• Surface treatment
• Gate dimensions
• Fence fittings requirements

Support for Drawings and BOQ

Contractors can provide project drawings, BOQ documents, technical specifications, gate schedules, and other requirements for review before quotation and production.

Bulk Production and Export Support

For large international infrastructure projects, BDFENCE can support:

• Technical specification confirmation
• Production planning
• Quality inspection
• Export packaging
• Container loading
• Shipping documentation
• International shipment coordination

Conclusion

This water treatment plant project demonstrates why Chain Link Fence remains a practical perimeter solution for large infrastructure facilities.

For approximately 10.5 kilometers of perimeter, the project required more than woven mesh. Steel posts, tension components, pedestrian gates, vehicle gates, fence fittings, corrosion protection, packaging, and delivery all needed to function as one coordinated system.

By supplying a customized complete Chain Link Fence package, BDFENCE helped the contractor simplify procurement while supporting efficient installation across the large facility perimeter.

For water treatment plants, utility facilities, industrial sites, logistics centers, infrastructure developments, sports facilities, and other large perimeter projects, BDFENCE can manufacture Chain Link Fence systems according to project drawings and technical requirements.

Contact BDFENCE for Your Chain Link Fence Project

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)

Website: https://bd-fence.com/

Phone: +86 18703182863

WhatsApp: +86 18703287372

Email: info@bd-fence.com

FAQ

Why is Chain Link Fence suitable for water treatment plants?

Chain Link Fence can provide long-distance perimeter coverage, open visibility, flexible installation, controlled access integration, and competitive total project cost, making it suitable for many water treatment and utility facilities.

What type of Chain Link Fence is suitable for outdoor infrastructure projects?

Galvanized and coated Chain Link Fence systems are commonly considered for outdoor projects. The correct wire, coating, post, and fitting specifications should be selected according to the project environment and technical requirements.

Can BDFENCE supply a complete Chain Link Fence system?

Yes. BDFENCE can supply chain link mesh, steel posts, rails, tension components, fence fittings, pedestrian gates, vehicle gates, and installation accessories as a coordinated system.

Can Chain Link Fence be customized for large infrastructure projects?

Yes. Fence height, mesh opening, wire diameter, roll dimensions, post specifications, surface treatment, gates, and fence fittings can be customized according to project requirements.

Can BDFENCE manufacture according to project drawings and BOQ?

Yes. EPC contractors and project buyers can provide drawings, BOQ documents, technical specifications, gate schedules, and other project requirements for quotation and production review.

What information is required for a Chain Link Fence quotation?

For a project quotation, provide the total fence length, fence height, mesh opening, wire diameter, surface treatment, post specifications, gate quantities and dimensions, fence fittings requirements, and destination. Project drawings and BOQ documents are also helpful.

Can BDFENCE supply pedestrian and vehicle gates?

Yes. Pedestrian and vehicle gates can be manufactured with matching Chain Link Fence infill and supplied together with gate posts, hinges, locking components, and other required fittings.
