Project Overview

Data centers are critical infrastructure facilities where physical perimeter security plays an important role in protecting buildings, equipment, power systems, and restricted operational areas.

For a new large-scale data center development in Southeast Asia, the project contractor required a perimeter fencing system that could provide strong anti-climb characteristics while maintaining visibility for CCTV monitoring and security patrols.

After reviewing the project drawings, perimeter layout, access points, and security requirements, BDFENCE supplied a customized 358 Security Fence system for the facility.

The complete package included 358 welded mesh panels, heavy-duty steel posts, security fence fittings, anti-tamper fasteners, pedestrian gates, vehicle gates, and installation accessories.

The objective was not simply to create a boundary. The fencing system needed to become part of the data center’s layered physical security strategy.

Project Highlights

Customer Background

The customer was an EPC contractor responsible for part of the civil works and perimeter security infrastructure for the data center development.

Because the site contained critical digital infrastructure, backup power systems, technical buildings, and controlled operational zones, the perimeter fencing package required more than a standard commercial fence.

The procurement team required a manufacturer capable of supporting:

• High-security fence manufacturing
• Large-volume production
• Consistent panel specifications
• Customized post configurations
• Security gate manufacturing
• Complete fence fittings supply
• Export packaging
• International shipment coordination

The customer also wanted the panels, posts, gates, and security fittings to be supplied as a coordinated system to reduce compatibility problems during installation.

Why the Data Center Needed a High-Security Perimeter

Data centers differ from ordinary commercial buildings because unauthorized physical access can create significant operational and security risks.

The perimeter needed to protect several sensitive areas.

Critical IT Infrastructure

The facility contained buildings and systems supporting critical digital operations.

The perimeter fence therefore formed the first physical barrier separating controlled areas from external access.

Power and Backup Systems

Data center operations depend heavily on reliable electrical infrastructure.

Restricted areas included equipment associated with:

• Electrical distribution
• Backup power
• Cooling infrastructure
• Technical support systems

Controlled Personnel Access

Different access permissions applied to:

• Employees
• Security personnel
• Maintenance teams
• Contractors
• Visitors

The perimeter design therefore needed to coordinate physical fencing with controlled pedestrian and vehicle access points.

Continuous Security Monitoring

The security team required clear observation along the perimeter for CCTV monitoring and routine patrols.

A solid wall could restrict visibility in some areas, while a conventional large-opening fence did not match the project’s preferred perimeter security design.

The small welded mesh structure of 358 Fence provided a useful combination of physical security and visibility.

Why 358 Security Fence Was Selected

After evaluating different perimeter fencing options, 358 Security Fence was selected for the project’s high-security zones.

Small Anti-Climb Mesh Opening

The 76.2 × 12.7 mm mesh configuration provides very limited conventional hand and foot holds compared with many larger-opening fencing systems.

This made the fence suitable for perimeter sections where climbing resistance was an important security consideration.

Rigid Welded Construction

358 Fence panels use welded horizontal and vertical wires to create a rigid panel structure.

When combined with suitable steel posts and security fence fittings, the system provides a consistent physical barrier around the protected perimeter.

Visibility for CCTV Monitoring

Although the mesh opening is narrow, the fence maintains an open structure.

This supports:

• CCTV observation
• Security patrols
• Perimeter inspection
• Visual monitoring of restricted zones

Professional Security Appearance

The data center developer also required the perimeter to maintain a clean and professional appearance.

The powder-coated 358 Fence system provided a uniform security-focused finish across the facility.

Key Project Challenges

Challenge 1: Maintaining Consistency Across 6.8 km of Perimeter

The project required thousands of fence panels and posts.

Small production differences repeated across such a large quantity could create installation problems.

BDFENCE therefore controlled:

• Mesh opening
• Wire diameter
• Panel dimensions
• Welding quality
• Post dimensions
• Coating appearance

Challenge 2: Security-Sensitive Access Points

The perimeter included multiple pedestrian and vehicle entrances.

These locations required coordinated:

• Gate frames
• Heavy-duty gate posts
• Hinges
• Locking components
• Fence connections
• Access control preparation

Gate specifications were therefore confirmed together with the main fence system rather than being treated as a separate purchase.

Challenge 3: Complete Fence Fittings Management

Thousands of security connection components were required across the perimeter.

The project included:

• Security brackets
• Panel clamps
• Anti-tamper fasteners
• Post caps
• Gate fittings
• Installation hardware

Missing even a relatively small quantity of specialized fittings could interrupt installation progress.

Challenge 4: International Project Delivery

The contractor needed production and shipment to match the site construction schedule.

BDFENCE therefore coordinated:

• Production planning
• Batch inspection
• Packaging
• Component labeling
• Container loading
• Shipping documentation

BDFENCE 358 Security Fence Solution

Based on the approved project requirements, BDFENCE prepared a complete 358 Security Fence package rather than supplying only welded mesh panels.

The system included:

• 358 welded mesh fence panels
• Heavy-duty line posts
• Corner posts
• Terminal posts
• Gate posts
• Security fence fittings
• Anti-tamper fasteners
• Pedestrian security gates
• Vehicle security gates
• Installation accessories

Customized 358 Fence Panels

The primary perimeter panels were manufactured with a 2,400 mm fence height and the specified 76.2 × 12.7 mm mesh configuration.

Production focused on maintaining consistent:

• Panel dimensions
• Mesh geometry
• Wire positioning
• Welding quality
• Surface finish

Heavy-Duty Steel Post System

Different post configurations were prepared according to their positions within the perimeter.

These included:

• Standard line posts
• Corner posts
• Terminal posts
• Heavy-duty gate posts

Security Fence Fittings

BDFENCE supplied compatible fence fittings for connecting the 358 panels to the supporting posts.

The fittings package included security-focused connection components and fasteners according to the approved fence configuration.

Supplying panels, posts, and fence fittings together helped reduce compatibility risks during installation.

Customized Security Gates

Pedestrian and vehicle gates were manufactured according to the approved access schedule.

Gate configurations were coordinated with the surrounding 358 Fence to maintain consistent perimeter security and appearance.

Technical Specifications

The 358 Security Fence system was manufactured according to the approved data center perimeter design and project requirements.

Manufacturing Process

For a high-security data center project involving thousands of fence panels, production consistency was one of the most important manufacturing requirements.

BDFENCE organized the production process around the approved technical specification to ensure that panels, posts, gates, and fence fittings could be installed as one coordinated perimeter system.

Raw Material Inspection

Before production, steel wire and structural steel materials were checked against the confirmed project requirements.

Inspection focused on:

• Wire diameter
• Steel tube dimensions
• Wall thickness
• Material condition
• Required quantities
• Specification consistency

358 Welded Mesh Panel Production

The horizontal and vertical wires were positioned according to the required 76.2 × 12.7 mm mesh configuration before resistance welding.

Production control focused on:

• Mesh opening consistency
• Wire positioning
• Panel dimensions
• Welding consistency
• Panel flatness

Because 358 Fence uses closely spaced wires, maintaining consistent mesh geometry across every panel was particularly important for both appearance and installation.

Steel Post Fabrication

Steel posts were manufactured according to their intended position within the data center perimeter.

Different configurations included:

• Line posts
• Corner posts
• Terminal posts
• Security gate posts

Post dimensions and connection positions were checked to ensure compatibility with the supplied 358 Fence panels and security fittings.

Security Gate Fabrication

The project required both pedestrian and vehicle access points.

Each gate was manufactured according to the approved dimensions and included compatible 358 mesh infill to maintain a consistent security appearance across the perimeter.

Surface Treatment

Because the fence system would remain outdoors throughout its service life, corrosion protection was an important part of the project specification.

The supplied system used galvanized steel combined with a powder-coated finish.

Powder-Coated Finish

RAL 6005 was selected to provide a consistent appearance across the fence panels, posts, and gate structures.

The coating system was intended to support:

• Outdoor corrosion protection
• Weather resistance
• Consistent appearance
• Long-term perimeter use

Quality Control

Quality inspection covered the complete security fence system rather than only the welded mesh panels.

358 Fence Panel Inspection

Panel inspection included:

• Panel height
• Panel width
• Mesh opening
• Wire diameter
• Weld condition
• Panel flatness
• Surface condition

Steel Post Inspection

Posts were checked for:

• Dimensions
• Length
• Straightness
• Connection positions
• Surface finish
• Compatibility with panels

Security Fence Fittings Inspection

Fence fittings are relatively small components, but they play an important role in connecting the panels and posts throughout a high-security perimeter.

The inspection covered:

• Security brackets
• Panel clamps
• Anti-tamper fasteners
• Bolts
• Post caps
• Gate hardware
• Required quantities

Components were organized according to the project supply list before packaging.

Security Gate Inspection

Pedestrian and vehicle gates were checked for:

• Frame dimensions
• Mesh infill
• Welding condition
• Hinge positions
• Opening operation
• Locking component compatibility
• Surface finish

Final Pre-Shipment Inspection

Before loading, the project team verified the major shipment components against the approved order.

Final checks included:

• Fence panel quantities
• Post quantities
• Gate quantities
• Fence fittings
• Product identification
• Packaging condition

Export Packaging

For an international high-security fencing project, packaging needed to protect the products during transportation while also making material identification easier after arrival.

358 Fence Panel Packaging

Fence panels were stacked and secured on suitable export pallets with protective materials between contact areas where required.

The packaging arrangement helped reduce:

• Panel movement
• Surface contact damage
• Loading damage
• Unloading difficulties

Steel Post Packaging

Posts were bundled according to specification and intended use.

Different bundles helped distinguish:

• Line posts
• Corner posts
• Terminal posts
• Gate posts

Fence Fittings Packaging

Security brackets, anti-tamper fasteners, post caps, gate hardware, and other small accessories were packed separately and identified according to their application.

This helped the contractor organize materials during installation and reduced the risk of missing small components.

Security Gate Packaging

Customized pedestrian and vehicle gates were protected separately because of their dimensions and hardware requirements.

Container Loading and International Delivery

The loading plan was prepared according to the dimensions, weight, and packaging configuration of the complete 358 Fence system.

Container planning considered:

• Fence panel dimensions
• Post lengths
• Gate dimensions
• Accessory cartons
• Weight distribution
• Loading sequence
• Container space utilization

The objective was to protect the products while maintaining efficient container utilization and practical unloading at the destination.

Installation Process

After delivery, the local project team installed the 358 Security Fence according to the approved perimeter drawings and site requirements.

Step 1: Perimeter Layout

Before post installation, the contractor confirmed:

• Fence alignment
• Corner positions
• Security zones
• Pedestrian gate locations
• Vehicle entrance locations

Step 2: Post Installation

Steel posts were installed according to the approved spacing and foundation design.

The installation team checked:

• Post spacing
• Vertical alignment
• Foundation stability
• Connection orientation

Step 3: 358 Fence Panel Installation

After the posts were secured, the 358 welded mesh panels were positioned and connected using the specified security fence fittings.

Installation included:

• Panel positioning
• Vertical alignment
• Security bracket installation
• Fastener installation
• Connection inspection

Step 4: Security Gate Installation

Pedestrian and vehicle gates were installed at the designated controlled access points.

Final gate checks included:

• Gate alignment
• Opening clearance
• Hinge operation
• Locking components
• Connection with adjacent 358 Fence sections

Step 5: Final Perimeter Inspection

After installation, the contractor inspected the completed fence line for alignment, connections, gate operation, and visible installation issues.

Project Results

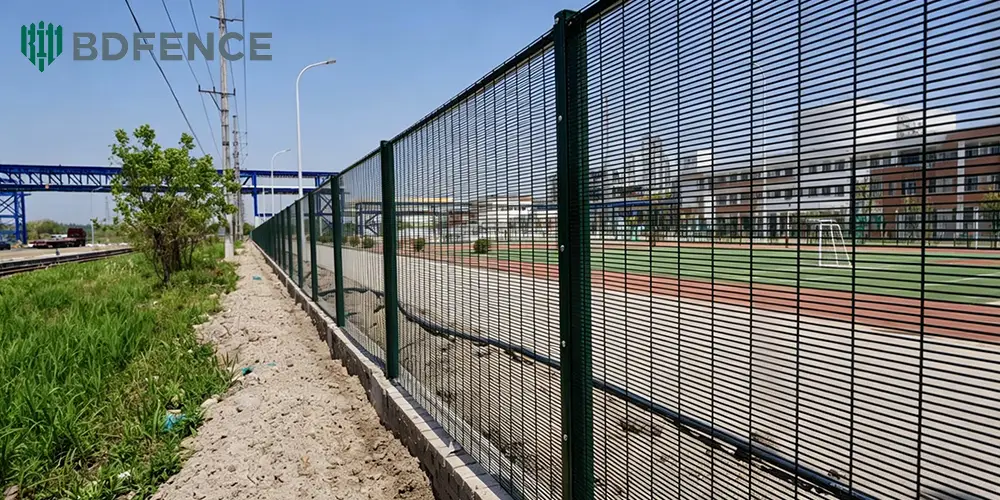

After completion, the data center achieved approximately 6,800 meters of coordinated high-security perimeter fencing.

The completed 358 Security Fence system provided:

• Clear separation of restricted areas
• Anti-climb perimeter characteristics
• Good visibility for CCTV monitoring
• Controlled pedestrian access
• Controlled vehicle access
• Consistent security-focused appearance
• Long-term outdoor perimeter protection

Improved Perimeter Security

The small mesh configuration created a more security-focused physical barrier than conventional large-opening perimeter fencing.

This supported the data center’s broader layered security strategy.

Maintained CCTV Visibility

The open welded mesh structure allowed security personnel and surveillance systems to maintain visibility through the perimeter.

This was particularly valuable around monitored entrances and restricted operational zones.

Consistent Access Point Integration

Pedestrian and vehicle gates were coordinated with the main 358 Fence system rather than being treated as unrelated components.

This helped maintain consistent security and appearance at access points.

Simplified Project Procurement

The customer sourced the major fencing components from one manufacturer, including:

• 358 Fence panels
• Steel posts
• Security gates
• Fence fittings
• Installation accessories

This reduced the need to coordinate multiple suppliers for compatible perimeter components.

Why 358 Fence Works for Data Center Security

Modern data centers require multiple layers of physical security, and perimeter fencing can form an important outer layer of that strategy.

Anti-Climb Characteristics

The narrow mesh configuration provides limited conventional hand and foot holds compared with many larger-opening fence designs.

Rigid Panel Construction

Welded steel panels provide a rigid perimeter structure suitable for controlled security environments.

Visibility

The mesh design supports visual monitoring without creating a completely solid perimeter barrier.

Security Gate Integration

358 Fence can be coordinated with pedestrian and vehicle security gates according to the site’s access management requirements.

Suitable for Layered Security

Depending on the approved security design, the fence can work alongside:

• CCTV systems
• Perimeter lighting
• Access control
• Security patrols
• Intrusion detection systems

Why Choose BDFENCE for 358 Fence Projects?

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures customized 358 Security Fence systems for international contractors, distributors, security companies, and project procurement teams.

Complete Security Fence System Supply

BDFENCE can supply:

• 358 welded mesh panels
• Steel posts
• Security brackets
• Anti-tamper fasteners
• Fence fittings
• Pedestrian security gates
• Vehicle security gates
• Installation accessories

Customized Project Manufacturing

358 Fence systems can be customized according to:

• Fence height
• Panel dimensions
• Wire specification
• Post configuration
• Surface treatment
• RAL color
• Gate dimensions
• Fence fitting requirements

Support for Large Projects

For large data center and critical infrastructure projects, BDFENCE can support:

• Drawing review
• BOQ coordination
• Technical specification confirmation
• Production planning
• Quality inspection
• Export packaging
• Container loading
• International shipment coordination

Conclusion

This data center project demonstrates why 358 Security Fence is often considered for facilities where perimeter security, anti-climb characteristics, visibility, and controlled access must work together.

For the approximately 6.8-kilometer perimeter, the project required more than welded mesh panels. Posts, security gates, fence fittings, surface treatment, packaging, and delivery all needed to function as one coordinated system.

By supplying a complete customized 358 Fence package, BDFENCE helped the contractor simplify procurement while supporting consistent installation across the data center perimeter.

For data centers, airports, power facilities, industrial infrastructure, government sites, and other security-sensitive projects, BDFENCE can manufacture 358 Security Fence systems according to project drawings and technical requirements.

Contact BDFENCE for Your 358 Security Fence Project

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)

Website: https://bd-fence.com/

Phone: +86 18703182863

WhatsApp: +86 18703287372

Email: info@bd-fence.com

FAQ

Why is 358 Fence suitable for data center perimeter security?

358 Fence combines narrow anti-climb mesh openings, rigid welded panel construction, visibility, and compatibility with controlled access gates, making it suitable for data center perimeter applications where these characteristics are required.

What mesh size is commonly used for 358 Security Fence?

A commonly associated 358 Fence mesh configuration is approximately 76.2 × 12.7 mm. Final specifications should always follow the approved project requirements.

Can BDFENCE customize the height of 358 Fence?

Yes. Panel height, width, wire specification, posts, surface treatment, gates, and fence fittings can be customized according to project requirements.

Can 358 Fence work with CCTV and access control systems?

358 Fence can form part of a broader perimeter security design that includes CCTV, lighting, access control, security patrols, and other approved security systems.

Can BDFENCE supply security gates with the 358 Fence?

Yes. BDFENCE can supply pedestrian gates, vehicle gates, gate posts, hinges, locking components, and compatible fence fittings together with the main fencing system.

Can BDFENCE manufacture according to data center project drawings and BOQ?

Yes. Contractors can provide perimeter drawings, BOQ documents, technical specifications, gate schedules, coating requirements, and other project information for review before production.

What information is required for a 358 Fence quotation?

For an accurate quotation, provide the total fence length, fence height, panel specification, wire diameter, post requirements, surface treatment, gate quantities and dimensions, fence fittings requirements, destination, and project drawings or BOQ when available.
