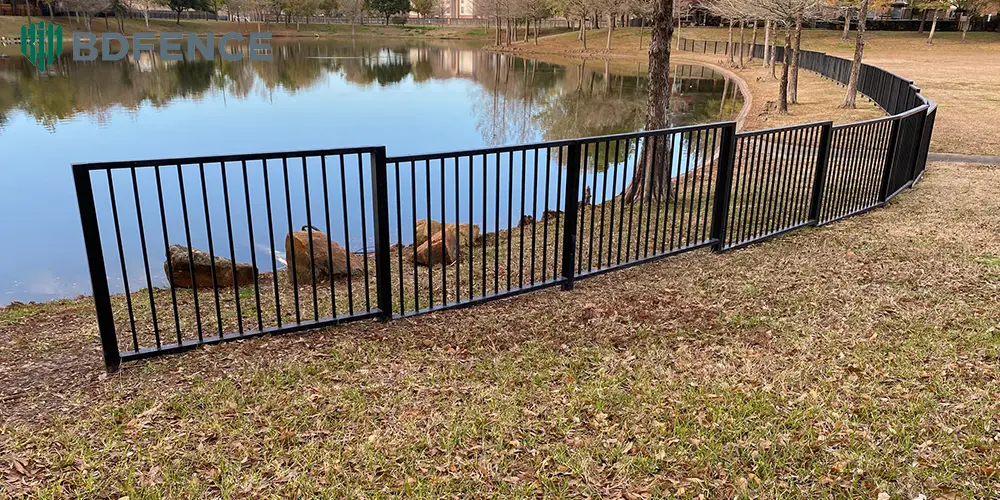

For a coastal property project in Australia, the fence specification started with an environmental question rather than a design question:
How should an outdoor steel perimeter be protected when it will spend its service life in a coastal environment?
The property needed a strong open-style boundary, but the project team also had to consider moisture, salt-bearing air, exposed gate components, and the long-term condition of outdoor steelwork.
BDFENCE supplied a hot-dip galvanized Tubular Steel Fence system for the project, including welded fence panels, steel posts, pedestrian gates, vehicle gates, brackets, and installation accessories.
Project Profile
| Project Item | Details |
|---|---|
| Country | Australia |
| Project Sector | Coastal Residential Property |
| Product | Tubular Steel Fence |
| Fence Style | Vertical Steel Picket System |
| Primary Finish | Hot-Dip Galvanized |
| Environment | Coastal Outdoor Exposure |
| Access | Pedestrian and Vehicle Gates |
| Supply Scope | Panels, Posts, Gates, Brackets and Accessories |
The Coast Changed the Fence Specification Before Production Began
For an inland project, buyers may begin with fence height, picket style, or color.
This project followed a different order.
Because the property was located in a coastal environment, the steel protection system needed attention from the beginning.
Salt-bearing air and moisture can increase corrosion pressure on exposed steel. Moreover, a fence contains many areas that may react differently to long-term outdoor exposure, including welds, posts, brackets, gate frames, and connection points.
Therefore, surface protection was treated as part of the fence specification rather than a final cosmetic step.
Why the Project Used Hot-Dip Galvanizing
The customer wanted a practical steel perimeter with corrosion protection suited to the project requirements.
For this reason, hot-dip galvanizing was selected for the tubular steel components.
The process creates a zinc-based protective layer on the steel after fabrication. As a result, the fence receives corrosion protection across the fabricated component rather than relying only on a decorative outer color.
For this coastal property, that approach matched the project’s priority: protect the steel structure first.
The Fence Was Designed as More Than a Row of Panels
The property perimeter included straight fence sections, changes in direction, pedestrian access, and vehicle access.
Therefore, supplying only galvanized panels would not have solved the complete project requirement.
BDFENCE coordinated the system around:
- Tubular steel fence panels
- Line posts
- Corner and end positions
- Panel brackets
- Post caps
- Pedestrian gates
- Vehicle gates
- Gate posts
- Connection hardware
This helped keep the material specification consistent across the property boundary.
Why an Open Picket Design Worked for the Property
The coastal location was part of the character of the property, so completely blocking the boundary was not the objective.
A vertical tubular picket design created a defined perimeter while maintaining an open visual relationship with the surrounding environment.
This gave the project three useful characteristics:
- A clear property boundary
- Visibility through the fence
- A cleaner visual effect than a solid barrier
The result suited a residential property where security, landscape, and appearance needed to work together.
The Gate Areas Received Special Attention
A fixed fence panel and a moving gate do not experience the same service conditions.
The vehicle gate would open and close repeatedly. Meanwhile, hinges, gate posts, frames, and locking points would carry movement and mechanical loads that the normal fence panels would not experience.
Therefore, BDFENCE treated the gates as structural parts of the perimeter rather than decorative additions.
The gate package was coordinated around:
- Matching tubular infill
- Steel gate frames
- Gate posts
- Hinges
- Closing hardware
- Connection components
This also helped maintain a consistent appearance between the entrances and the surrounding fence line.
Coastal Protection Needed to Continue Beyond the Panels
One of the most important purchasing points in a coastal fence project is easy to overlook.
A buyer may specify corrosion protection for the panels but pay less attention to posts, gates, brackets, or hardware.
However, the complete perimeter will not age uniformly if different exposed steel components have very different protection levels.
For this reason, the project review considered the protection requirements of the complete fence package rather than focusing only on the visible pickets.
Fabrication Came Before the Final Surface Protection
The tubular steel components first had to be fabricated to the confirmed project dimensions.
Production included operations such as cutting, positioning, welding, and frame assembly.
The fabricated components could then proceed through the specified hot-dip galvanizing process.
This production sequence was important because the project required corrosion protection for the finished steel components, including areas associated with fabrication.
What BDFENCE Checked Before Packing
The inspection did not stop at checking whether the steel looked galvanized.
The project team also needed the fence components to match each other when they reached the Australian site.
| Component | Inspection Focus |
|---|---|
| Fence Panels | Overall dimensions, picket spacing and alignment |
| Welded Frames | Weld condition and panel geometry |
| Steel Posts | Section size, wall thickness and length |
| Galvanized Surface | Visible surface condition |
| Brackets | Dimensions and panel compatibility |
| Pedestrian Gates | Frame dimensions and hardware positions |
| Vehicle Gates | Frame alignment and matching components |
| Accessories | Type and quantity |
Packaging Had to Protect More Than Appearance
Transport damage can create unnecessary work before installation even begins.
Therefore, panels, posts, gates, and smaller components were organized separately for shipment.
Fence panels were stacked and secured to limit movement. Posts were bundled according to the packing plan, while brackets and smaller accessories were packed by category.
Gate components were also identified separately so the installation team could locate them without sorting through the entire shipment.
For an export project, this type of organization can be just as useful as the physical protection of the products.
The Fence Followed the Property, Not the Other Way Around
Coastal properties may include driveways, landscaped sections, changes in direction, pedestrian paths, and different ground conditions.
Therefore, installation began with the actual property layout.
The contractor confirmed:
- Boundary direction
- Corner positions
- Post locations
- Pedestrian access
- Driveway openings
- Vehicle gate positions
Only after these points were established could the fence panels be installed in sequence.
Installation Sequence
The main installation process followed a straightforward system:
- Set out the property boundary
- Confirm all gate openings
- Mark post positions
- Install and align the steel posts
- Complete the required foundations
- Position the tubular fence panels
- Connect panels to posts
- Install pedestrian gates
- Install vehicle gates
- Check the completed fence line and access points
Consistent post positioning was important because the prefabricated tubular panels needed to align across the property.
What the Completed Fence Delivered
| Property Requirement | Fence Response |
|---|---|
| Outdoor Coastal Boundary | Hot-dip galvanized steel system |
| Open Appearance | Vertical tubular picket design |
| Defined Property Line | Continuous steel panel perimeter |
| Pedestrian Access | Matching steel gate |
| Vehicle Access | Coordinated vehicle gate |
| System Consistency | Matched panels, posts, gates and fittings |
The completed perimeter gave the property a clear boundary while preserving an open appearance appropriate for the coastal setting.
More importantly, corrosion protection had been considered before the fence was manufactured rather than added as an afterthought.
A Coastal Fence Quote Should Answer More Than “Is It Galvanized?”
This project highlights an important point for international buyers.
The words “galvanized fence” alone do not provide enough information to compare two quotations.
A buyer should also confirm what the supplier is actually including.
For example:
- Are the panels galvanized?
- Are the posts protected to the required specification?
- What treatment is used on the gate frames?
- Are brackets suitable for the same outdoor environment?
- What hardware is included?
- Does the quotation include all gate posts and accessories?
These questions help reveal whether the quotation represents a complete coastal fence system or only a panel price.
What Information Helps BDFENCE Quote a Coastal Project?
If your project is located near the coast, include the environment information when requesting a quotation.
Useful details include:
- Project country and location
- Distance from the coastline if relevant
- Total fence length
- Fence height
- Panel width
- Picket section and wall thickness
- Picket spacing
- Rail specification
- Post size and wall thickness
- Required surface treatment
- Pedestrian gate dimensions and quantities
- Vehicle gate dimensions and quantities
- Project drawings or BOQ
- Destination port
With this information, BDFENCE can review the fence panels, posts, gates, and accessories as one project package.
Why Choose BDFENCE for Tubular Steel Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Steel Tubular Fence and Steel Picket Fence systems for residential, commercial, industrial, educational, and infrastructure projects.
Our project supply can include:
- Tubular steel fence panels
- Customized steel posts
- Hot-dip galvanized finish options
- Powder-coated finish options
- Pedestrian gates
- Vehicle gates
- Brackets
- Post caps
- Installation accessories
Project buyers can send fence drawings, BOQ documents, gate schedules, and surface-treatment requirements directly to BDFENCE for review and quotation.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Why was hot-dip galvanized Tubular Steel Fence selected for this coastal property?
The project required an outdoor steel perimeter with corrosion protection suited to the coastal environment. Hot-dip galvanizing provided a zinc-based protective layer for the fabricated steel components.
Is Tubular Steel Fence suitable for coastal residential properties?
Yes, provided the steel design, surface protection, posts, gates, fittings, and installation requirements are selected for the specific project environment.
Can a hot-dip galvanized fence also be powder coated?
Yes. Projects that require both corrosion protection and a specific architectural color can consider a compatible galvanized and powder-coated system according to the required specification.
Should coastal fence gates use the same corrosion protection as the panels?
Gate frames, gate posts, and related exposed steel components should be considered as part of the overall protection strategy because they operate in the same outdoor environment.
Can BDFENCE customize the tubular picket design?
Yes. Fence height, panel width, picket section, spacing, rails, posts, top design, surface treatment, and gate dimensions can be customized according to project requirements.
Can I send BDFENCE a coastal project BOQ?
Yes. BDFENCE can review BOQ documents, fence drawings, gate schedules, surface-treatment requirements, and other technical specifications before preparing a quotation.
