Project Background
A mining company in South Africa required a high-security perimeter fencing system for a newly expanded mineral processing facility. The project involved protecting valuable processing equipment, raw material storage areas, vehicle entrances, and restricted operational zones.
After evaluating several fencing systems, the client selected BDFENCE 358 Fence because of its anti-climb design, welded mesh strength, and long service life under demanding environmental conditions.
Project Summary
| Item | Specification |
|---|---|
| Country | South Africa |
| Project Type | Mining Processing Plant |
| Product | 358 Security Fence |
| Total Fence Length | 9,800 meters |
| Protected Area | 176,000㎡ |
| Fence Height | 2400mm |
| Mesh Opening | 76.2×12.7mm |
| Wire Diameter | 4.0mm |
| Surface Treatment | Hot Dip Galvanized + Polyester Powder Coated |
| Completion Time | 2025 |
Products Manufactured by BDFENCE
For this project, BDFENCE supplied a complete perimeter security solution, including:
- 4,085 pieces of 358 fence panels
- 4,210 heavy-duty square steel posts
- 22 vehicle entrance gates
- 41 pedestrian security gates
- 19,600 anti-tamper clamp sets
- Customized fixing accessories
Project Challenges
Long Perimeter Around Industrial Equipment
The processing plant required protection around crushing stations, conveyor systems, warehouses, fuel storage facilities, and maintenance buildings.
The perimeter extended nearly ten kilometers, requiring consistent fence quality throughout the entire installation.
High Security Requirements
Mining facilities contain expensive machinery and valuable materials.
The customer required fencing capable of:
- Preventing unauthorized climbing
- Reducing cutting opportunities
- Providing clear visibility for CCTV surveillance
- Supporting long-term security operations
Harsh Outdoor Conditions
The project location experiences:
- Strong UV radiation
- Heavy dust
- Seasonal rainfall
- Large temperature differences
These conditions required an advanced corrosion protection system.
BDFENCE Engineering Solution
Customized 358 Mesh Panels
Instead of standard stock products, every panel was manufactured according to the engineering drawings supplied by the customer.
The optimized panel dimensions reduced installation time while maintaining structural rigidity.
Reinforced Steel Posts
Heavy-duty square posts with welded fixing plates were selected to improve resistance against impact loads and wind pressure.
Each post was manufactured with accurate hole positioning to simplify installation.
Dual Surface Protection
Every fence component received:
- Hot-dip galvanizing
- Outdoor polyester powder coating
The duplex coating system significantly improves corrosion resistance and extends maintenance intervals.
Manufacturing Process
Production was completed in approximately 21 working days.
Major manufacturing stages included:
- Steel wire straightening
- Automatic mesh welding
- Panel trimming
- Frame inspection
- Hot-dip galvanizing
- Powder coating
- Final dimensional inspection
Quality Inspection
Before shipment, BDFENCE carried out comprehensive inspections covering:
Raw Materials
- Chemical composition verification
- Steel strength testing
- Wire diameter measurement
Finished Panels
- Mesh size accuracy
- Overall dimensions
- Welding consistency
- Coating appearance
Hardware Inspection
Every clamp, bolt, and bracket was checked before packing to ensure complete shipment quantities.
Packaging and International Delivery
To prevent damage during sea transportation, products were packed using:
- Steel pallets
- Plastic protective film
- Corner protection
- Moisture-resistant wrapping
The complete order was shipped in 14 × 40HQ containers, allowing all materials to arrive according to the customer’s construction schedule.

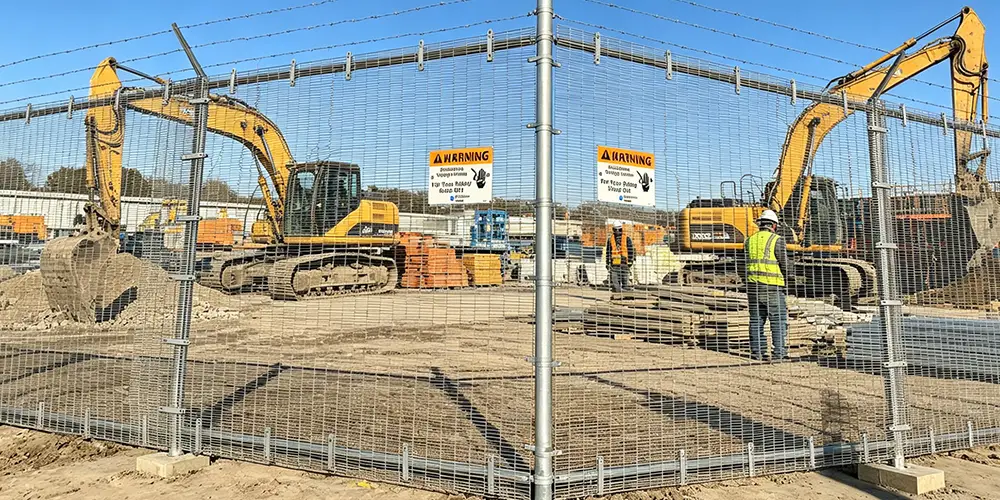

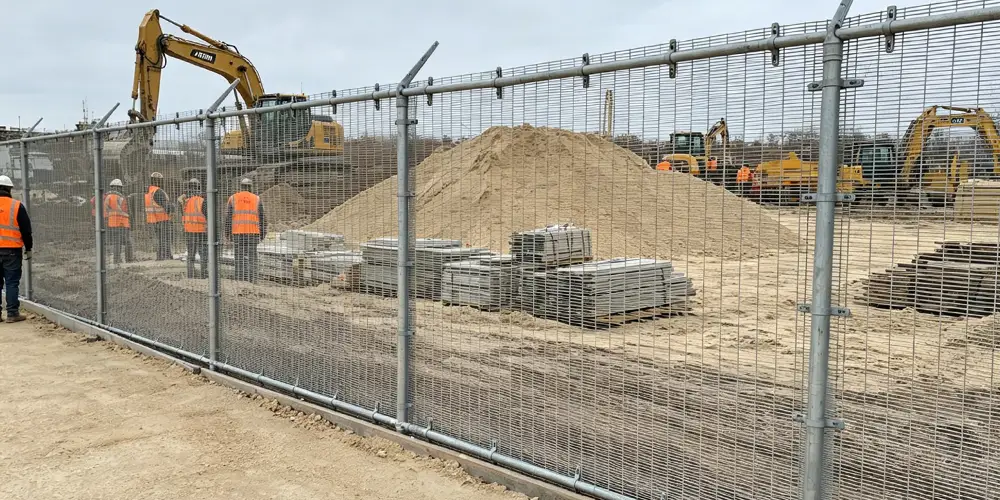

Installation Results
Following installation, the project achieved:
- Continuous perimeter protection over 9.8 km
- Improved access control
- Reduced unauthorized entry risks
- Excellent visibility for surveillance systems
- Stable performance under industrial operating conditions
The customer reported that installation proceeded efficiently because all panels, posts, and accessories matched the supplied drawings without modification.
Customer Evaluation
The project manager commented:
“The complete fence system arrived exactly as specified. The panel quality, coating finish, and dimensional accuracy allowed our installation team to complete the project without delays. BDFENCE demonstrated excellent manufacturing capability and reliable project coordination.”
Why Mining Facilities Choose 358 Fence
Compared with conventional welded mesh fencing, 358 Fence offers several important advantages for mining operations.
Higher Security Performance
The narrow mesh opening makes climbing significantly more difficult while reducing access for cutting tools.
Long-Term Durability
The galvanized and powder-coated finish provides excellent resistance to corrosion in harsh industrial environments.
Low Maintenance Requirements
Once installed, the fence requires minimal routine maintenance, helping reduce operating costs over its service life.
Why Choose BDFENCE?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) specializes in manufacturing professional perimeter fencing systems for industrial, infrastructure, and government projects.
Our advantages include:
- 30+ years of metal fencing manufacturing experience
- 15,000㎡ production facility
- 190+ experienced employees
- 80+ advanced production machines
- ISO9001 certified manufacturing
- Export experience in more than 70 countries
We provide complete project support from engineering consultation to global logistics.
Contact BDFENCE
If you are planning a mining project, industrial facility, airport, prison, or other high-security perimeter application, our engineering team can provide customized fencing solutions.
Hebei Bendin Industrial Technology Co., Ltd.
Brand: BDFENCE
🌐 Website: https://bd-fence.com/
📱 WhatsApp: +86 18703287372
📧 Email: info@bd-fence.com
FAQ
Is 358 Fence suitable for mining facilities?
Yes. Its anti-climb mesh, welded construction, and high structural strength make it ideal for mining plants, mineral processing facilities, and heavy industrial sites.
Can BDFENCE customize panel dimensions?
Yes. We manufacture 358 fence panels according to customer drawings, including customized heights, widths, post designs, and surface treatments.
Which coating is recommended for mining projects?
A hot-dip galvanized plus polyester powder-coated finish is recommended for maximum corrosion resistance and long service life in demanding industrial environments.
Does BDFENCE supply complete fencing systems?
Yes. We supply fence panels, posts, gates, anti-tamper clamps, accessories, and export packaging as a complete solution for international projects.
