When buyers compare Chain Link Fence specifications, wire gauge is one of the first details they notice.
Two common options are 9 gauge and 11 gauge Chain Link Fence.
At first glance, the difference may look small. However, wire thickness can affect fence weight, rigidity, handling, cost, and the type of project where the fence is used.
Therefore, choosing between 9 gauge and 11 gauge should depend on the project requirement rather than price alone.
This guide explains the practical differences from a buyer’s point of view.
First: What Does Chain Link Fence Gauge Mean?
Gauge is a way of describing wire size.
In many wire gauge systems, a lower gauge number means a thicker wire. Therefore, 9 gauge wire is generally heavier than 11 gauge wire within the same gauge standard.
However, buyers should not rely on the gauge number alone.
Different markets may use different gauge systems. As a result, BDFENCE recommends confirming the actual wire diameter or the exact wire standard before ordering.
9 Gauge vs 11 Gauge: Quick Comparison
| Feature | 9 Gauge Chain Link Fence | 11 Gauge Chain Link Fence |
|---|---|---|
| Wire Thickness | Generally thicker | Generally lighter |
| Mesh Weight | Higher | Lower |
| Rigidity | Greater | Lower |
| Material Cost | Usually higher | Usually lower |
| Handling | Heavier rolls | Easier to handle |
| Typical Use | Commercial, industrial, heavier-duty projects | General-purpose and lighter-duty projects |
Why Is 9 Gauge Chain Link Fence Heavier?
A thicker wire contains more steel.
Therefore, when mesh opening, fence height, and roll length remain the same, 9 gauge mesh will usually weigh more than 11 gauge mesh.
That extra steel can affect:
- Mesh weight
- Roll handling
- Shipping weight
- Material cost
- Overall fence rigidity
For large projects, even a small difference in wire size can create a noticeable difference in total steel consumption.
Does 9 Gauge Mean a Stronger Fence?
In general, thicker wire can provide a more substantial mesh structure.
However, the complete fence performance depends on more than wire gauge.
Buyers should also check:
- Mesh opening
- Fence height
- Post size
- Post wall thickness
- Post spacing
- Tension system
- Fence fittings
- Foundation design
For example, a heavy mesh with weak posts may not create a well-balanced fence system.
Therefore, wire gauge should be considered as one part of the complete design.
What Is the Main Advantage of 11 Gauge Chain Link Fence?
11 gauge wire uses less steel than a thicker 9 gauge option under the same gauge system.
As a result, it can offer advantages where the project does not require a heavier mesh.
These may include:
- Lower material weight
- Easier handling
- Lower initial cost
- Practical use for general boundaries
For many standard perimeter applications, 11 gauge may provide a more economical choice if it meets the approved specification.
Which One Costs More?
9 gauge Chain Link Fence usually costs more than 11 gauge when all other specifications remain the same.
The reason is simple: thicker wire uses more steel.
However, buyers should compare the complete fence system instead of mesh price alone.
The final project cost can also change with:
- Fence height
- Mesh opening
- Galvanizing or PVC coating
- Steel posts
- Fence fittings
- Pedestrian gates
- Vehicle gates
Therefore, a lower mesh price does not always mean a lower total project cost.
How Does Mesh Opening Affect the Comparison?
Wire gauge is only one part of the mesh specification.
A smaller mesh opening generally uses more wire per square meter.
For example, a fence with thicker wire and a tighter mesh can contain much more steel than a fence with lighter wire and a larger mesh opening.
For this reason, buyers should always compare wire gauge and mesh opening together.
What About Galvanized and PVC-Coated Wire?
Surface treatment can make gauge comparisons more confusing.
For PVC-coated Chain Link Fence, the quoted diameter may refer to:
- The steel core wire
- The finished coated wire
These are not the same measurement.
Therefore, ask the supplier to state the actual steel core diameter when comparing coated products.
This makes the quotation much easier to understand.

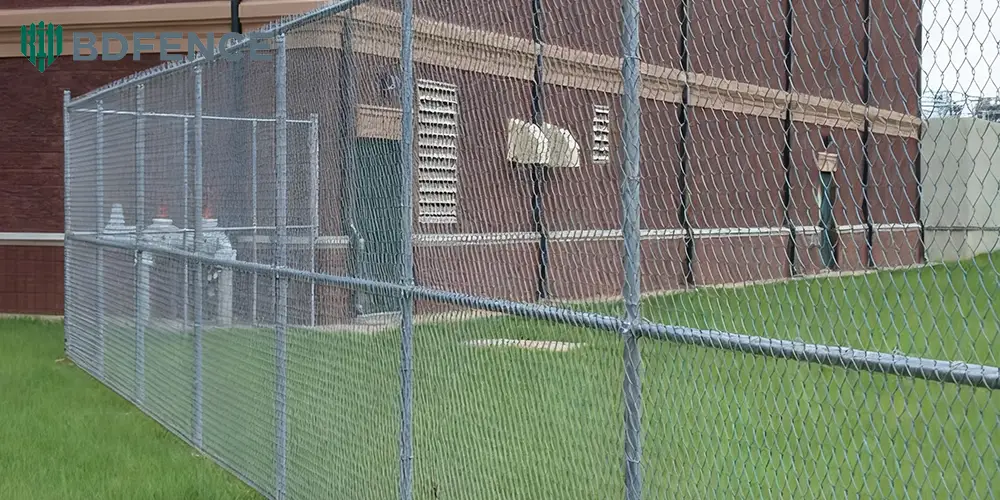

Where Is 9 Gauge Chain Link Fence Commonly Used?
A heavier wire specification may be useful where the project requires a more substantial fence system.
Typical applications can include:
- Commercial warehouses
- Industrial facilities
- Logistics centers
- Storage yards
- Utility sites
- Commercial perimeters
However, the final wire specification should always follow the project design and local requirements.

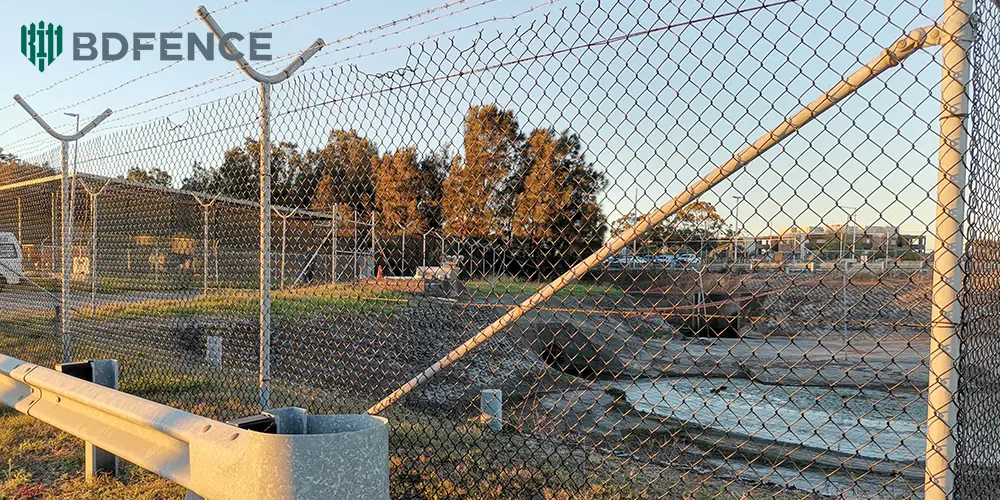

Where Is 11 Gauge Chain Link Fence Commonly Used?
11 gauge wire may be suitable for projects where a lighter mesh can meet the required function.
Typical applications may include:
- General property boundaries
- Light commercial applications
- Temporary or secondary areas
- Lower-demand perimeter sections
Again, the correct choice depends on the approved project specification.
Which Gauge Is Better for a Commercial Warehouse?
For warehouses, the answer depends on how the perimeter is used.
A site with frequent truck movement, outdoor storage, and controlled service areas may benefit from a heavier wire specification.
On the other hand, a lighter-duty boundary with lower security demands may not need the same amount of steel.
Therefore, buyers should consider:
- Warehouse activity
- Fence height
- Risk level
- Vehicle movement
- Post design
- Total perimeter length
Which Gauge Is Better for Long Perimeter Projects?
For very long projects, wire gauge can have a major effect on the budget.
A thicker mesh uses more steel across every meter of fence. Therefore, the cost difference becomes larger as the perimeter grows.
For this reason, project buyers should avoid choosing the heavier option automatically.
Use the gauge required by the application, not simply the thickest wire available.
How to Compare 9 Gauge and 11 Gauge Quotations Correctly
Before comparing price, make sure both suppliers are quoting the same fence configuration.
| Check | Why It Matters |
|---|---|
| Gauge Standard | Confirms what 9 gauge or 11 gauge actually means |
| Actual Wire Diameter | Shows the real steel wire size |
| Mesh Opening | Changes steel consumption |
| Fence Height | Changes mesh area and support requirements |
| Coating | Affects durability and finished diameter |
| Posts | Changes complete system strength and cost |
| Fence Fittings | Needed for installation |
| Gate Scope | Can affect total project value |
Once these items match, the price comparison becomes much more meaningful.
9 Gauge or 11 Gauge: Which Should You Choose?
Choose 9 gauge Chain Link Fence when the project needs a heavier mesh specification and the added steel content is justified.
Choose 11 gauge Chain Link Fence when the project can use a lighter mesh and cost control is more important.
Most importantly, do not select the wire gauge in isolation.
The complete fence system should match the actual site requirement.
What Information Should You Send for a Chain Link Fence Quote?
To prepare an accurate quotation, send BDFENCE:
- Total fence length
- Fence height
- 9 gauge or 11 gauge requirement
- Gauge standard or actual wire diameter
- Mesh opening
- Galvanized or PVC-coated finish
- Post dimensions
- Post wall thickness
- Post spacing
- Gate quantities and dimensions
- Fence fittings requirements
- Project drawings or BOQ
- Destination country or port
If some details are not final, send the information you already have. BDFENCE can review the available requirements before preparing the quotation.
Why Choose BDFENCE?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for commercial, industrial, logistics, infrastructure, and warehouse projects.
Our supply can include:
- Galvanized Chain Link Fence
- PVC-Coated Chain Link Fence
- Different wire specifications
- Steel posts
- Tension components
- Fence fittings
- Pedestrian gates
- Vehicle gates
In addition, buyers can send drawings, BOQ documents, gate schedules, and technical specifications for project review.
Final Answer
The main difference between 9 gauge and 11 gauge Chain Link Fence is wire thickness.
Within the same gauge system, 9 gauge is generally thicker and heavier, while 11 gauge is lighter and usually more economical.
However, the best option depends on the complete fence design, including mesh opening, height, posts, coating, gates, and project use.
Therefore, confirm the actual wire diameter before comparing supplier prices.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Is 9 gauge thicker than 11 gauge Chain Link Fence?
Within the same gauge system, 9 gauge is generally thicker than 11 gauge. However, buyers should confirm the actual wire diameter because gauge standards can vary.
Is 9 gauge Chain Link Fence more expensive?
Usually, yes. Thicker wire uses more steel. Therefore, the mesh weight and material cost are generally higher when all other specifications remain the same.
Is 11 gauge Chain Link Fence suitable for commercial projects?
It can be suitable for some commercial applications if the lighter wire meets the project requirements. Final selection should follow the approved specification.
Does mesh size affect the difference between 9 gauge and 11 gauge?
Yes. Mesh opening changes the amount of wire used per square meter. Therefore, buyers should compare both wire size and mesh opening together.
Can BDFENCE supply both 9 gauge and 11 gauge Chain Link Fence?
Yes. BDFENCE can manufacture different Chain Link Fence wire specifications according to the confirmed project standard and requirements.
Can I send a BOQ for quotation?
Yes. BDFENCE can review BOQ documents, project drawings, fence specifications, and gate schedules before preparing the quotation.
