Introduction
IntroductionSteel Tubular Fence is one of the most popular perimeter security solutions for municipal parks, residential communities, schools, and commercial facilities. In this Australian municipal park project, BDFENCE supplied 8,960 sets of Steel Tubular Fence systems, including galvanized fence panels, steel posts, and access gates. This case study demonstrates how customized Steel Tubular Fence solutions can provide long-term durability, attractive appearance, and reliable security protection for public infrastructure projects.
PROJECT BACKGROUND
Municipal Infrastructure Security Requirements
The project involved multiple public areas, including municipal parks, playgrounds, pedestrian walkways, community green spaces, and sports facilities. The client required a perimeter fencing system capable of providing clear boundary definition while maintaining an open and welcoming visual appearance.
Balancing Security and Aesthetics
Unlike industrial security projects that often utilize 358 Security Fence or Chain Link Fence systems, public facilities demand a solution that combines security, durability, and architectural appeal. Steel Tubular Fence was selected as the preferred option due to its elegant design, strong structure, and low maintenance requirements.
Environmental Challenges
The project site is located near coastal regions where fences are exposed to:
- High humidity
- Salt-laden air
- Strong UV radiation
- Seasonal storms and heavy rainfall
Therefore, corrosion resistance and long-term durability were critical factors during product selection.
OUR STEEL TUBULAR FENCE SOLUTION
Product Configuration
Product: Steel Tubular Fence System & Matching Access Gates
Standard Steel Tubular Fence Panels
- Fence Height: 1800mm
- Fence Width: 2400mm
- Vertical Pickets: 25×25×1.6mm
- Horizontal Rails: 40×40×2.0mm
- Anti-Climb Design
- Welded Construction
Heavy-Duty Steel Tubular Fence
For high-traffic zones and sports facilities:
- Reinforced rail structure
- Additional anti-tamper fixings
- Increased impact resistance
Matching Gates
- Pedestrian Swing Gates
- Double Leaf Vehicle Gates
- Lockable Access Control Systems
- Adjustable Hinges
CUSTOMIZATION HIGHLIGHTS
Architectural Appearance Design
The client requested a modern appearance that would complement surrounding public landscapes.
Customized features included:
- Flat-top tubular fence design
- Black RAL9005 powder coating
- Decorative post caps
- Consistent visual alignment throughout the project
Enhanced Corrosion Protection
To maximize service life under coastal conditions, all components received:
Hot-Dip Galvanization
- Zinc coating thickness: 80-100μm
- Excellent corrosion resistance
- Long-term structural protection
Polyester Powder Coating
- UV-resistant finish
- Scratch-resistant surface
- Enhanced color retention
Multiple Height Configurations
Different security zones required varying fence heights:
- 1200mm for park boundaries
- 1800mm for community perimeter areas
- 2100mm for sports facility protection

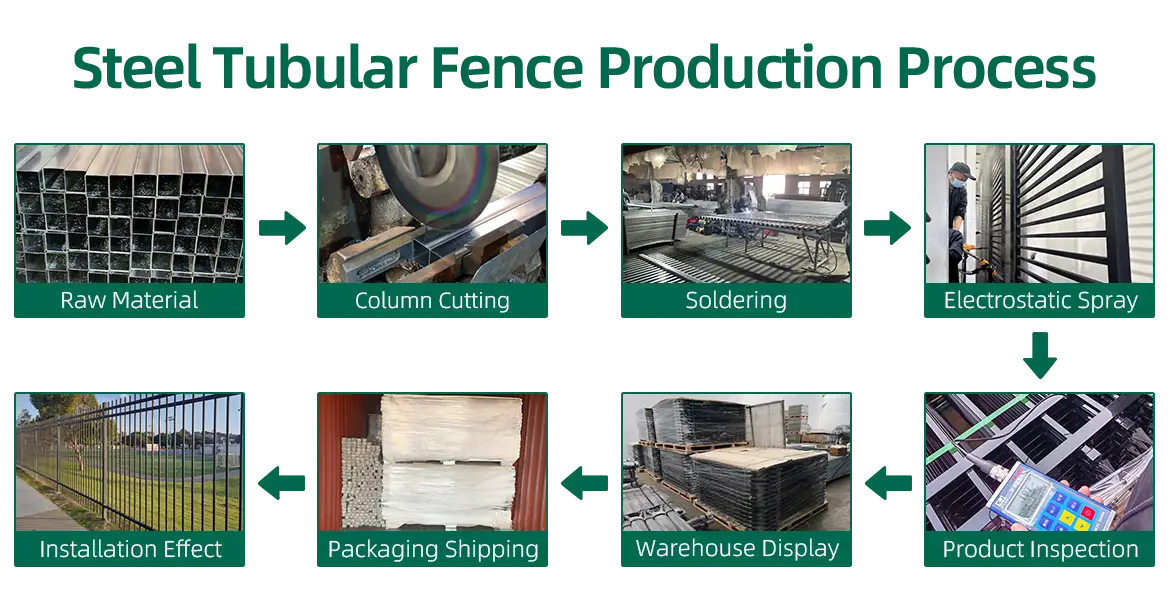

QUALITY CONTROL PROCESS
Quality assurance remained a top priority throughout production.
Raw Material Inspection
Before production began, all steel tubes underwent inspection for:
- Wall thickness accuracy
- Dimensional tolerance
- Mechanical strength
- Surface quality
In-Process Supervision
Production stages were monitored continuously to ensure:
Accurate Welding
- Consistent weld penetration
- Smooth welding joints
- Structural integrity verification
Dimensional Precision
- Panel squareness inspection
- Post positioning verification
- Gate alignment testing
Finished Product Inspection
Prior to shipment, random sampling inspections confirmed:
- Correct dimensions
- Strong weld connections
- Uniform coating thickness
- Scratch-free appearance
- Proper gate operation
Trial Installation Verification
A complete trial installation was conducted within the factory to verify:
- Panel-to-post compatibility
- Gate functionality
- Hardware accuracy
- Installation efficiency
PROJECT EXECUTION HIGHLIGHTS
Large-Scale Manufacturing Capacity
BDFENCE completed production of:
- 8,960 fence panels
- 9,300 steel posts
- 44 gate systems
while maintaining strict delivery schedules.
Customized Packaging Protection
To prevent transportation damage, all products were packed using:
- Protective plastic film
- Steel pallet reinforcement
- Edge protection materials
- Moisture-resistant packaging
Efficient Logistics Management
The project required coordinated container loading and phased deliveries.
Our logistics team successfully arranged:
- 28 export containers
- Scheduled delivery batches
- Full export documentation support
- Customs clearance assistance
On-Time Project Completion
Despite tight installation deadlines, all shipments arrived according to the construction schedule, allowing uninterrupted project progress.
WHY STEEL TUBULAR FENCE WAS THE BEST CHOICE
Superior Appearance
Compared with traditional Chain Link Fence systems, Steel Tubular Fence offers a cleaner and more professional appearance suitable for public and commercial environments.
Excellent Structural Strength
The welded tubular construction provides greater rigidity and impact resistance than many lightweight fencing alternatives.
Low Maintenance Requirements
The galvanized and powder-coated finish significantly reduces maintenance costs throughout the fence lifespan.
Long Service Life
Under normal environmental conditions, the Steel Tubular Fence system is expected to provide more than 20 years of reliable service.
CUSTOMER FEEDBACK
Upon project completion, the Australian municipal contractor provided the following feedback:
“BDFENCE demonstrated excellent professionalism from design consultation through final delivery. Their Steel Tubular Fence system provided exactly the balance of security, durability, and appearance we required for this public infrastructure project. Product quality was consistent across all shipments, and communication throughout the project was efficient and reliable. We look forward to future cooperation.”
PARTNER WITH A TRUSTED STEEL TUBULAR FENCE MANUFACTURER
Since 2014, BDFENCE has been supplying professional fencing systems to contractors, distributors, government agencies, and infrastructure developers worldwide. Our product range includes Steel Tubular Fence, 358 Security Fence, Chain Link Fence, Temporary Fence, and customized perimeter protection solutions.
Whether your project requires architectural fencing, industrial security barriers, community perimeter protection, or large-scale infrastructure fencing, our experienced team can provide customized manufacturing and reliable global delivery support.
For project consultation, technical drawings, and quotations, feel free to contact our team.
WhatsApp: +86 18703187372
Email: mazhijia18@gmail.com
FAQ
What is Steel Tubular Fence commonly used for?
Steel Tubular Fence is widely used for schools, parks, residential communities, commercial properties, sports facilities, government buildings, and municipal infrastructure projects where both security and appearance are important.
Is Steel Tubular Fence better than Chain Link Fence?
The choice depends on the application. Chain Link Fence is often preferred for large-area perimeter protection and cost-sensitive projects, while Steel Tubular Fence provides superior appearance, rigidity, and architectural value.
How long does a galvanized Steel Tubular Fence last?
A properly galvanized and powder-coated Steel Tubular Fence can typically provide more than 20 years of service, depending on environmental conditions and maintenance practices.
Can Steel Tubular Fence be customized?
Yes. Fence height, width, rail size, picket spacing, colors, gate types, and surface treatments can all be customized to meet project requirements.
What surface treatments are available?
Common options include hot-dip galvanizing, pre-galvanized steel, powder coating, and duplex coating systems that combine galvanization and powder coating for maximum corrosion protection.
Is Steel Tubular Fence suitable for coastal environments?
Yes. Hot-dip galvanized and powder-coated Steel Tubular Fence systems are highly suitable for coastal and high-humidity environments where corrosion resistance is essential.
