Project Overview

A large industrial facility required a new perimeter fencing system to separate production areas, warehouses, service roads, equipment yards, and controlled access zones.

The project covered approximately 8,000 meters of perimeter, so the customer needed a fence that could combine practical security, clear visibility, outdoor durability, and manageable project cost.

After reviewing the perimeter layout, gate schedule, and required fence configuration, BDFENCE supplied a complete Galvanized Chain Link Fence system including mesh, steel posts, tension components, gates, fence fittings, and installation accessories.

Project Information

Why the Industrial Facility Chose Chain Link Fence

The project did not require an architectural fence around the complete site. The main priority was to create a reliable boundary around a large operational area without unnecessarily increasing the fencing budget.

Chain Link Fence was selected because it offered several advantages for this application:

• Efficient coverage across a long perimeter
• Clear visibility for security teams
• Flexible installation around different site zones
• Easy integration with pedestrian and vehicle gates
• Galvanized corrosion protection for outdoor use

Project Challenges

1. Long Perimeter with Multiple Functional Zones

The 8,000-meter fence line passed around production buildings, warehouses, equipment yards, parking areas, and service roads.

Each section needed to connect into one continuous perimeter while maintaining suitable post positions and access points.

2. Different Post Requirements

Using one post specification everywhere was not practical.

The perimeter required:

• Standard line posts for straight sections
• Reinforced posts at corners
• Terminal posts at fence ends
• Stronger gate posts at access points

BDFENCE organized the posts by function so the installation team could identify them more easily on site.

3. Large Quantity of Small Fence Fittings

For a project of this length, small accessories become an important part of material planning.

The supply package included:

• Tension bars
• Tension bands
• Brace bands
• Post caps
• Clamps
• Tie components
• Bolts and nuts
• Gate hardware

The fittings were counted and packed by type before shipment to reduce the risk of missing parts during installation.

BDFENCE Project Solution

Instead of quoting only the chain link mesh, BDFENCE prepared the project as a complete perimeter package.

The supplied materials included:

• Galvanized Chain Link Fence mesh
• Line posts
• Corner posts
• Terminal posts
• Gate posts
• Tension components
• Fence fittings
• Pedestrian gates
• Vehicle gates
• Installation accessories

This reduced the need for the contractor to purchase compatible components from several different suppliers.

Galvanized Chain Link Fence Specification

The main fence configuration used a 2,000 mm fence height, 50 × 50 mm mesh opening, and 3.5 mm wire diameter.

The galvanized finish was selected for permanent outdoor installation around the industrial facility.

For bulk production, BDFENCE focused on maintaining consistency in:

• Wire diameter
• Mesh dimensions
• Fence height
• Roll dimensions
• Edge condition
• Galvanized surface appearance

Quality Control Before Delivery

The complete order was inspected by component rather than checking only the mesh rolls.

Mesh Inspection

Inspection included wire diameter, mesh opening, roll dimensions, weaving condition, and surface quality.

Post Inspection

Steel posts were checked for dimensions, wall thickness, length, straightness, and surface condition.

Gate Inspection

Pedestrian and vehicle gates were checked for frame dimensions, hinge locations, opening movement, and hardware compatibility.

Fence Fittings Check

Small accessories were checked against the project packing list before shipment.

Packaging and Material Identification

For an 8,000-meter project, packaging had to support more than product protection. It also needed to make unloading and material distribution easier.

Mesh rolls were secured for transportation, posts were bundled according to type, and fence fittings were packed separately.

Gate components were also identified independently so the contractor could distribute materials to the correct installation areas after arrival.

Installation Approach

The local contractor installed the fencing according to the approved perimeter layout.

The main sequence included:

• Setting out the fence line
• Marking gate and corner positions
• Installing steel posts
• Installing support and tension components
• Unrolling and tensioning the mesh
• Connecting mesh to posts
• Installing pedestrian and vehicle gates
• Completing the final fence-line inspection

Because the supplied posts and fittings were coordinated with the mesh specification, the installation team did not need to source additional connection components during construction.

Project Results

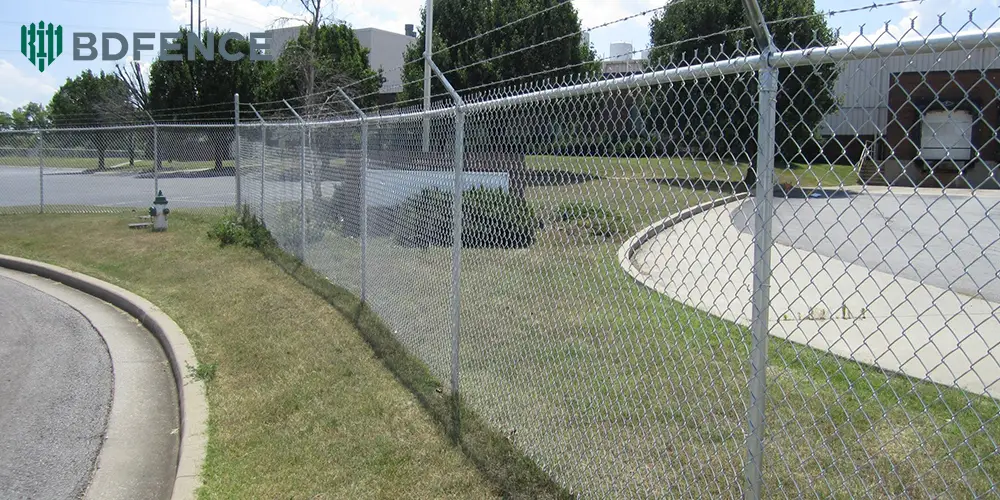

The completed Chain Link Fence created approximately 8 kilometers of continuous industrial perimeter protection.

The finished system helped the customer achieve:

• Clear separation between operational and external areas
• Controlled employee and contractor access
• Designated vehicle entrances
• Open visibility along the perimeter
• Reliable outdoor boundary protection

Better Cost Control

Chain Link Fence allowed the customer to protect a large industrial perimeter without using a more expensive rigid panel fence in areas where architectural appearance was not required.

Fewer Procurement Interfaces

Mesh, posts, gates, and fence fittings were supplied as one coordinated package, reducing communication between multiple component suppliers.

Practical for Future Maintenance

The modular post, mesh, and fitting configuration also allows individual sections or accessories to be maintained without replacing the complete perimeter system.

Why Chain Link Fence Works Well for Industrial Facilities

Industrial fencing needs are often different from commercial entrance fencing.

Factories and production facilities may need thousands of meters of boundary around areas that are not visible to customers or the public.

For these sections, Chain Link Fence can provide a practical combination of:

• Perimeter coverage
• Visibility
• Outdoor durability
• Gate flexibility
• Project cost control

Why Choose BDFENCE?

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures Chain Link Fence systems for distributors, contractors, industrial companies, and infrastructure projects.

BDFENCE can supply:

• Galvanized Chain Link Fence
• PVC-Coated Chain Link Fence
• Customized steel posts
• Pedestrian gates
• Vehicle gates
• Fence fittings
• Installation accessories

Project buyers can provide drawings, BOQ documents, gate schedules, and technical specifications for quotation review.

Conclusion

This 8,000-meter industrial project shows why galvanized Chain Link Fence remains a practical solution for large factory and industrial boundaries.

The key to the project was not simply supplying mesh. Posts, gates, tension components, fence fittings, packaging, and material identification all needed to work together.

By supplying the major components as one coordinated package, BDFENCE helped the contractor simplify procurement and prepare the site installation more efficiently.

Contact BDFENCE for Your Chain Link Fence Project

Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)

Website: https://bd-fence.com/

Phone: +86 18703182863

WhatsApp: +86 18703287372

Email: info@bd-fence.com

FAQ

Why is galvanized Chain Link Fence suitable for industrial facilities?

It provides practical perimeter coverage, visibility, flexible gate integration, and corrosion protection while remaining economical for long boundaries.

Can Chain Link Fence be customized for large industrial projects?

Yes. Fence height, mesh opening, wire diameter, coating, posts, gates, and fence fittings can be manufactured according to project requirements.

Can BDFENCE supply the posts and fittings together with the mesh?

Yes. BDFENCE can provide mesh, line posts, corner posts, terminal posts, gate posts, tension components, fence fittings, and gates as one coordinated package.

Can BDFENCE quote from a BOQ or project drawing?

Yes. Buyers can provide perimeter drawings, technical specifications, gate schedules, and BOQ documents for project quotation review.

What information is needed for an industrial Chain Link Fence quotation?

Provide the total fence length, fence height, mesh opening, wire diameter, surface treatment, post specifications, gate quantities and dimensions, fence fittings requirements, and destination.
