Project Introduction
BDFENCE successfully supplied 8,000 linear meters of galvanized Chain Link Fence, 2,360 galvanized steel fence posts, 16 heavy-duty vehicle gates, and 28 pedestrian access gates for a large logistics warehouse project in Brisbane, Australia.
The project covered approximately 85,000㎡ and required a reliable perimeter fencing system to protect warehouses, truck loading areas, outdoor storage yards, and vehicle entrances while maintaining excellent visibility for daily operations.
After comparing several perimeter fencing solutions, the customer selected Galvanized Chain Link Fence because of its durability, cost-effectiveness, and suitability for large industrial sites.
Project Overview
Project Information
| Item | Details |
|---|---|
| Country | Australia |
| City | Brisbane |
| Project Type | Logistics Warehouse |
| Product | Galvanized Chain Link Fence |
| Fence Length | 8,000 meters |
| Protected Area | 85,000㎡ |
| Completion Time | 2025 |
Products Supplied
For this project, BDFENCE manufactured and supplied:
- 8,000 meters of Galvanized Chain Link Fence
- 2,360 galvanized steel fence posts
- 8,000 meters of galvanized top rails
- 16 heavy-duty vehicle gates
- 28 pedestrian security gates
- Complete fence accessories and installation hardware
Project Challenges
Large Industrial Perimeter
The logistics center required more than 8 kilometers of perimeter protection surrounding multiple warehouse buildings and outdoor storage areas.
The fencing system needed to provide:
- Continuous perimeter security
- Clear visibility
- Easy maintenance
- Fast installation
- Long service life
Heavy Vehicle Traffic
More than 300 trucks entered and exited the facility every day.
The entrance gates required:
- Heavy-duty construction
- Smooth daily operation
- High structural strength
- Long-term reliability
Australian Outdoor Environment
The project site experiences:
- Strong UV exposure
- Heavy seasonal rainfall
- High wind conditions
- Dust accumulation
Therefore, corrosion resistance was one of the customer’s highest priorities.
BDFENCE Chain Link Fence Solution
Galvanized Chain Link Fence System
BDFENCE recommended a complete galvanized chain link fence system specifically designed for large industrial perimeter applications.
The system included:
- Hot dip galvanized chain link mesh
- Heavy-duty steel posts
- Galvanized top rails
- Tension wire system
- Brace bands
- Fence ties
- Security gates
The complete system ensured easy installation and long-term stability.
Technical Specifications
Chain Link Fence
- Fence Height: 2400mm
- Wire Diameter: 3.5mm
- Mesh Opening: 50 × 50mm
- Roll Length: 15m
- Edge Type: Twisted & Knuckled
- Finish: Hot Dip Galvanized
Fence Posts
- Post Size: 75 × 75mm
- Wall Thickness: 2.5mm
- Finish: Hot Dip Galvanized

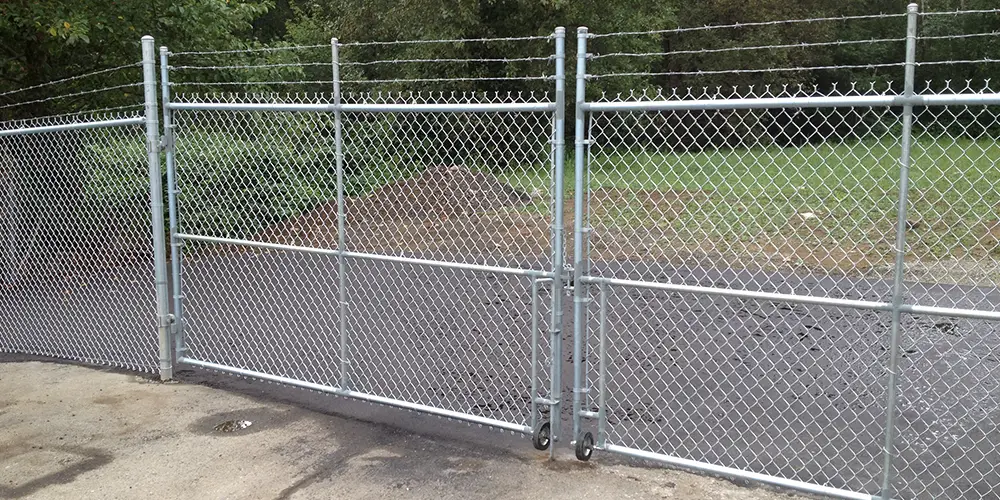

Vehicle Gates
- Double swing design
- Reinforced steel frame
- Heavy-duty hinges
- Locking system
Manufacturing and Quality Control
Efficient Production
Using high-speed chain link fence machines, BDFENCE completed production within 18 working days.
Production included:
- 8,000 meters of chain link mesh
- 2,360 steel fence posts
- 44 customized gates
- Complete hardware accessories
Strict Quality Inspection
Every production stage was inspected.
Raw Material Inspection
Inspection items included:
- Steel wire diameter
- Zinc coating quality
- Steel strength
- Surface finish
Production Inspection
During manufacturing, engineers checked:
- Mesh opening accuracy
- Weaving consistency
- Wire tension
- Post dimensions
- Welding quality
Final Inspection
Before shipment:
- Fence rolls measured
- Accessories counted
- Gates tested
- Packaging inspected
Every container was approved before loading.
Export Packaging and Delivery
Professional Export Packaging
To protect the products during ocean transportation, BDFENCE applied:
- Moisture-proof wrapping
- Steel pallet packaging
- Plastic protective film
- Reinforced loading straps
Container Loading
The complete project was shipped in 14 × 40HQ containers.
Loading was completed within 3 days, ensuring the customer’s construction schedule remained on track.
Installation Results
The customer completed installation in approximately 24 days.
After completion, the project achieved:
- 8,000 meters of secure perimeter fencing
- Protection for 85,000㎡ of warehouse facilities
- Improved vehicle access management
- Clear visibility for security patrols
- Low-maintenance perimeter protection
The galvanized chain link fence system now provides reliable security for one of the region’s largest logistics distribution centers.
Why the Customer Chose Chain Link Fence
Cost-Effective for Large Projects
Compared with rigid fence panels, chain link fence provided a more economical solution for an 8-kilometer perimeter.
Fast Installation
The flexible mesh structure reduced installation time and labor costs.
Excellent Visibility
The open diamond mesh allows security personnel to monitor the entire perimeter without visual obstruction.
Long Outdoor Service Life
The hot dip galvanized finish provides excellent resistance against corrosion, making it suitable for Australia’s outdoor environment.
Customer Feedback
After project completion, the project manager commented:
“The quality of the Chain Link Fence exceeded our expectations. The galvanized finish, strong fence posts, and complete accessories made installation very efficient. BDFENCE delivered the project on schedule and provided excellent technical support throughout the process.”
Partner with BDFENCE for Your Next Chain Link Fence Project
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) specializes in manufacturing high-quality chain link fence systems for industrial, commercial, infrastructure, and security projects worldwide.
Whether your project requires 500 meters or 20,000 meters of chain link fencing, BDFENCE can provide customized manufacturing, strict quality control, professional export packaging, and reliable global delivery.
WhatsApp: +86 18703287372
Email: info@bd-fence.com
FAQ
How many meters of chain link fence can BDFENCE manufacture for one project?
BDFENCE has advanced production equipment capable of manufacturing thousands of meters of chain link fence for large industrial and infrastructure projects.
Is galvanized chain link fence suitable for logistics warehouses?
Yes. Galvanized chain link fence provides excellent visibility, corrosion resistance, and cost-effective perimeter protection, making it one of the most popular choices for logistics centers and warehouses.
Can BDFENCE customize chain link fence specifications?
Yes. We customize fence height, wire diameter, mesh opening, post size, surface treatment, gate systems, and accessories according to project requirements.
Does BDFENCE provide complete perimeter fence systems?
Yes. BDFENCE supplies complete fencing solutions including chain link fence mesh, fence posts, gates, accessories, installation support, and export packaging for customers worldwide.
