A logistics center needs a perimeter fence that can separate the site from surrounding roads and properties while providing a higher level of physical security.

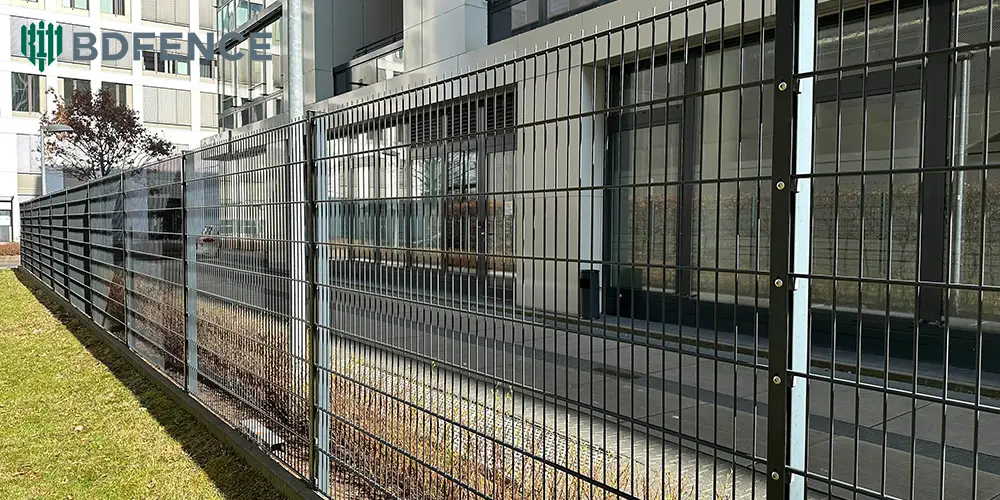

For this illustrative project in Germany, an 8/6/8 2D Fence system was considered for the external boundary of a logistics and distribution facility.
The project required a rigid welded fence panel, suitable supporting posts and fixing components that could work as one complete perimeter system.
The 8/6/8 specification was selected as the main reference because the project required a stronger panel than a basic residential welded fence.
This case is an illustrative application example created for project planning and does not represent a confirmed BDFENCE completed project.
Project Overview
| Project Item | Details |
|---|---|
| Country | Germany |
| Industry | Logistics & Distribution |
| Product | 8/6/8 2D Security Fence |
| Application | Logistics center perimeter |
| Main Requirement | Rigid perimeter protection and controlled site access |
| Panel Specification | 8 mm horizontal wire / 6 mm vertical wire / 8 mm horizontal wire |
| Main Components | Welded panels, steel posts, fixing clips and gates |
Why the Logistics Center Needed a Stronger Fence
A logistics center has a different security environment from a residential property.
Large delivery vehicles enter and leave throughout the day, while storage areas, loading zones and parking areas may operate around the clock.
The perimeter fence therefore needs to create a clear physical boundary without making the site difficult to access or supervise.
For this type of property, a rigid welded panel can be a practical alternative to lighter fencing systems.
The fence provides a defined boundary around the facility while maintaining visibility across the perimeter.
What Does 8/6/8 Mean?
The term 8/6/8 refers to the wire configuration used in the 2D welded fence panel.
The panel uses two 8 mm horizontal wires with a 6 mm vertical wire between them.
This double horizontal wire arrangement gives the panel a more rigid structure than a single-wire welded panel.
| Specification | Meaning |
|---|---|
| First 8 mm | Horizontal wire |
| 6 mm | Vertical wire |
| Second 8 mm | Horizontal wire |
When purchasing from an overseas manufacturer, buyers should confirm the wire arrangement directly on the technical drawing or specification sheet.
This avoids confusion between 8/6/8 panels and other 2D fence configurations.
Why 2D Fence Fits a Logistics Facility
The logistics center required a fence that could provide a firm perimeter without creating a completely closed visual barrier.
The welded panel construction offers several useful characteristics for this type of site.
- rigid panel structure;
- clear visibility;
- consistent appearance;
- relatively simple installation;
- easy integration with access gates.
The open panel design also allows security personnel to see activity around the perimeter.
For a distribution center with vehicle entrances and large operating areas, this visibility can be useful when monitoring access points and surrounding spaces.
Panel and Post System
The panel is only one part of the complete fencing system.
The supporting posts need to match the panel dimensions and fixing method.
For this project type, the system may include:
- 8/6/8 welded fence panels;
- steel fence posts;
- panel fixing clips;
- bolts and nuts;
- post caps;
- pedestrian gates;
- vehicle gates.
The post spacing should follow the selected panel width and the approved installation design.
Corner locations, fence ends and gate openings also require different post arrangements from standard straight sections.
A complete material list should identify these components separately before production begins.
Security Considerations Around the Perimeter
A logistics center may store vehicles, equipment, packages and other valuable goods.
The fence is therefore part of the site’s overall perimeter management.
However, the fence should not be viewed as a standalone security measure.
Its role is normally combined with:
- vehicle gates;
- pedestrian access control;
- lighting;
- CCTV systems;
- site security procedures.
The 2D panel provides the physical boundary, while the other systems control and monitor movement around the facility.
Gate Planning for a Logistics Center
Vehicle access is a major consideration when fencing a logistics facility.
Delivery trucks may require substantially wider openings than a standard pedestrian gate.
The gate design should therefore be considered at the same time as the perimeter fence.
Important information includes:
- vehicle gate opening width;
- gate height;
- single or double leaf design;
- hinge requirements;
- locking system;
- automation requirements, if applicable.
The gate support posts should also be designed for the expected gate weight and operating conditions.
For an overseas order, including gate requirements in the original RFQ helps the manufacturer prepare a more complete quotation.
Surface Treatment for Outdoor Installation
A logistics center fence remains outdoors throughout the year, so corrosion protection needs to be considered when selecting the material finish.
Depending on the project specification, welded panels and posts can use galvanized or coated steel finishes.
For projects where appearance is also important, a powder-coated finish can be specified in the required color.
The coating requirement should cover the complete system rather than only the welded panels.
Posts, gates and fixing components should be reviewed as part of the same specification.
Installation Planning for a Large Logistics Site
Large logistics facilities can have long perimeter runs, multiple corners and several access points.
This makes the fence layout important before installation starts.
The contractor should confirm:
- total perimeter length;
- panel layout;
- post positions;
- corner locations;
- gate openings;
- ground conditions.
Long straight sections are normally easier to install than areas around loading yards, buildings and entrances.
The fence supplier should receive the available drawings or BOQ where possible so the material quantities can be checked against the actual site layout.
What the Buyer Should Confirm Before Ordering
For an overseas 2D fence purchase, the product name alone is not enough.
The buyer should confirm the technical details before accepting the quotation.
| Item | Details to Confirm |
|---|---|
| Panel | 8/6/8 wire configuration, height and width |
| Mesh Opening | Specified opening size |
| Posts | Section, wall thickness, length and finish |
| Fixings | Clip type, bolts and quantity |
| Gates | Opening dimensions and hardware |
| Coating | Galvanized or powder-coated finish |
| Packing | Panel and accessory packing method |
These details make supplier quotations easier to compare and reduce misunderstandings before production.
Why Complete Supply Can Simplify the Project
A large logistics facility may require hundreds of panels and a substantial quantity of posts and fittings.
Purchasing these components from different suppliers can create additional coordination work.
The panel fixing system needs to match the post design, while the gates need to fit the surrounding fence.
For this reason, many project buyers prefer to source the main fence components from one manufacturer.
A complete supply package can make quantity checking, packing and installation coordination easier.
How BDFENCE Can Support a 2D Fence Project
BDFENCE supplies metal fencing products for contractors, distributors and project buyers in overseas markets.
For a logistics center project, buyers can provide a BOQ, fence layout or technical specification for review.
The quotation can then be prepared around the actual requirements, including:
- 2D fence panels;
- steel posts;
- fixing clips;
- gates;
- coating requirements;
- packing and shipping requirements.
This project-based approach is useful when the buyer needs a complete material list rather than a general catalogue price.
Request a 2D Fence Quotation for Your Project
If you are sourcing 2D security fencing for a logistics center, warehouse, industrial property or similar project, send your requirements to Contact BDFENCE.
You can provide the fence length, panel height, 8/6/8 specification, gate requirements and destination.
If you already have a BOQ or drawing, sending the document can help the factory prepare a more accurate quotation.
Why Choose BDFENCE?
BDFENCE manufactures metal fencing products for international contractors, distributors and project buyers.
Our team has more than 30 years of experience in metal fence manufacturing.
The factory covers approximately 15,000㎡ with more than 190 employees and over 80 machines.
Our product range includes 358 Fence, Steel Tubular Fence, Chain Link Fence and welded fence systems.
For 2D fence projects, BDFENCE can supply panels, posts, gates and fixing components according to confirmed project specifications.
FAQ
What does 8/6/8 mean in a 2D fence panel?
8/6/8 refers to two 8 mm horizontal wires and a 6 mm vertical wire in the welded panel structure.
Why is 8/6/8 2D Fence used for logistics facilities?
The double horizontal wire structure provides a rigid welded panel, making it suitable for projects where a stronger perimeter panel is required.
Does the 2D Fence price include posts?
It depends on the supplier’s quotation. Buyers should confirm whether panels, posts, fixing clips and gates are included or priced separately.
Can 2D Fence be used around warehouses?
Yes. 2D welded fence systems can be considered for warehouse, logistics and industrial perimeter applications when the specification matches the site’s requirements.
What information does BDFENCE need for a project quotation?
Useful information includes fence length, height, wire specification, mesh opening, coating, post requirements, gate quantity and delivery destination.
Can BDFENCE supply complete 2D fence systems?
Yes. BDFENCE can supply welded panels together with posts, fixing accessories and gates according to the confirmed project specification.
