Project Introduction
BDFENCE successfully supplied 4,800 panels of 358 Security Fence, 4,950 heavy-duty steel posts, 12 high-security vehicle gates, 18 pedestrian security gates, and 8,000 meters of razor wire for a prison perimeter security project in Riyadh, Saudi Arabia.
The project protected approximately 126,000㎡ of correctional facilities and required an advanced perimeter security system capable of preventing climbing, cutting, and unauthorized access.
After evaluating multiple fencing solutions, the customer selected the 358 Security Fence System because of its outstanding anti-climb performance, welded mesh strength, and long-term outdoor durability.
Project Overview
Project Information
| Item | Details |
|---|---|
| Country | Saudi Arabia |
| City | Riyadh |
| Project Type | Prison Security |
| Product | 358 Security Fence |
| Fence Quantity | 4,800 Panels |
| Protected Area | 126,000㎡ |
| Fence Height | 3.0m |
| Completion | 2025 |
Products Supplied
BDFENCE manufactured and supplied:
- 4,800 panels of 358 Security Fence
- 4,950 galvanized steel fence posts
- 8,000 meters of razor wire
- 12 heavy-duty vehicle security gates
- 18 pedestrian access gates
- Complete installation brackets and accessories
Project Challenges
Maximum Security Requirements
Unlike ordinary industrial fencing, the correctional facility required a fencing system capable of resisting escape attempts and unauthorized intrusion.
The perimeter system had to provide:
- Anti-climb protection
- Anti-cut resistance
- High structural strength
- Long service life
- Low maintenance
High-Risk Perimeter
The project included:
- Prison accommodation blocks
- Administration buildings
- Exercise yards
- Security patrol roads
- Controlled access entrances
Every perimeter section required different security levels.
Desert Climate Conditions
The project location experiences:
- Summer temperatures above 48°C
- Strong UV radiation
- Sandstorms
- Low annual rainfall
- High temperature fluctuations
The customer required a fencing system with excellent corrosion resistance and long-term outdoor durability.
BDFENCE 358 Security Fence Solution
Complete High Security Fence System
BDFENCE supplied a complete perimeter security solution including:
- 358 welded mesh panels
- Square steel posts
- Anti-tamper clamps
- Heavy-duty brackets
- Razor wire arms
- Concertina razor wire
- High-security access gates
The entire system was designed to meet the prison’s security requirements.
Technical Specifications
358 Security Fence Panels
- Fence Height: 3000mm
- Panel Width: 2515mm
- Wire Diameter: 4.0mm
- Mesh Opening: 76.2 × 12.7mm
- Finish: Hot Dip Galvanized + Powder Coated
Fence Posts
- Size: 80 × 80mm
- Wall Thickness: 3.0mm
- Finish: Hot Dip Galvanized
Security Gates
- Reinforced steel frame
- Anti-pry locking system
- Heavy-duty hinges
- Access control compatibility
Surface Treatment System
Hot Dip Galvanized Protection
Every steel component received a hot-dip galvanized coating to ensure long-term corrosion resistance.
Benefits included:
- Excellent rust protection
- Long outdoor lifespan
- Reduced maintenance
- Strong weather resistance
Powder Coated Finish
All fence panels and posts were finished with RAL6005 Green powder coating.
Advantages:
- UV resistance
- Improved surface hardness
- Attractive appearance
- Additional corrosion protection
Manufacturing and Quality Control
Efficient Production
BDFENCE completed production within 26 working days.
Production included:
- 4,800 fence panels
- 4,950 steel posts
- 30 security gates
- 8,000 meters of razor wire
Quality Inspection
Raw Material Inspection
Engineers inspected:
- Steel wire diameter
- Steel strength
- Zinc coating
- Raw material certificates
Welding Inspection
Each panel was checked for:
- Weld strength
- Mesh accuracy
- Panel flatness
- Structural stability
Surface Inspection
Verified:
- Powder coating thickness
- Color consistency
- Surface adhesion
- Coating uniformity
Final Inspection
Before shipment:
- Panel dimensions
- Gate operation
- Hardware quantity
- Packaging condition
Every product passed inspection before export.
Export Packaging and Delivery
Professional Export Packaging
To protect the products during sea transportation, BDFENCE used:
- Steel pallets
- Plastic protective film
- Corner protection
- Waterproof wrapping
Container Shipment
The project was loaded into 18 × 40HQ containers.
Loading was completed within 4 days, allowing the customer to begin installation according to schedule.

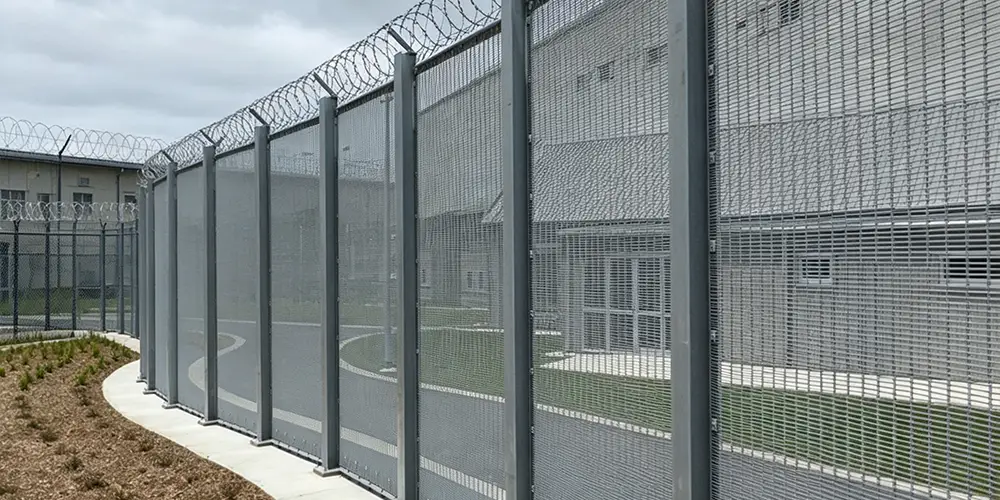

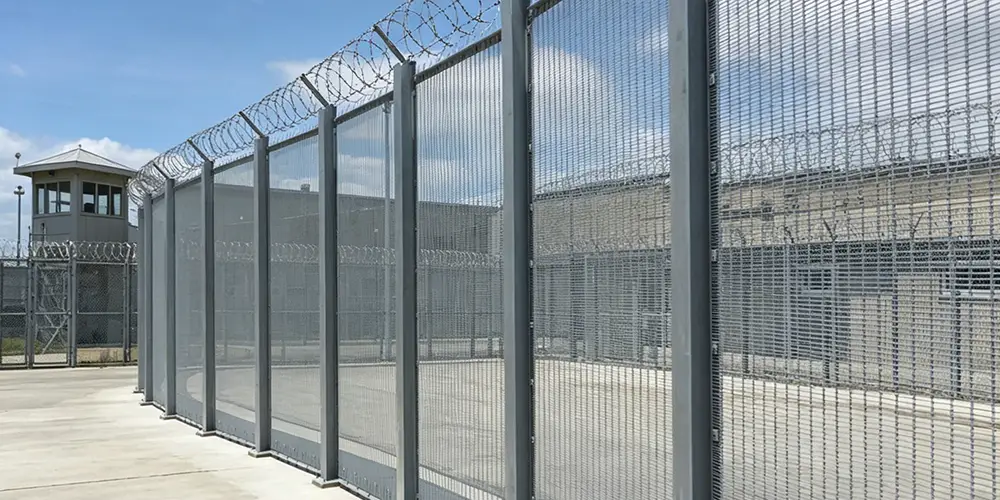

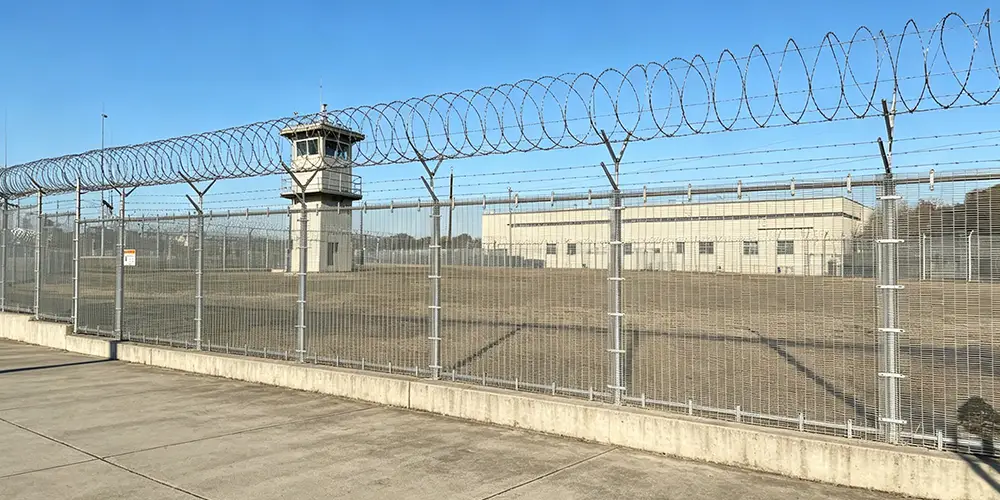

Installation Results
Installation was completed in approximately 38 days.
Project results included:
- 4,800 high-security fence panels installed
- 126,000㎡ prison perimeter protected
- Complete anti-climb security system
- Controlled vehicle and pedestrian access
- Enhanced perimeter surveillance
The completed fencing system now provides continuous high-security protection for one of the region’s correctional facilities.
Why 358 Security Fence Was Selected
Outstanding Anti-Climb Performance
The 76.2 × 12.7mm mesh opening makes it extremely difficult to gain a foothold or grip, significantly reducing climbing attempts.
High Anti-Cut Resistance
The heavy welded wire structure increases resistance to cutting tools and unauthorized tampering.
Long-Term Outdoor Durability
The combination of hot-dip galvanizing and powder coating ensures reliable performance under harsh desert conditions.
Suitable for High-Security Facilities
358 Security Fence is widely used for:
- Prisons
- Airports
- Military bases
- Data centers
- Power plants
- Government facilities
Customer Feedback
After project completion, the security contractor commented:
“BDFENCE delivered a complete high-security fencing system that met all of our project requirements. The panel quality, welding strength, coating finish, and delivery schedule exceeded our expectations. The installation process was efficient, and the completed perimeter provides the level of protection required for a correctional facility.”
Partner with a Professional 358 Security Fence Manufacturer
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) specializes in manufacturing high-security perimeter fencing systems for government, infrastructure, industrial, and commercial projects worldwide.
Our security products include:
- 358 Security Fence
- Anti-Climb Fence
- Steel Tubular Fence
- Chain Link Fence
- 3D Fence
- Temporary Fence
- Workshop Safety Fence
With more than 30 years of industry expertise, a 15,000㎡ manufacturing facility, 190+ employees, and exports to 70+ countries, BDFENCE provides customized high-security fencing solutions for projects of every scale.
WhatsApp: +86 18703287372
Email: info@bd-fence.com
FAQ
Why is 358 Security Fence called an anti-climb fence?
Because its 76.2 × 12.7mm mesh opening is too small to allow hands or feet to gain a secure grip, making climbing extremely difficult.
What projects are suitable for 358 Security Fence?
358 Security Fence is ideal for prisons, airports, military facilities, power plants, data centers, border security, and other high-security applications.
Can BDFENCE customize 358 Security Fence?
Yes. We can customize panel height, mesh size, wire diameter, post type, coating, security gates, and additional protection such as razor wire according to project requirements.
Does BDFENCE supply complete high-security fencing systems?
Yes. BDFENCE provides complete perimeter security solutions, including fence panels, posts, gates, razor wire, brackets, accessories, technical support, and global export services.
