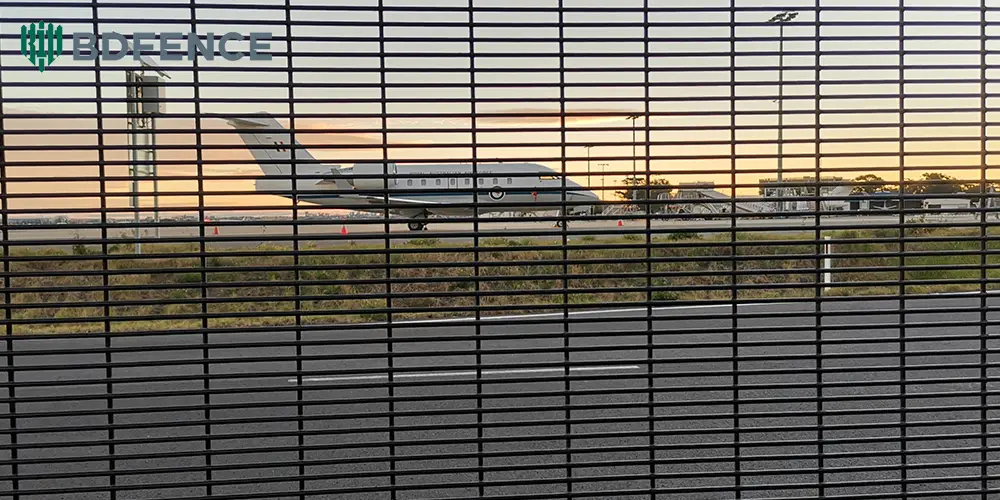

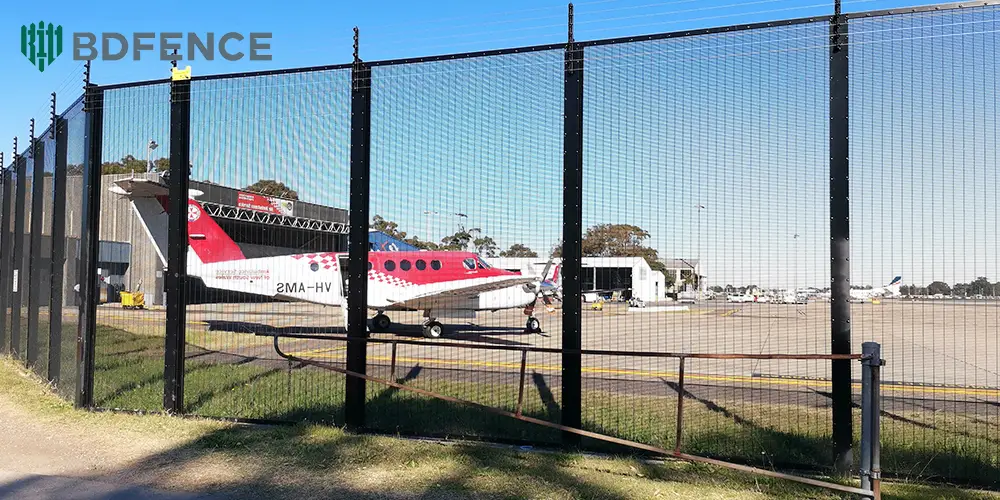

An airport restricted operations area in Malaysia required approximately 3,600 meters of 358 Security Fence to separate controlled operational zones from surrounding service areas.
The perimeter needed to support access control, reduce climbing opportunities, maintain visibility for security teams, and work with multiple pedestrian and vehicle entrances.
Because the fence extended across a long operational boundary, consistency became just as important as the mesh specification itself.
For this project, BDFENCE supplied a complete 358 Security Fence system including welded mesh panels, steel posts, security fixing components, pedestrian gates, vehicle gates, and installation accessories.
Project Profile
| Project Item | Details |
|---|---|
| Country | Malaysia |
| Sector | Aviation Infrastructure |
| Application | Airport Restricted Operations Area |
| Perimeter Length | Approx. 3,600 m |
| Main Product | 358 Security Fence |
| Common Mesh Opening | 76.2 × 12.7 mm |
| Main Function | Restricted-Area Perimeter Control |
| Access | Pedestrian and Vehicle Security Gates |
| Supply Scope | Panels, Posts, Security Fixings, Gates and Accessories |
Why the Airport Needed a Dedicated Restricted-Area Fence
Airport sites contain different operational zones with different access levels.
The project perimeter needed to separate authorized operational space from surrounding areas while keeping the boundary easy to inspect.
The fence had to support:
- Restricted access control
- Perimeter visibility
- Anti-climb performance
- Long continuous fence runs
- Vehicle service access
- Pedestrian security access
- Consistent gate and fence integration
This made 358 welded security mesh suitable for the project requirement.
Why 358 Mesh Was Selected
358 Fence uses a narrow rectangular welded mesh.
A common mesh format is approximately 76.2 × 12.7 mm.
The narrow opening provides limited conventional hand and foot holds compared with many larger-opening fence systems.
At the same time, the fence remains visually open.
That combination was valuable for an airport restricted area where physical perimeter control and visual monitoring needed to work together.
3,600m of Fence Made Consistency a Major Project Issue
On a short fence run, a small production variation may be difficult to notice.
Across 3,600 meters, the same variation can repeat hundreds of times.
For this reason, panel and post consistency were important throughout the project.
BDFENCE focused on:
- Panel height
- Panel width
- Mesh opening
- Wire diameter
- Panel flatness
- Weld condition
- Post dimensions
- Fixing compatibility
This helped the installation team maintain a more uniform perimeter line.
The Post Layout Needed Accurate Planning
358 Fence uses rigid welded panels rather than flexible woven mesh.
That means post positioning needs to match the panel layout accurately.
Incorrect post spacing can create problems such as:
- Panels not aligning correctly
- Uneven panel gaps
- Misaligned security fixings
- Gate-opening conflicts
- Installation delays
For a long airport perimeter, these problems can multiply quickly.
Different Posts Had Different Functions
The project did not rely on one post type everywhere.
Different positions performed different structural roles.
The perimeter could include:
- Line posts
- Corner posts
- End posts
- Pedestrian gate posts
- Vehicle gate posts
Gate posts required particular attention because they supported moving structures rather than fixed fence panels.
Security Fixings Were Part of the Fence Design
The narrow 358 mesh alone does not create a complete high-security perimeter.
Panel-to-post connections also matter.
Depending on the approved design, 358 Fence can use:
- Fixing bars
- Steel security clamps
- Security plates
- Anti-tamper bolts
- Security nuts
- Post caps
The project required a consistent fixing method across the long perimeter.
Airport Vehicle Access Needed Separate Gate Design
The restricted area required controlled vehicle access for authorized service and operational traffic.
Vehicle gates therefore needed to match the surrounding security level.
The gate system considered:
- Required clear opening
- Gate height
- Gate frame structure
- 358 mesh infill
- Gate post size
- Hinges or operating system
- Locking hardware
- Connection to adjacent fence panels
The gates were treated as part of the security perimeter rather than separate accessories.
Pedestrian Gates Needed the Same Security Logic
Authorized personnel also required controlled pedestrian access.
Matching pedestrian gates used 358 mesh infill to maintain visual and structural consistency with the surrounding fence.
The gate design reviewed:
- Gate frame dimensions
- Clear opening
- Gate posts
- Hinges
- Locks
- Fence connections
Visibility Remained Important
Restricted airport areas often require continuous observation.
A solid barrier would change visibility around the perimeter.
The open welded mesh allowed security teams to maintain sightlines through the fence while the narrow mesh geometry still provided anti-climb characteristics.
This helped the physical fence work alongside perimeter monitoring.
What BDFENCE Supplied
| Component | Project Function |
|---|---|
| 358 Welded Mesh Panels | Main restricted-area perimeter |
| Security Line Posts | Support standard fence runs |
| Corner and End Posts | Support perimeter direction changes and terminations |
| Security Fixings | Connect panels to posts |
| Anti-Tamper Fasteners | Secure the panel connection system |
| Pedestrian Gates | Authorized personnel access |
| Vehicle Gates | Controlled service vehicle access |
| Gate Posts | Support entrance structures |
Quality Control Focused on Repetition Across the Long Perimeter
A large project does not only need individual panels to pass inspection.
The products also need to remain consistent from one production batch to another.
| Component | Inspection Focus |
|---|---|
| 358 Panels | Mesh opening, wire diameter, dimensions, welds and flatness |
| Steel Posts | Section size, wall thickness, length and straightness |
| Security Fixings | Dimensions, fit and quantity |
| Pedestrian Gates | Frame geometry and hardware positions |
| Vehicle Gates | Frame alignment, gate posts and connection points |
| Surface Finish | Visible condition and consistency |
Packaging Needed to Support a 3,600m Project
A long perimeter project involves large quantities of repeated components.
Without clear packing and identification, site teams can spend unnecessary time sorting materials.
BDFENCE organized the shipment by component type.
Fence panels were stacked and secured, while posts were bundled separately.
Security fixings and smaller accessories were packed by category.
Gate components were also identified separately from standard fence-line materials.
Installation Began with the Airport Perimeter Layout
Before the panels were installed, the contractor needed to confirm the complete restricted-area route.
Important control points included:
- Fence corners
- End positions
- Vehicle entrances
- Pedestrian entrances
- Changes in direction
- Operational access zones
Once these positions were confirmed, the normal post line could be established more accurately.
Typical Installation Sequence
- Confirm the restricted-area perimeter route
- Mark corners, end points and gate openings
- Set out the required post positions
- Install the steel posts
- Complete the approved foundations
- Position the 358 welded mesh panels
- Secure panels with the specified fixing system
- Install pedestrian security gates
- Install vehicle security gates
- Check alignment, fixing points and gate operation
What the Completed Airport Perimeter Delivered
| Project Requirement | Fence Response |
|---|---|
| Long Restricted Boundary | Approx. 3,600m of 358 Security Fence |
| Anti-Climb Character | Narrow welded mesh |
| Perimeter Visibility | Open mesh structure |
| Controlled Personnel Access | Matching pedestrian gates |
| Operational Vehicle Access | Security vehicle gates |
| Secure Panel Connections | Security fixing system |
| Installation Consistency | Matched panels, posts, gates and accessories |
Why Large Airport Fence Projects Need More Than a Price Per Panel
For a 3,600m perimeter, a small technical difference can create a significant total cost difference.
Two suppliers may both quote 358 Fence but use different:
- Wire diameters
- Panel widths
- Post sections
- Post wall thicknesses
- Post spacing
- Fixing systems
- Gate structures
- Surface treatments
Therefore, buyers should compare complete perimeter specifications rather than panel prices alone.
Gate Quantities Can Change the Project Cost Significantly
Large restricted sites often require multiple access points.
Each gate can add:
- Gate frame steel
- 358 mesh infill
- Heavy gate posts
- Hardware
- Foundations
- Additional fabrication
For this reason, the gate schedule should be included with the perimeter BOQ when requesting a quotation.
What Airport Buyers Should Confirm Before Ordering
A complete RFQ should identify:
- Total perimeter length
- Required fence height
- Mesh specification
- Wire diameter
- Panel width
- Post section and wall thickness
- Post spacing
- Security fixing system
- Gate sizes and quantities
- Surface treatment
- Top security if required
- Perimeter layout
This reduces the risk of receiving technically different quotations under the same product name.
What Should Be Included in an Airport Fence RFQ?
For a more accurate quotation, send BDFENCE:
- Project country
- Airport application
- Total perimeter length
- Fence height
- 358 mesh specification
- Wire diameter
- Panel width
- Post specification
- Post spacing
- Security fixing requirement
- Pedestrian gate sizes and quantities
- Vehicle gate sizes and quantities
- Top-security requirement if applicable
- Surface treatment
- Perimeter drawing
- Gate schedule
- BOQ
- Destination port
If some fence details have not yet been finalized, BDFENCE can review the available perimeter drawings and technical requirements before preparing the quotation.
Why Choose BDFENCE for Airport Security Fence Projects?
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE) manufactures 358 Security Fence systems for airports, data centers, industrial facilities, utilities, renewable energy sites, infrastructure projects, and other controlled-access applications.
Our project supply can include:
- 358 welded security panels
- Customized panel heights
- Different wire diameter options
- Steel security posts
- Security fixing systems
- Anti-tamper fasteners
- Pedestrian security gates
- Vehicle security gates
- Gate posts
- Surface-treatment options
- Installation accessories
Project buyers can send airport perimeter drawings, BOQ documents, gate schedules, and technical specifications directly to BDFENCE for review and quotation.
Project Takeaway
For this airport restricted-area project in Malaysia, the biggest challenge was not a single 358 panel.
It was maintaining the same security logic across approximately 3,600 meters of perimeter.
Panel dimensions, post positions, security fixings, pedestrian entrances, vehicle gates, and production consistency all had to work together.
For airport and other large infrastructure buyers, this is why a complete perimeter drawing and gate schedule are much more useful than a simple request for “358 Fence price per meter.”
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Phone:
+86 18703182863
WhatsApp:
+86 18703287372
Email:
info@bd-fence.com
Website:
https://bd-fence.com/
FAQ
Why use 358 Fence for an airport restricted area?
358 Fence uses narrow welded mesh with limited conventional hand and foot holds while maintaining visibility through the perimeter. This can make it suitable for controlled-access airport areas.
Is 358 Fence suitable for long airport perimeters?
Yes. For long perimeters, panel consistency, post layout, fixing systems, gates, packing, and installation planning become especially important.
Can 358 Fence maintain visibility around airport facilities?
Yes. The mesh remains visually open, allowing perimeter observation while providing a rigid physical boundary.
Can BDFENCE supply airport vehicle gates?
Yes. Vehicle gates can be supplied with matching 358 mesh infill, heavy-duty gate posts, hardware, and related accessories according to project requirements.
Do airport gates need the same height as the fence?
Gate height should follow the approved security design so the access points remain consistent with the surrounding perimeter.
Can top security be added to 358 Fence?
Additional top-security systems can be considered where permitted and required by the approved project specification. The posts and support system should be designed accordingly.
Can BDFENCE quote a 3,600m airport fence project from a BOQ?
Yes. BDFENCE can review perimeter drawings, BOQ documents, gate schedules, panel specifications, post requirements, and other available technical information before preparing a quotation.
Can BDFENCE supply the complete fence package?
Yes. The supply can include 358 panels, posts, security fixings, pedestrian gates, vehicle gates, gate posts, fasteners, and installation accessories.
“`
