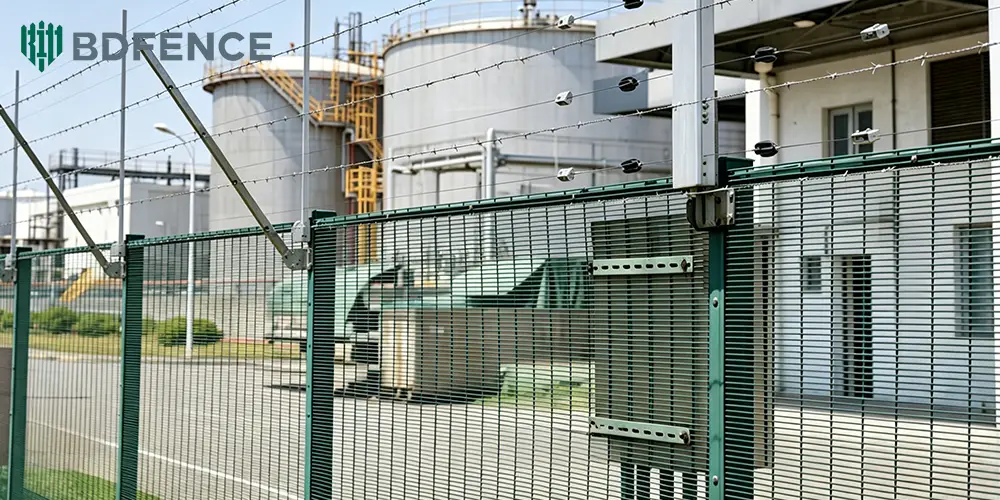

BDFENCE supplied approximately 2,400 meters of 358 Security Fence for a large industrial facility. The customer wanted stronger protection around production areas, equipment zones, warehouses, and controlled entrances.
At the same time, the security team needed clear visibility for CCTV cameras and daily patrols. Therefore, the project required a fence that combined anti-climb performance with an open mesh design.
BDFENCE supplied the complete system, including 358 welded mesh panels, steel posts, pedestrian gates, vehicle gates, security fence fittings, anti-tamper fasteners, and installation accessories.
Project at a Glance
| Project Item | Details |
|---|---|
| Application | Industrial Facility Perimeter |
| Product | 358 Security Fence |
| Total Length | Approx. 2,400 m |
| Fence Height | 2,400 mm |
| Mesh Opening | 76.2 × 12.7 mm |
| Wire Diameter | 4.0 mm |
| Finish | Galvanized + Powder Coated |
| Color | RAL 6005 |
| Pedestrian Gates | 10 sets |
| Vehicle Gates | 6 sets |
| Supply Scope | Complete Fence System |
What Did the Customer Need?
The industrial facility included several areas with different security needs. For example, production zones and equipment areas required more protection than ordinary property boundaries.
The customer wanted to protect:
- Production areas
- Equipment zones
- Technical sections
- Warehouses
- Vehicle entrances
- Employee access points
For this reason, the project team chose 358 Fence instead of a conventional large-opening mesh fence.
Why Did the Customer Choose 358 Fence?
Three factors played an important role in the final decision.
1. Better Anti-Climb Performance
The 76.2 × 12.7 mm mesh opening leaves very little space for normal hand and foot holds. As a result, climbing the fence becomes more difficult than climbing many standard perimeter fences.
2. Clear CCTV Visibility
The customer did not want to block the view around the industrial site. Therefore, the open welded mesh design was an important advantage.
Security staff could monitor activity through the fence while maintaining a physical boundary around restricted areas.
3. Controlled Access
The site required both pedestrian and vehicle entrances. Therefore, BDFENCE designed the gates to work with the same 358 Fence system.
This approach created a consistent perimeter around the facility.
Challenge 1: Keeping 2.4 km of Fence Consistent
A long perimeter can quickly create installation problems if panel dimensions vary from batch to batch.
For example, differences in panel width or fixing positions can affect post spacing on site.
Our Solution
BDFENCE checked the key dimensions throughout production. We focused on:
- Mesh opening
- Wire diameter
- Panel height
- Panel width
- Welding quality
- Panel flatness
- Post dimensions
As a result, the contractor could use a consistent installation method across the project.

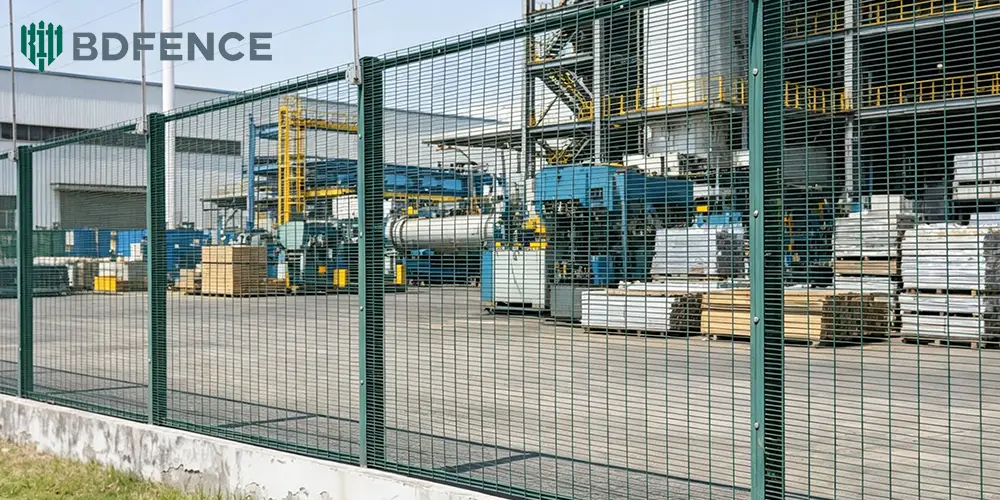

Challenge 2: Managing Different Access Points
The facility needed separate entrances for employees, maintenance teams, deliveries, service vehicles, and emergency access.
In total, the project included 10 pedestrian gates and 6 vehicle gates.
Our Solution
Before production, BDFENCE checked the gate sizes and matched them with the surrounding fence sections.
In addition, we used matching 358 mesh inside the gate frames. Therefore, the gates kept the same visual style as the main perimeter fence.
Challenge 3: Managing Security Fence Fittings
Panels and posts are only part of a 358 Fence system. The installation also requires many smaller parts.
For this project, the system included:
- Security clamps
- Fixing plates
- Anti-tamper bolts
- Nuts and washers
- Post caps
- Gate hinges
- Locking hardware
Although these parts are small, missing components can stop installation.
Our Solution
BDFENCE checked the fittings by type and quantity before packing. In addition, we separated gate hardware from standard fence fittings.
As a result, the contractor could identify the required parts more quickly after delivery.
What Did BDFENCE Supply?
| Component | Purpose |
|---|---|
| 358 Fence Panels | Main security barrier |
| Line Posts | Standard fence sections |
| Corner Posts | Fence direction changes |
| Terminal Posts | Fence end sections |
| Gate Posts | Support for access gates |
| Security Fittings | Panel-to-post connections |
| Pedestrian Gates | Personnel access |
| Vehicle Gates | Vehicle and delivery access |
Surface Protection for Outdoor Use
The fence would remain outdoors throughout its service life. Therefore, corrosion protection was an important part of the project.
BDFENCE supplied galvanized and powder-coated components in RAL 6005.
This finish helped provide:
- Corrosion protection
- Weather resistance
- Consistent appearance
- Better long-term outdoor performance
Quality Checks Before Shipping
Before shipping the order, BDFENCE checked the complete system instead of focusing only on the fence panels.
| Product | What We Checked |
|---|---|
| 358 Panels | Mesh size, wire diameter, dimensions, welds and flatness |
| Steel Posts | Size, wall thickness, straightness and fixing positions |
| Fence Fittings | Type, quantity and connection match |
| Security Gates | Size, hinges, opening movement and hardware |
| Surface Finish | Visible coating condition and color consistency |
Therefore, the customer received more than individual products. The shipment contained a coordinated fence system ready for site installation.
Packaging for Easier Site Work
Good packaging should protect the fence during transportation. However, for a large project, it should also make site work easier.
BDFENCE stacked and secured the 358 panels for transport. Meanwhile, we bundled different post types separately.
We also packed the security fittings by function. As a result, the installation team spent less time sorting small components on site.
How Was the Fence Installed?
The local contractor followed the approved perimeter layout.
- Confirm the fence line and gate positions
- Install the steel posts
- Position the 358 Fence panels
- Connect the panels with security fittings
- Install pedestrian and vehicle gates
- Check the final alignment and connections
Because BDFENCE supplied compatible panels, posts, gates, and fittings, the contractor could follow the same installation method across most of the project.
What Was the Final Result?
After installation, the industrial facility had approximately 2,400 meters of high-security perimeter fencing.
| Project Need | Result |
|---|---|
| Stronger boundary | Rigid 358 welded mesh perimeter |
| Anti-climb design | Narrow 76.2 × 12.7 mm mesh |
| CCTV visibility | Open mesh maintained clear sightlines |
| Personnel access | 10 pedestrian gates |
| Vehicle access | 6 vehicle gates |
| Outdoor protection | Galvanized + powder-coated finish |
Most importantly, the fence supported daily industrial operations without blocking visibility around the protected areas.
Does Every Industrial Boundary Need 358 Fence?
No. In fact, using the same high-security fence everywhere may increase the project budget without adding much value.
Instead, industrial sites can use 358 Fence around higher-risk areas such as:
- Critical equipment
- Restricted production areas
- Technical facilities
- High-value storage
- Controlled entrances
Meanwhile, lower-risk boundaries may use another fence type if the project design allows it.
Therefore, dividing the facility into different security zones can help control the overall fencing budget.
Why Choose BDFENCE for 358 Fence Projects?
BDFENCE manufactures 358 Security Fence systems for contractors, distributors, industrial companies, and project buyers.
We can supply:
- 358 Fence panels
- Customized steel posts
- Security fence fittings
- Anti-tamper fasteners
- Pedestrian gates
- Vehicle gates
- Installation accessories
In addition, project buyers can send drawings, BOQ documents, technical specifications, and gate schedules for review.
Planning a Similar Industrial Fence Project?
To prepare an accurate quotation, send BDFENCE:
- Total fence length
- Required fence height
- Panel specification
- Post requirements
- Surface treatment
- Gate quantities and sizes
- Fence fittings requirements
- Project drawings or BOQ
- Destination country or port
With this information, we can prepare a quotation based on the actual project scope instead of using a generic fence price.
Contact BDFENCE
Hebei Bendin Industrial Technology Co., Ltd. (BDFENCE)
Website: https://bd-fence.com/
Phone: +86 18703182863
WhatsApp: +86 18703287372
Email: info@bd-fence.com
FAQ
Why did this industrial facility use 358 Fence?
The customer needed stronger anti-climb performance while keeping clear visibility for CCTV monitoring and security patrols.
What 358 Fence specification did the project use?
The project used a 2,400 mm high fence with 76.2 × 12.7 mm mesh and 4.0 mm wire.
Does BDFENCE supply posts and fittings?
Yes. BDFENCE can supply panels, posts, security fittings, gates, and installation accessories as one coordinated package.
Can BDFENCE customize 358 Fence?
Yes. We can customize fence height, panel size, posts, coating, RAL color, gates, and fittings according to project requirements.
Can I send a BOQ for quotation?
Yes. BDFENCE can review BOQ documents, drawings, gate schedules, and technical specifications before preparing the quotation.
