Introduction

Chain Link Fence is one of the most widely used perimeter security solutions for ports, container terminals, industrial facilities, and logistics areas due to its durability, flexibility, and cost efficiency.

For this UAE port security project, BDFENCE supplied 18,600 sets of Chain Link Fence systems, including galvanized chain link mesh panels, steel posts, tension accessories, security gates, and supporting components.

The customer required a reliable fencing system to secure container storage areas, separate restricted zones, improve site management, and withstand harsh coastal environments.

PROJECT BACKGROUND

Port Perimeter Security Requirements

The project was developed for a large container terminal located in a coastal industrial area.

The main security requirements included:

Prevent unauthorized access
Protect cargo storage zones
Control vehicle and personnel movement
Define restricted operational areas

Because ports usually cover extensive areas, the client required a fencing solution that could provide reliable protection while maintaining reasonable project costs.

Selecting The Right Fence System

The customer compared multiple fencing options.

Chain Link Fence Advantages

Chain Link Fence was selected because it provides:

Large-area coverage capability
Fast installation
Flexible terrain adaptation
Easy maintenance

Compared With Steel Tubular Fence

Chain Link Fence offers:

Lower overall project cost
Better suitability for long-distance boundaries

Compared With 358 Security Fence

Chain Link Fence provides:

Practical security performance
Better cost efficiency for general port zones

Coastal Environmental Challenges

The port environment exposed the fence system to:

High humidity
Salt spray
Strong sunlight
Coastal winds

Therefore, corrosion resistance was a key requirement.

OUR CHAIN LINK FENCE SOLUTION

Product Configuration

Product: Heavy Duty Galvanized Chain Link Fence System

Chain Link Mesh Specification

Customized configuration:

Wire diameter: 3.5mm
Mesh opening: 50×50mm
Fence height: 2.0m–2.5m
Material: Galvanized steel wire

The diamond mesh structure provides flexibility while maintaining excellent strength.

Fence Post System

The project included:

Line posts
Corner posts
Terminal posts
Support braces

Features:

Heavy-duty steel structure
Hot-dip galvanized protection
Long outdoor service life

Security Gate System

BDFENCE supplied:

Pedestrian Gates

Applications:

Staff access
Maintenance areas

Sliding Vehicle Gates

Applications:

Truck entrances
Container transportation routes

Features:

Heavy-duty frame
Industrial hardware
Access control compatibility

CUSTOMIZATION HIGHLIGHTS

Advanced Corrosion Protection

To handle the coastal environment, BDFENCE provided:

Hot-Dip Galvanized Treatment

Features:

Zinc coating: 80–100μm
Strong rust resistance
Suitable for marine environments

Large Scale Boundary Design

The fencing system was optimized for:

Long-distance installation
Efficient material usage
Fast construction

Additional Security Options

The project included:

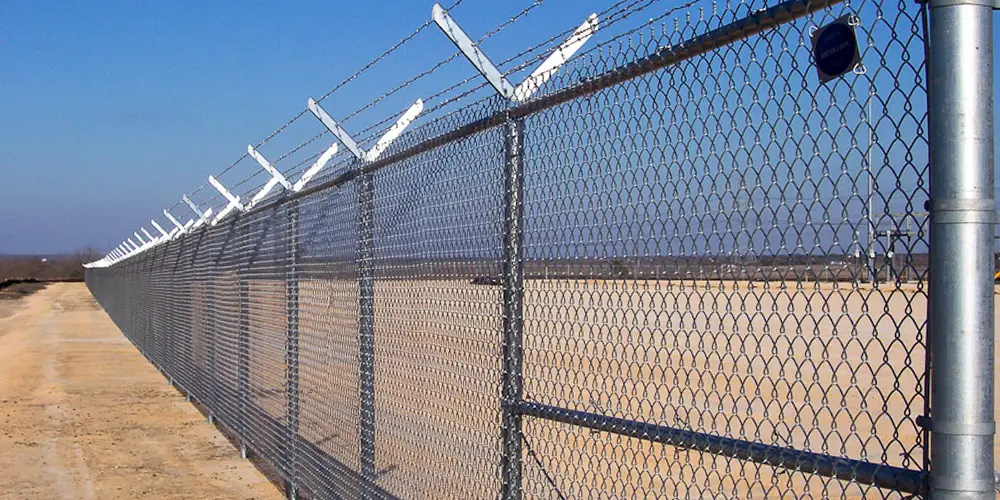

Barbed Wire Extension

Benefits:

Increased perimeter security
Reduced unauthorized climbing risks

Reinforced Corner Structure

Benefits:

Improved stability
Better wind resistance

QUALITY CONTROL

Raw Material Inspection

Before production:

Steel wire inspection
Diameter verification
Zinc coating testing

Production Quality Inspection

During manufacturing:

Mesh Production Check

Verified:

Uniform mesh opening
Stable weaving structure
Correct dimensions

Post Manufacturing Check

Inspected:

Straightness
Welding quality
Surface treatment

Finished Product Inspection

Before shipment:

Mesh quality inspection
Accessory quantity verification
Gate function testing
Packaging confirmation

PROJECT EXECUTION HIGHLIGHTS

High Volume Manufacturing

BDFENCE completed production of:

18,600 Chain Link Fence systems
More than 420,000 meters of galvanized mesh
Complete installation accessories

Professional Export Packaging

To ensure safe international transportation:

Compact mesh roll packaging
Reinforced steel supports
Waterproof protection

were applied.

On-Time Delivery

Through production planning and logistics coordination, all shipments were delivered according to the port construction schedule.

WHY CHAIN LINK FENCE IS IDEAL FOR PORT PROJECTS

Suitable For Large Areas

Ports require kilometers of boundary protection. Chain Link Fence provides an economical solution for extensive perimeter areas.

Flexible Installation

It can adapt to:

Flat land
Uneven terrain
Complex site conditions

Easy Maintenance

Damaged sections can be repaired individually without replacing the entire system.

Long-Term Outdoor Durability

Galvanized Chain Link Fence provides reliable performance in demanding outdoor environments.

CUSTOMER FEEDBACK

The port construction contractor commented:

“BDFENCE provided a reliable Chain Link Fence solution for our container terminal project. The galvanized coating quality, product consistency, and delivery performance fully met our requirements. Their professional service helped us complete the project efficiently.”

PARTNER WITH A PROFESSIONAL CHAIN LINK FENCE MANUFACTURER

BDFENCE provides customized fencing solutions for global infrastructure projects, including:

Chain Link Fence
358 Security Fence
Steel Tubular Fence
Temporary Fence
Industrial Perimeter Fence

With advanced manufacturing equipment, strict quality control, and professional export experience, BDFENCE supports customers worldwide with reliable fencing systems.

For your next perimeter protection project:

WhatsApp: +86 18703287372

Email: info@bd-fence.com

FAQ

Why is Chain Link Fence suitable for port security projects?

Chain Link Fence provides economical, durable, and flexible perimeter protection for large-scale port and terminal areas.

Can Chain Link Fence withstand coastal environments?

Yes. Hot-dip galvanized Chain Link Fence provides excellent corrosion resistance for humid and coastal locations.

What is the difference between Chain Link Fence and Steel Tubular Fence?

Chain Link Fence is more economical and suitable for large boundaries, while Steel Tubular Fence provides a more decorative and rigid structure.

Can Chain Link Fence include security gates?

Yes. Chain Link Fence systems can be equipped with pedestrian gates, sliding gates, and vehicle access gates.

Can BDFENCE customize Chain Link Fence projects?

Yes. BDFENCE can customize fence height, wire diameter, mesh size, coating, posts, gates, and accessories.
