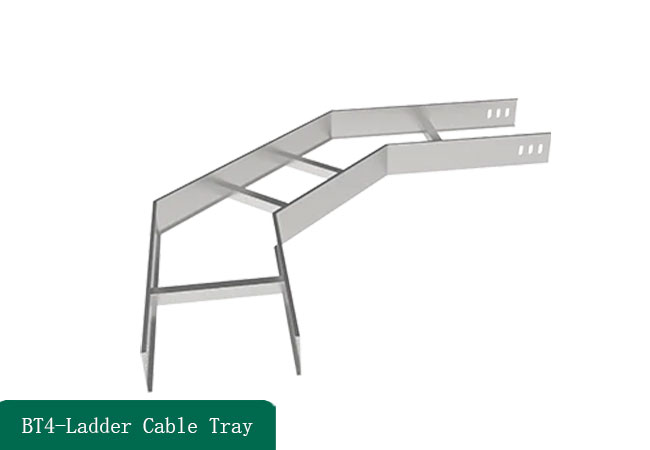

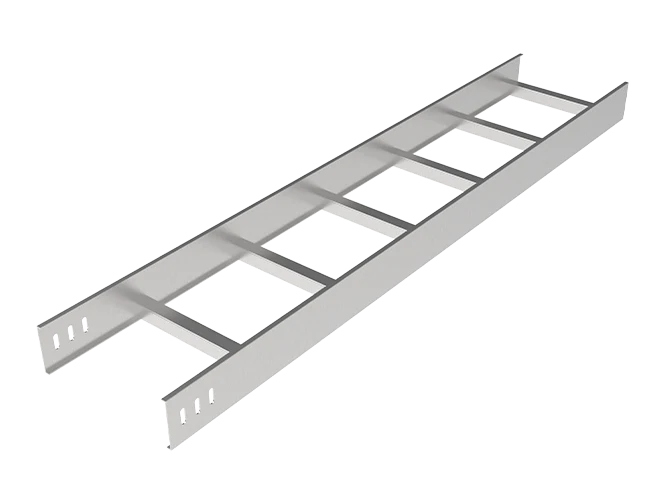

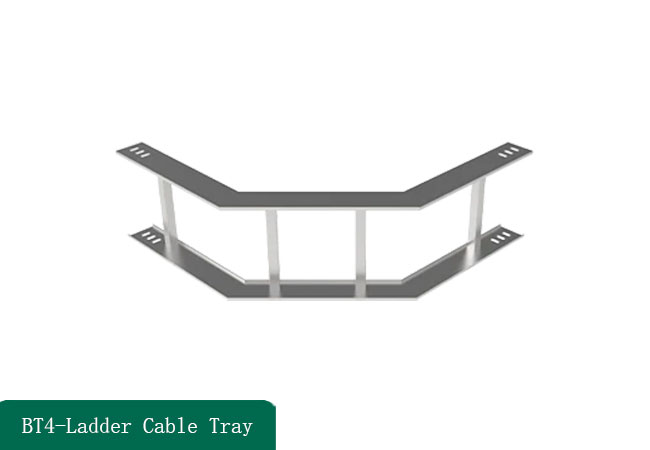

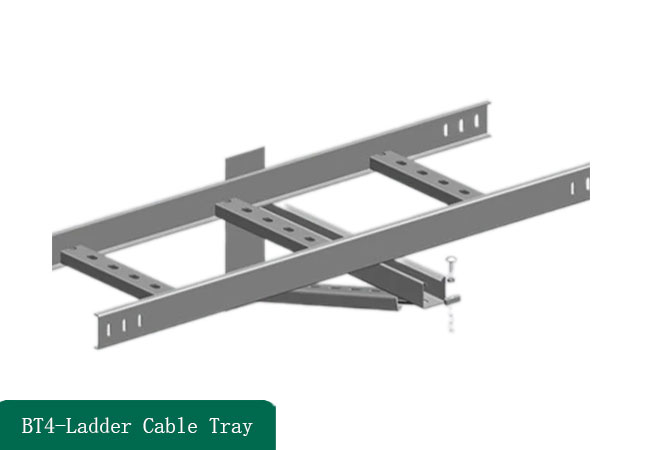

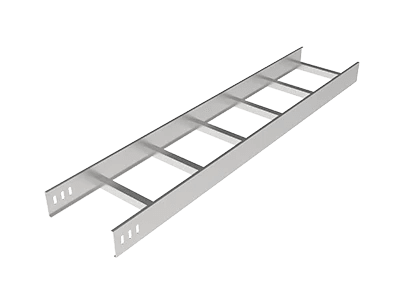

Ladder Cable Tray
Ladder cable tray features lightweight, cost-effective, uniquely designed modeling, easy to install, good heat dissipation and ventilation. It is generally suitable for laying cables with a large diameter, especially suitable for the laying of high and low voltage power cables.

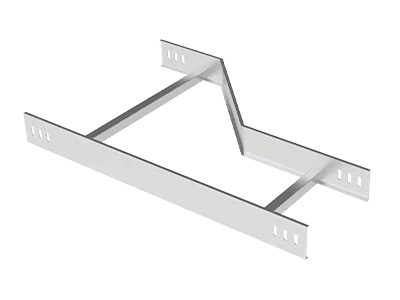

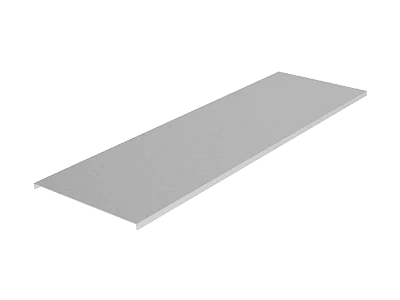

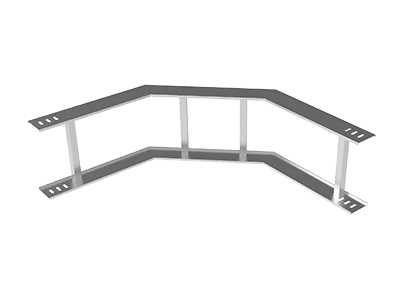

Main Parts

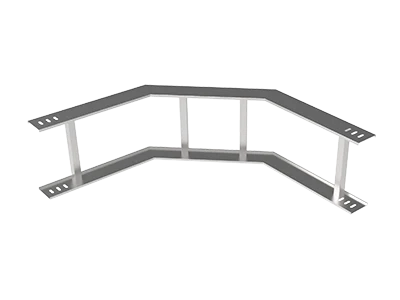

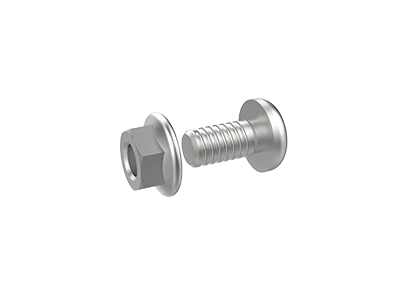

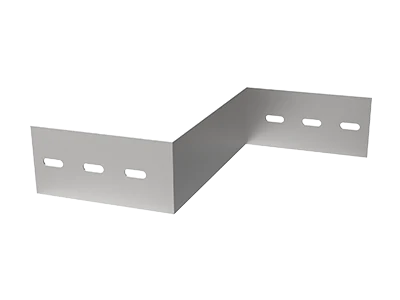

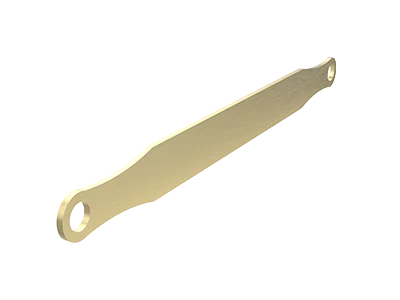

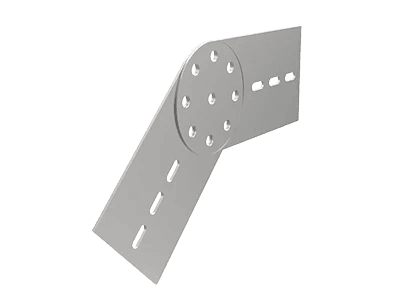

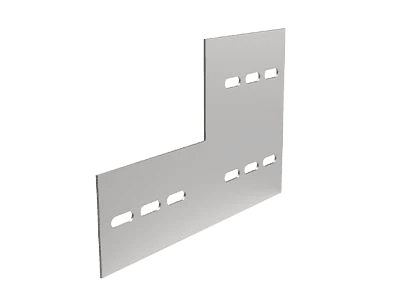

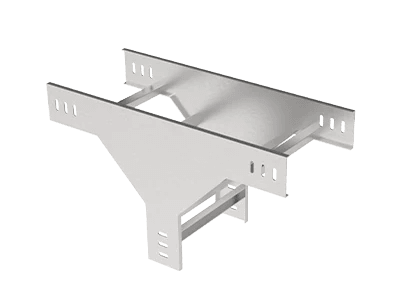

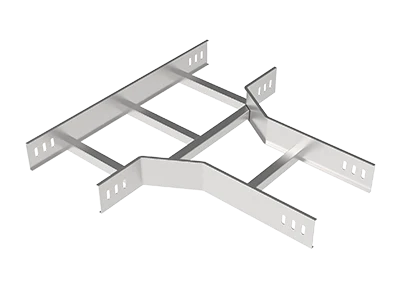

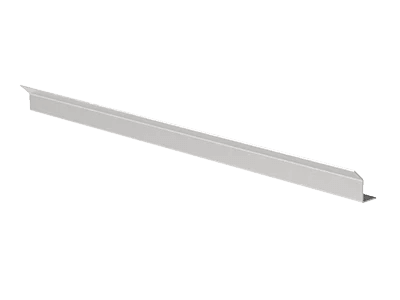

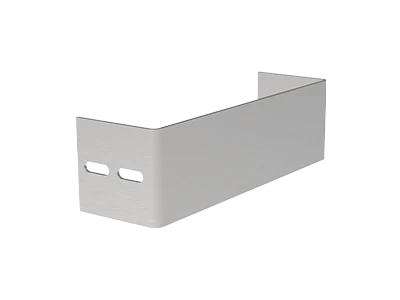

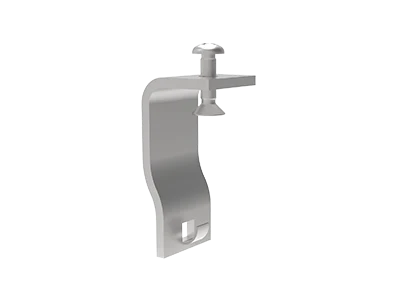

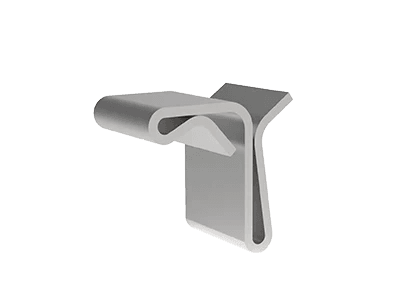

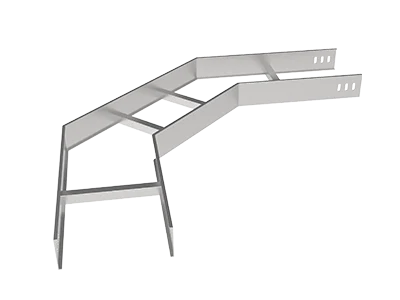

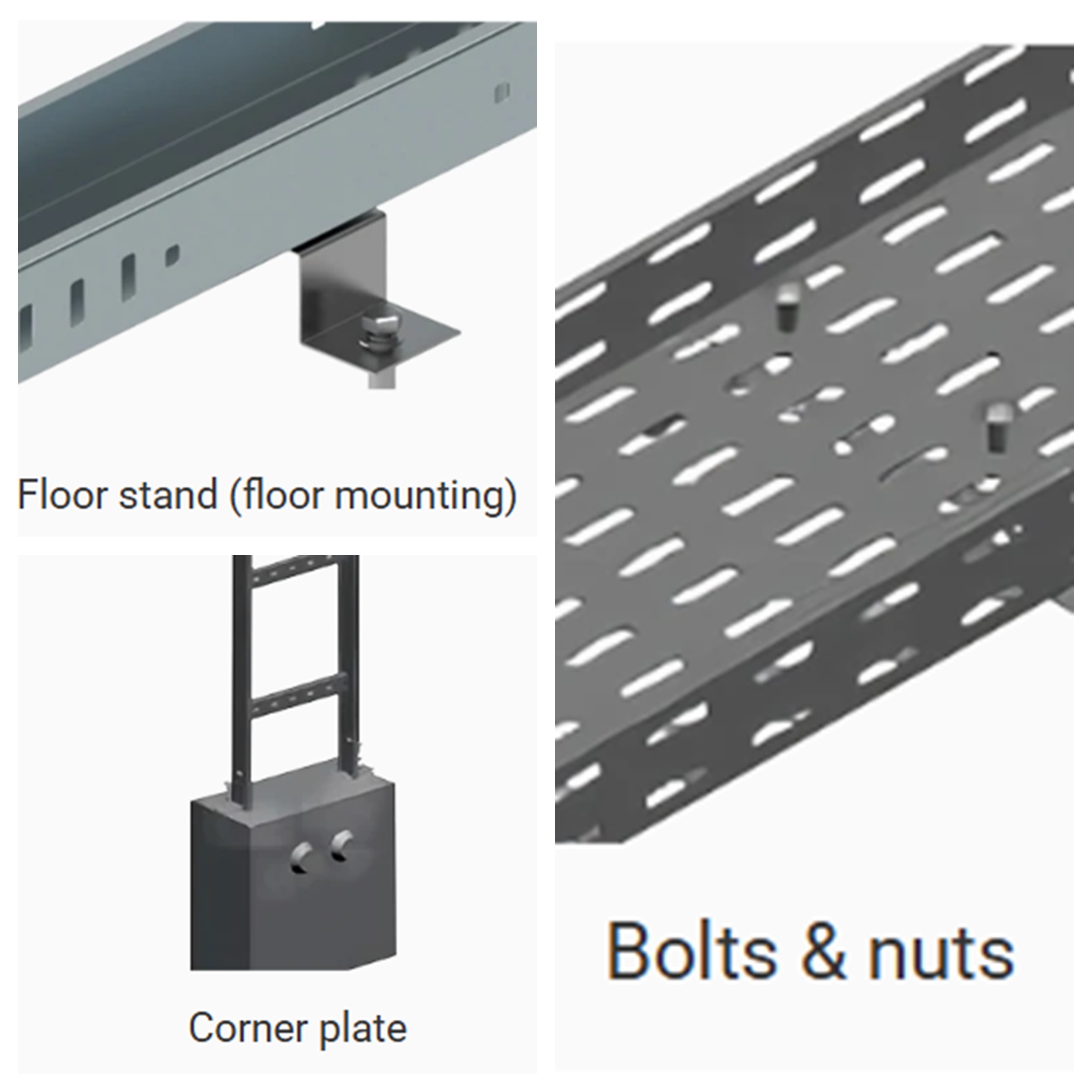

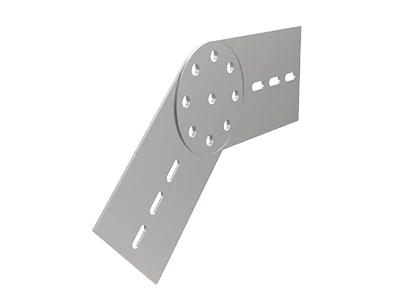

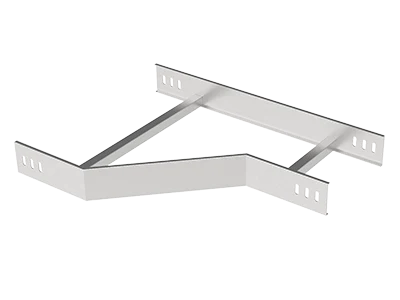

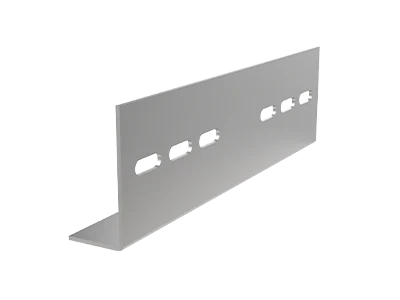

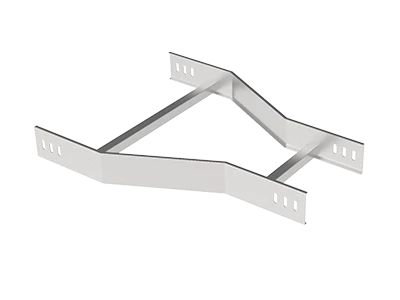

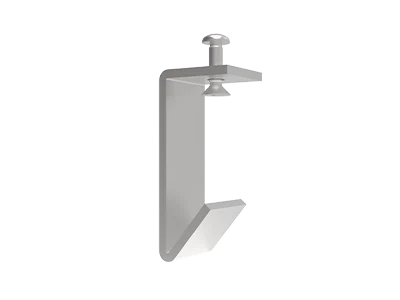

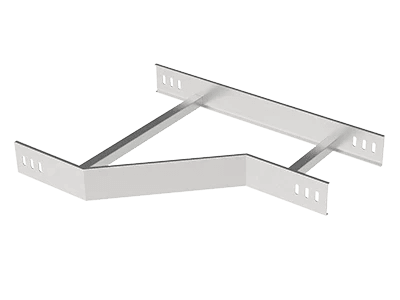

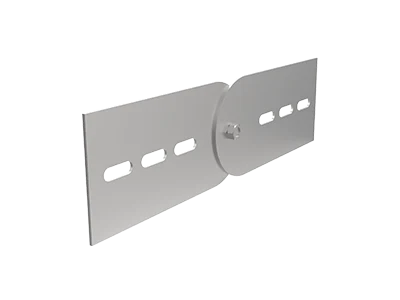

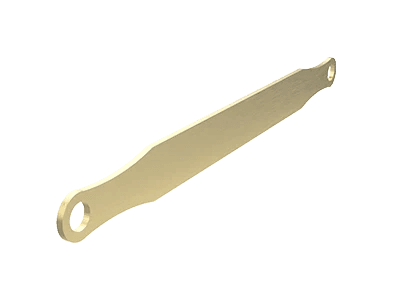

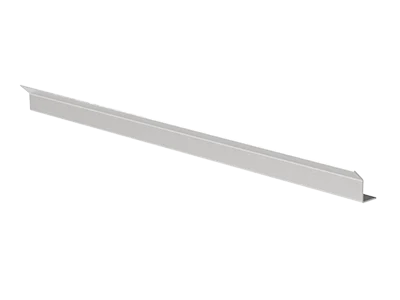

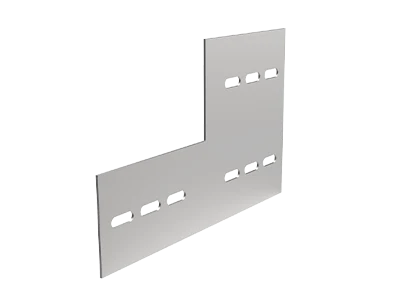

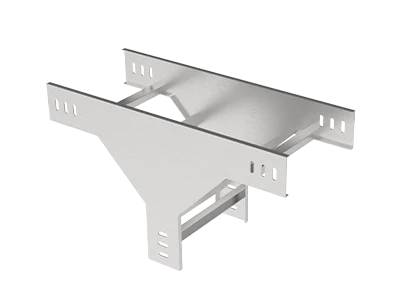

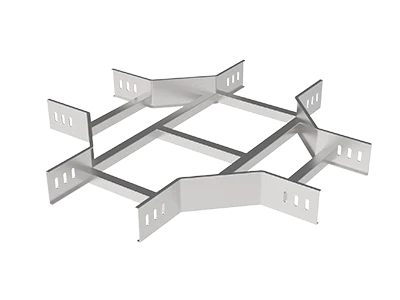

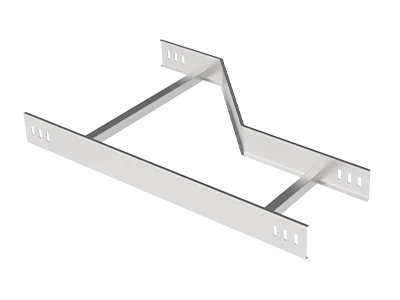

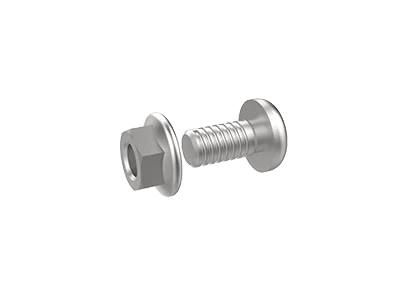

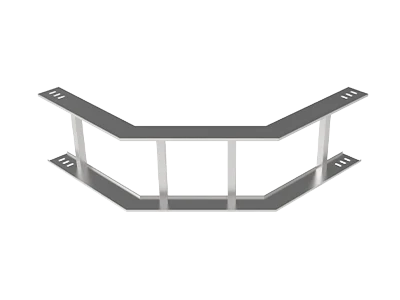

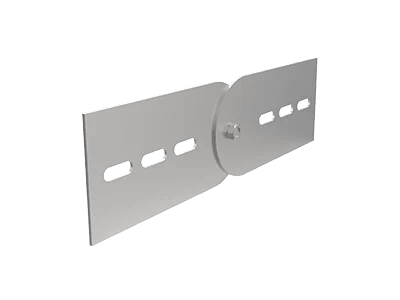

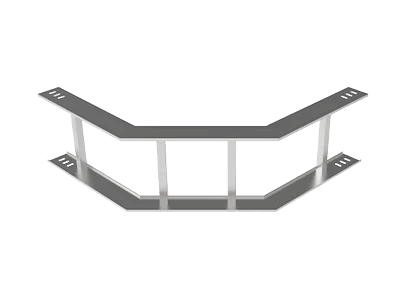

Related Accessories

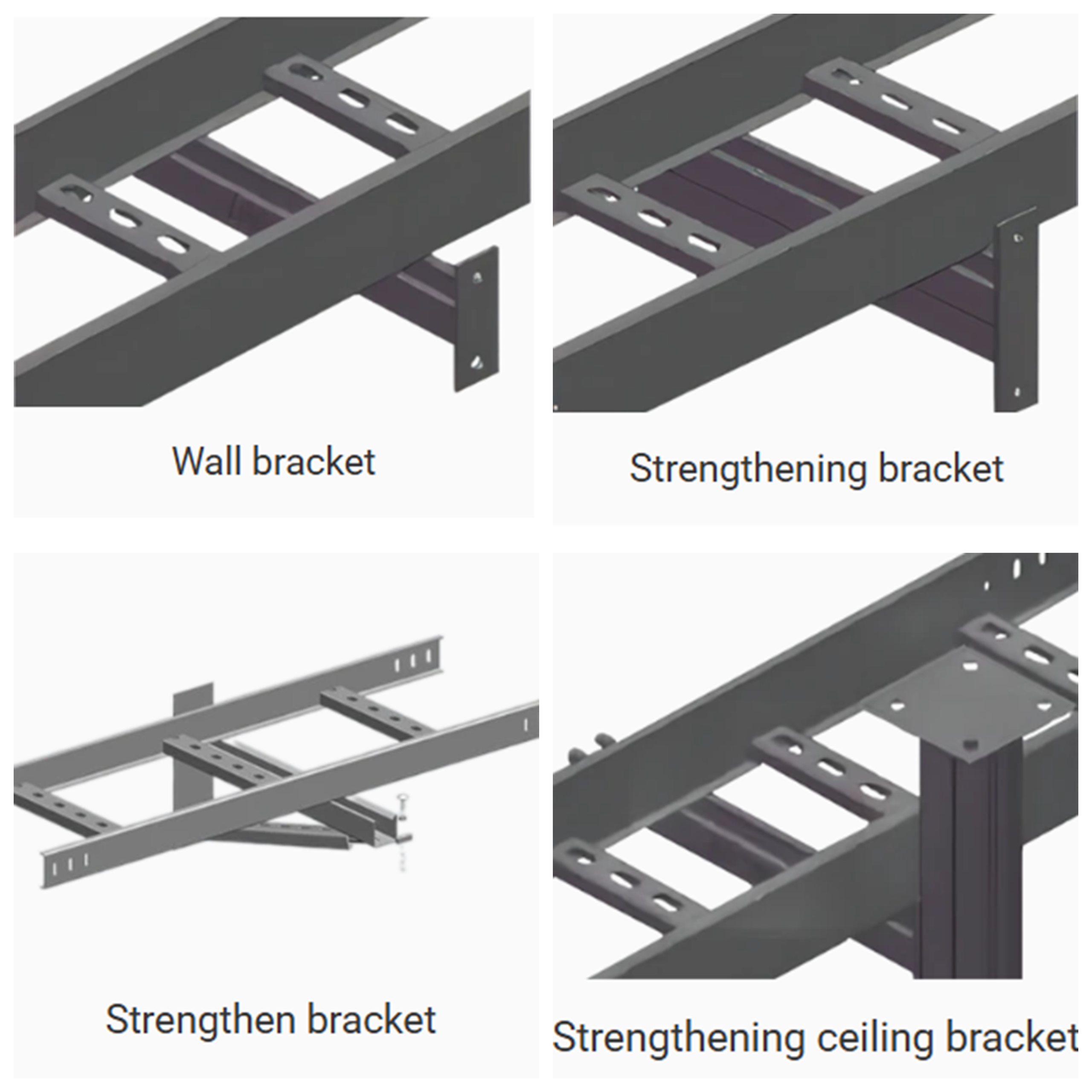

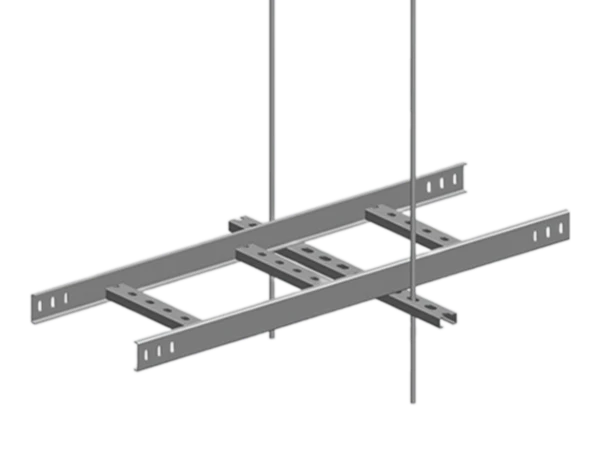

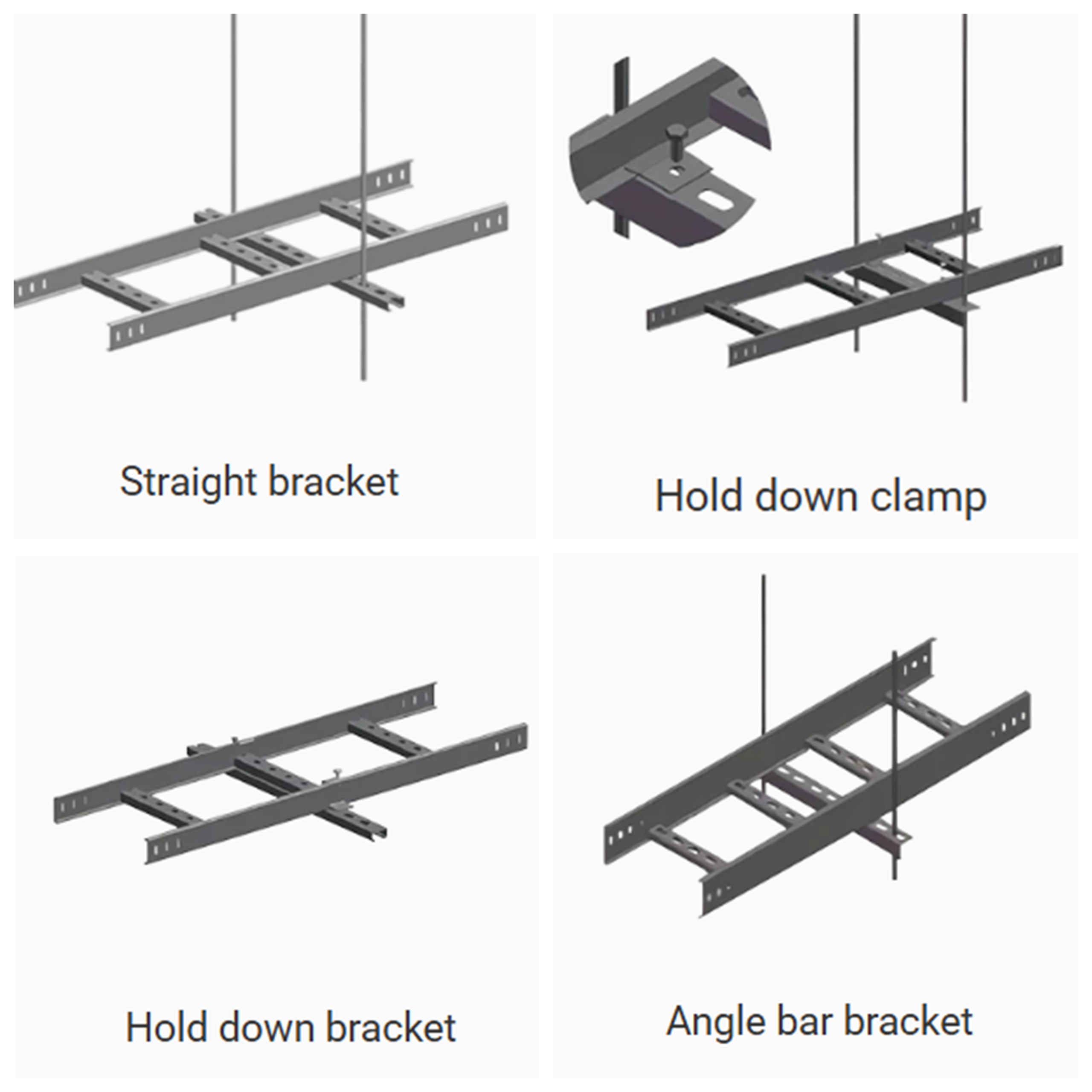

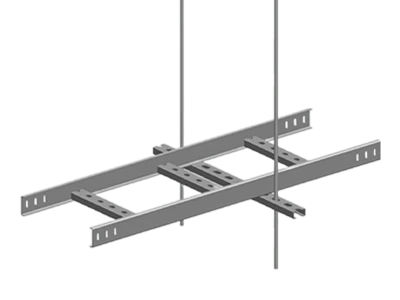

Ceiling Hoisting
By hanging from the ceiling or overhead structures, it maximizes the use of floor space, especially suitable for environments with limited space. However, it is necessary to ensure that the structure has sufficient strength and stability to support the weight of the cable tray and cables

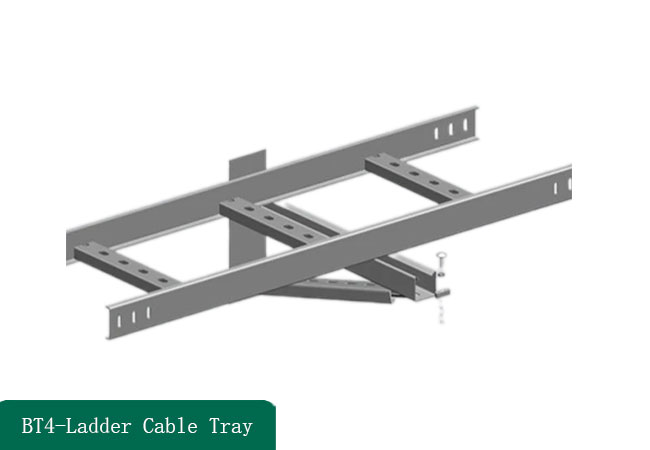

Wall Mounting
Utilizing vertical wall space helps save floor space and makes cable routing neater. Check the wall material to ensure it can support the weight of the cable tray and cables. Use appropriate fasteners during installation to ensure safety and stability.

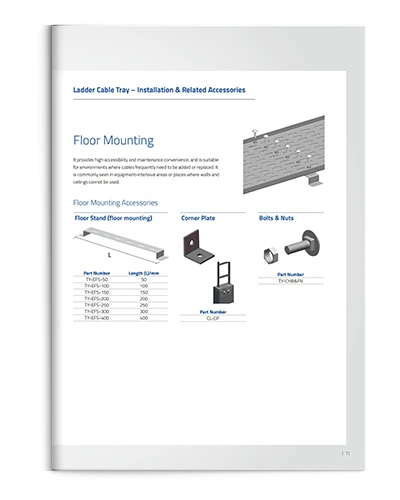

Floor Mounting
It provides high accessibility and maintenance convenience, and is suitable for environments where cables frequently need to be added or replaced. It is commonly seen in equipment-intensive areas or places where walls and ceilings cannot be used.

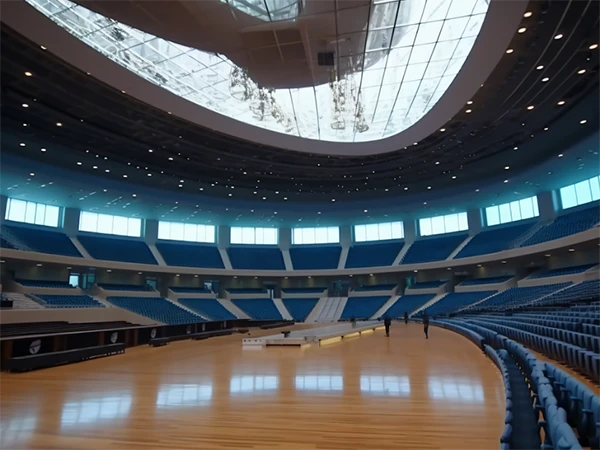

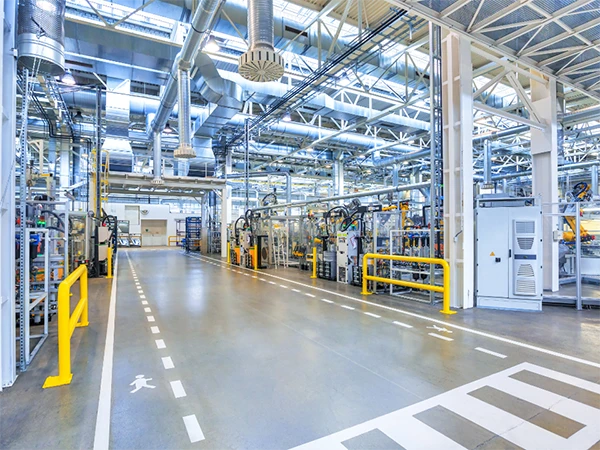

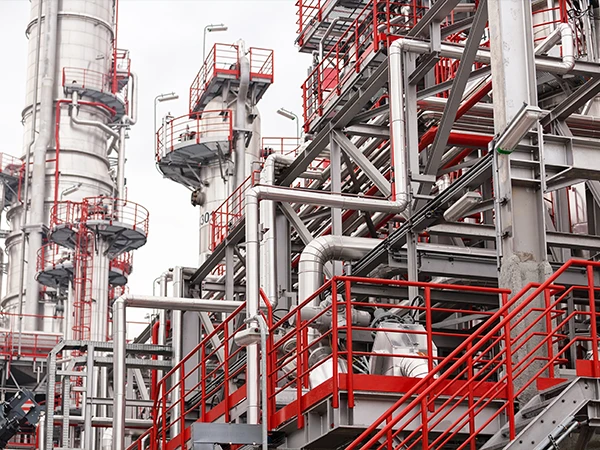

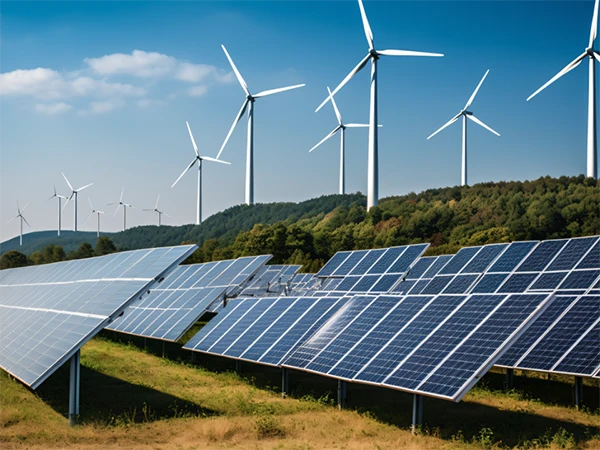

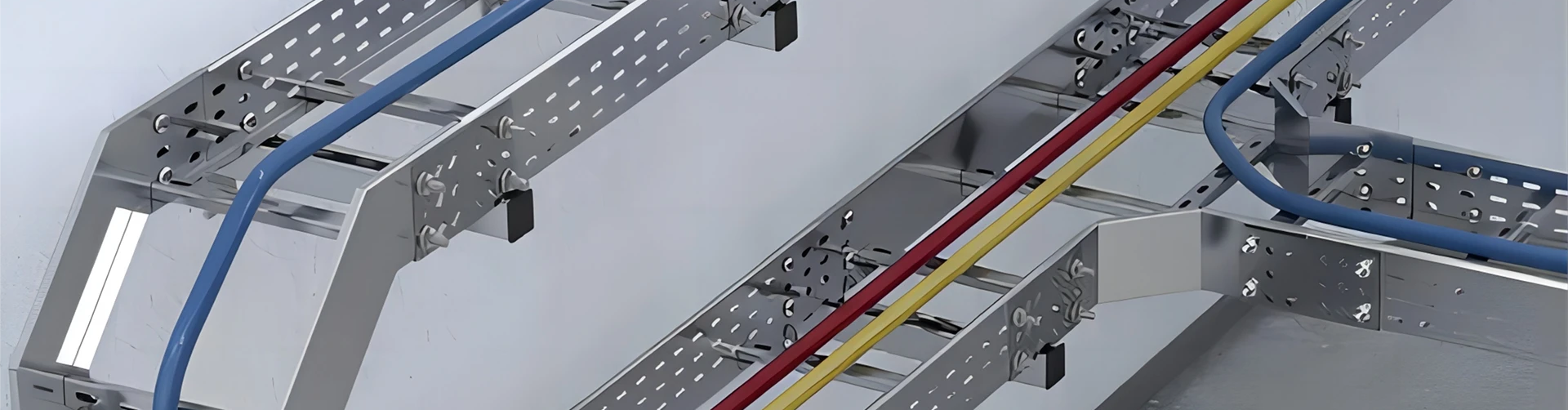

Applications
Ladder Cable Tray Surface Treatment
BDFENCE offer surface treatment options for Ladder Cable Tray including:
- Pre-Galvanized (PG): Steel sheets are galvanized before fabrication; suitable for indoor and light-duty applications.
- Hot-Dip Galvanized (HDG): Finished trays are dipped in molten zinc for superior corrosion protection, ideal for outdoor and industrial environments.
- Powder Coated: Electrostatic powder coating provides additional protection and is available in multiple colors for aesthetic or identification purposes.
- Stainless Steel (SS304 / SS316): Offers excellent resistance to corrosion, perfect for chemical plants, coastal areas, and food processing facilities.
Process of making Ladder Cable Tray
- Material Selection: High-quality steel sheets or stainless steel plates are chosen based on load requirements.
- Cutting and Punching: Sheets are cut to size and punched to create rungs and cable openings.
- Assembly: Side rails and rungs are assembled into ladder structures using welding or mechanical fastening.
- Surface Treatment: Depending on customer requirements, trays are galvanized, powder-coated, or left as stainless steel.
- Inspection: Final inspection ensures dimensional accuracy, weld strength, and surface quality.
- Packaging
Ladder Cable Tray color options
- Green
- Blue
- Gray
- White
- Yellow
- Black
- Brown
- Many others, as your demand
Q1:What is the minimum order quantity?
A1:Minimum order of 100 sets
Q2:Are the welding points easily to get broken?
A2:Please do not worry about it. We will test the tensile strength during the production.
Q3:Are the fences get rust easily?
A3:Before painting,the fences must be sand-blasted and cleaned three times: water cleaning– parkerising– water cleaning. The powder we use are Dupont or Aksu which are the international famous brands,to ensure the plastic layer beautiful ,firm and smooth, the surface is resistant to ultraviolet and corrosion.
Q4:What is your sample policy?
A4:We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost. And all the sample cost will be refunded after you place the order.
Q5:How long warranty does your company can provided for fence product?
A5:Our product can last for 10 years at least. Usually we will provide 5-10 years guarantee.
Q6:Can I be your agent?
A6:We warmly welcome all kinds of cooperation, Please emails us for more details.
Q7:Can you design and make as customers’ request?
A7:Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
Q8:How is your after sale?
A8:After the goods are sent, we will track them in real time and give you timely feedback.After you receive the goods, we will have a dedicated staff to return visits, if there is a problem, we will reply to you within 2 working days
