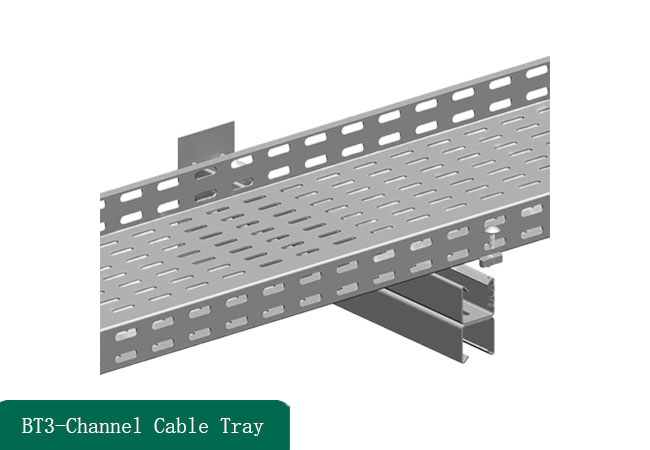

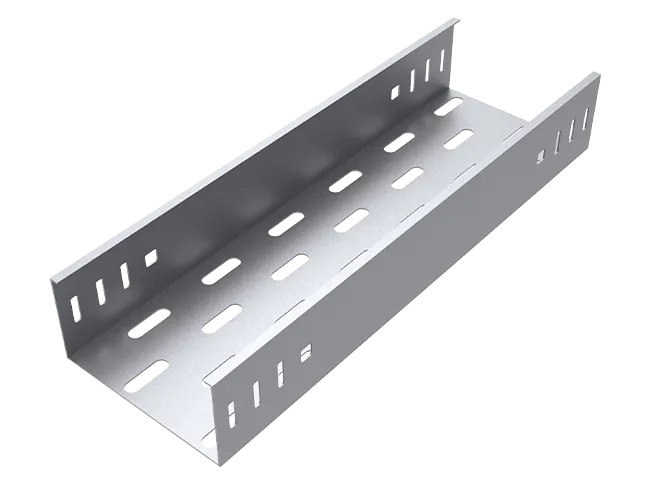

Channel Cable Tray
Channel cable tray features lightweight, high load-bearing capacity, aesthetically pleasing, simple structure, and easy to install. It is one of the most widely used cable trays in industries such as petroleum, chemical, power, light industry, television, and telecommunications. It is suitable for the installation of power cables as well as for the laying of control cables.

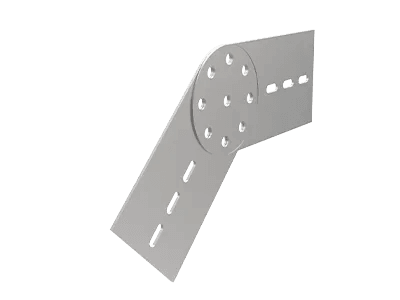

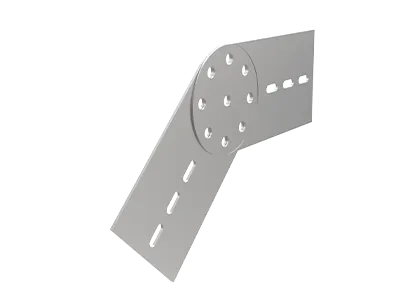

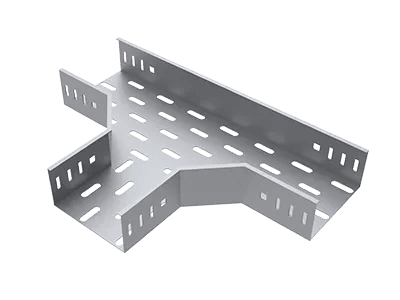

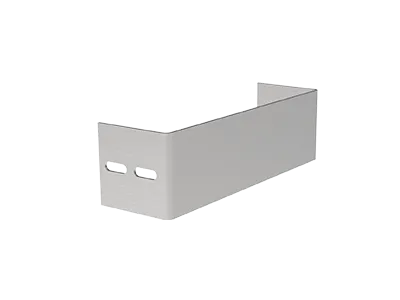

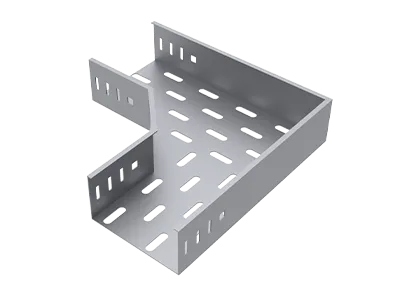

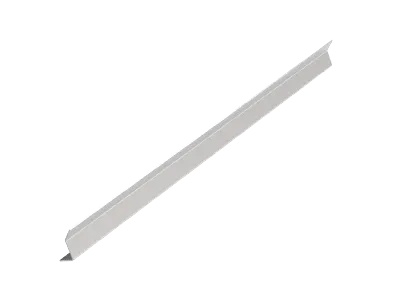

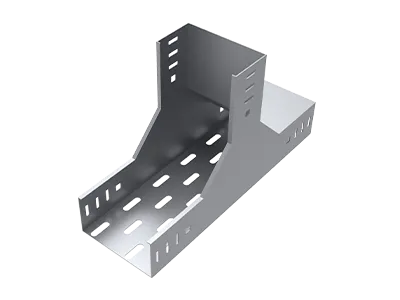

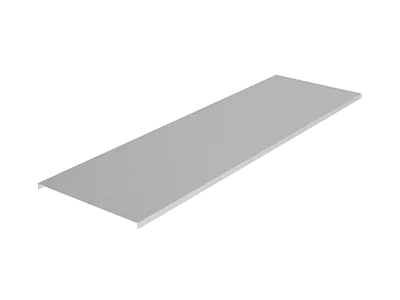

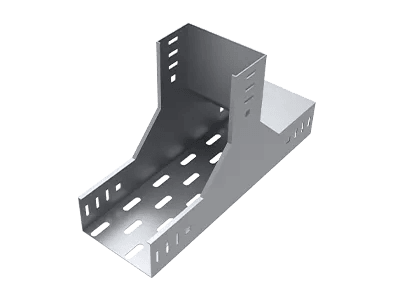

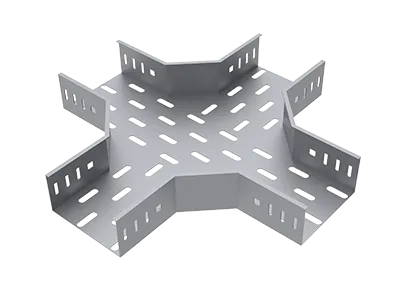

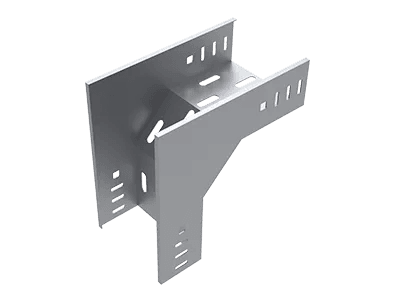

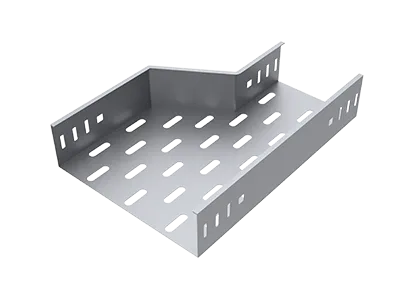

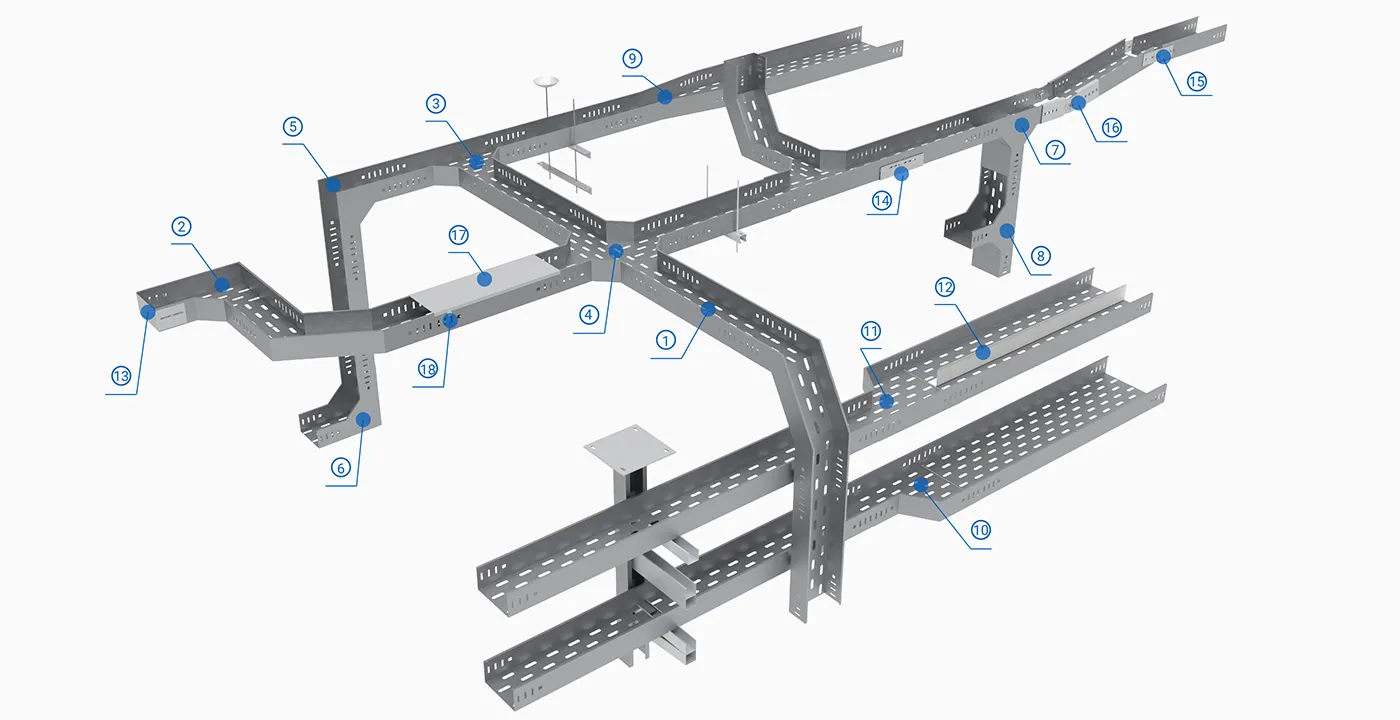

Main Parts

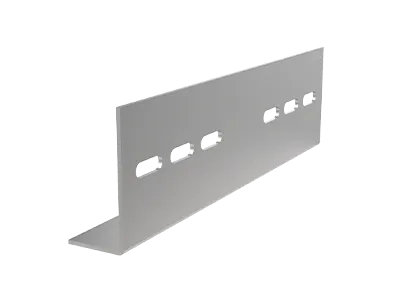

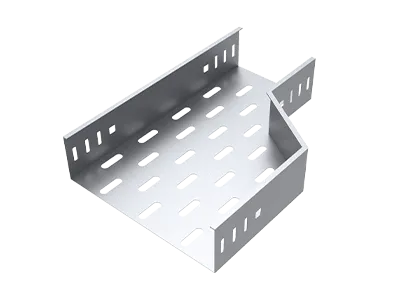

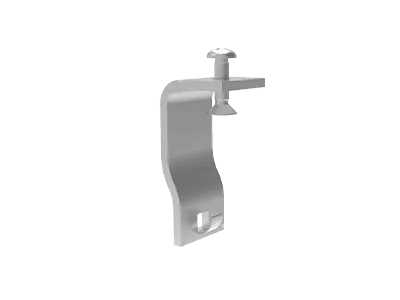

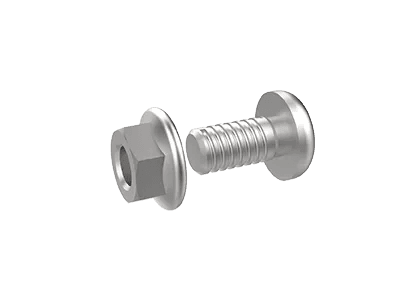

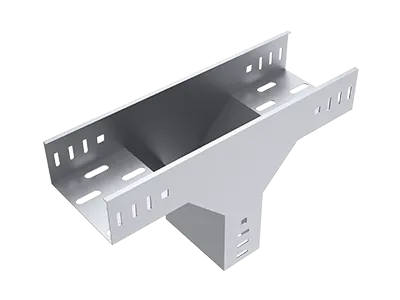

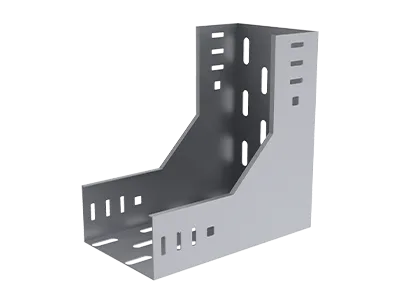

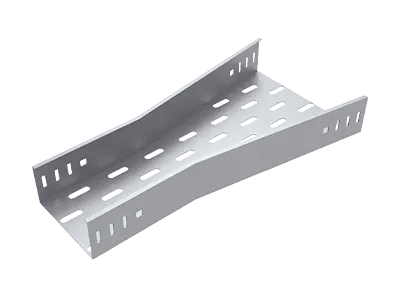

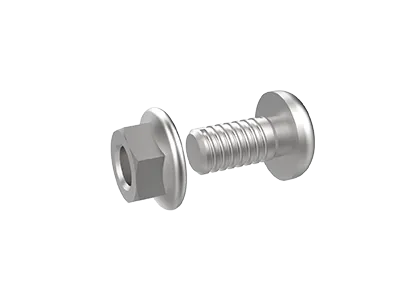

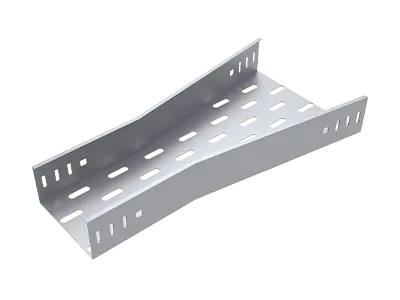

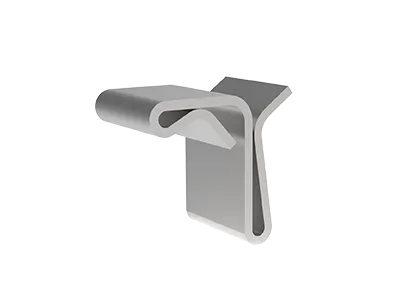

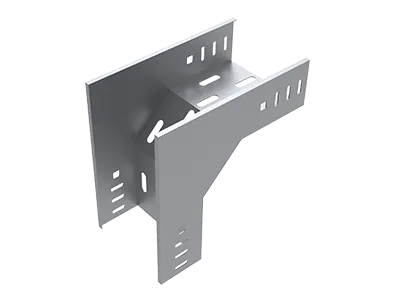

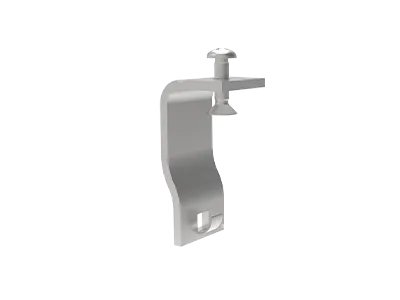

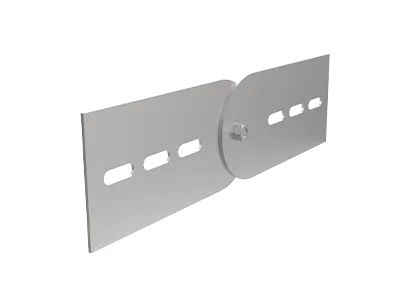

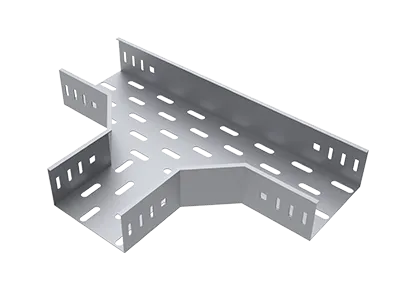

Related Accessories

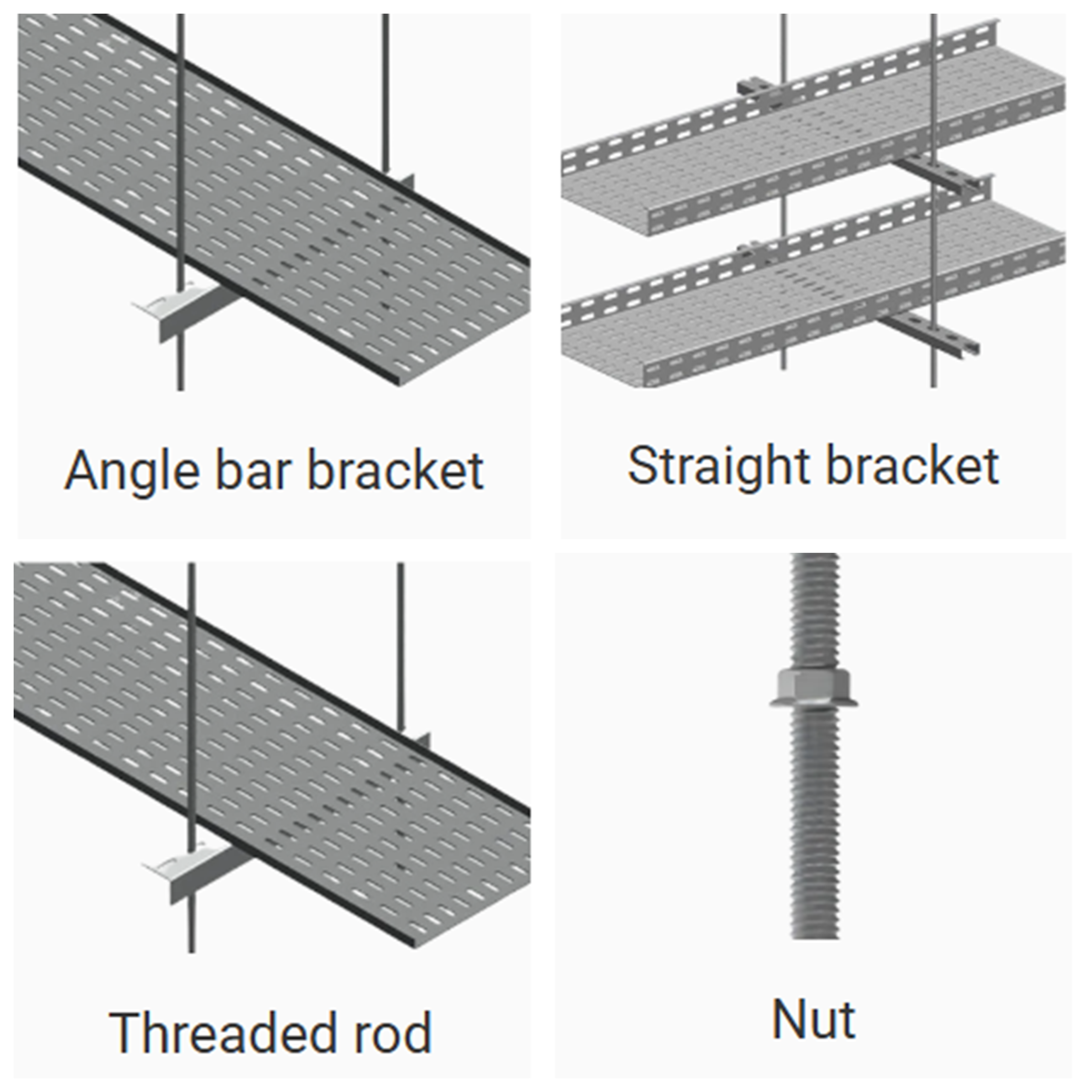

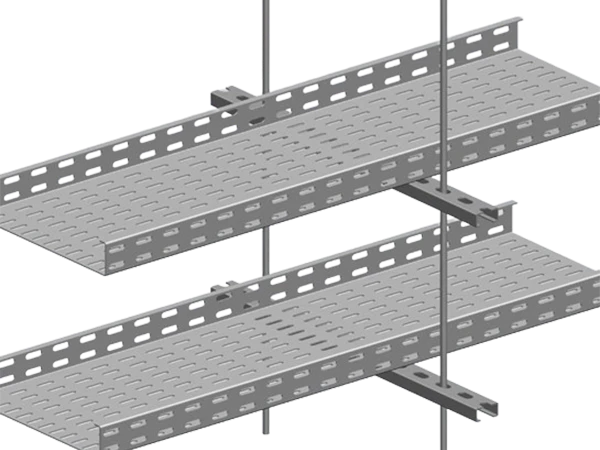

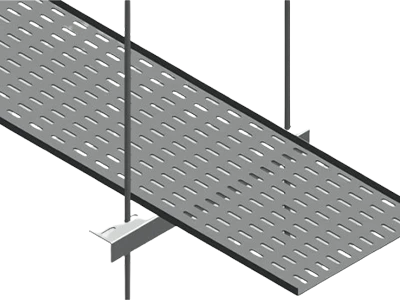

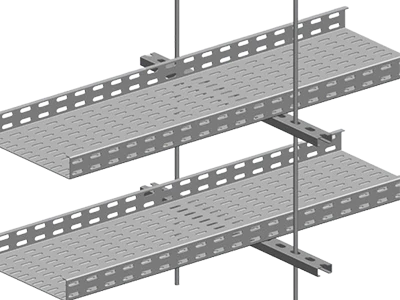

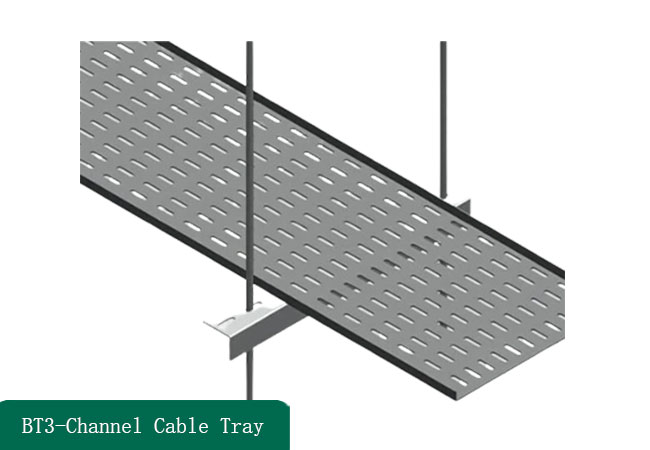

Ceiling Hoisting
It is suitable for places with high spaces and environments where facility space is limited or where it is necessary to keep the ground clean. In this way, it can save space and avoid ground obstacles. During installation, it is necessary to ensure that the structure’s load-bearing capacity can support the cable tray and its load.

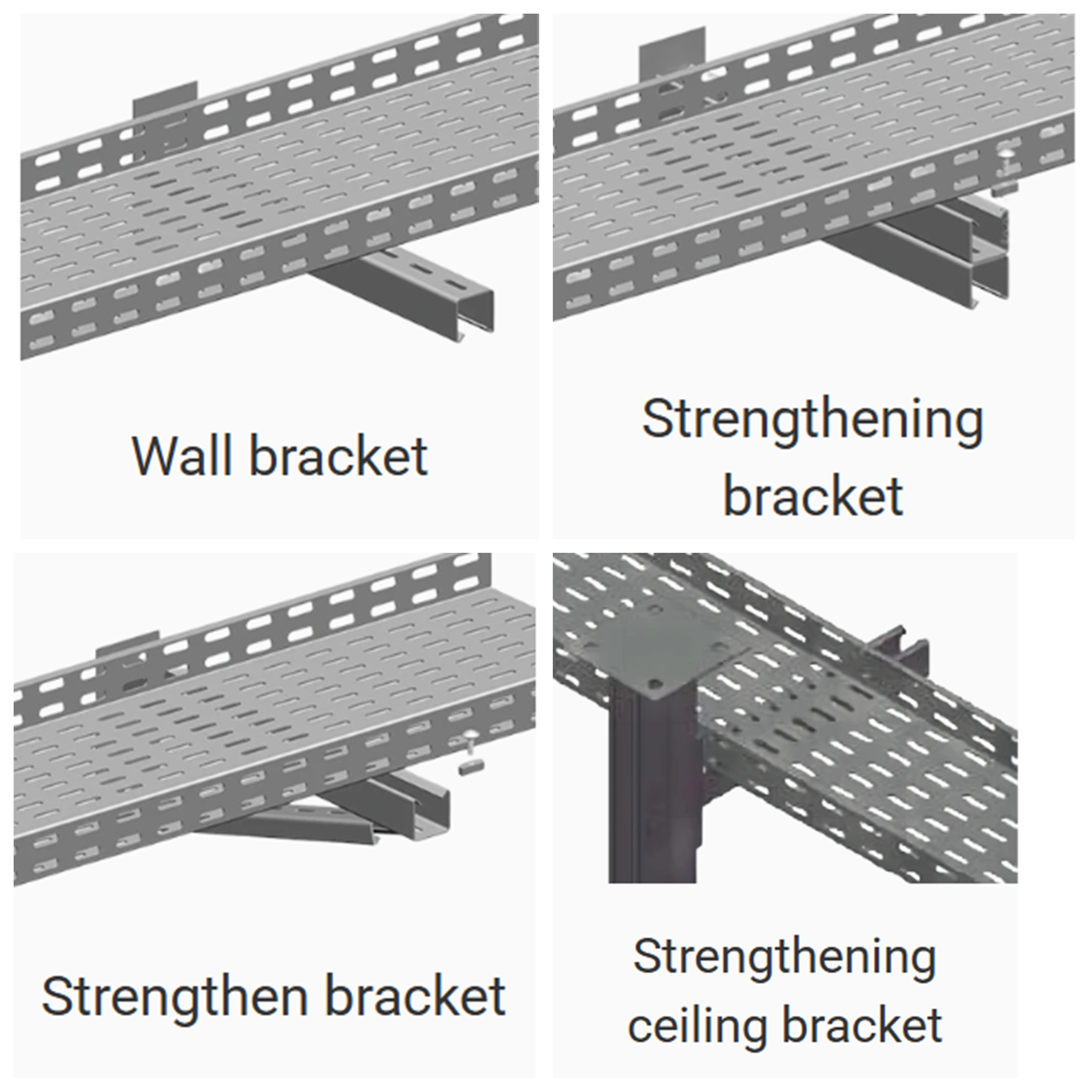

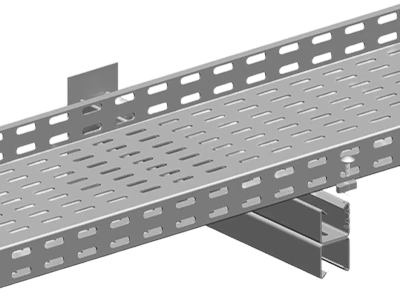

Wall Mounting
It is suitable for shorter wiring runs, or for wiring along walls. It can effectively utilize vertical space, facilitating cable distribution and management. Typically, various types of fasteners and expansion bolts are used to secure the cable tray, making installation simple and quick.

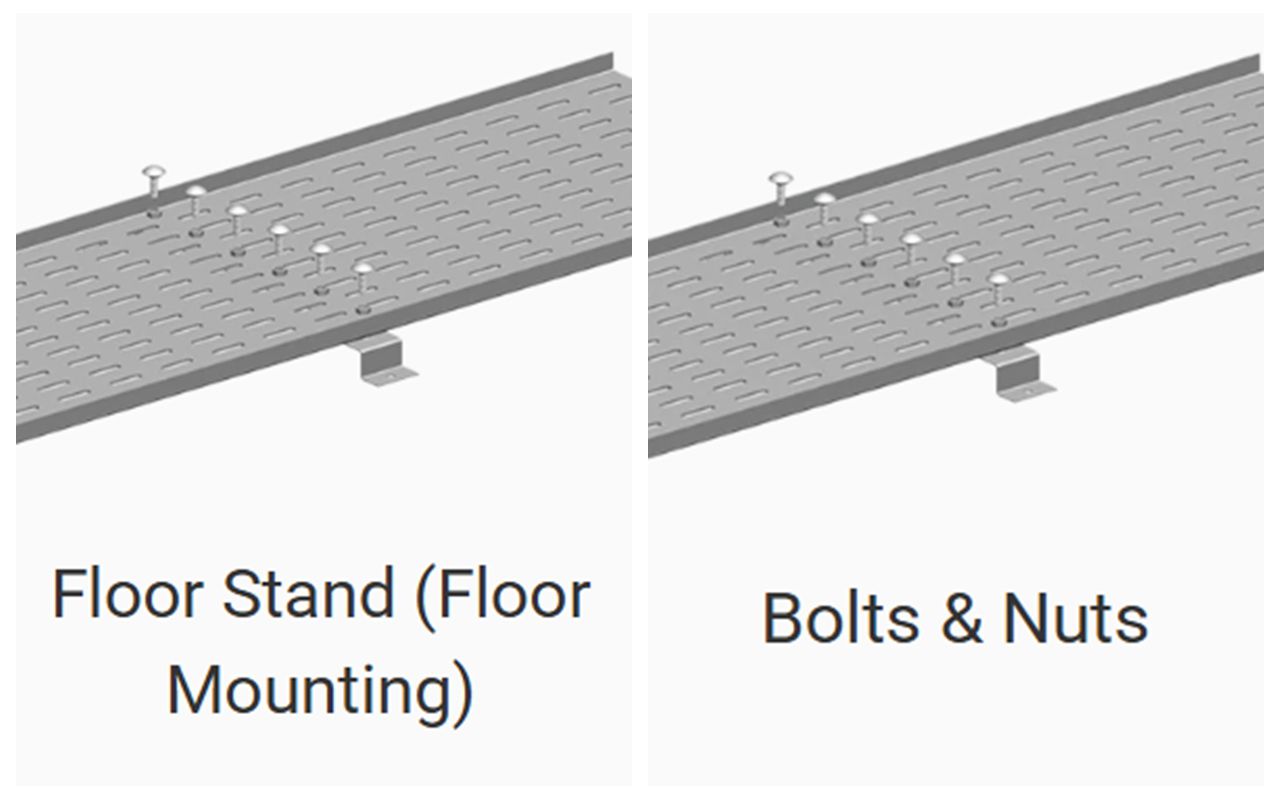

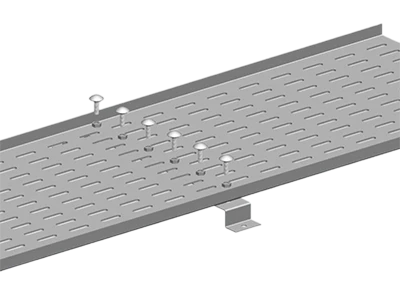

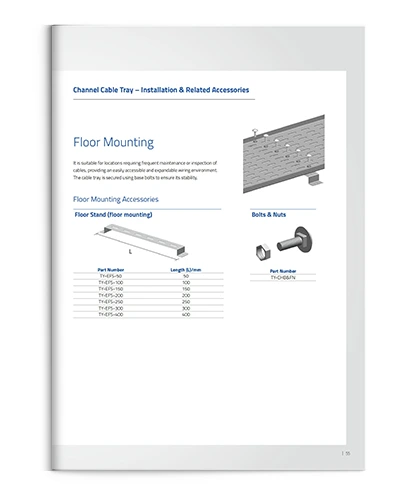

Floor Mounting
It is suitable for locations requiring frequent maintenance or inspection of cables, providing an easily accessible and expandable wiring environment. The cable tray is secured using base bolts to ensure its stability.

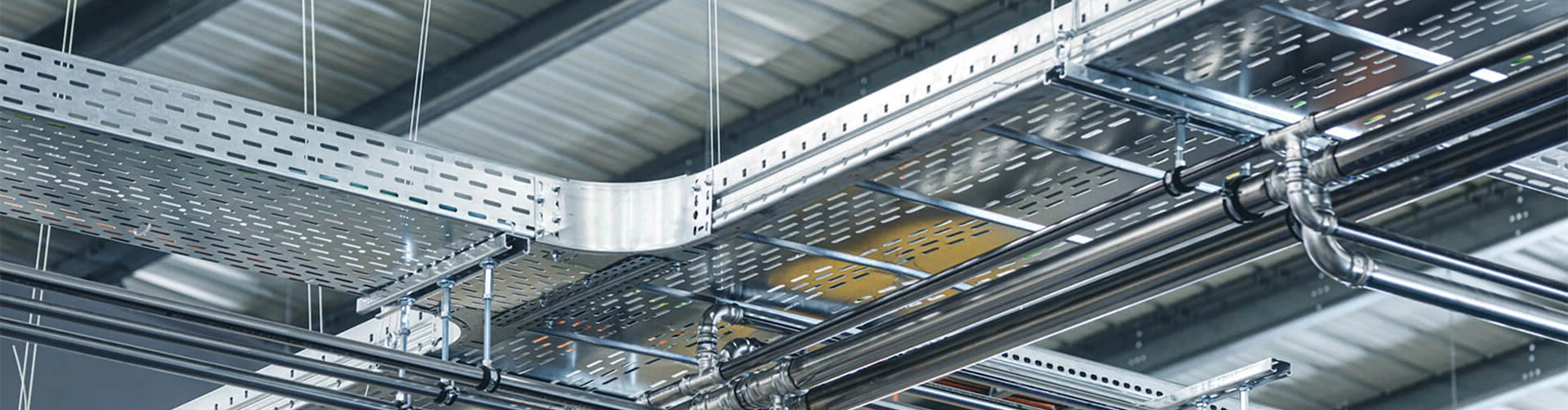

Applications
Channel Cable Tray Surface Treatment
BDFENCE offer surface treatment options for Channel Cable Tray including:
- Pre-Galvanized (PG): Steel sheets are galvanized before fabrication, suitable for indoor and light-duty applications.
- Hot-Dip Galvanized (HDG): Finished trays are fully immersed in molten zinc, providing superior corrosion protection for outdoor and industrial environments.
- Powder Coated: Electrostatic powder coating offers enhanced surface protection and is available in multiple colors for aesthetic or functional identification.
- Stainless Steel (SS304 / SS316): Excellent resistance to corrosion, ideal for chemical plants, food processing facilities, and coastal areas.
Process of making Channel Cable Tray
- High-quality steel sheets or stainless steel plates are selected as raw materials.
- Sheets are cut to required sizes using precision cutting equipment.
- Punching or slotting is carried out to create cable management openings.
- Forming machines bend the sheets into channel shapes.
- Surface treatment is applied according to specified requirements.
- Finished products undergo inspection to ensure dimensional accuracy and surface quality.
- Packaging
Channel Cable Tray color options
- Green
- Blue
- Gray
- White
- Yellow
- Black
- Brown
- Many others, as your demand
