Defensive Barriers

1. Site Preparation & Foundation Leveling

Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and assembly. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with compacted gravel or sand to ensure that the defensive barriers can be placed stably and evenly. Next, according to the design drawings and actual defense requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the layout range and placement position of each defensive barrier unit. The foundation should be compacted to achieve sufficient bearing capacity to prevent sinking or deformation under impact. At the same time, mark the alignment lines to ensure the straightness and overall integrity of the entire defensive barrier structure.

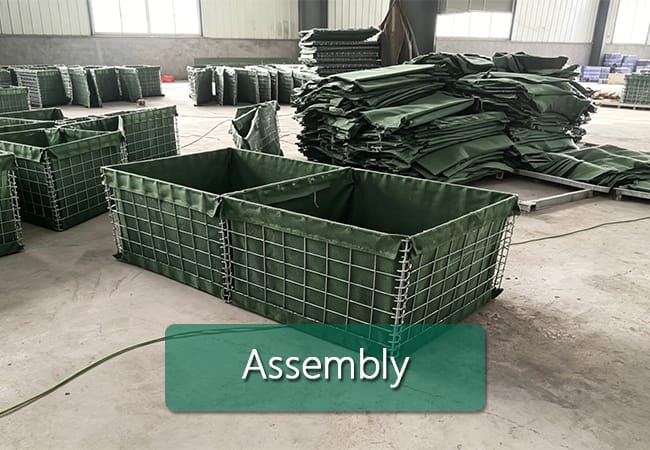

2. Barrier Unit Unfolding & Assembly

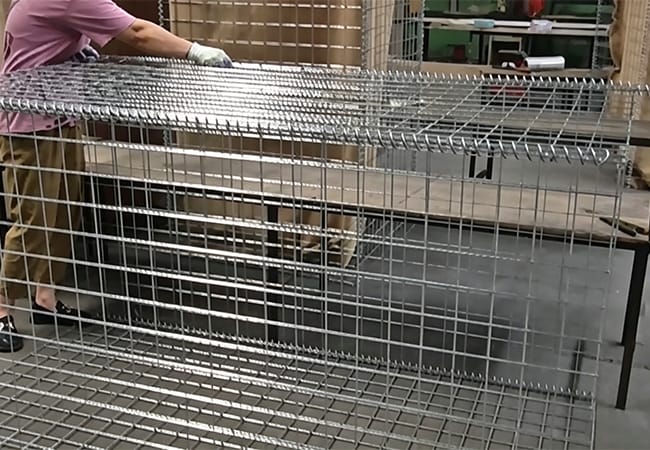

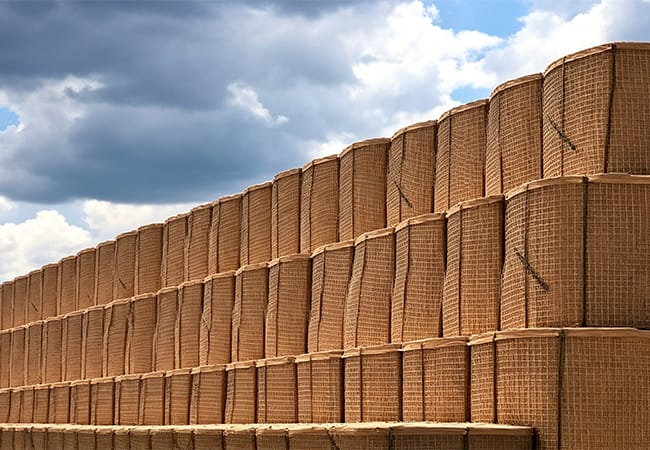

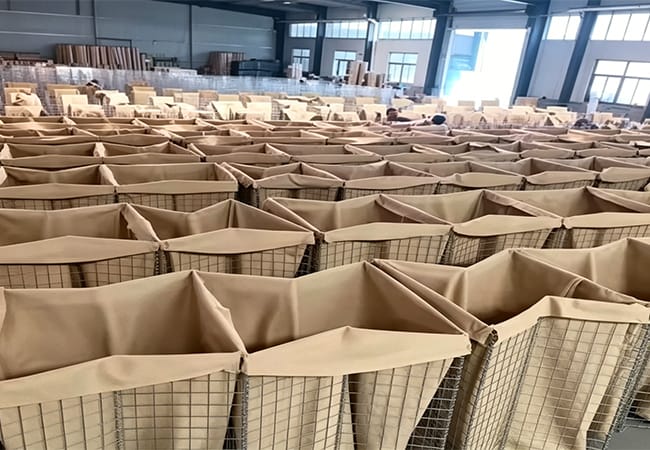

Barrier unit unfolding and assembly are core links affecting the overall stability of the defensive barriers, and every detail needs to be strictly controlled. First, unfold the folded defensive barrier units on the leveled foundation and check for any damage or deformation; ensure all mesh panels, frames and connecting parts are intact. Then, assemble the units into a stable box structure: fix the side panels and connecting joints with self-locking connectors or heavy-duty buckles, ensuring tight and firm connections. Align the barrier units accurately along the marked lines, and connect adjacent units transversely and longitudinally to form an integrated defensive system. For multi-layer stacking, place the upper-layer barriers with a proper overlapping pattern to enhance structural stability and impact resistance. Check the squareness and alignment of each unit to avoid skewing during filling.

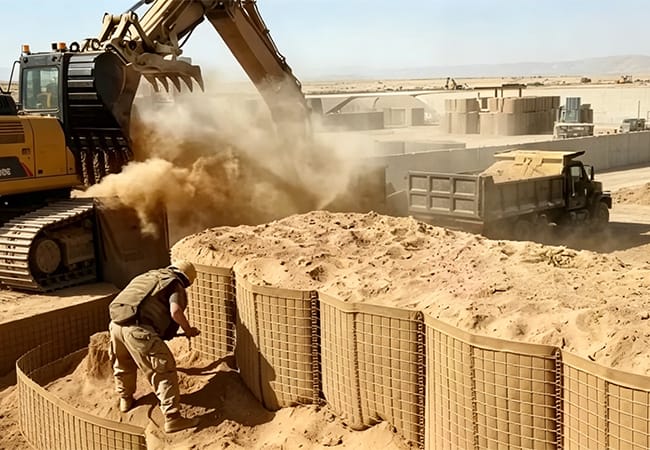

3. Filling & Compaction

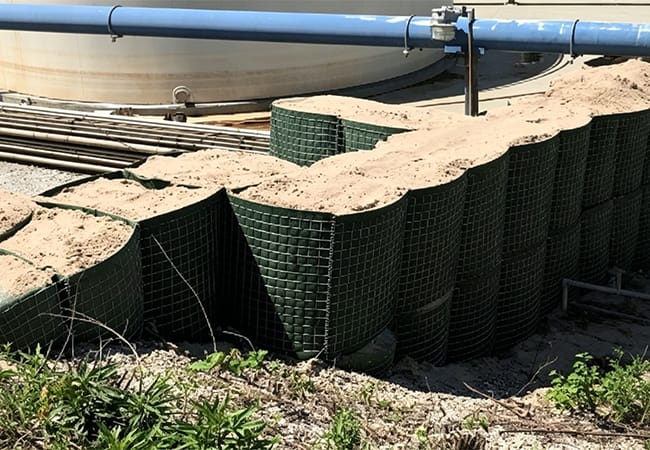

After the defensive barrier units are fully assembled and fixed, filling can be carried out. First, select local materials such as stones, sand, soil or gravel with suitable particle size and compactness. During filling, place larger aggregates at the outer sides and corners to maintain structural strength, and fill fine materials in the internal gaps to ensure high compactness. Fill the materials evenly layer by layer, and manually or mechanically compact the filling to eliminate voids; avoid overfilling to prevent barrier deformation. For high-height defensive walls, fill the barriers section by section to maintain overall balance. Ensure the filling surface is flat and the barrier mesh is not distorted, which guarantees the system’s stability and protective effect.

4. Top Cover & Connection Tightening

Top cover installation and connection tightening directly affect the structural integrity and service life of the defensive barriers. First, after filling is completed, cover the top of each barrier unit with the pre-attached mesh panel. Use heavy-duty connectors or binding wires to securely fasten the top cover to the side frames at intervals of 20–25 cm, ensuring all connections are tight and firm. Connect the top covers of adjacent barrier units together to enhance overall integration. Pay special attention to tightening the corners and edges to prevent material spillage or mesh loosening. Double-check all connection points to ensure no gaps or loose parts, which provides reliable protection in extreme environments.

5. Alignment & Stability Check

After the installation and filling of defensive barriers, a comprehensive alignment and stability check is required to ensure that the installation quality meets defense standards. First, use a level and plumb line to check the verticality of the barrier wall and the levelness of each layer: verticality error should not exceed 5mm per meter, and horizontal alignment should be consistent with the design. Then, check the overall straightness and structural stability: gently push the barrier to ensure no obvious shaking, displacement or loose connections. Check the tightness of all connections and the compactness of internal filling. If any problems are found (such as skewing, loose connections, uneven filling), adjust and reinforce them immediately to ensure structural safety and defensive durability.

6. Site Cleaning & Final Acceptance

The final step of the installation process is site cleaning and acceptance, which confirms that the defensive barrier system is up to standard. First, remove excess filling materials, debris, and wire scraps from the construction site, and clean the surface of the defensive barriers to maintain a neat appearance. Then, carry out comprehensive acceptance according to the design drawings and defense standards: check the barrier dimensions, alignment, verticality, filling compactness, and connection firmness; check for mesh damage, rust, or loose components; verify impact resistance, explosion protection and overall structural stability. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified immediately until they meet the defensive standards.

Note

During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the defensive barrier surface during installation to avoid damage to the surface treatment layer (such as galvanizing, PVC coating) which may affect the corrosion resistance and service life of the barriers. In high-risk or military areas, follow relevant safety regulations to ensure on-site security.
